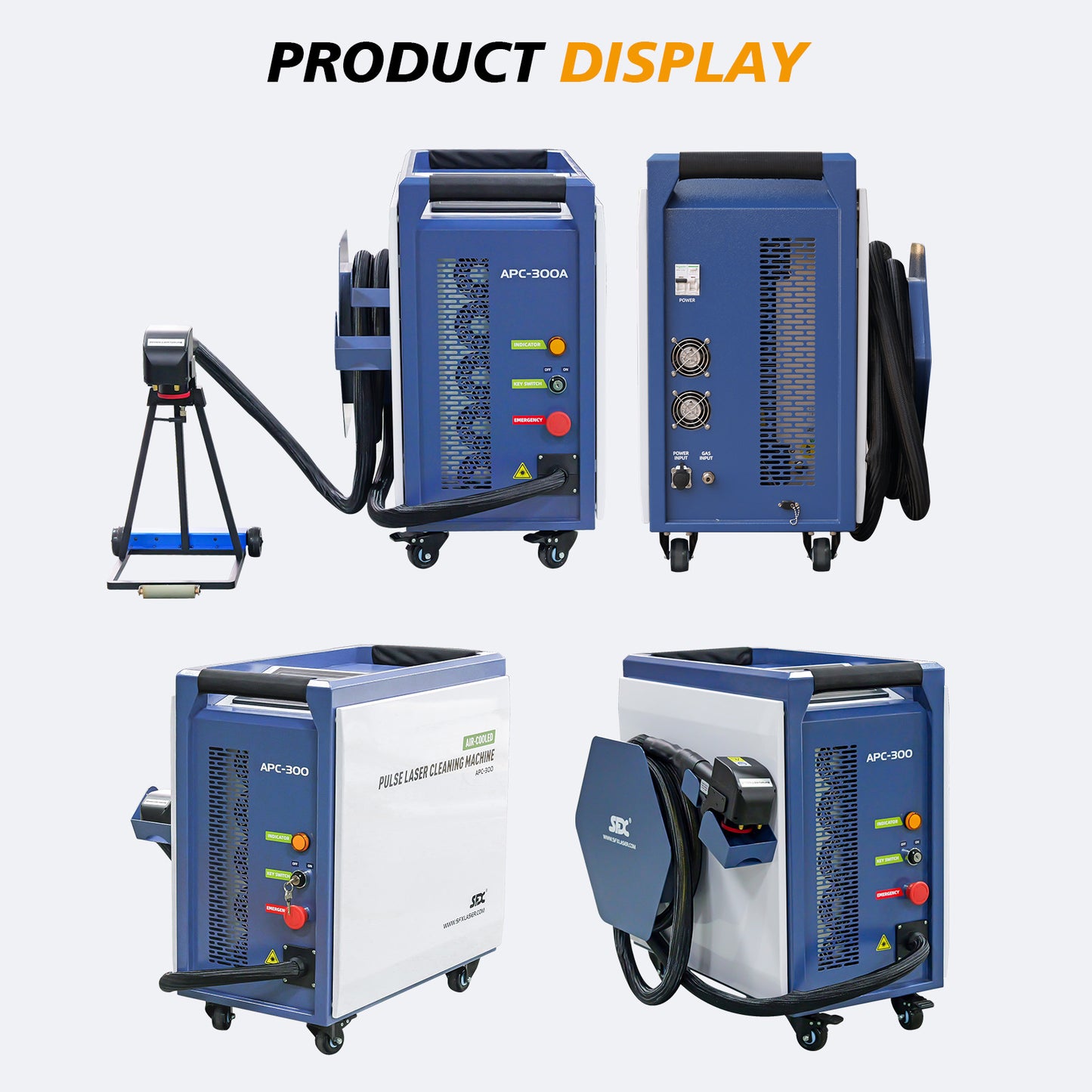

Only configuration difference between APC-200/APC-300 and APC-200A/APC-300A：

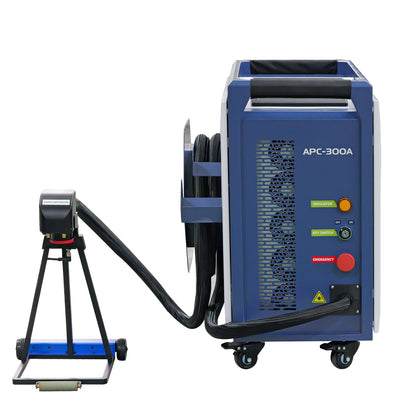

APC-200A/APC-300A comes with the self-propelled device, which has two operation modes: hand-held mode and self-propelled mode.
- It adopts an automatic drive system with fixed focal length, no manual holding is required, and the cleaning effect is uniform and consistent.
- It realizes multiple automatic operation modes such as reciprocating, fixed distance, and following, and the operation speed and distance can be customized.
- Self-propelled cleaning for large flat surface, the flat surface can assist in focusing and cleaning at a uniform speed.
- Hand-held mobile cleaning for various complex working conditions.
APC-200/APC-300 without self-propelled device, the operation mode is hand-held.

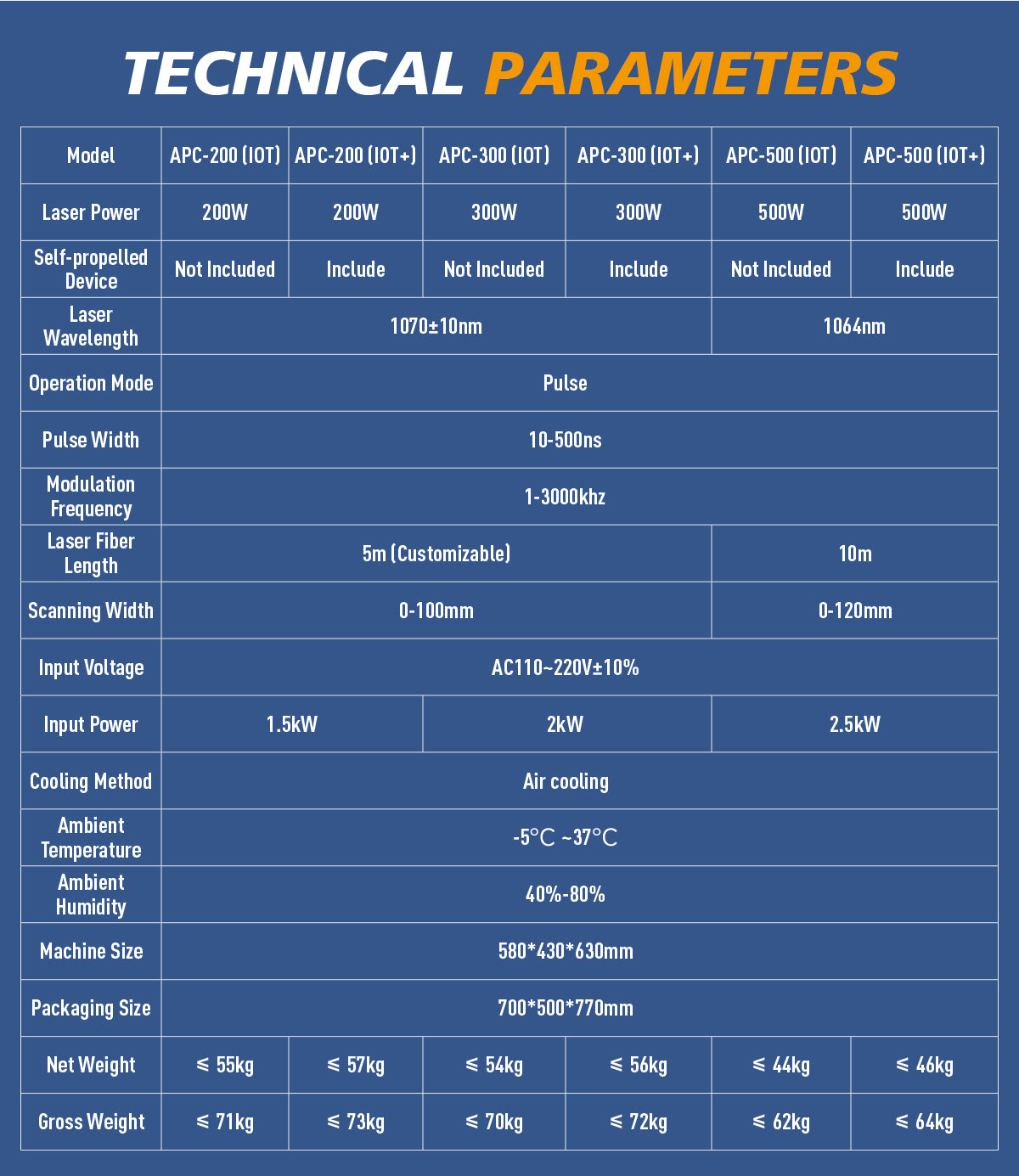

Technical Parameters
- Model: APC-200 / APC-300 / APC-200A
-
Laser Power: 200W / 300W / 200W
-
Self-propelled Device: Not Included / Not Included / Include
-
Laser Wavelength: 1070±10nm
-
Operation Mode: Pulse
-
Pulse Width: 10–500ns
-
Modulation Frequency: 1–3000KHz
-
Laser Fiber Length: 5m (Customizable)
-
Scanning Width: 0–100mm
-
Input Voltage: AC110~220V±10%
-
Input Power: 1.5KW / 2KW / 1.5KW
-
Cooling Method: Air cooling
-
Ambient Temperature: -5°C ~ 37°C
-
Ambient Humidity: 40%–80%
-
Machine Size: 580×430×630mm
-
Packaging Size: 700×500×770mm
-
Net Weight: ≤ 53kg / ≤ 52kg / ≤ 55kg
-
Gross Weight: ≤ 69kg / ≤ 68kg / ≤ 71kg
Advantage

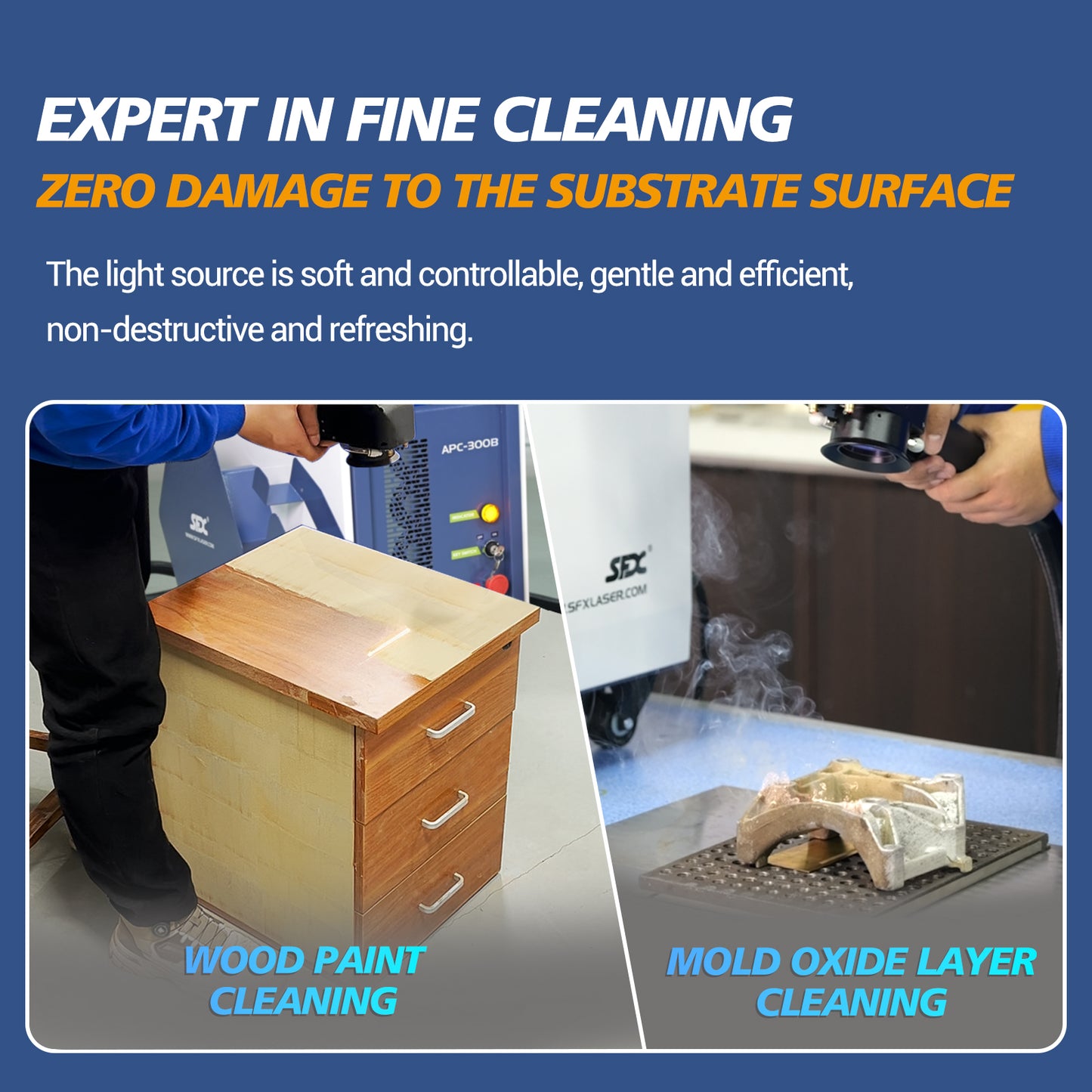

1. Precision Cleaning Without Damage
Equipped with a soft and controllable light source, it ensures efficient cleaning without harming the substrate surface. Delivers a refreshing, non-destructive finish every time.
2. Fully Automated Self-Propelled System
Features an automatic drive with fixed focal length—no manual holding required. Supports modes like reciprocating, distance-following, and custom path cleaning.
3. Adaptive for Any Scenario
Easily switches between handheld and self-propelled cleaning. Perfect for both complex surfaces and large flat areas, with stable focus and uniform speed.
4. Compact, Energy-Efficient, and Maintenance-Free
Air-cooled integrated structure with a footprint of just 0.15m². Lightweight, energy-saving, and designed for long-term use with zero maintenance.
5. Advanced Functions & High-Reflection Safety
Offers 6 preset + 3 customizable cleaning processes and 8 graphic modes. Effectively cleans high-reflection materials like copper, aluminum, and gold without damaging the laser.

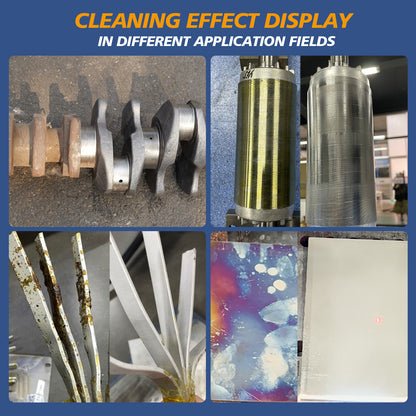

Wildly Used Across Various Industries
Applicable to wooden furniture restoration,cultural relics restoration,precision mold cleaning,automobile repairs,rubber molds,high-end machinery and equipment,rail transportation maintenance and other fields.
Warranty
-
One year warranty for the whole machine and two years warranty for the laser source.
-
We provide professional technical support. English user manual, operation video sending together with the machinery.
- During the warranty period, if the spare parts was sent back for repair, we will pay for the returning shipping cost and fees, repair them for free including the new parts that needed. (exclude wearing parts)
- We have after-sales service centers in the United States and Canada.
- We provide lifelong after-sales service.
