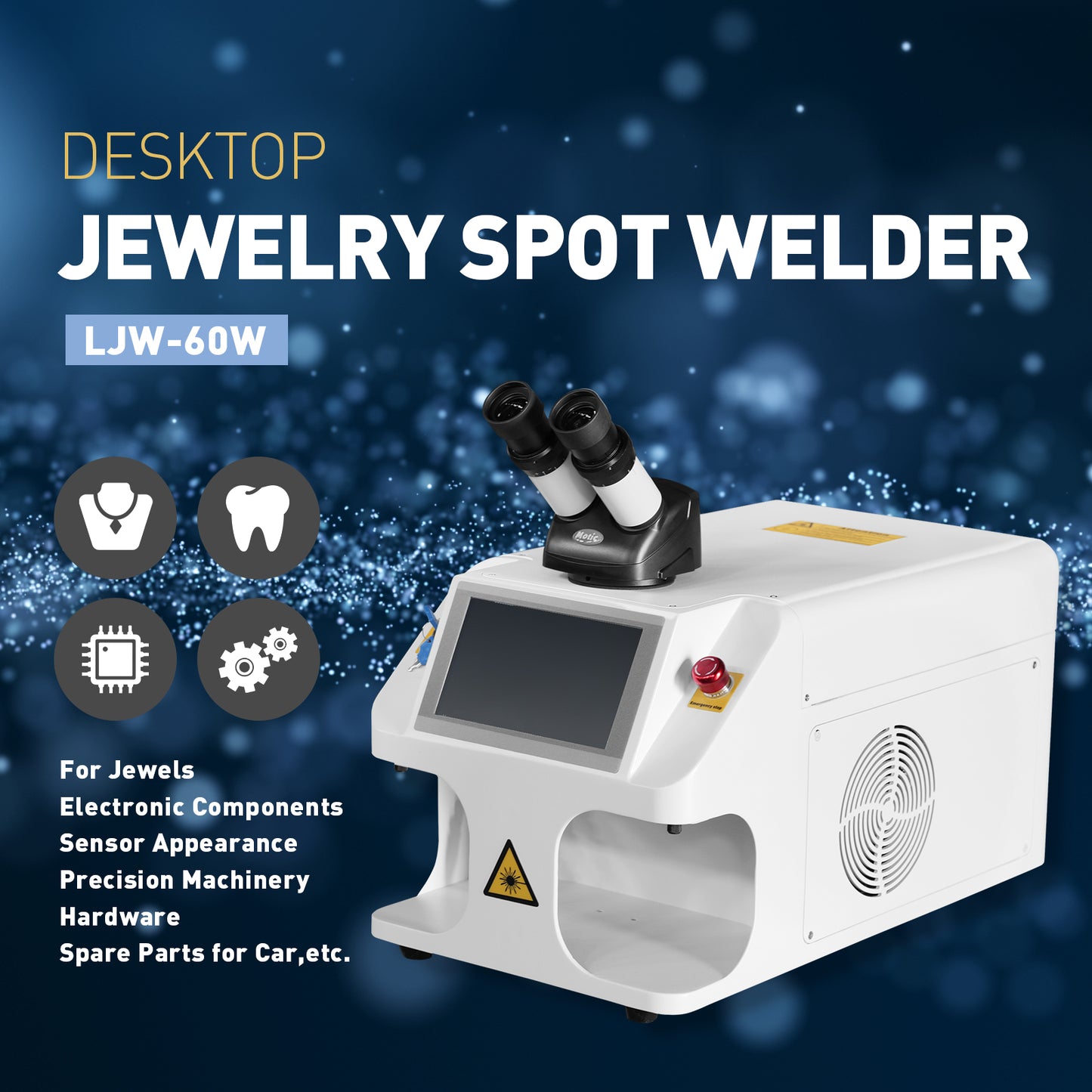

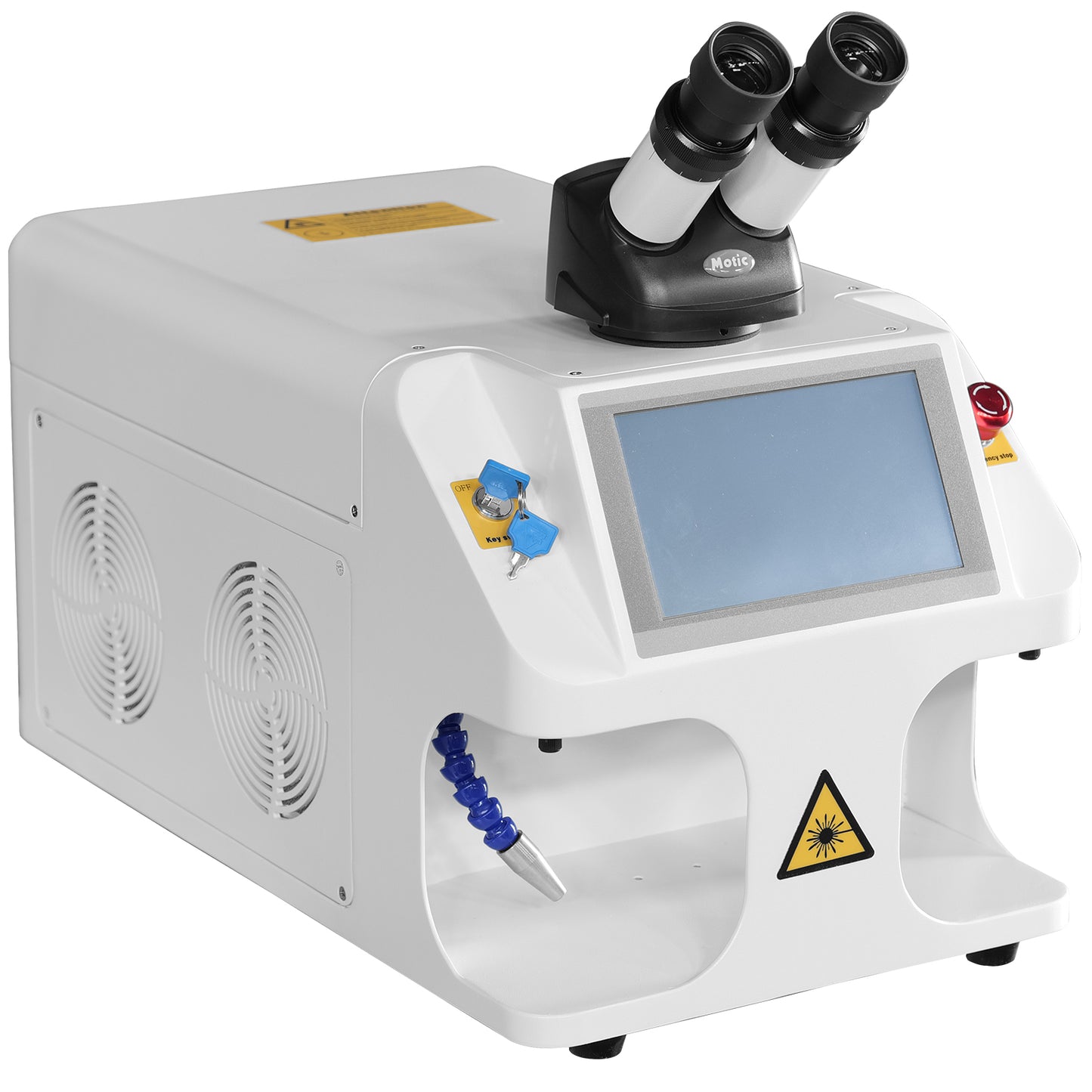

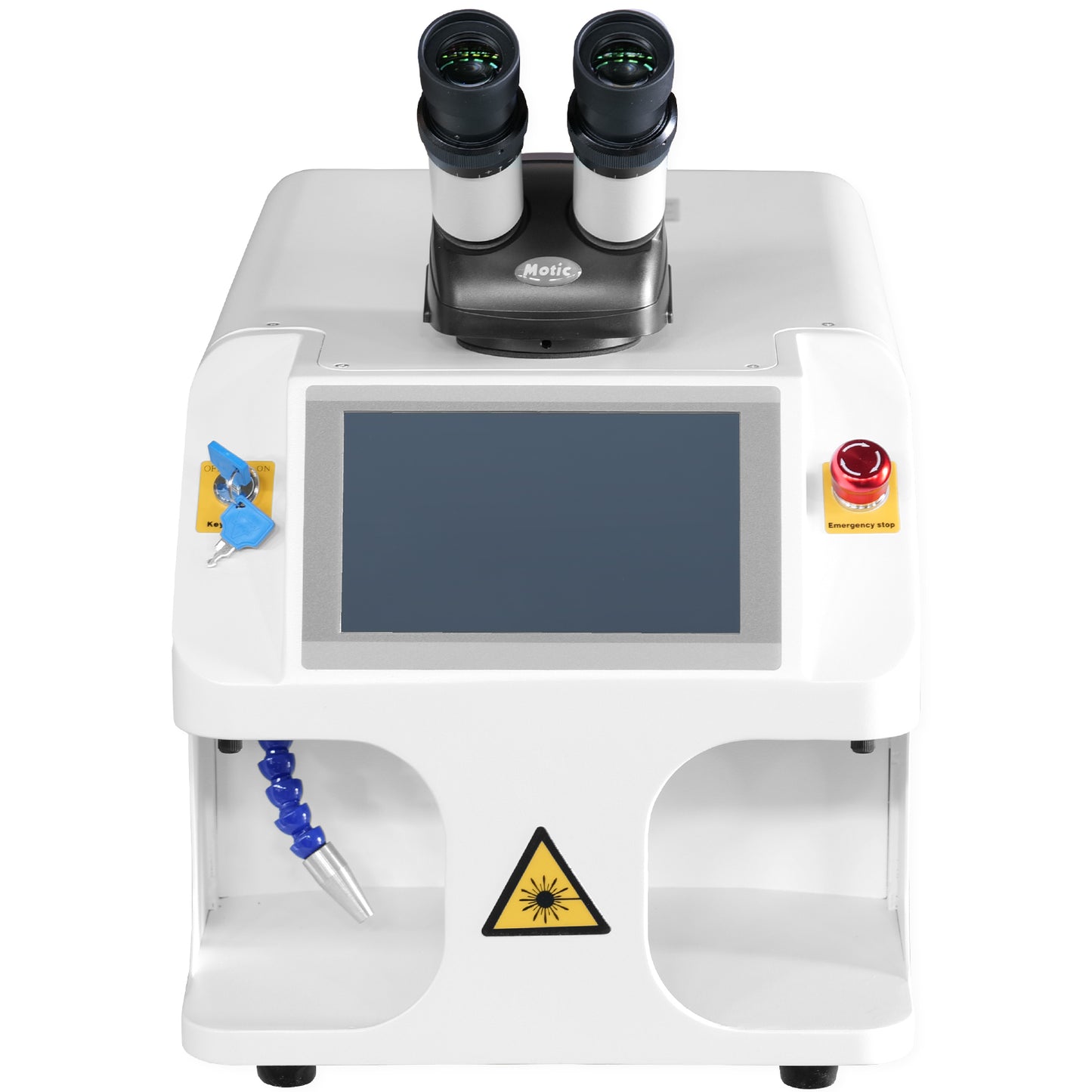

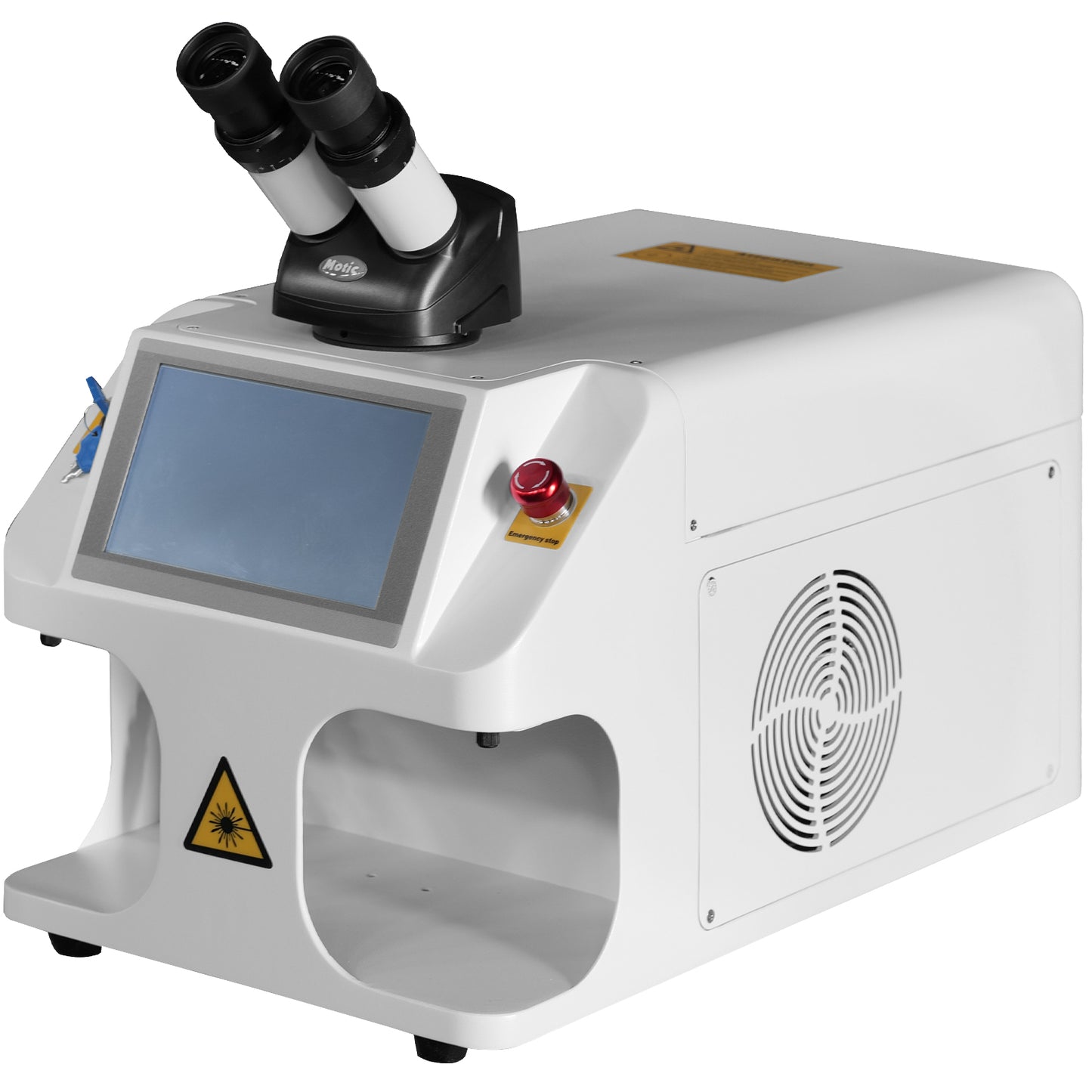

60W 40J Laser Spot Welding Machine for Gold/Silver/Titanium/Platinum Jewelry

60W 40J Laser Spot Welding Machine for Gold/Silver/Titanium/Platinum Jewelry

Regular price $6,099.00 USD
Regular price Sale price $6,099.00 USD
Sale Sold out
Tax included.

Shipping: FREE Shipping

Delivery: 3~5 days

Handling time: Will ship within 2~3 business days of receiving full payment.

Product Advantage

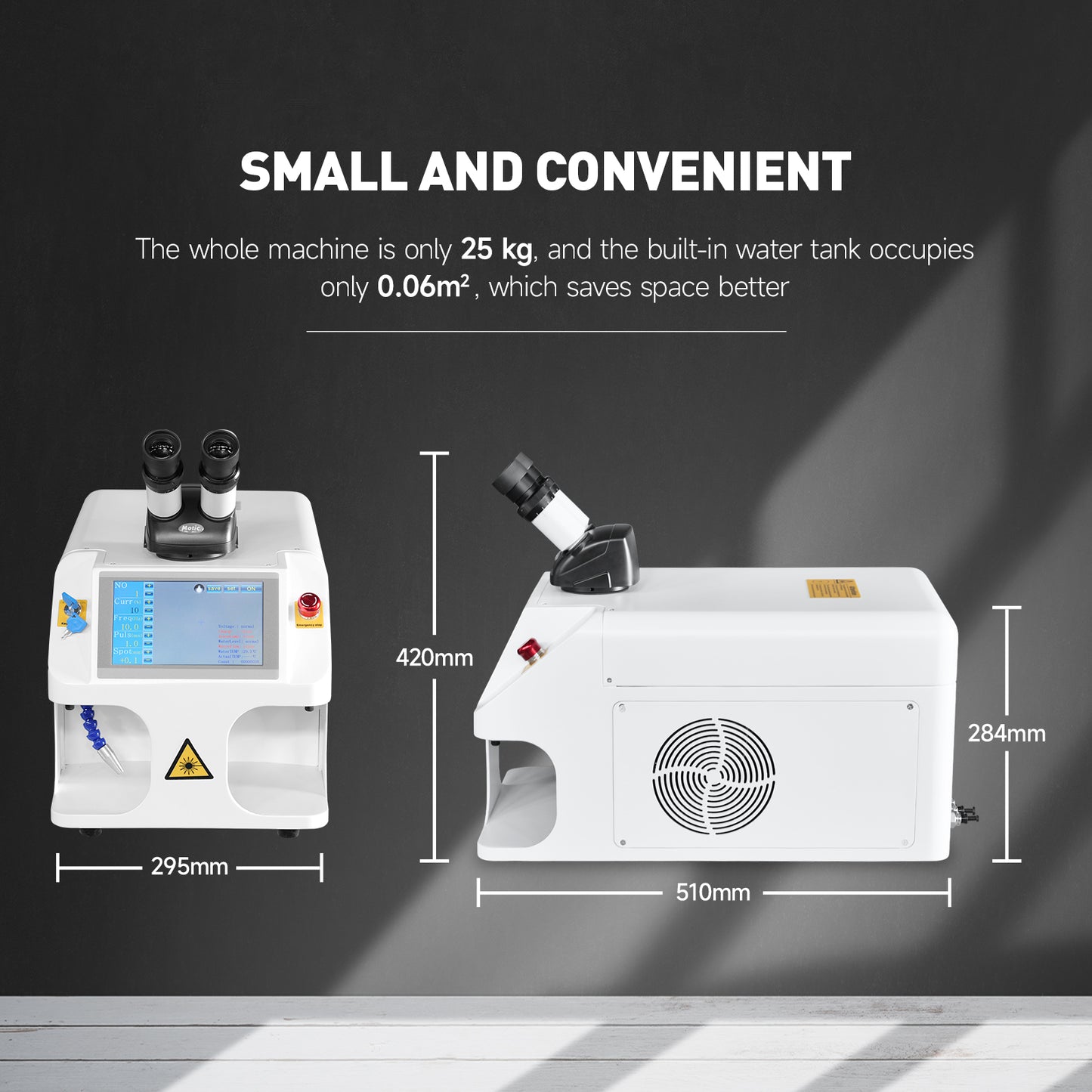

  1. The whole machine is only 25kg,and the built-in water tank occupies only 0.06m², which saves space better.

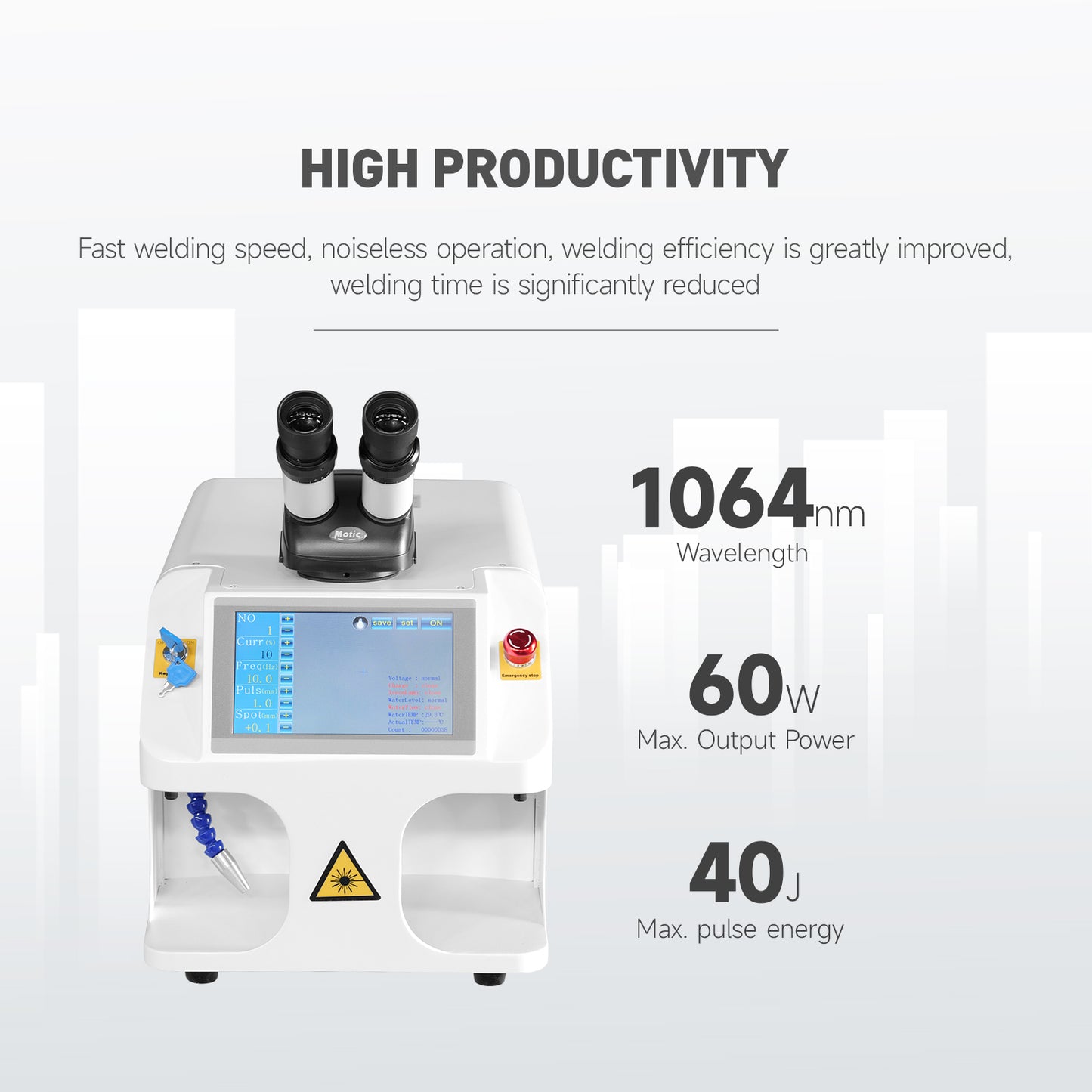

  2. Fast welding speed,noiseless operation, welding efficiency is greatly improved, welding time is significantly reduced.

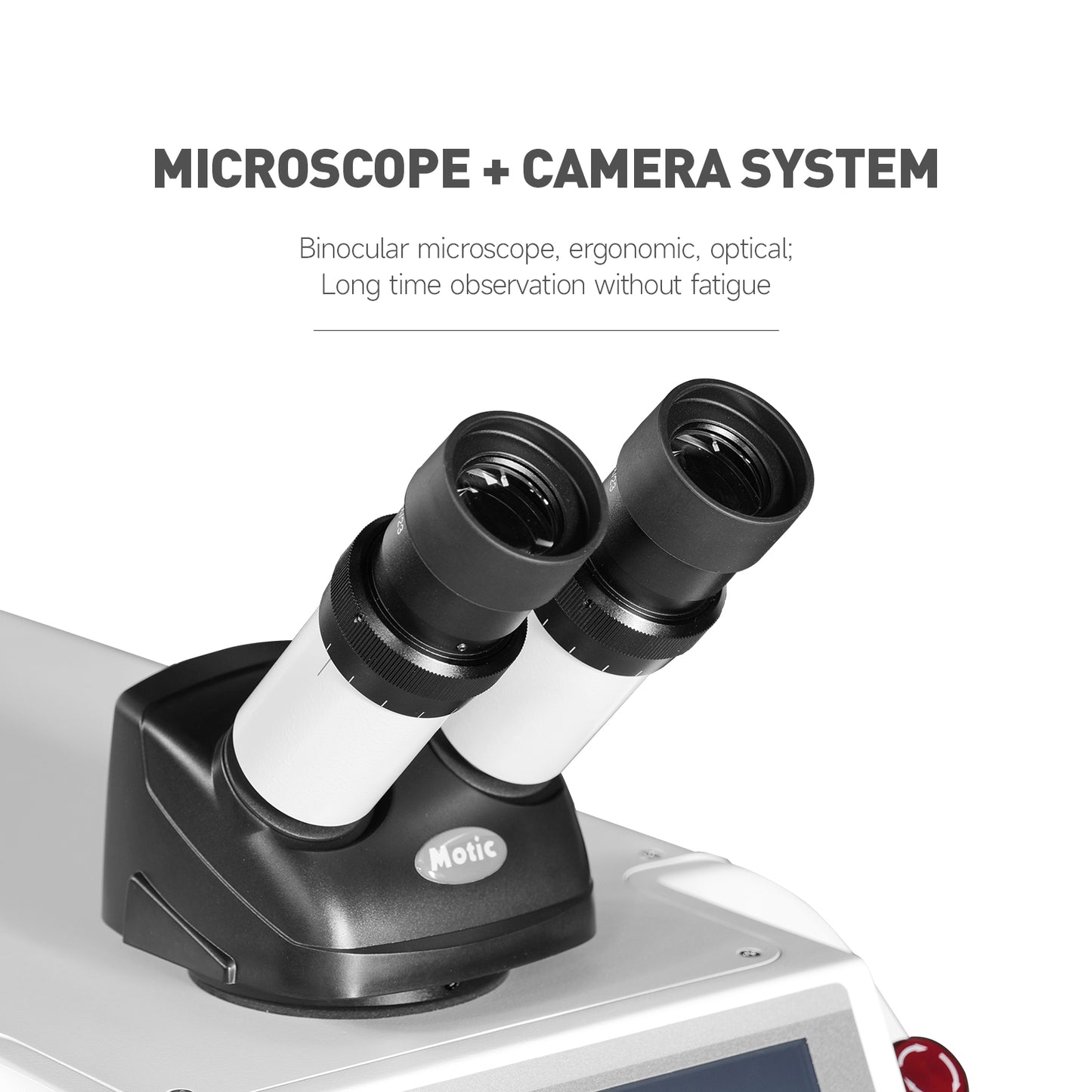

  3. Binocular microscope,ergonomic, optical; long time observation without fatigue.

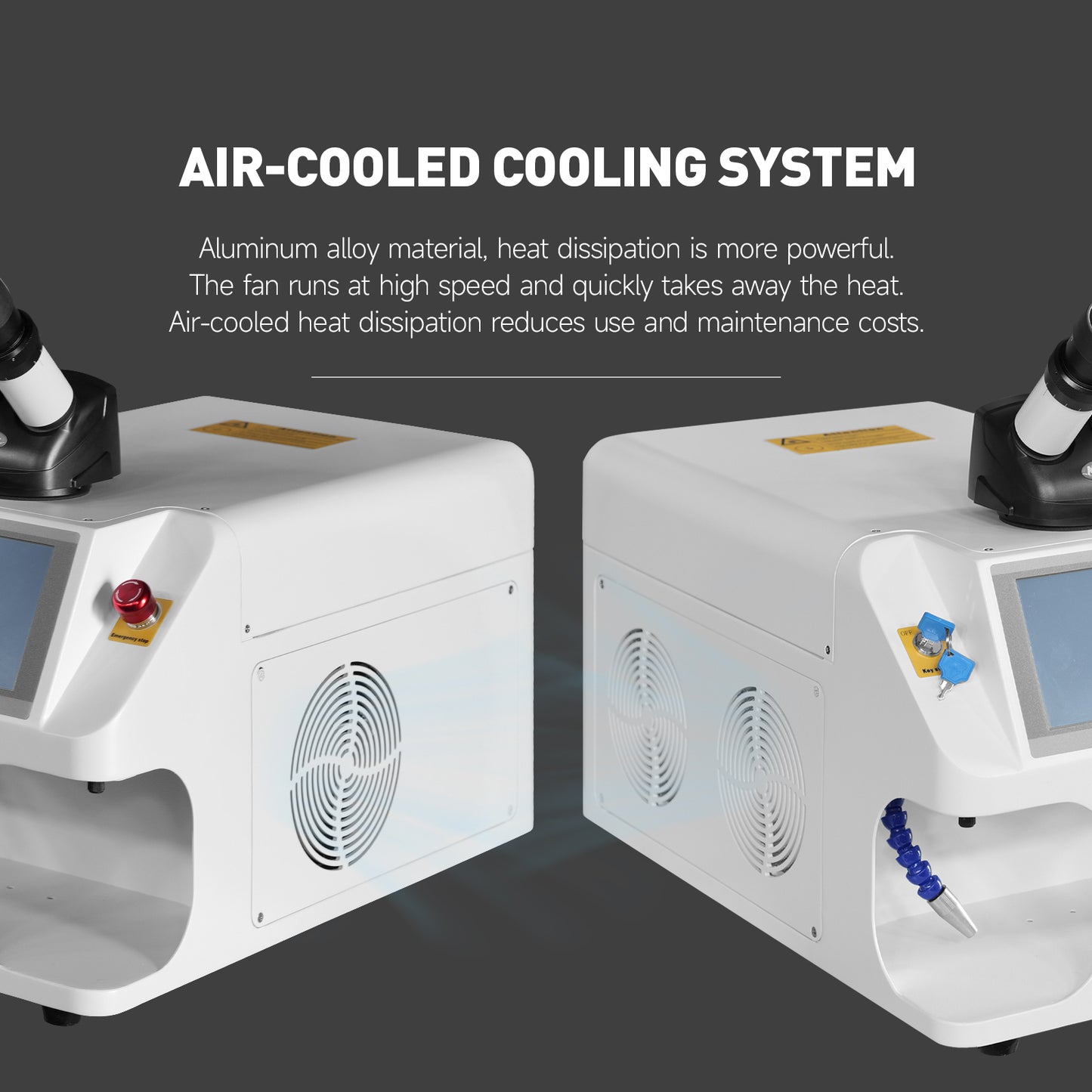

  4. Aluminum alloy material,heat dissipation is more powerful. The fan runs at high speed and quickly takes away the heat. Air-cooled heat dissipation reduces use and maintenance costs.

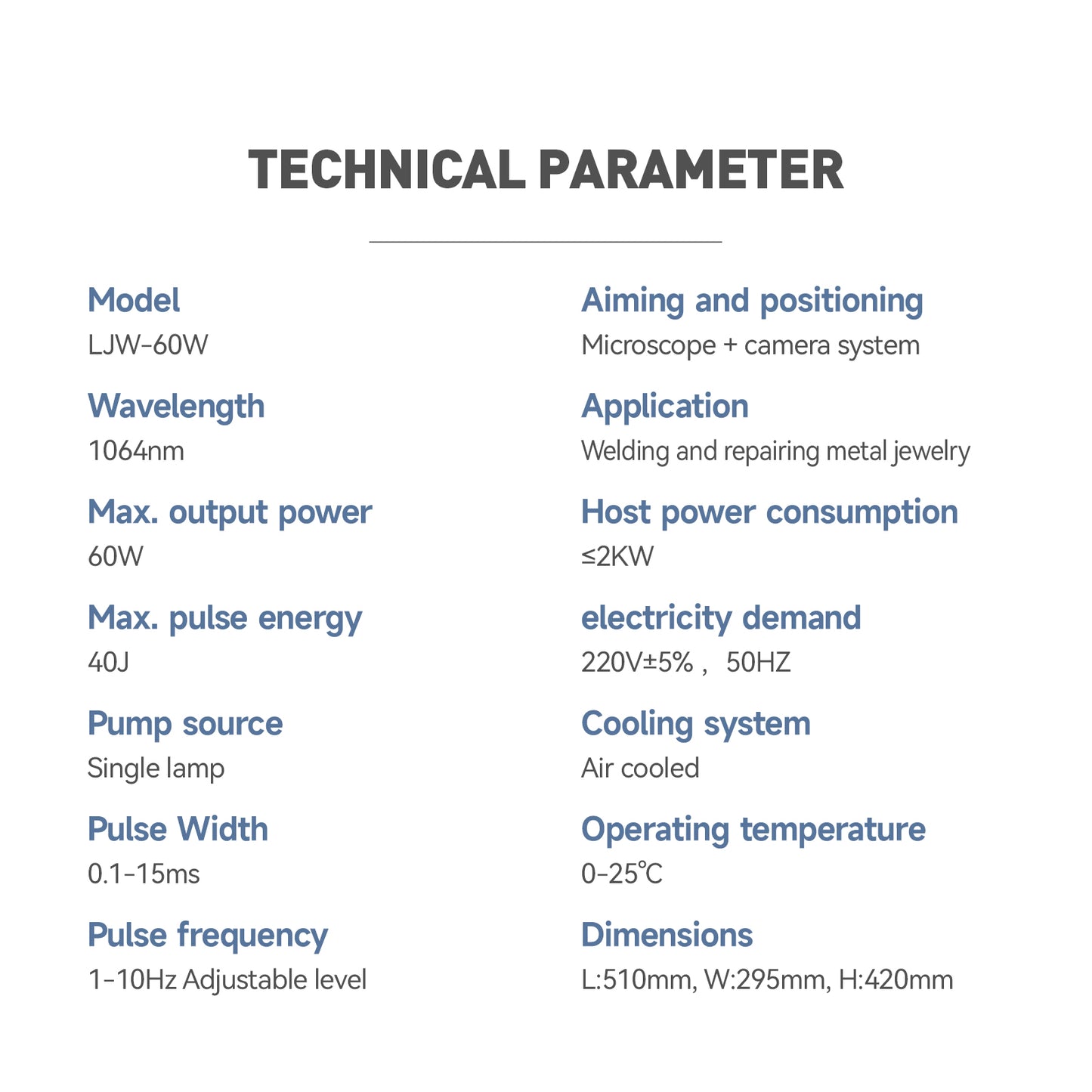

Technical Parameters

Model: LJW-60W

Wavelength: 1064nm

Max. Output Power: 60W

Max. Pulse Energy: 40J

Pump Source: Single Lamp

Pulse Width: 0.1-15ms

Pulse Frequency: 1-10Hz Adjustable Level

Aiming and Positioning: Microscope + Camera System

Application: Welding and Repairing Metal Jewelry

Host Power Consumption: ≤2KW

Electricity Demand: 220V±5%, 50HZ.

Cooling System: Air Cooled

Operating Temperature: 0-25℃

Dimensions(L*W*H): 510*295*420mm

Application Industry

For mobile communications industry, the arts and crafts, jewels, electronic components, sensor appearance, precision machinery, hardware, spare parts for car, etc.

Application Material

Widely used in precision machining of small parts, rings, pendants, bracelets, dentures, mobile phone charger interfaces, hardware, watches, sporting goods, golf heads, medical equipment. Titanium alloy jewelry, especially used for hole patching of gold and silver jewelry, spot welding seam pattern, inlaid parts and other welding.

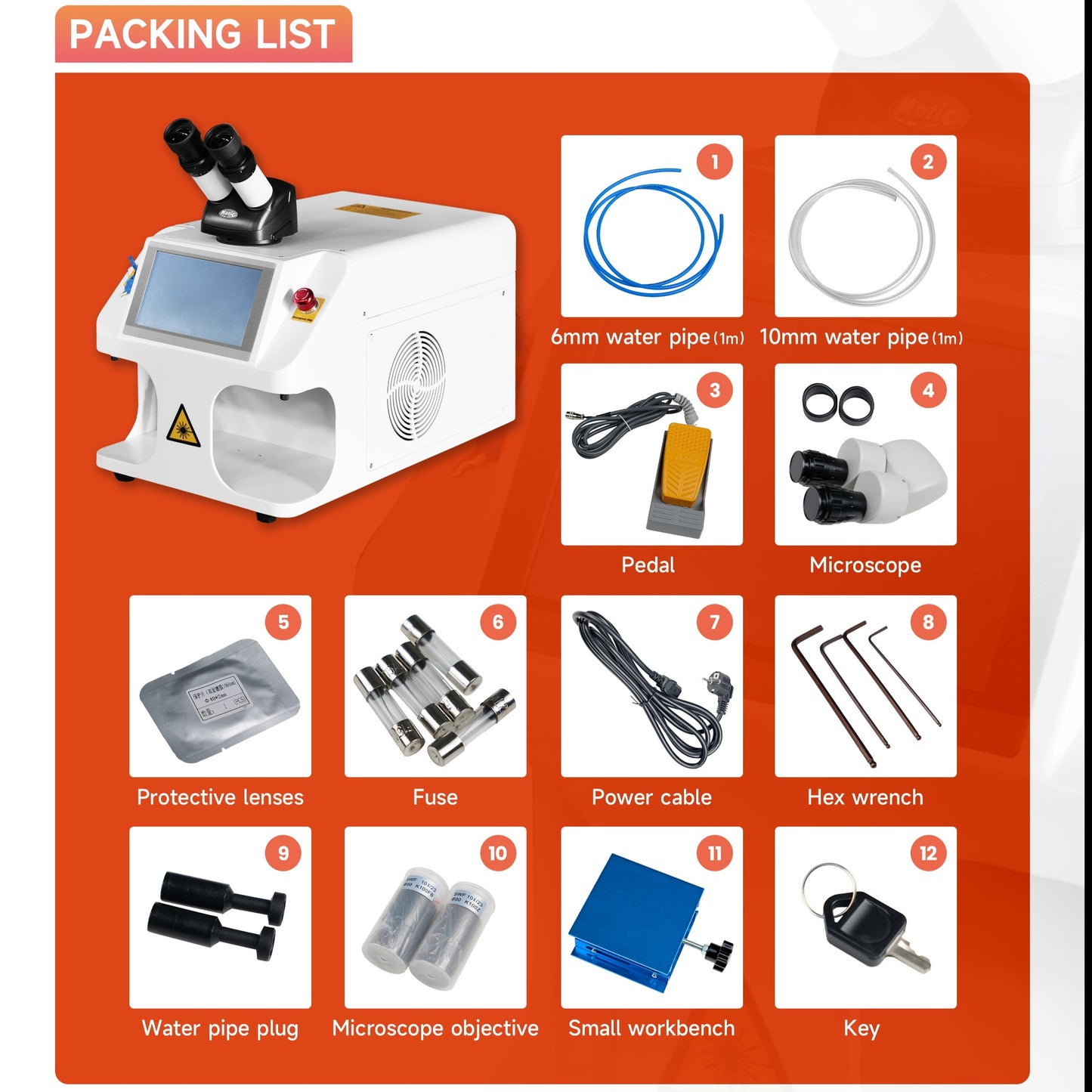

One-Year warranty. We provide professional technical support. English user manual, operation video sending together with the machinery. We have after-sale service center in NY, US.
During the warranty period, if the spare parts was sent back for repair, we will pay for the returning shipping cost and fees, repair them for free including the new parts that needed. We provide lifelong after-sales service and technical support.
