SFX Fully Enclosed Platform On-line Four-axis Linkage Automatic Laser Welding Machine 150W 300W

Payment: 30% prepayment, 70% payment before delivery.

Click to view more case videos.

Shipping: FREE Shipping

Delivery: 30~35 days by Sea & Truck.
Handling time: Will ship within 5~7 business days of receiving full payment.

**Reminder for Laser Equipment**: Summer Heat Protection and Winter Freeze Prevention.

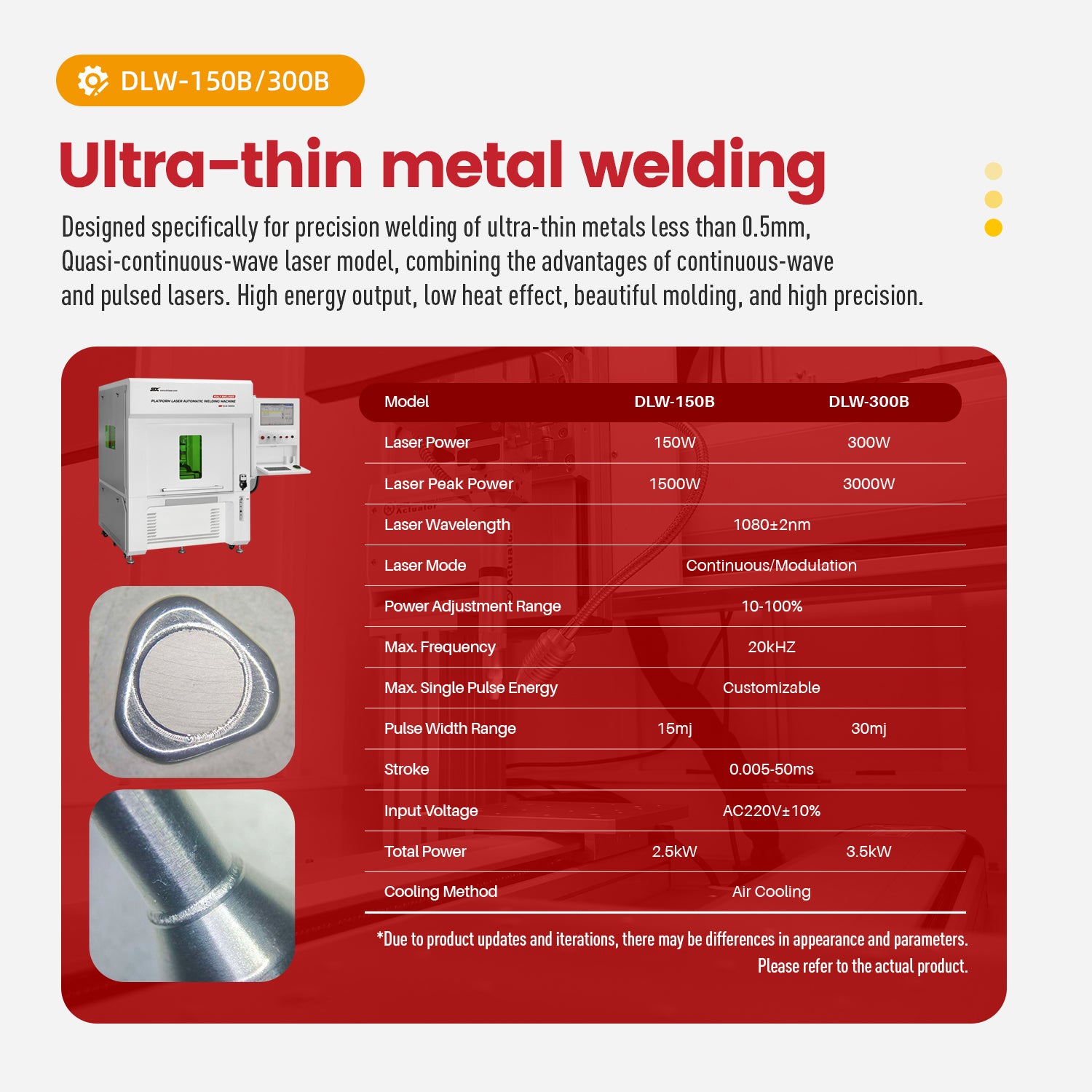

Product Paramaters :

• Model: DLW-150B / DLW-300B
• Laser Power: 150W 300W
• Laser Wavelength: 1080±2nm
• Laser Mode: Continuous / Modulation
• Max. Frequency: 20KHz
• Pulse Width Range: 15mj / 30mj
• Stroke: 0.005-50ms
• Input Voltage: AC220V±10%
• Total Power: 2.5KW / 3.5KW
• Cooling Method: Air Cooling

Advantage:

1. Fully automatic on-line welding of small and medium-sized workpieces and complex workpieces
   Positioning Focus. Ease of use in a variety of situations.
   Full Range of CNc systems. Cross-Stage stability. Smoother welding.
2. Intelligent Motion Trajectory
   Four-axis Linkage. Double-pendulum Galvanometer
   Meets the requirements of complex working conditions and realizes oblique seam welding and three-dimensional welding.
3. On-line Linkage Automation
   Full automated on-line welding with assembly line communication.Dual-station automatic changeover with robotic arm.
4. Teach-In Programming
   Multilingual process library. Set it once, use it directly at any time,getting started quickly.
5. Ultra-thin Metal Precision Welding
   Designed specifically for precision welding of ultra-thin metals below 0.5 mm, ensuring excellent weld quality with minimal deformation.

6. QCW Laser Technology
   Combines the advantages of continuous-wave and pulsed lasers, delivering high energy output, low heat input, superior weld appearance, and exceptional precision.


Warranty

• One year warranty for the whole machine and two years warranty for the laser source.
• We provide professional technical support. English user manual, operation video sending together with the machinery. During the warranty period, if the spare parts was sent back for repair, we will pay for the returning shipping cost and fees, repair them for free including the new parts that needed. (exclude wearing parts)
• We have after-sales service centers in the United States and Canada.
• We provide lifelong after-sales service and technical support.
