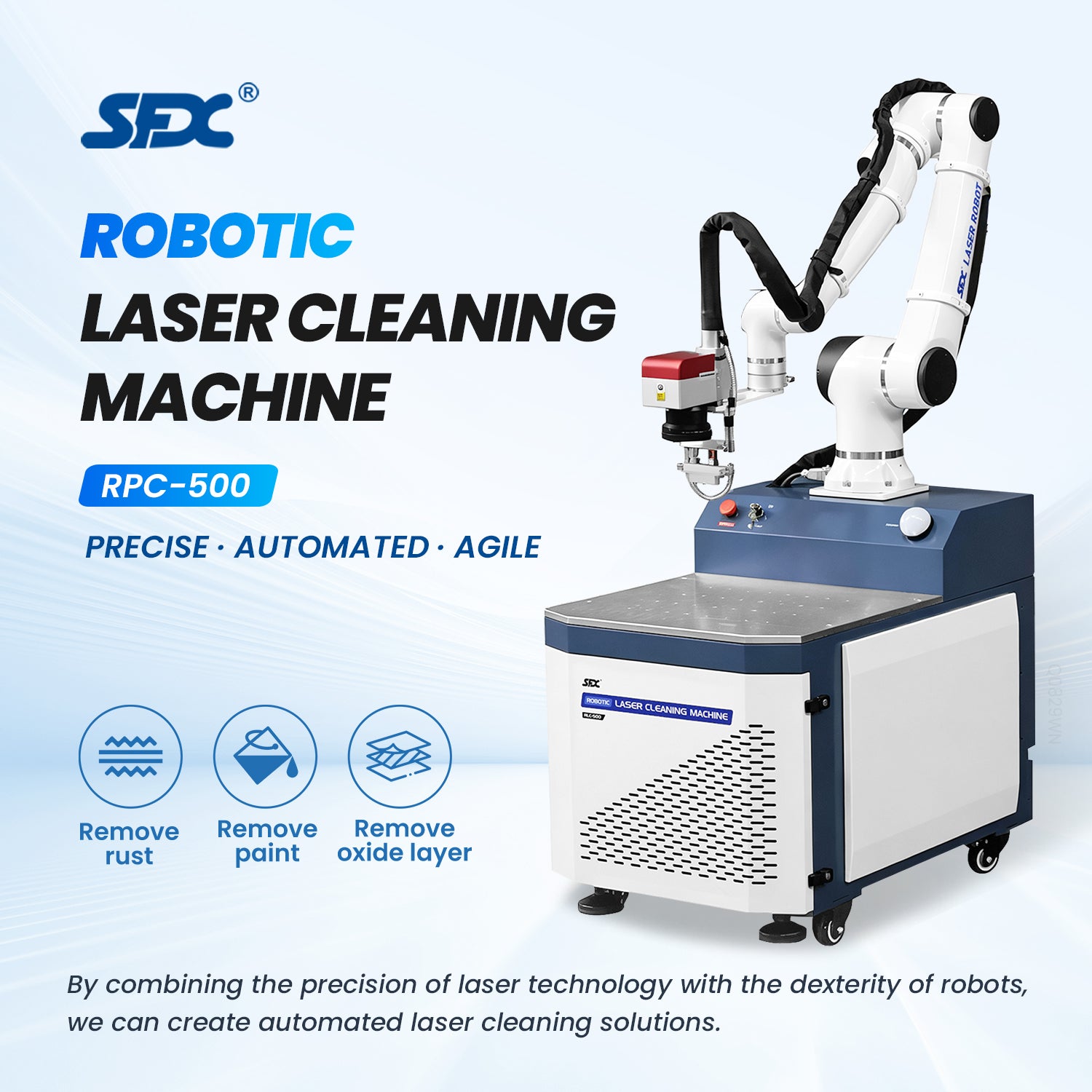

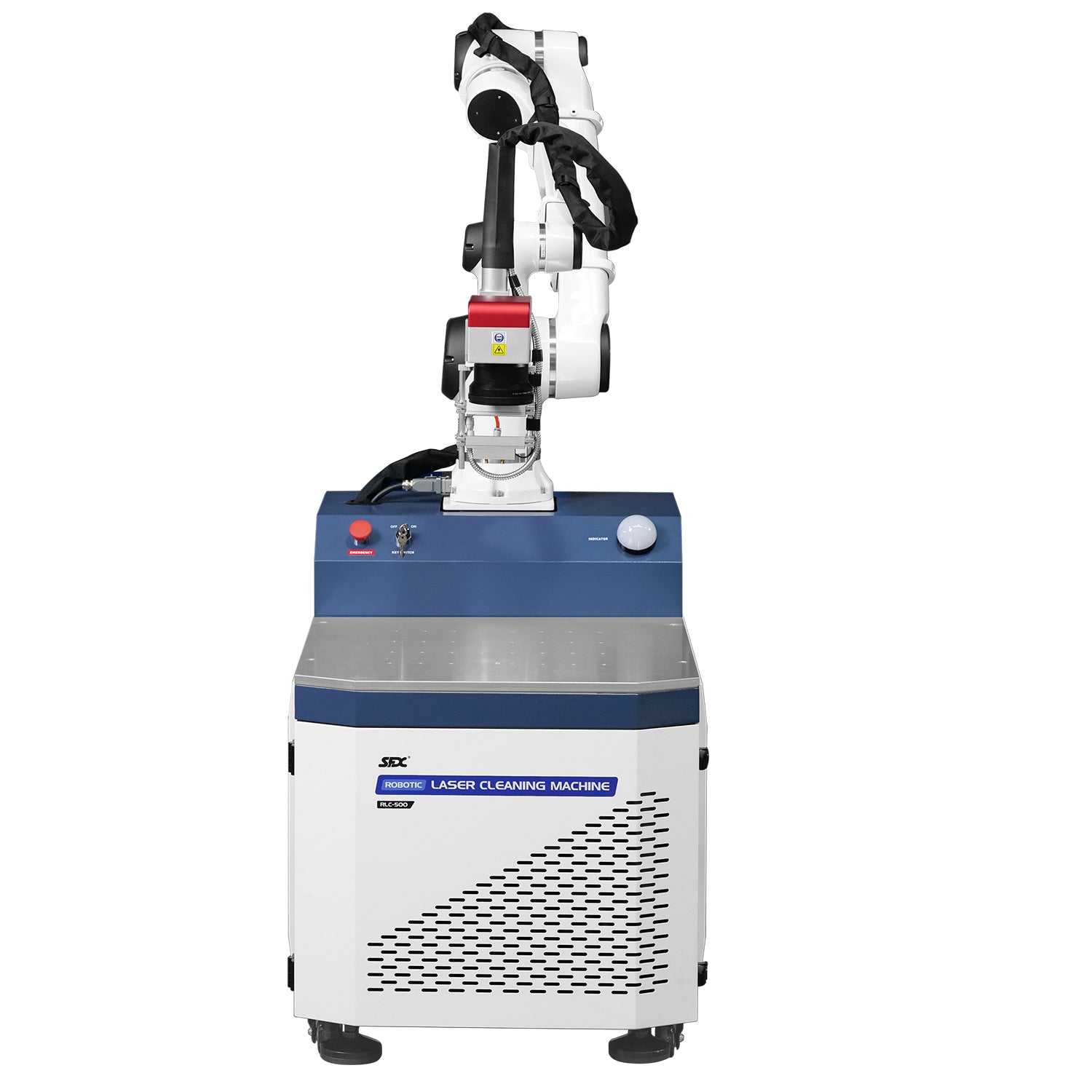

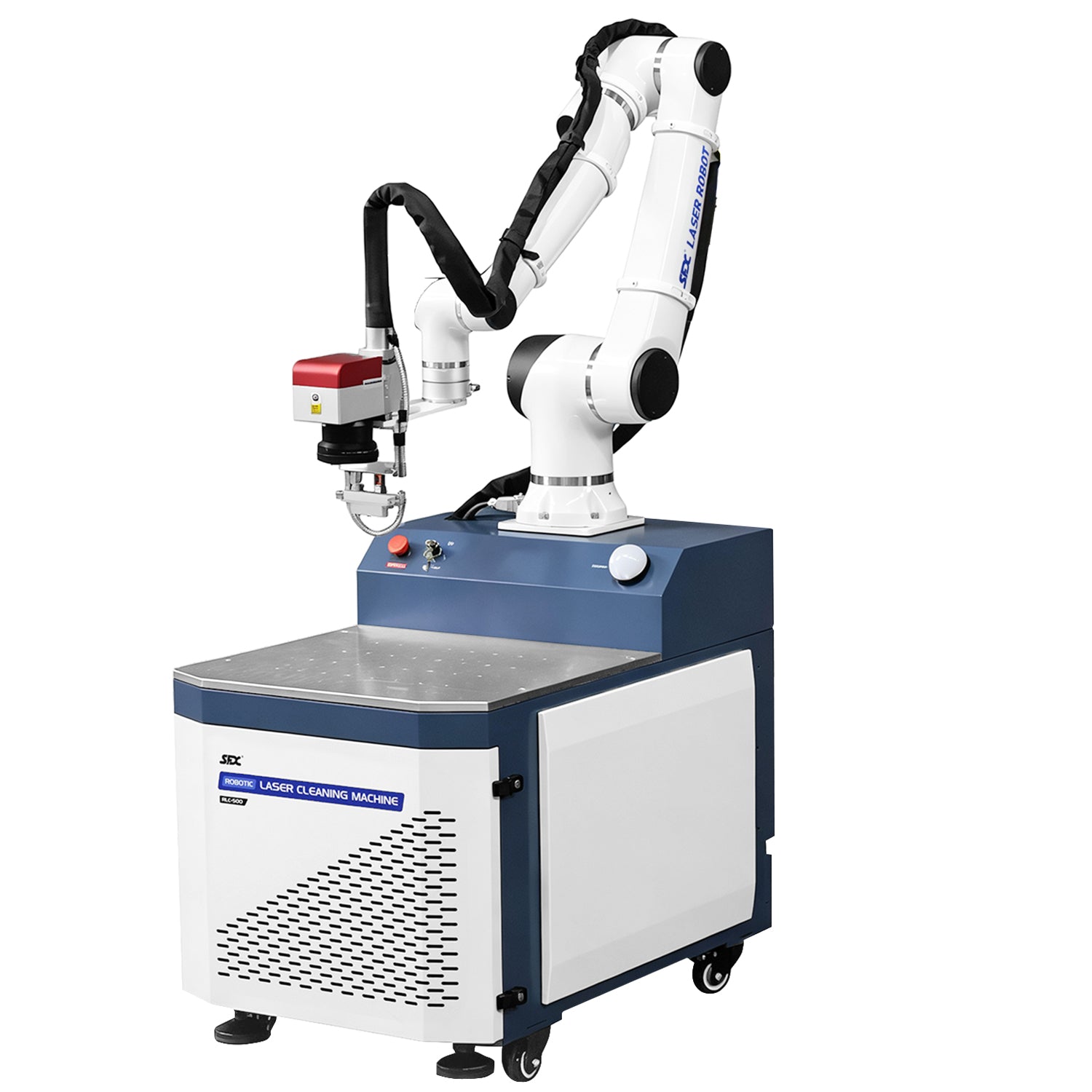

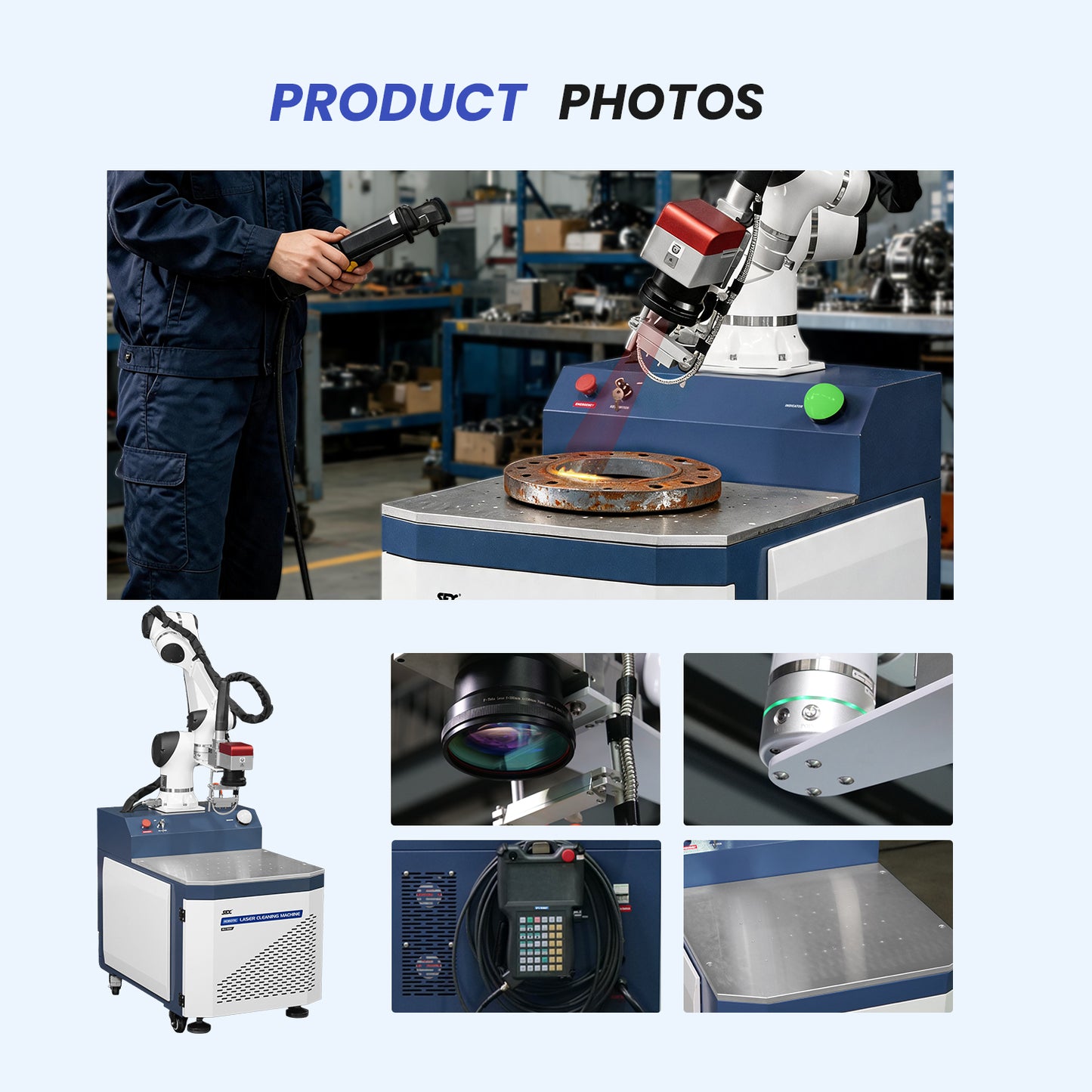

SFX 6-Axis Pulsed Robotic Laser Cleaning Machine Automatic Rust Oil Paint Coating Remover 500W

Payment: 30% prepayment, 70% payment before delivery.

Shipping: FREE Shipping

Delivery: 30~35 days by Sea&Truck.
Handling time: Will ship within 5~7 business days of receiving full payment.

Reminder for Laser Equipment: Summer Heat Protection and Winter Freeze Prevention.

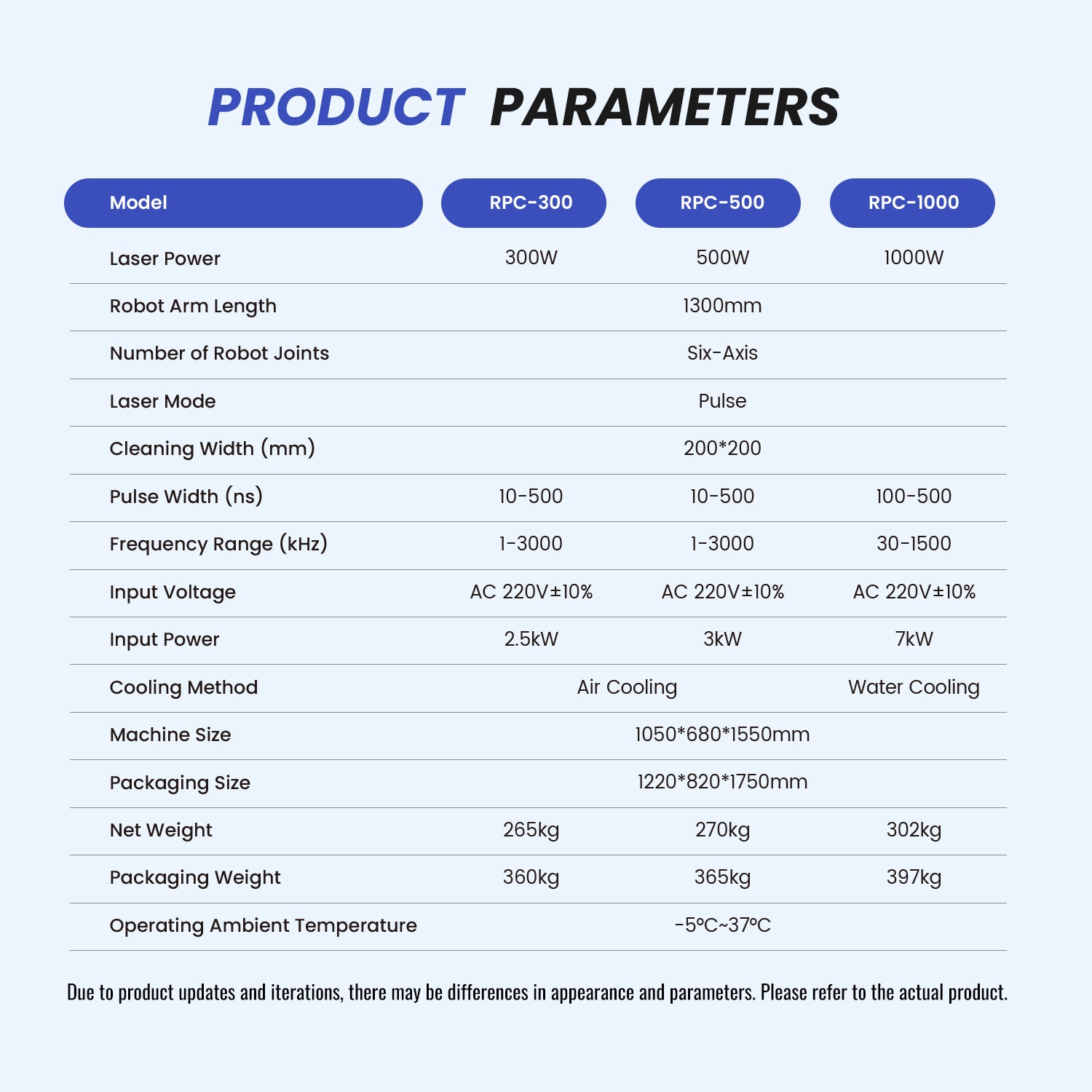

Product Parameters:

• Model: RPC-300 / RPC-500 / RPC-1000
• Laser power: 300W / 500W / 1000W
• Robot Arm Length: 1300mm
• Number of Robot Joints: Six-Axis
• Laser Mode: Pulse
• Cleaning Width: 200*200mm
• Pulse Width: 10-500ns / 10-500ns / 100-500ns
• Frequency Range: 1-3000kHz / 1-3000kHz / 30-1500kHz
• Input Voltage: AC220V±10%
• Input Power: 2.5kW / 3kW / 7kW
• Cooling Method: Air Cooling / Air Cooling / Water Cooling
• Machine size: 1050*680*1550mm
• Package size: 1220*820*1750mm
• Net weight: 265kg / 270kg / 302kg

• Packaging Weight: 360kg / 365kg / 397kg
• Operating Ambient Temperature: -5℃~37℃

Features and Advantages:

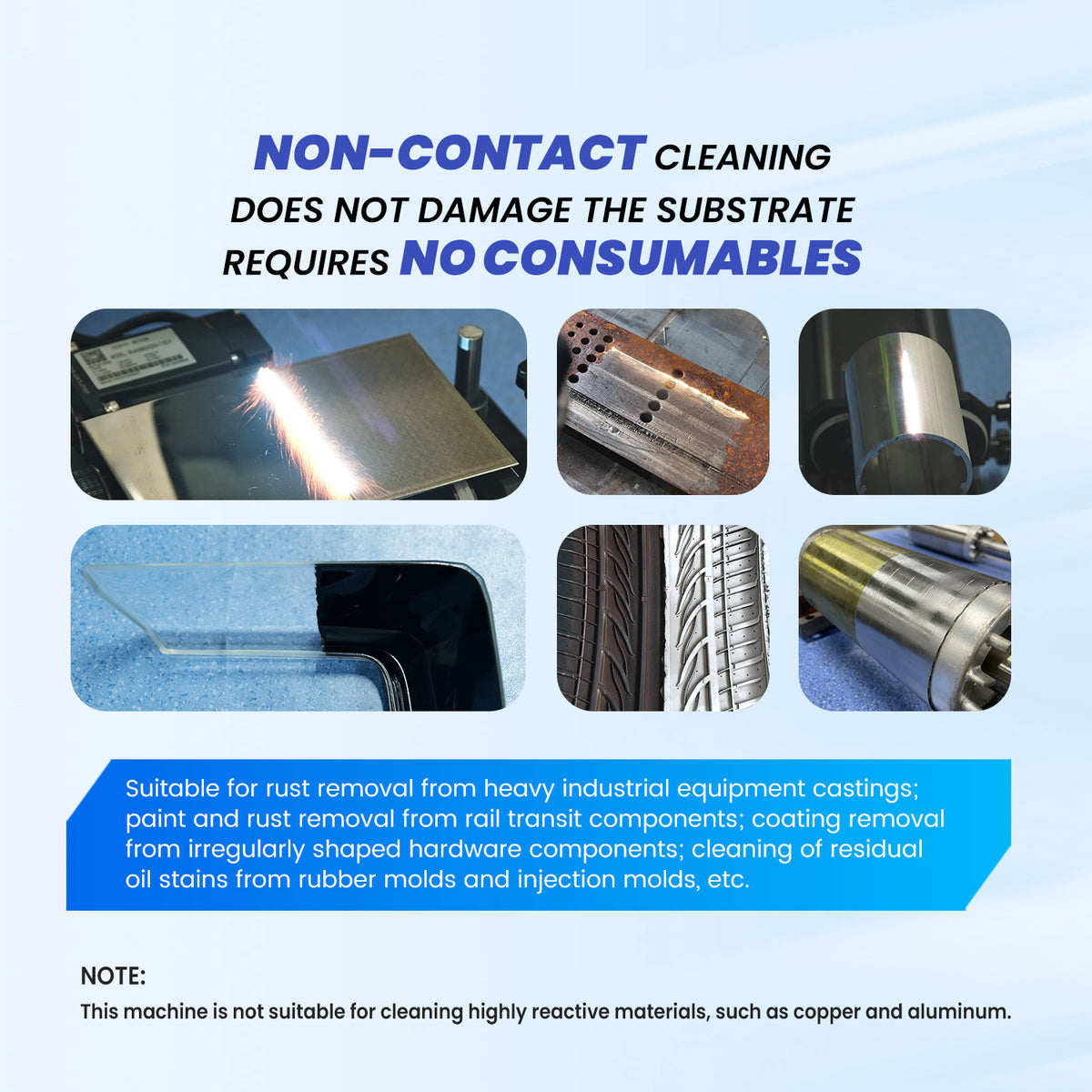

• Non-Contact Cleaning. No consumables required, minimizing mechanical damage to the substrate.

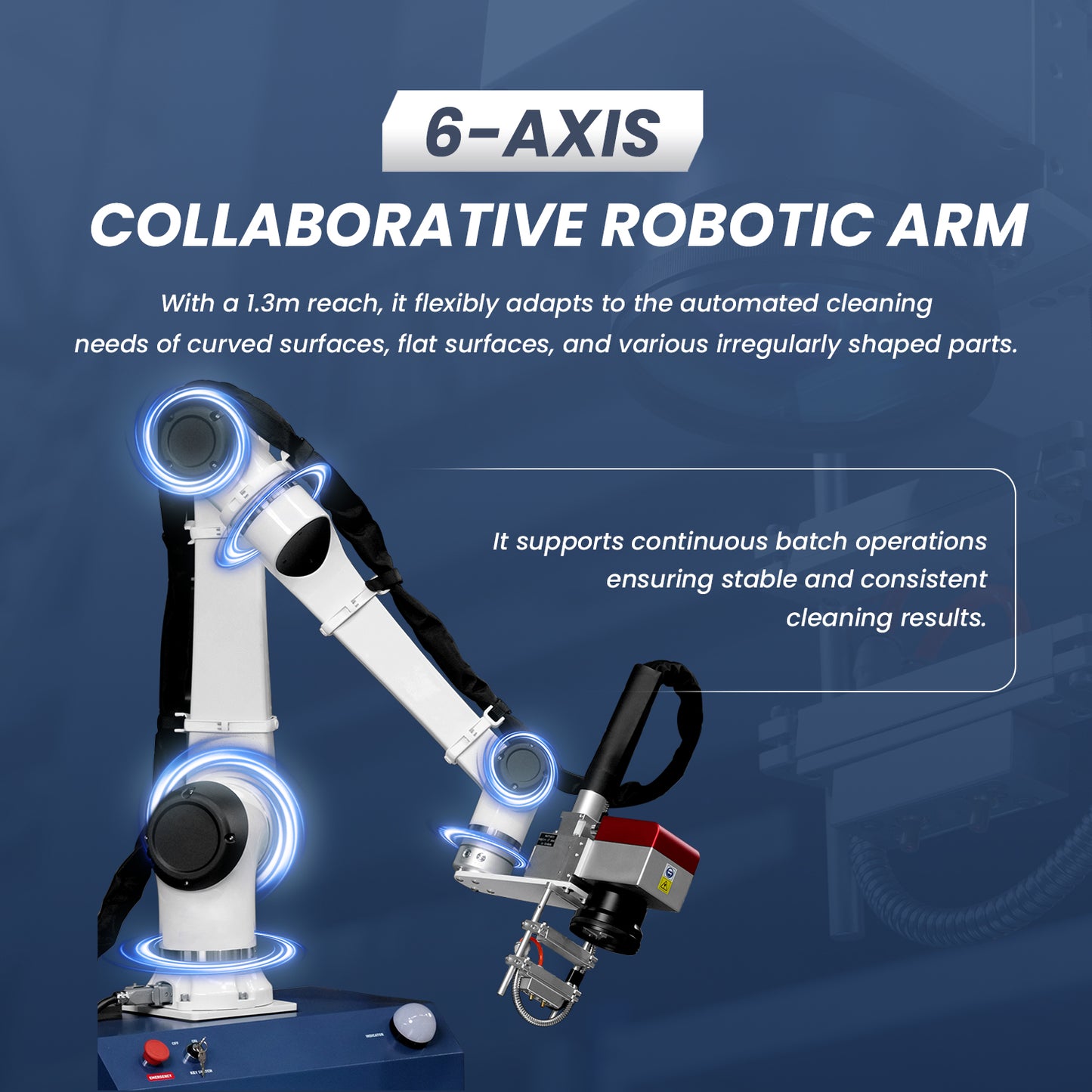

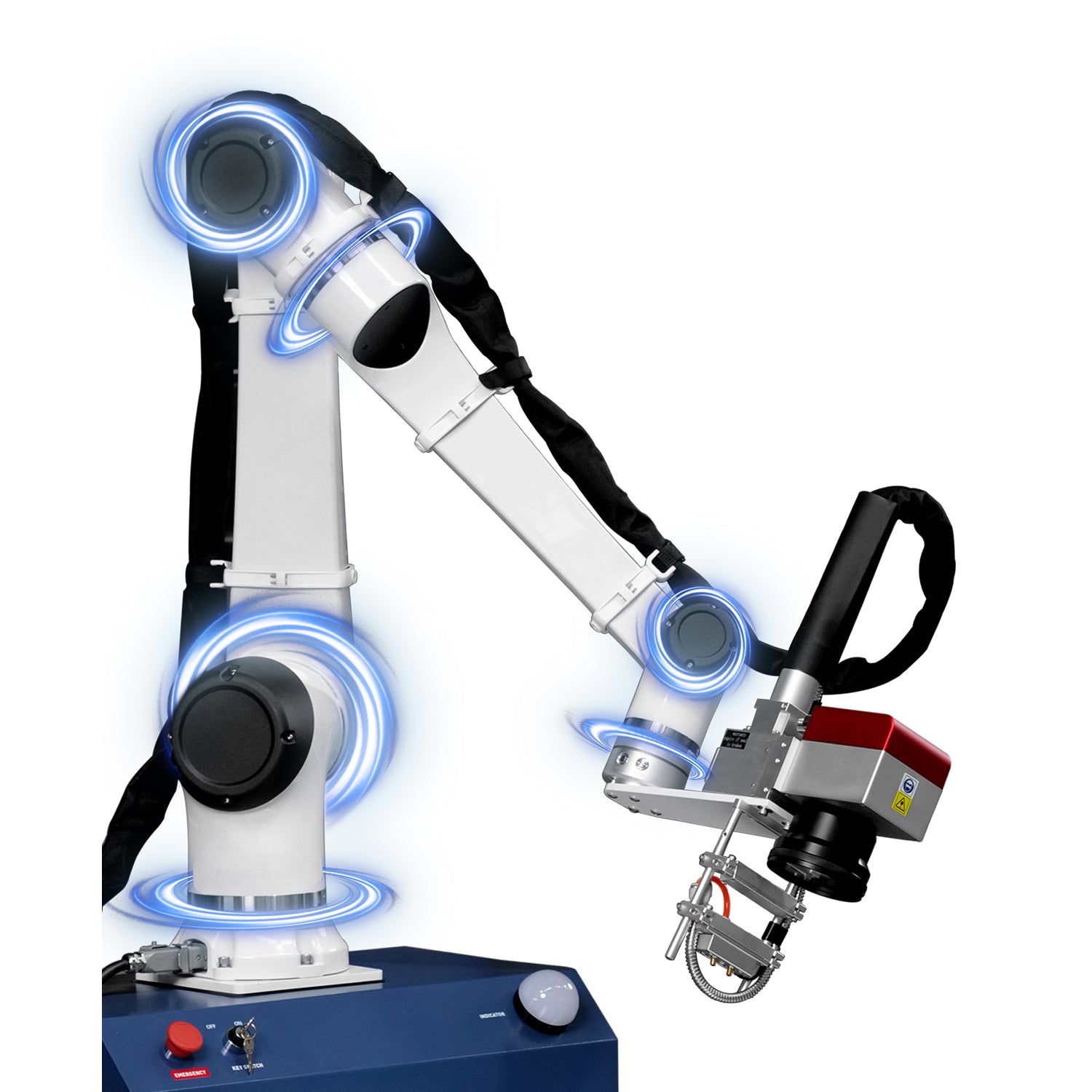

• 6-Axis Collaborative Robotic Arm. With a 1300mm reach, it flexibly adapts to flat, curved, and irregularly shaped workpieces.

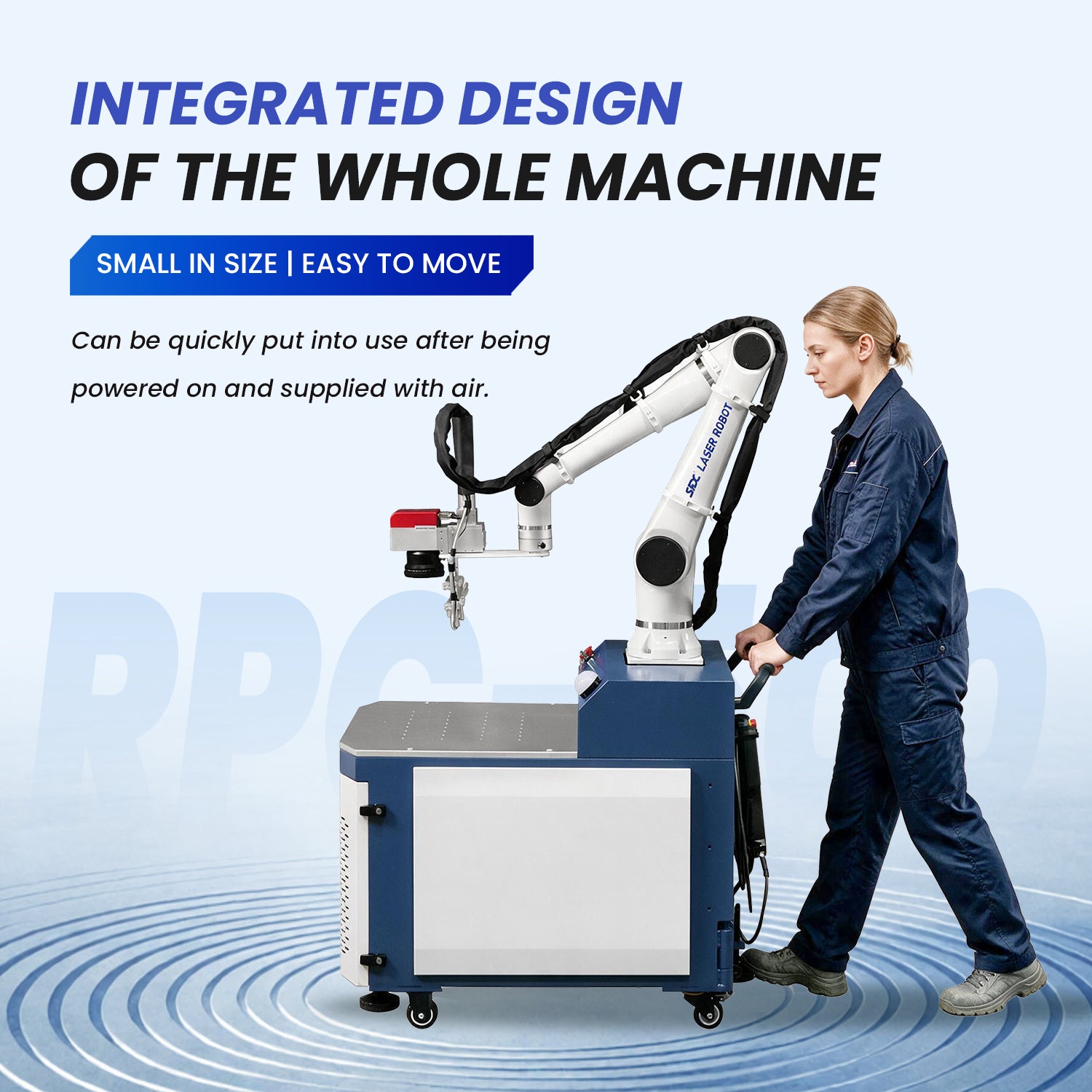

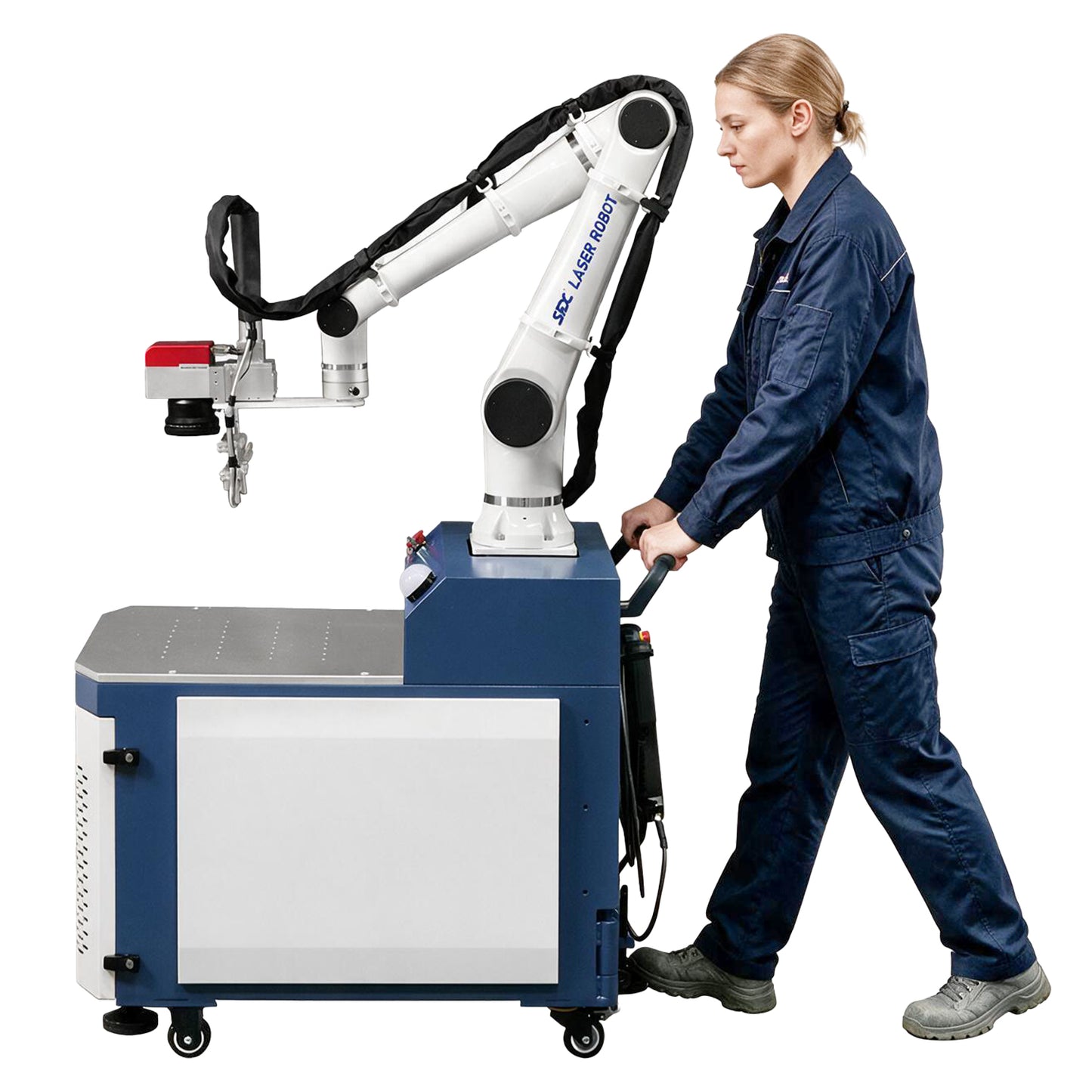

• Integrated Design. Compact structure, small footprint, and easy to move. Simply connect the power supply and air supply to start operation.

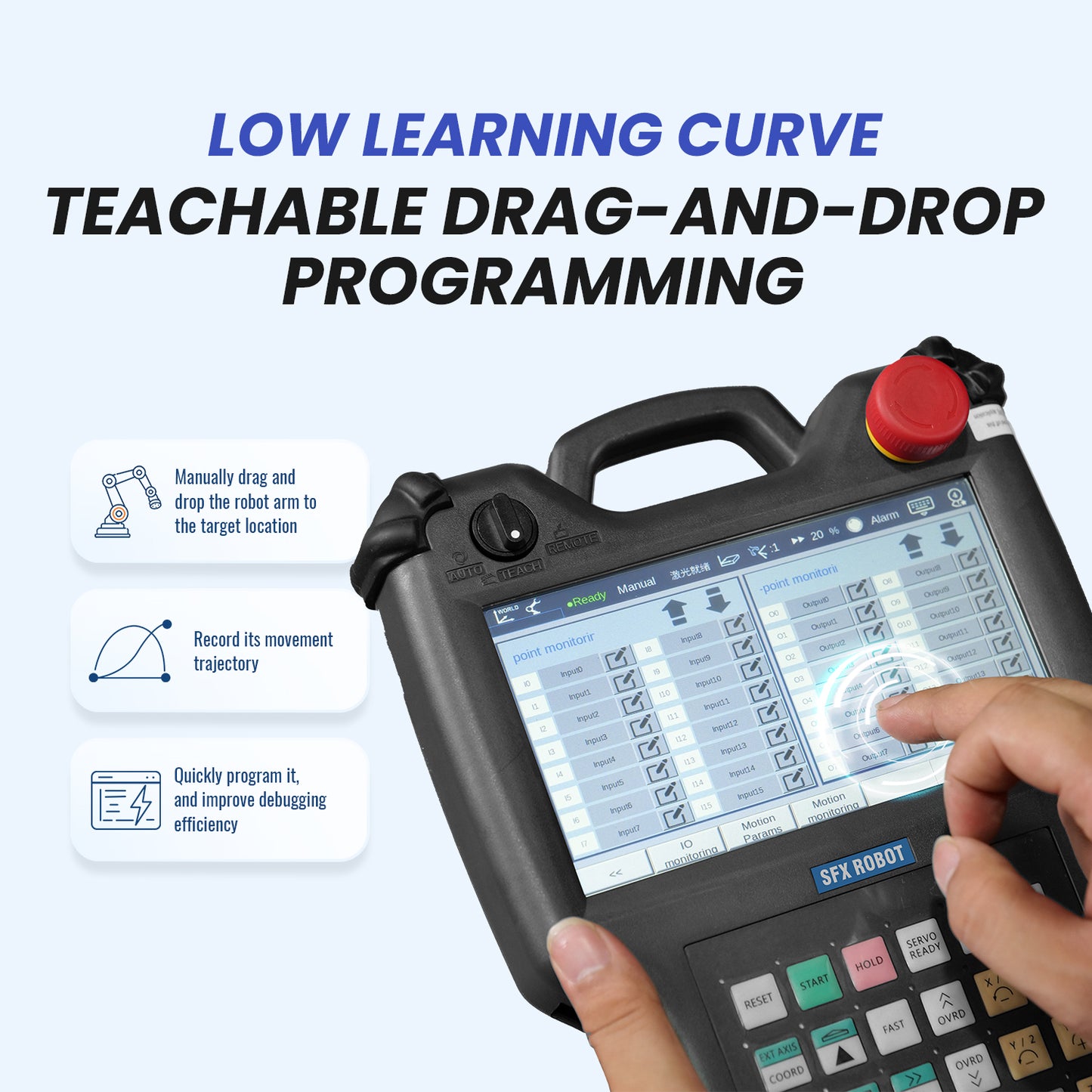

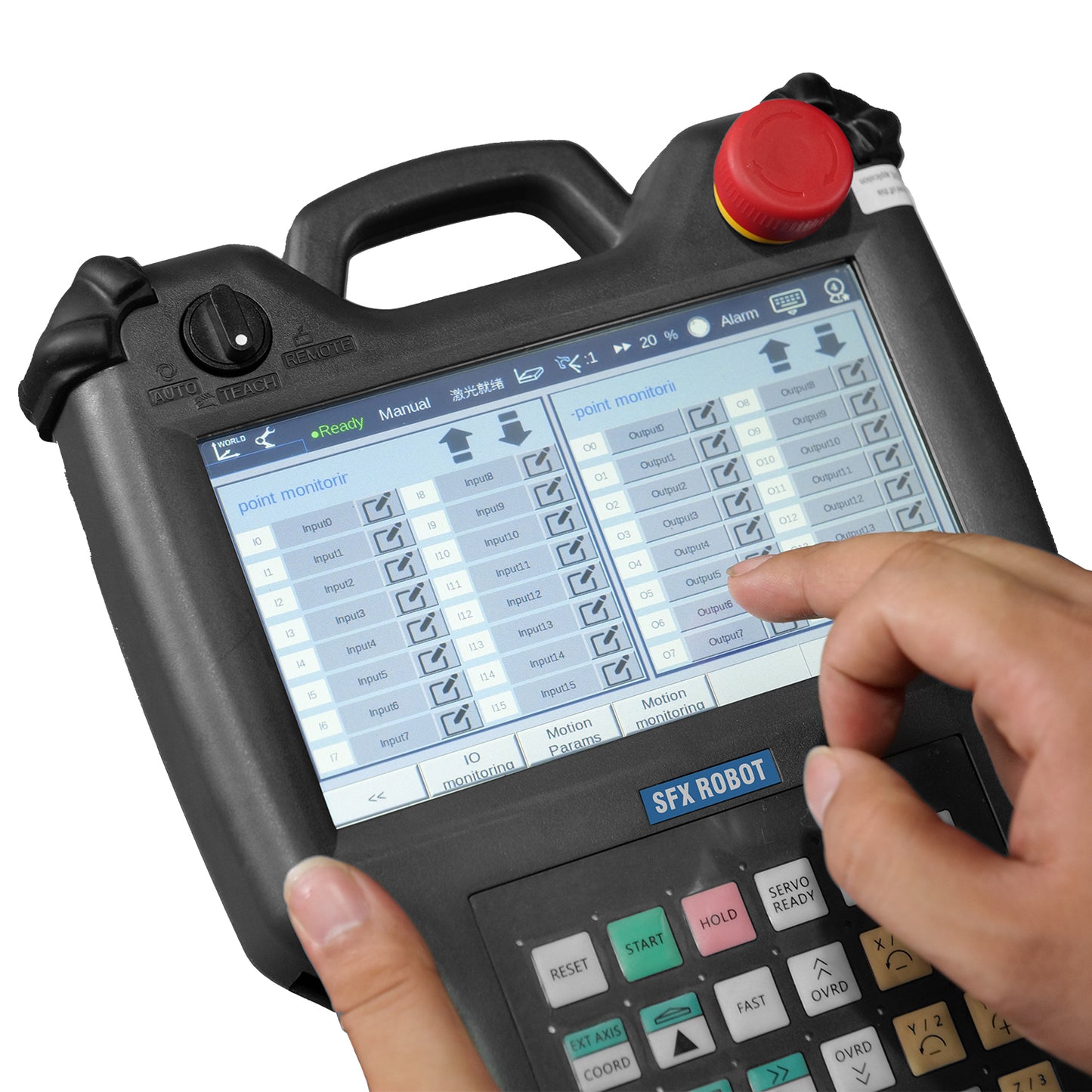

• Teachable Drag-and-Drop Programming. Manually guide the robotic arm, record the movement trajectory, and quickly create cleaning programs with a low learning curve.
• 8 Cleaning Patterns. Digital laser control provides multiple cleaning patterns to meet different cleaning requirements.

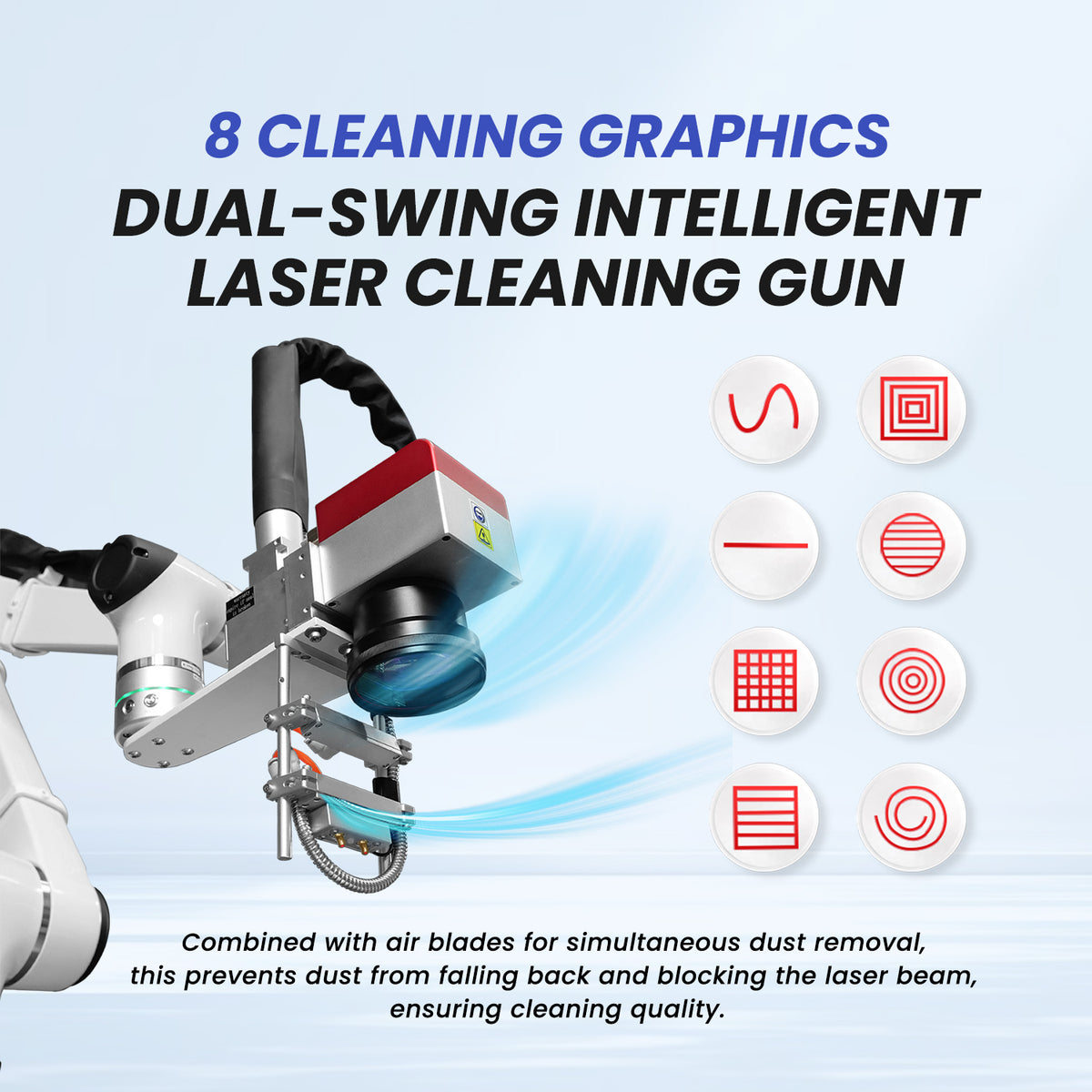

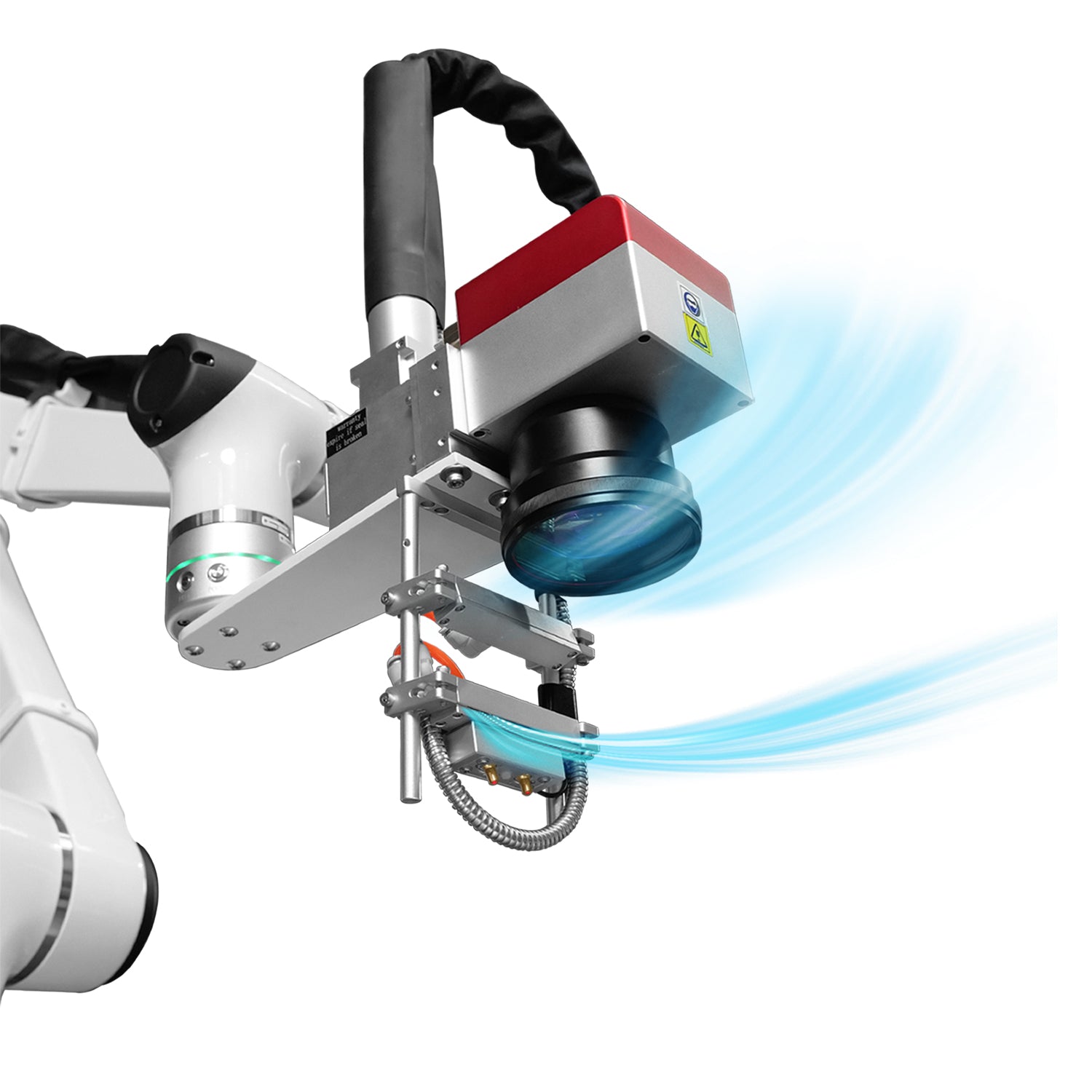

• Dual-Swing Intelligent Laser Cleaning Gun. Combined with air-assisted dust removal to help prevent dust from falling back and blocking the laser beam.
• Automated Batch Cleaning. Supports continuous operations with stable and consistent cleaning results.

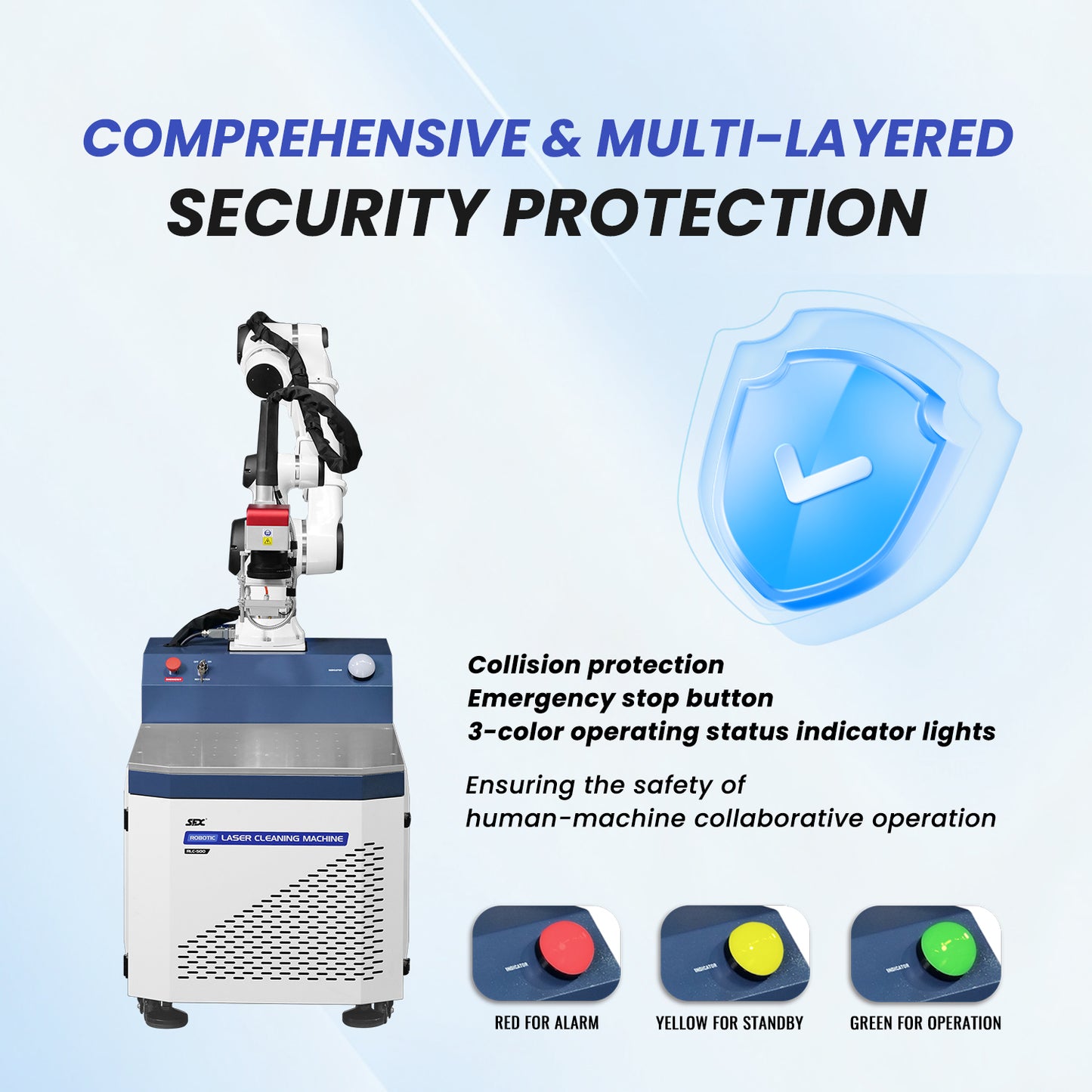

• Comprehensive Safety Protection. Equipped with collision protection, an emergency stop button, and 3-color operating status indicator lights.

Application and Service:

• Suitable for rust removal from heavy industrial equipment and castings; paint and rust removal from rail transit components; coating removal from irregularly shaped hardware; and residual oil cleaning from rubber and injection molds.

  Note: This machine is not suitable for highly reactive materials such as copper and aluminum.

Warranty

• One year warranty for the whole machine and two years warranty for the laser source.
• We provide professional technical support, including an English user manual and operation videos.
• We have after-sales service centers in the United States and Canada.
• We provide lifelong after-sales service and technical support.
