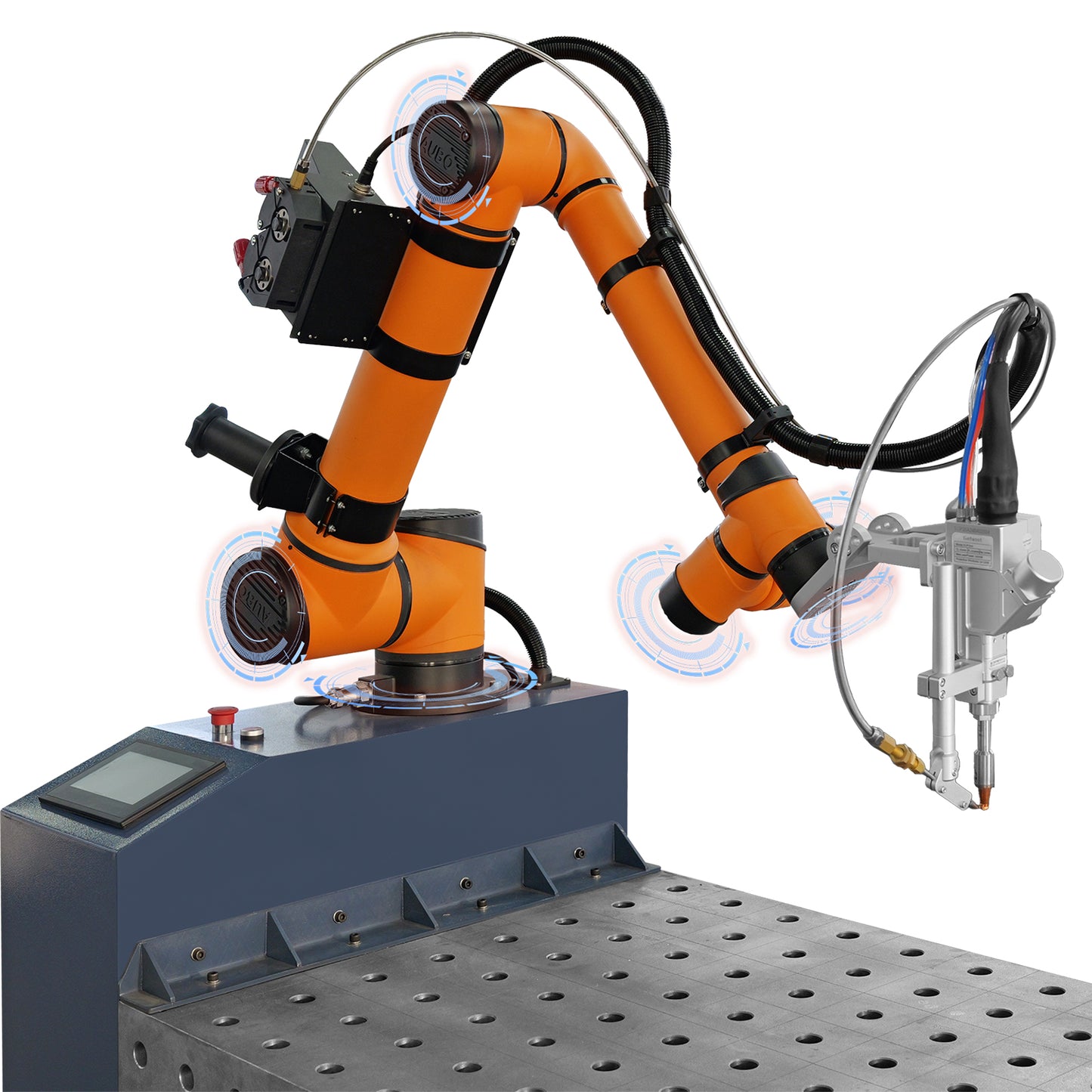

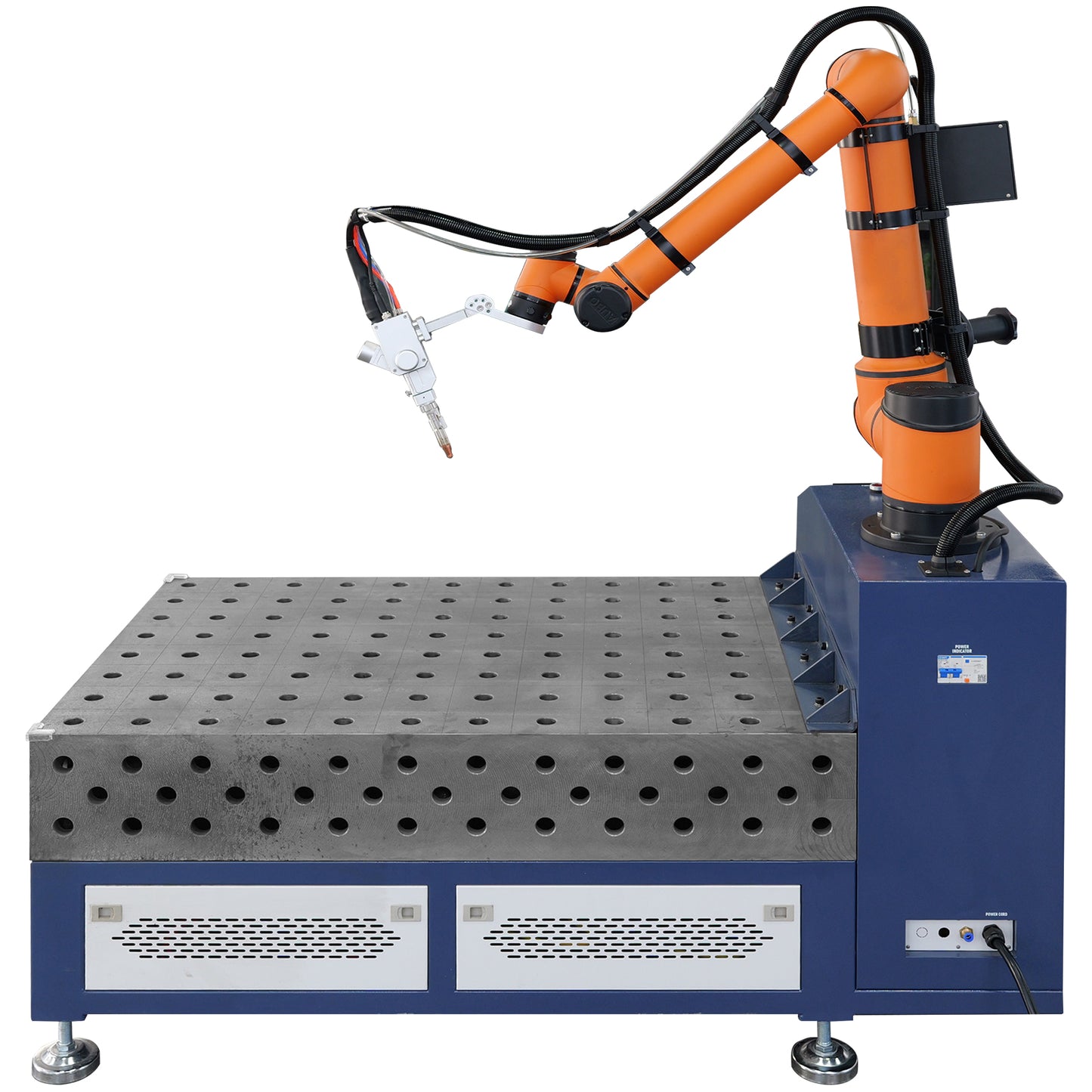

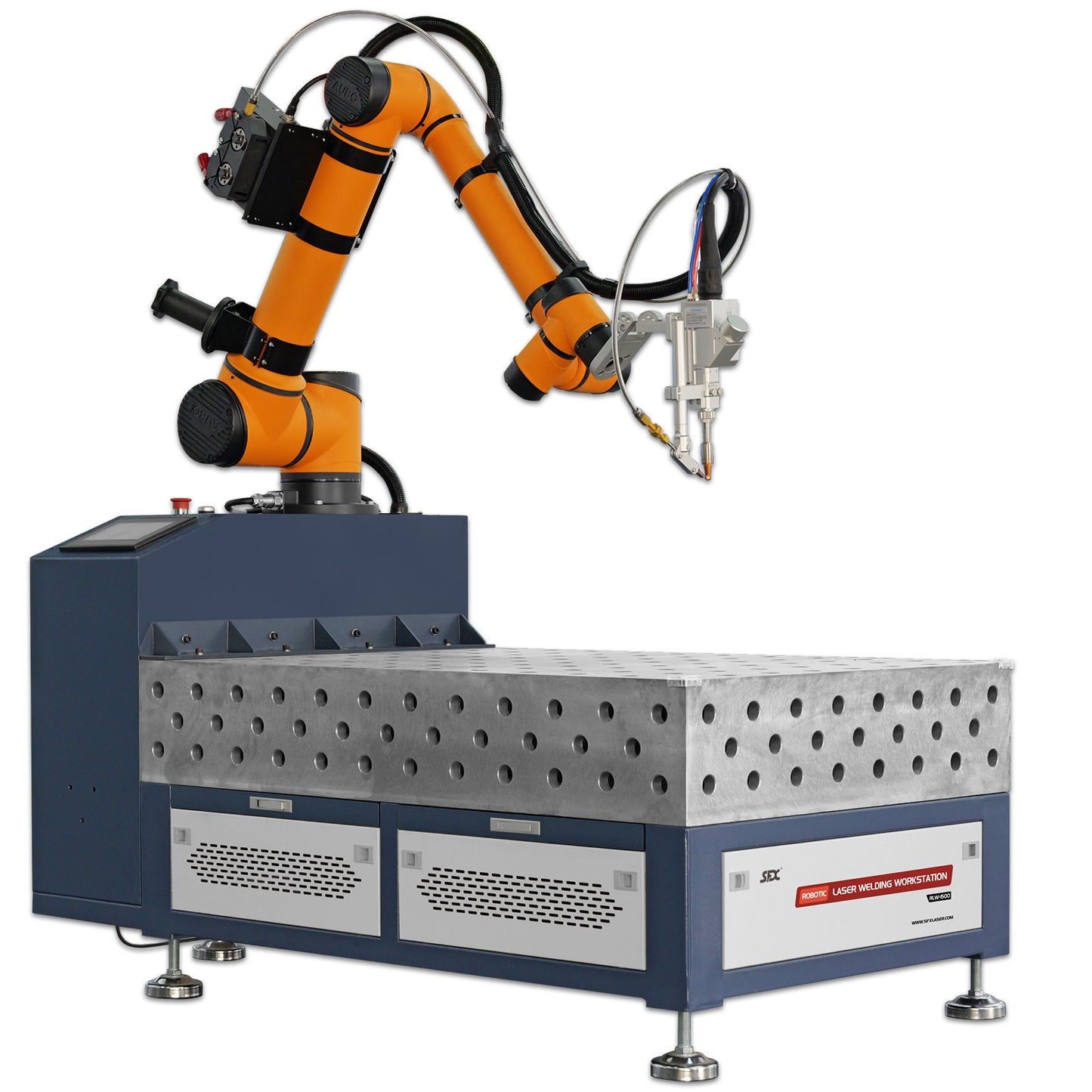

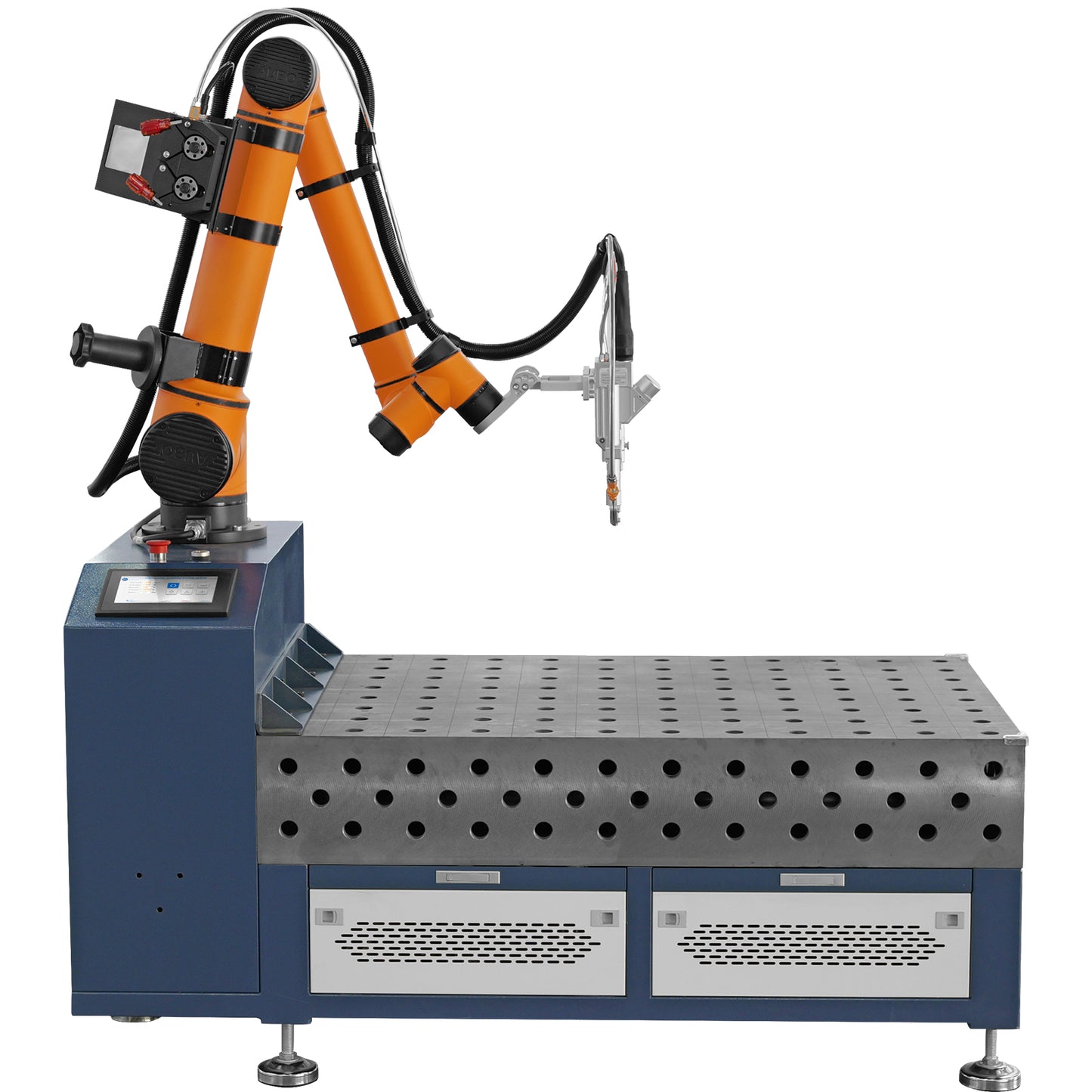

1500W/2000W/3000W Robotic Laser Welding Workstation Six-Axis Robotic Automatic Welding Machine

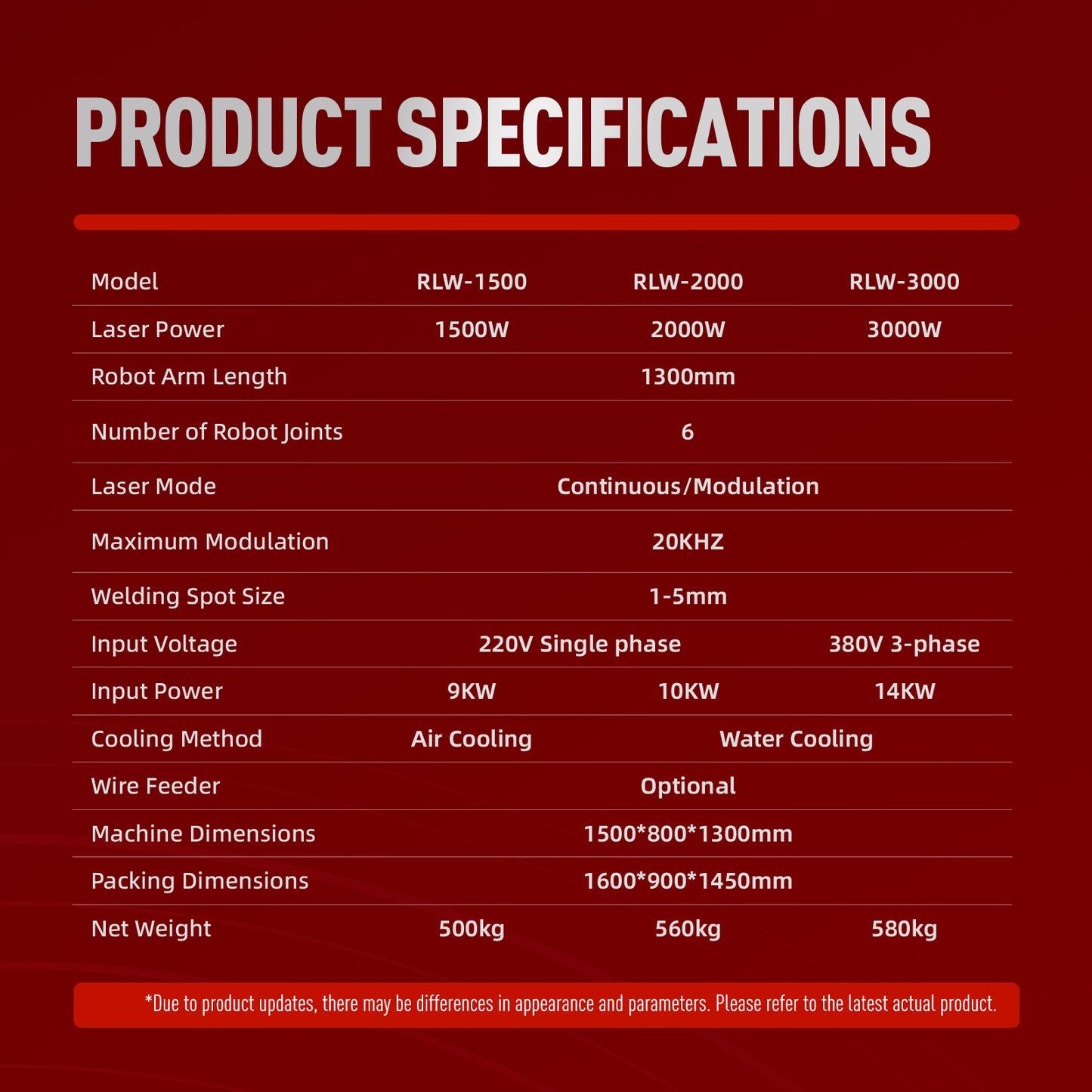

Product Specifications

• Model：RLW-1500 / RLW-2000 / RLW-3000
• Laser Power：1500W / 2000W / 3000W
• Robot Arm Length：1300mm
• Number of Robot Joints：6
• Laser Mode：Continuous/Modulation
• Maximum Modulation：20KHZ
• Welding Spot Size：1-5mm
• Input Voltage：220V Single phase / 380V 3-phase
• Input Power：9KW / 10KW / 14KW
• Cooling Method：Air Cooling / Water Cooling
• Wire Feeder：Optional
• Machine Dimensions：1500*800*1300mm
• Packing Dimensions：1600*900*1450mm
• Net Weight：500kg / 560kg / 580kg

Product Advantage

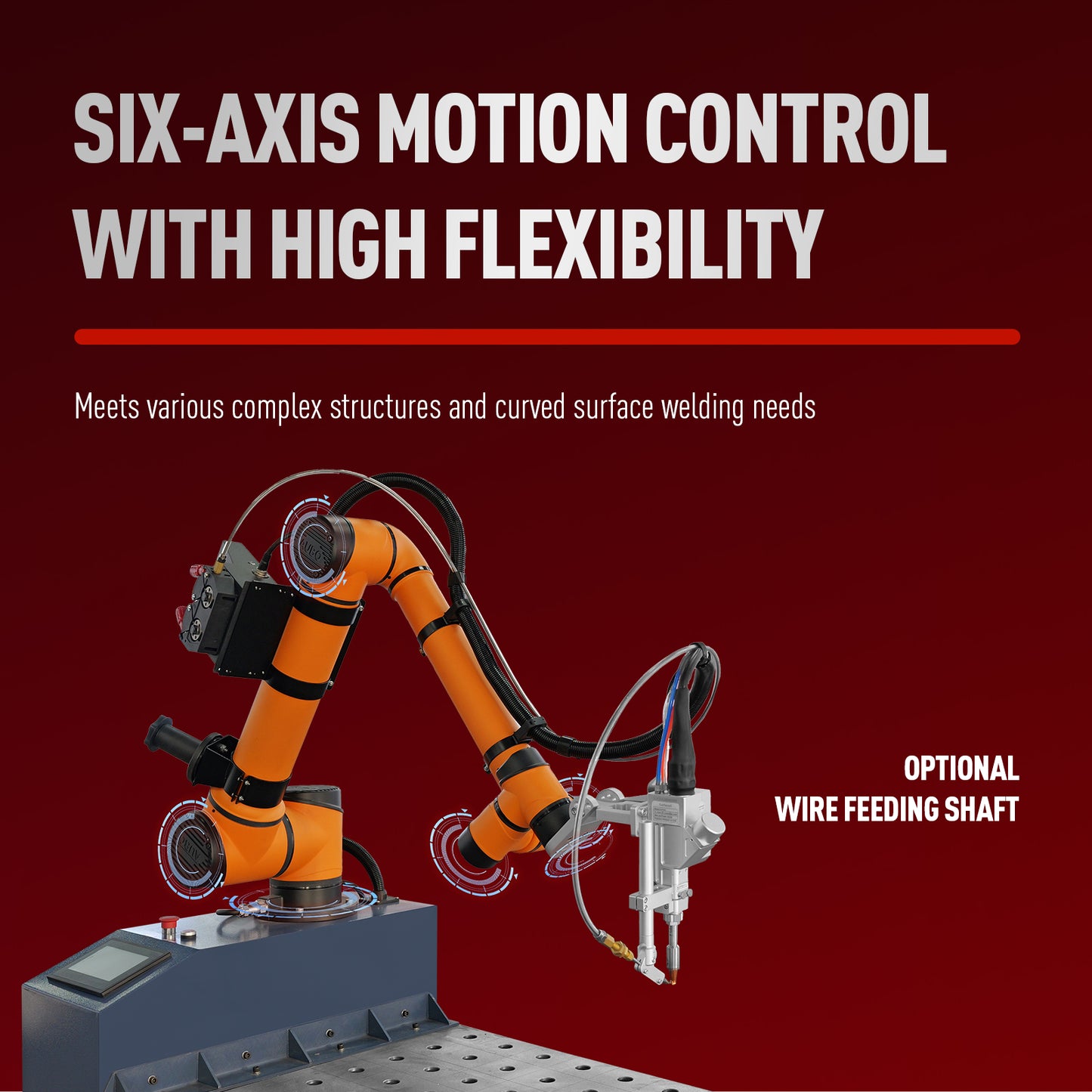

• SIX-AXIS MOTION CONTROL WITH HIGH FLEXIBILITY – Meets various complex structures and curved surface welding needs

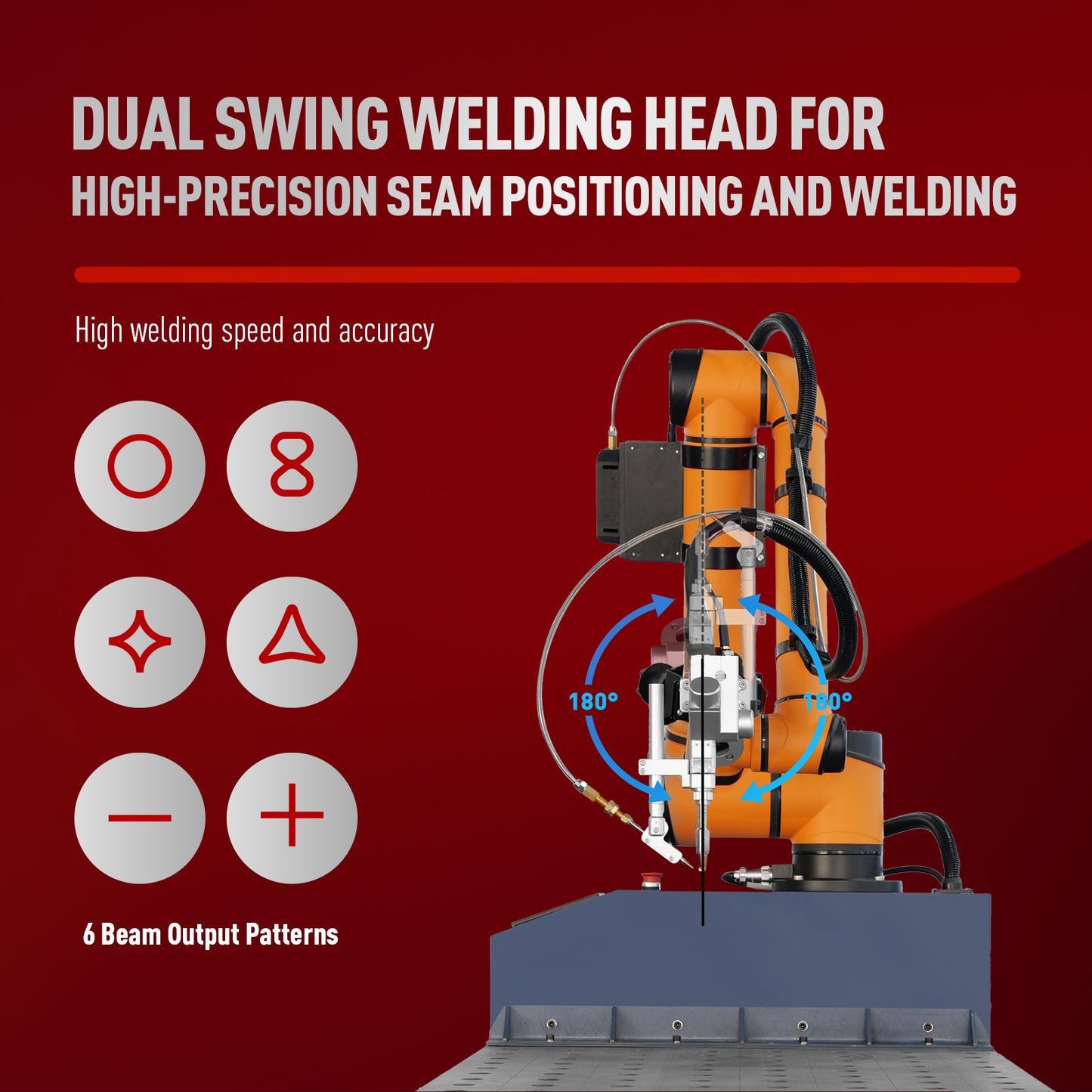

• DUAL SWING WELDING HEAD FOR HIGH-PRECISION SEAM POSITIONING AND WELDING  – Ensures high welding speed and accuracy.

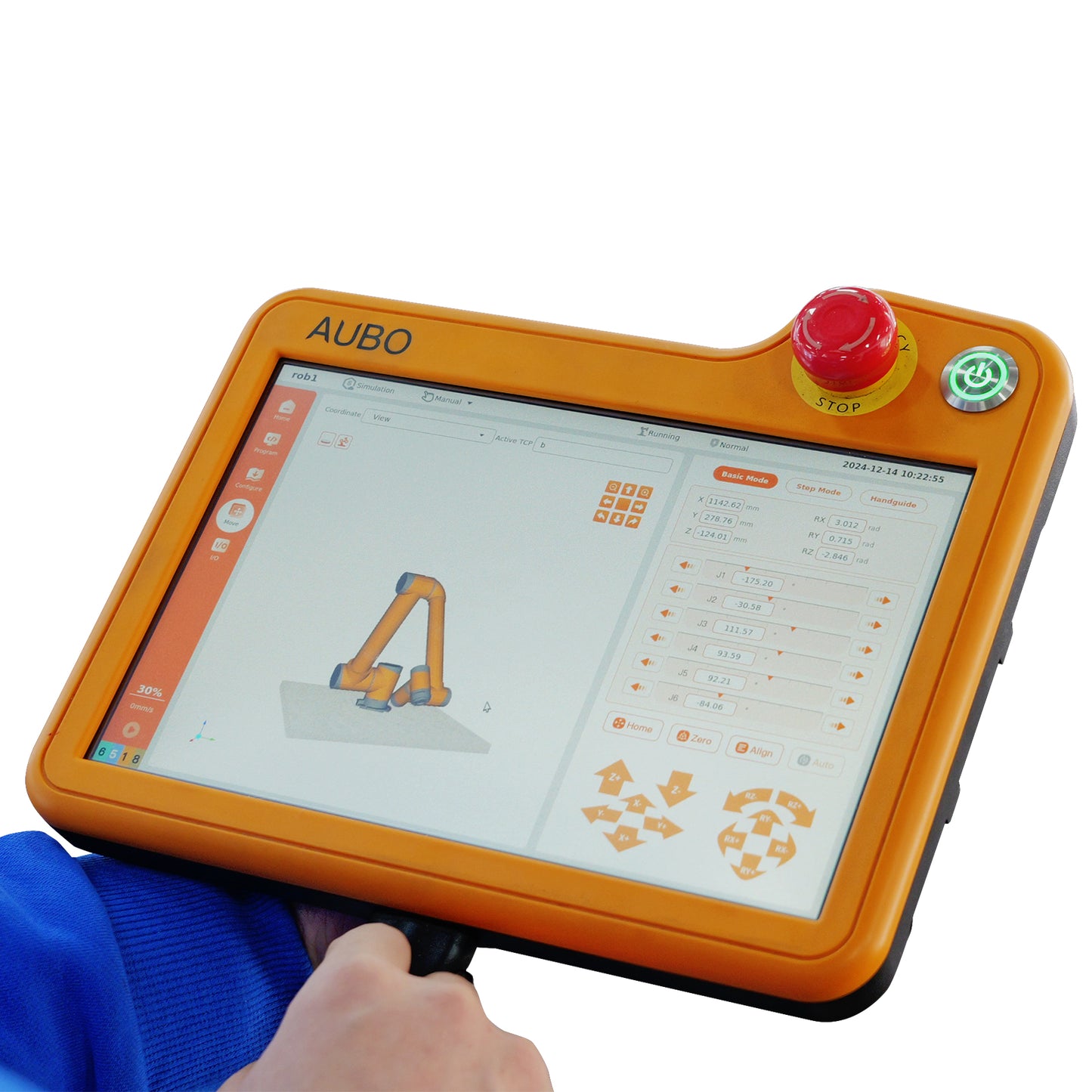

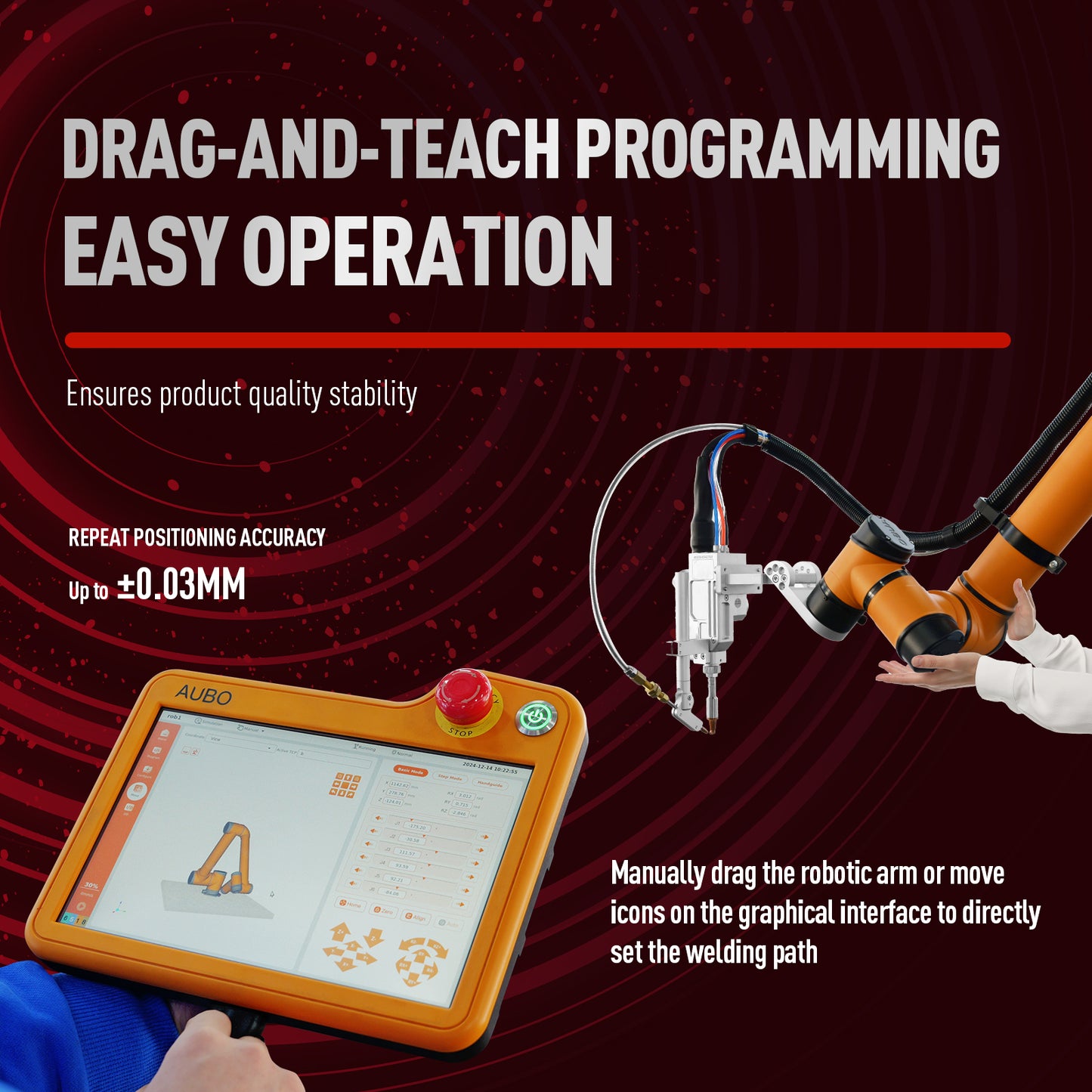

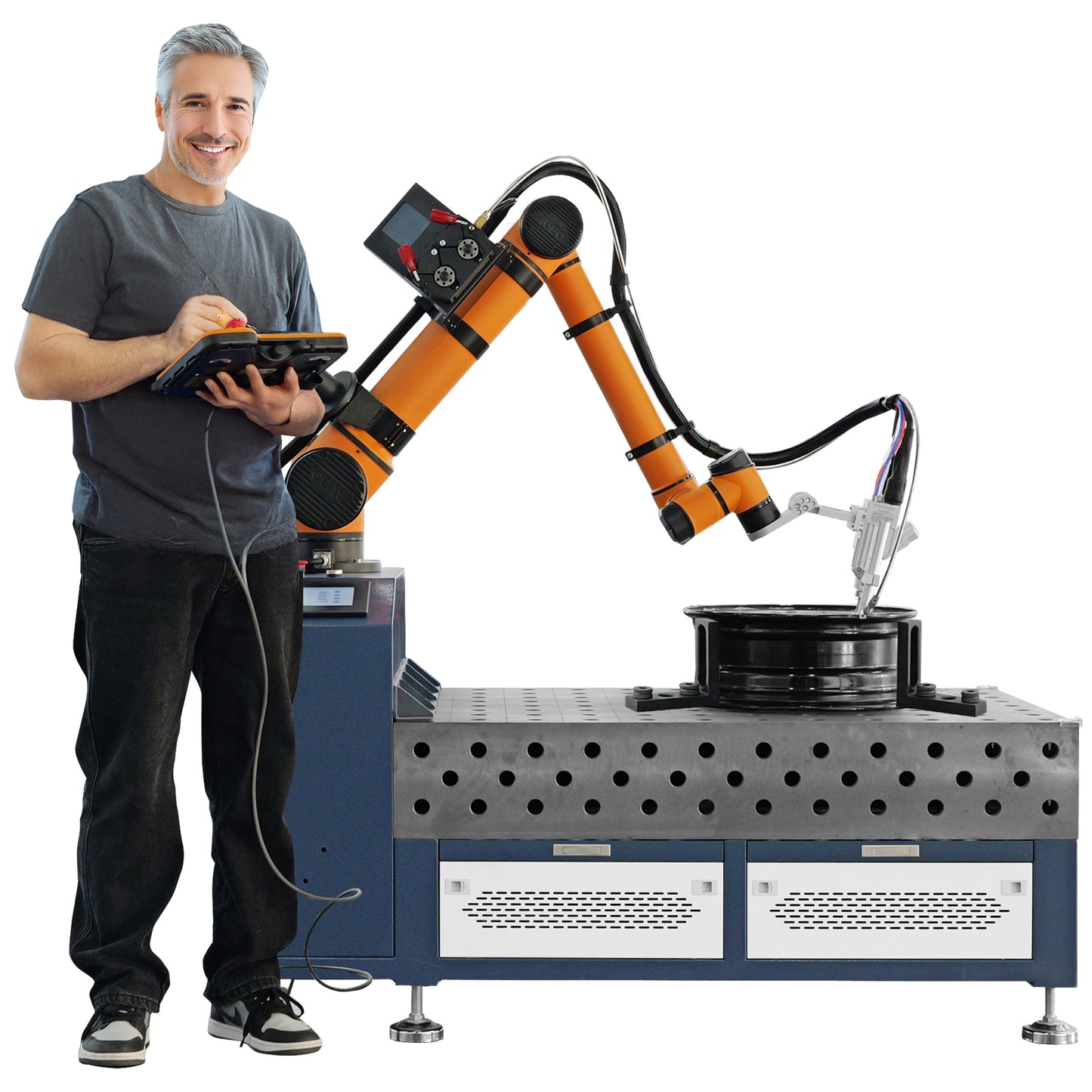

• DRAG-AND-TEACH PROGRAMMING EASY OPERATION – Simplifies setup and ensures product quality stability.

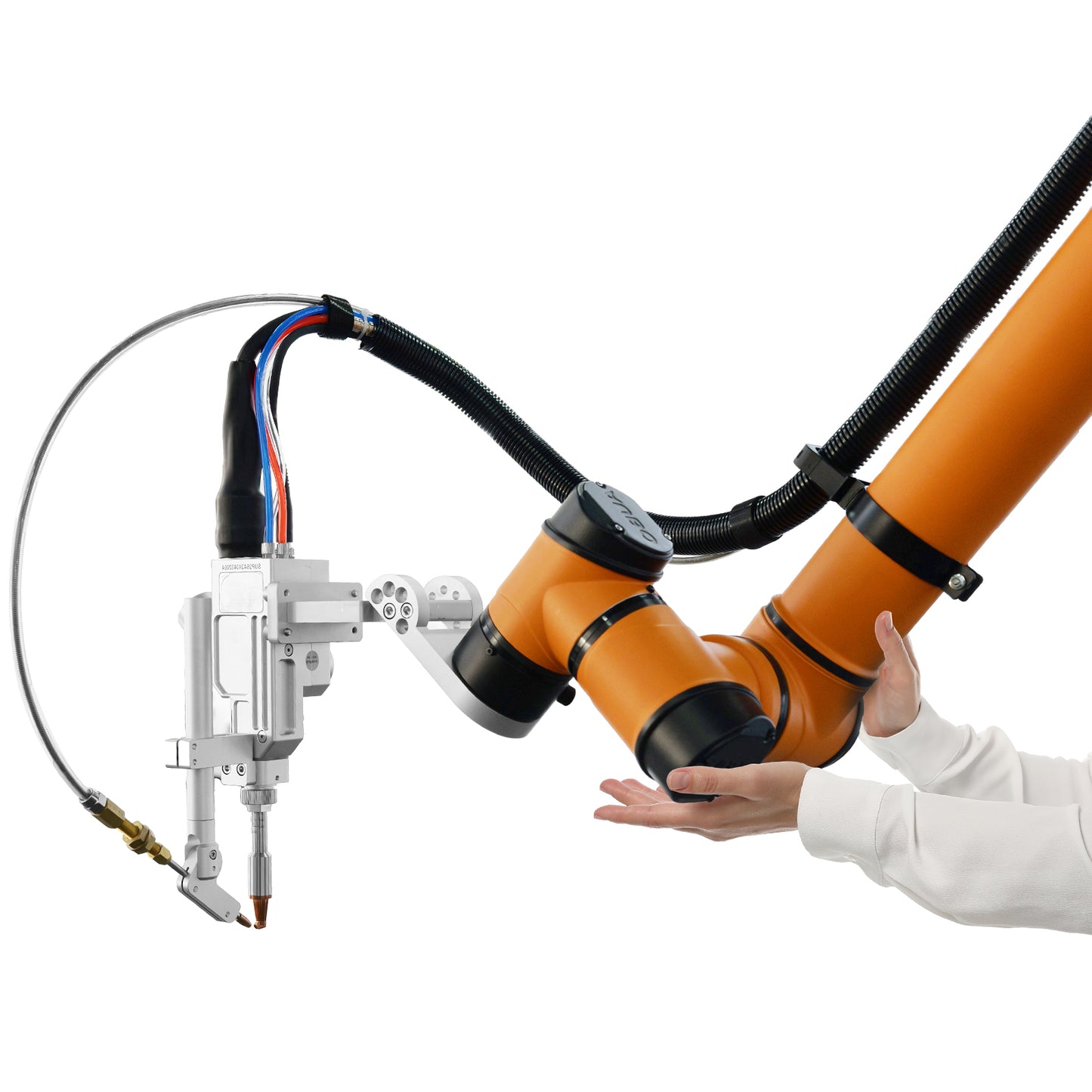

• REPEAT POSITIONING ACCURACY Up to +0.03MM – Allows users to manually drag the robotic arm or adjust icons on the graphical interface to set the welding path directly.

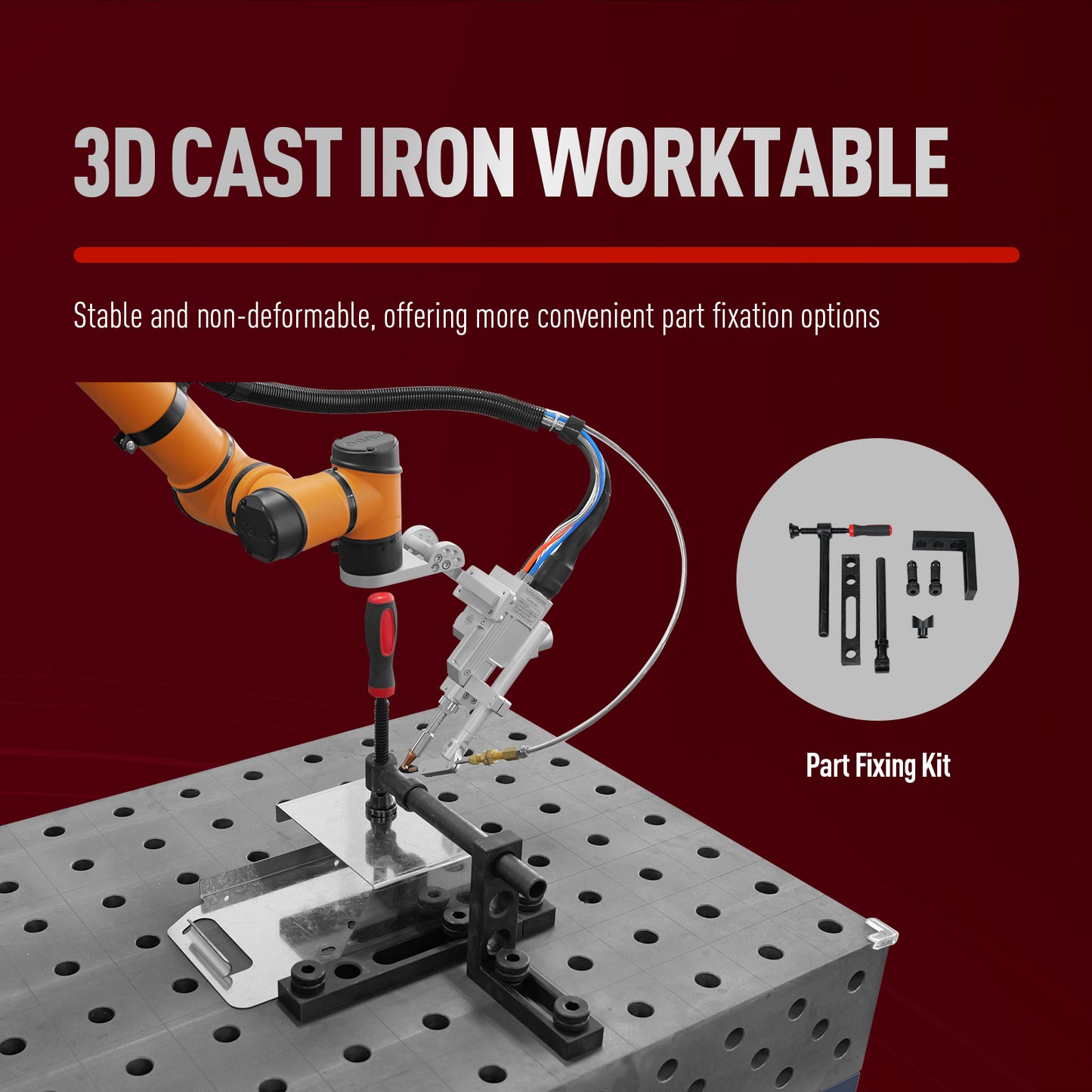

• 3D CAST IRON WORKTABLE - Stable and non-deformable, providing more convenient part fixation options.

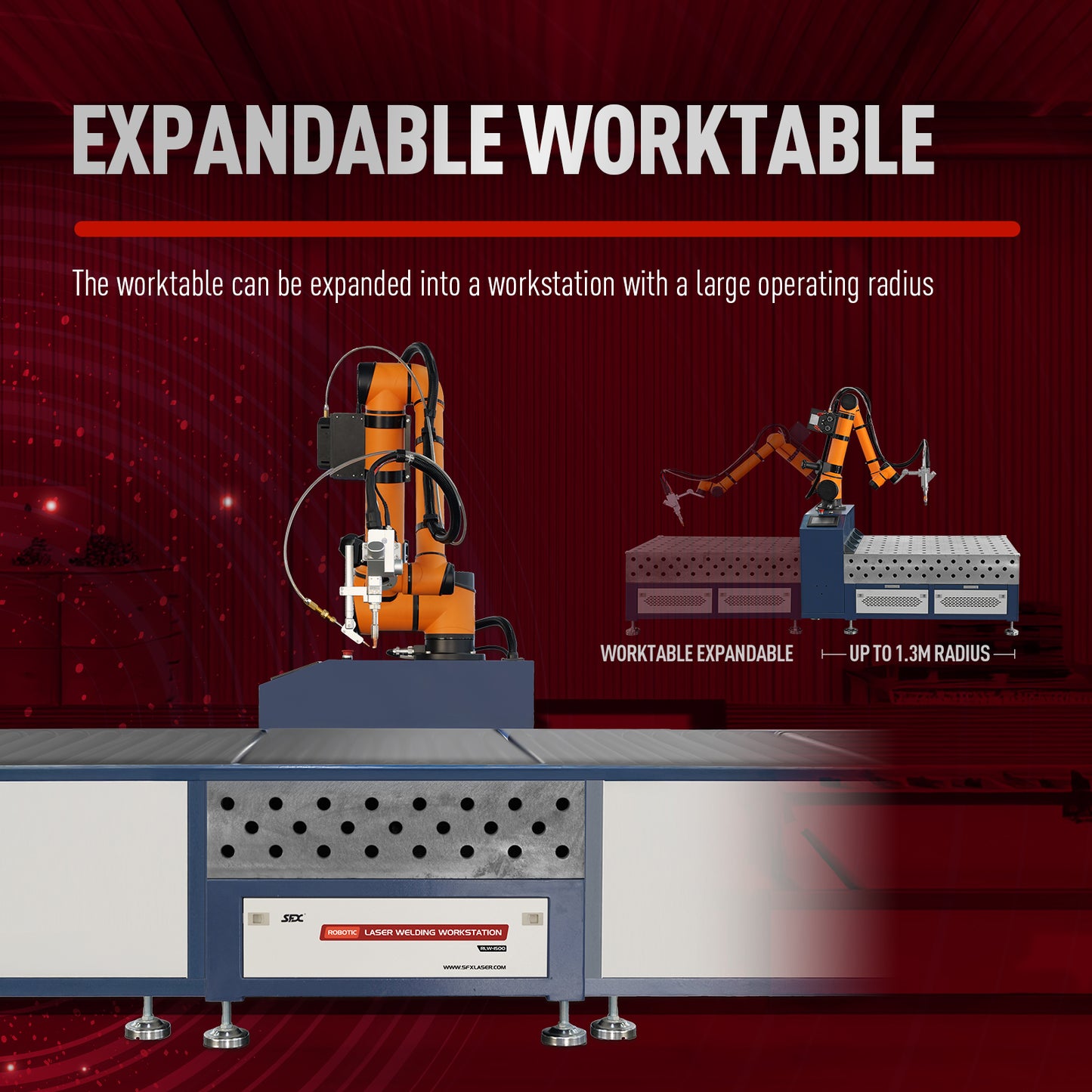

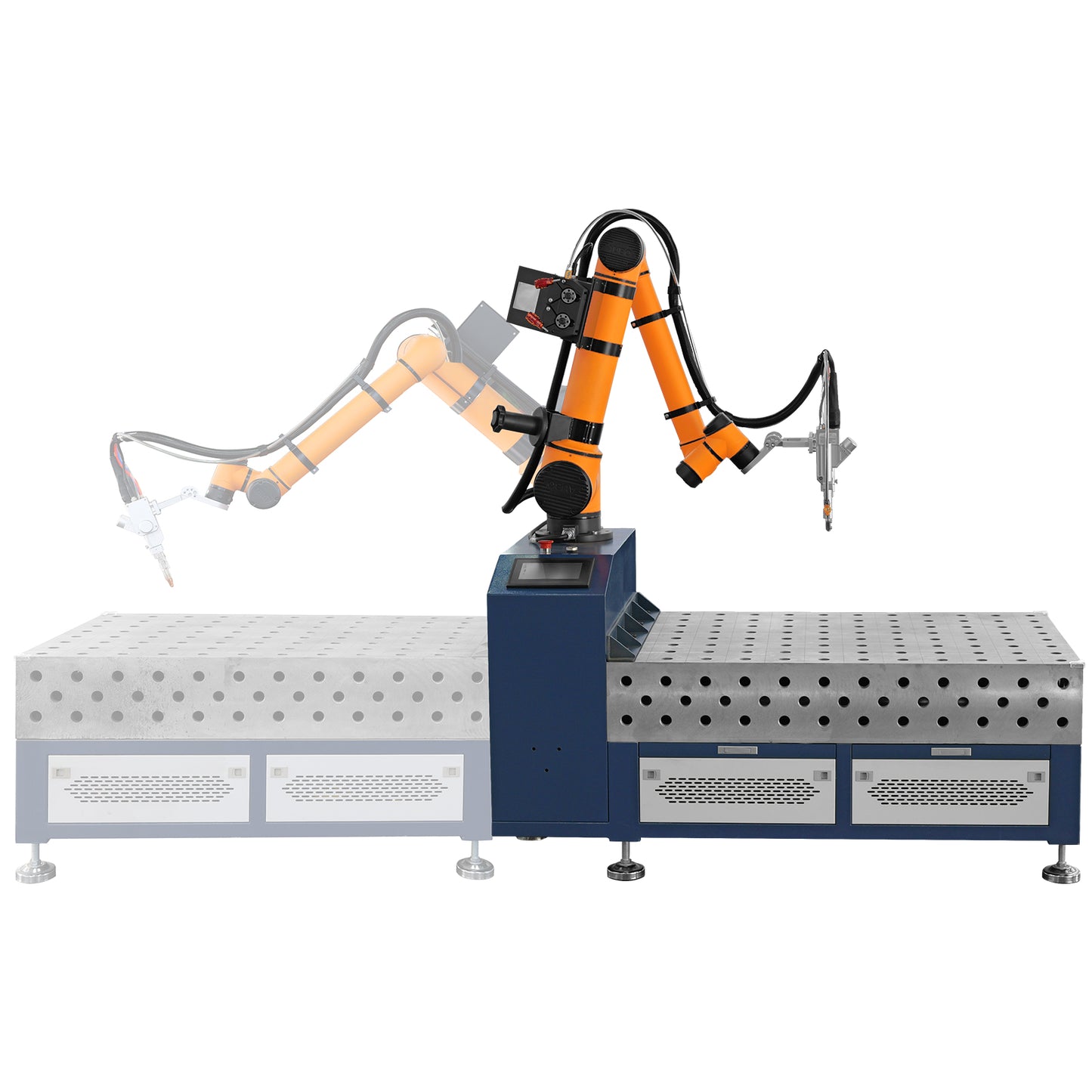

• EXPANDABLE WORKTABLE – Can be extended into a workstation with a large operating radius.

APPLICATION FIELDS

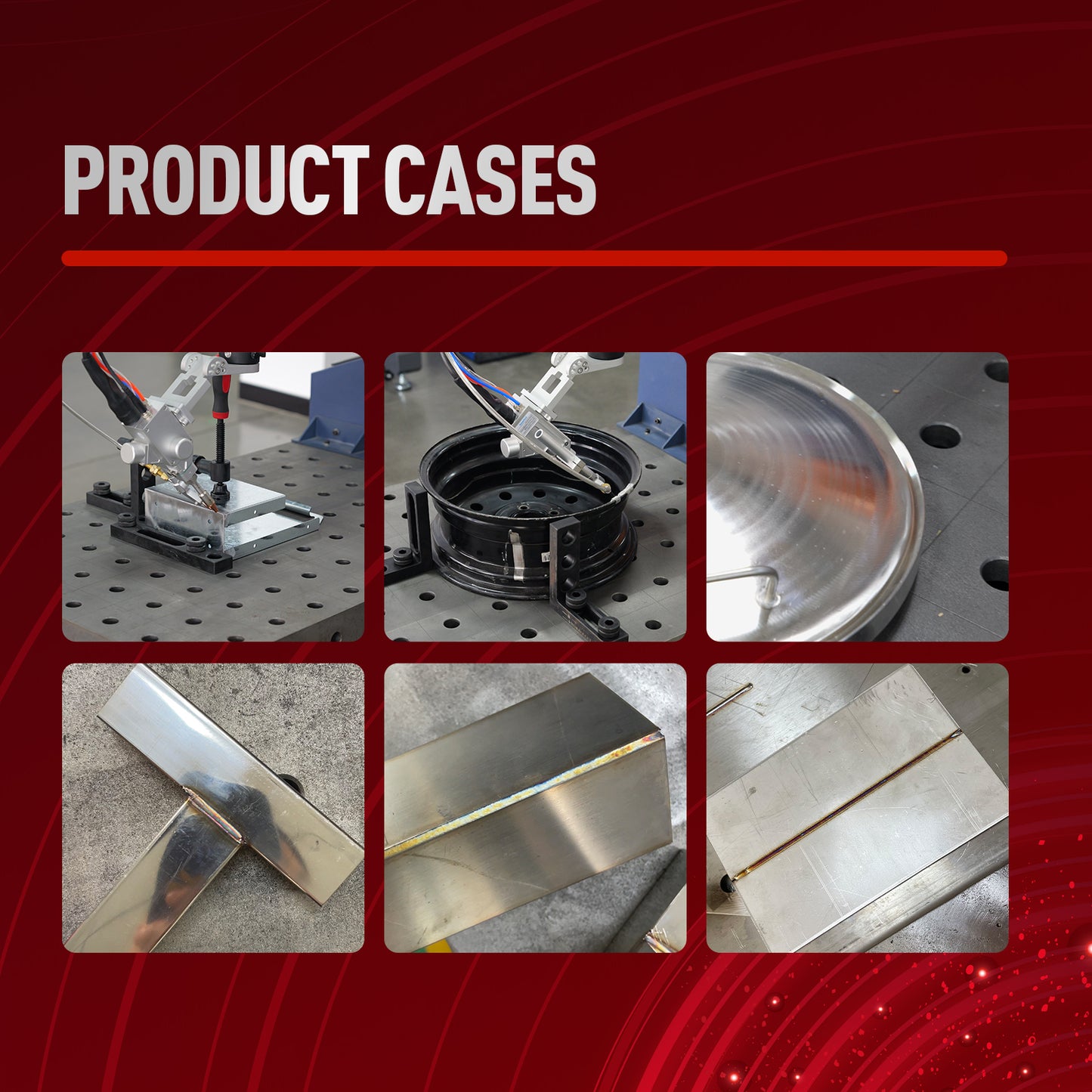

Achieves complex motion trajectories in three-dimensional space.Suitable for welding stainless steel, mold steel, aluminum alloy, thin copper, and other metals.
