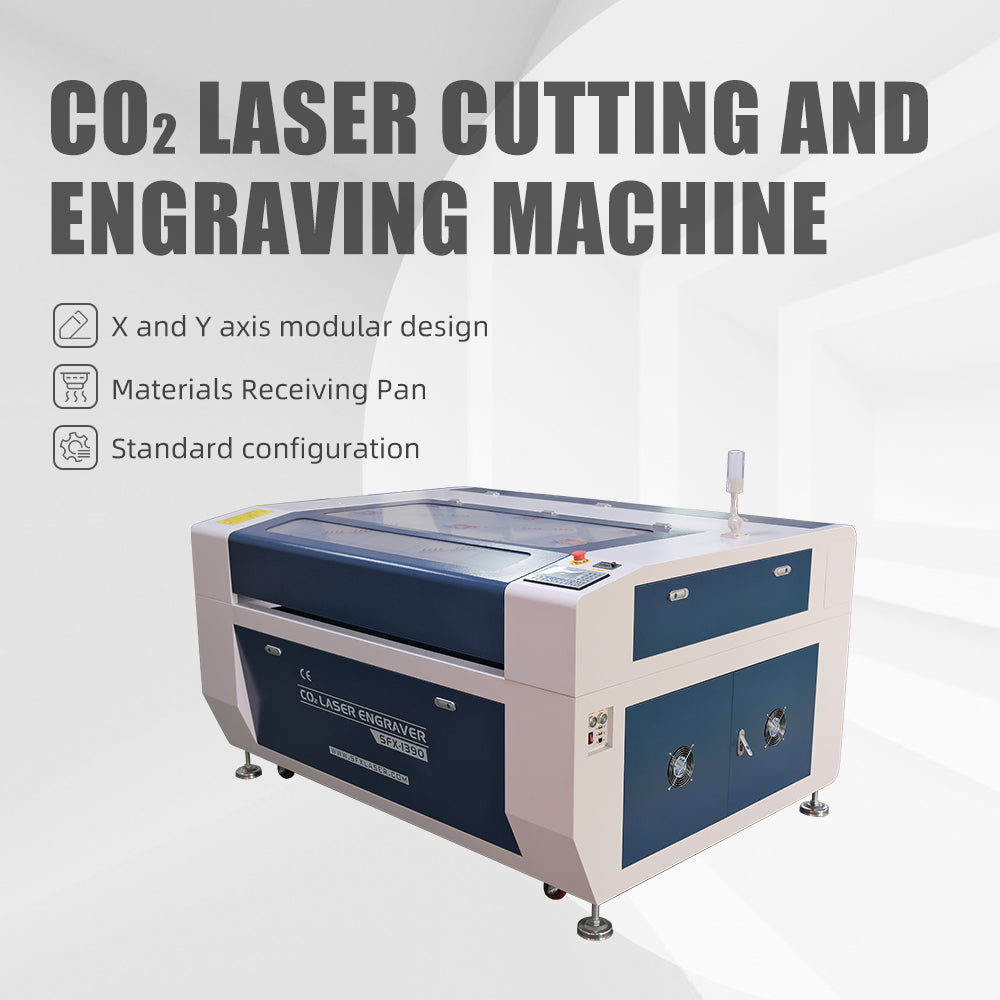

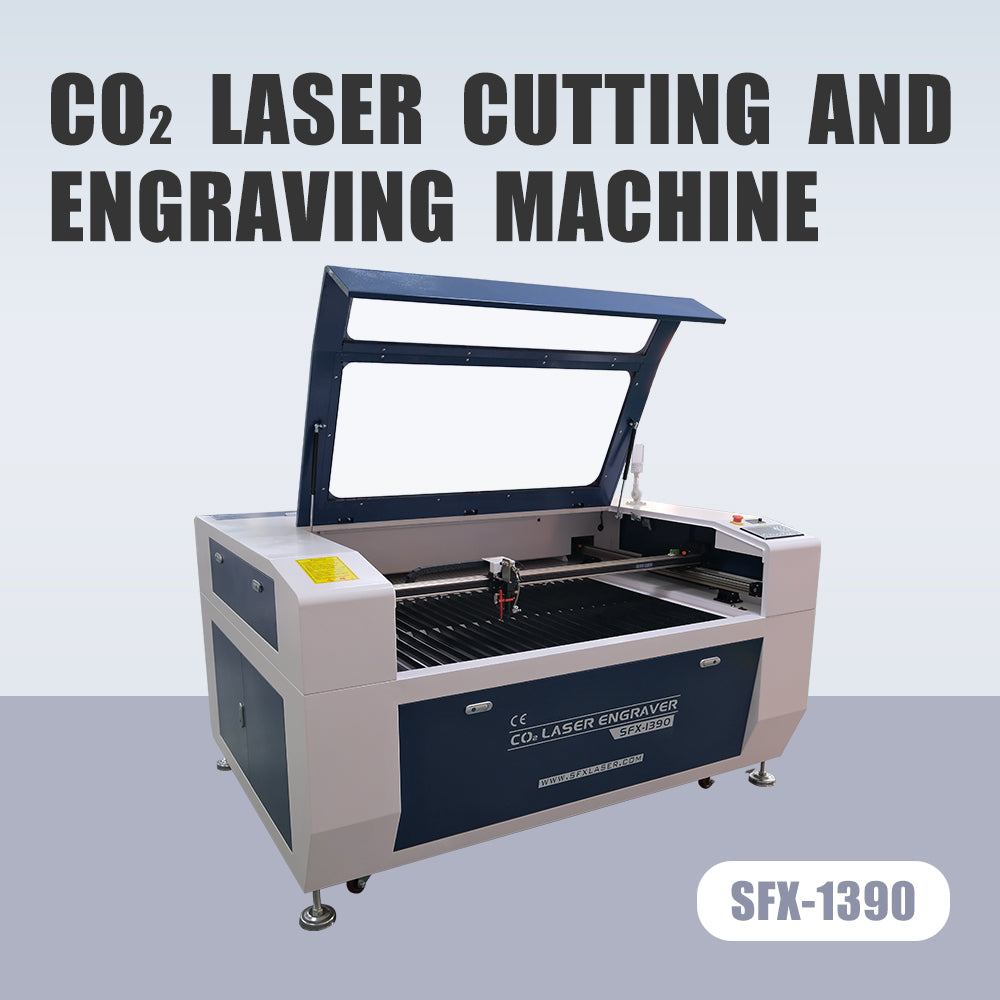

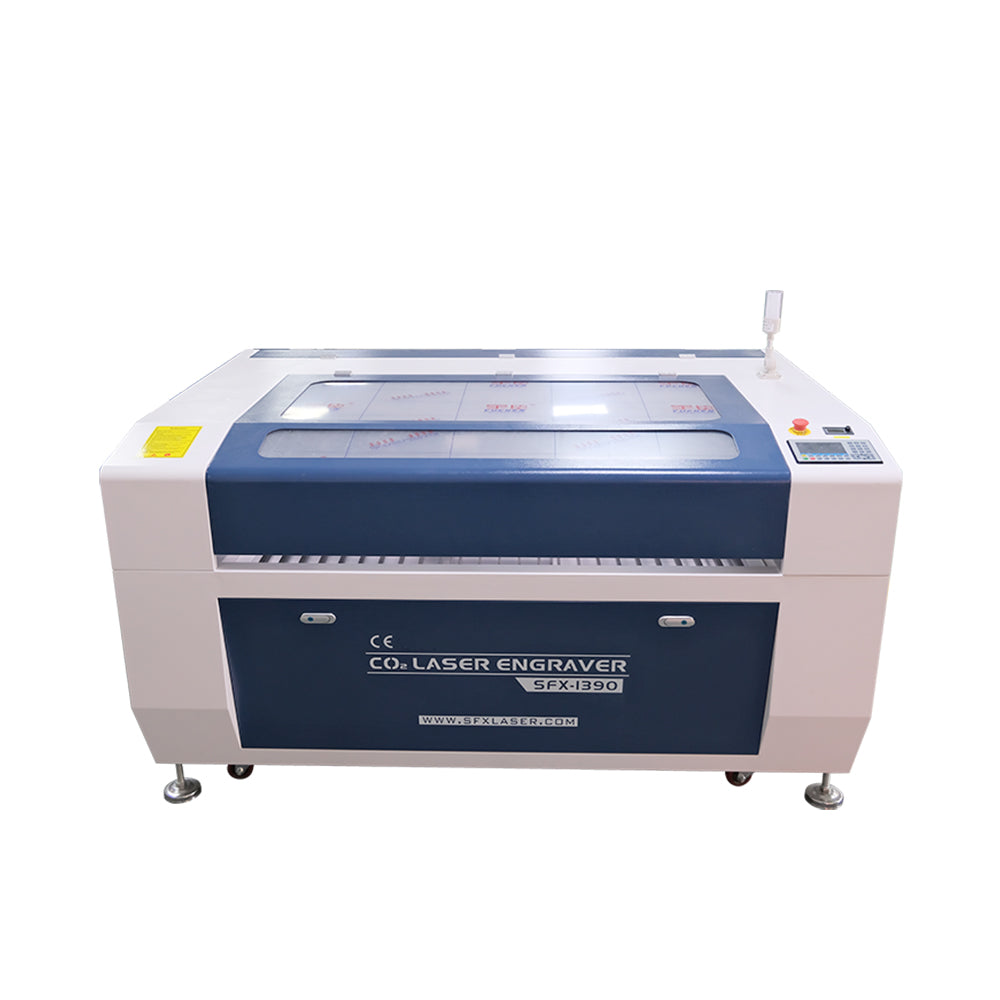

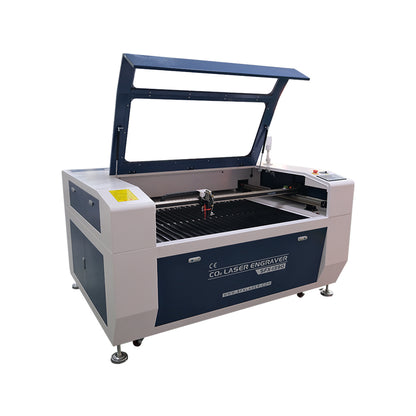

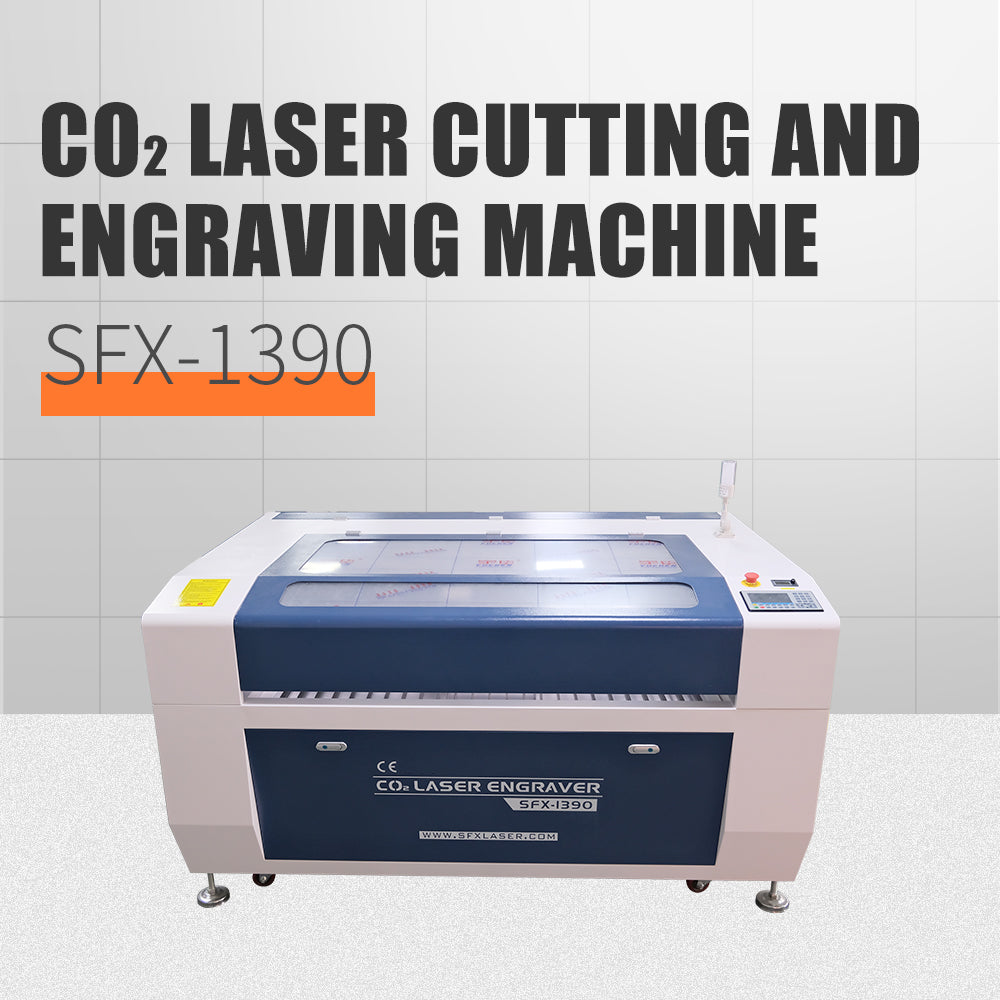

Germany Stock SFX-1390 150W CO2 Laser Cutting Machine & Engraver, 1300×900mm Working Area

Shipping: FREE Shipping

Delivery:
Germany Stock 5% OFF!!!
Special Deals for Nearby EU Customers, with Local German After-Sales Support.

Product Parameters

• Model: SFX-1390
• Max. Engraving Area: 1300*900mm
• Engraving Speed: 0-1200mm/sec
• Cutting Speed: 0-300mm/sec
• Laser Power Output Range: 0-100 Adjustable
• Cooling Mode: Water Cooling
• Mechanical Resolution: 0.025mm
• Min. Character: Chinese 2mm, English 1mm
• Repetition Precision: ±0.01mm
• Input Voltage: AC 230V/50Hz
• Supported Formats: BMP PLT DST AI DXF
• Driver: Stepper Motor  Subdivision Driver

• Laser Power: YONGLI 130W/150W/180W Optional
• Working Temperature: 0℃~45℃
• Working Humidity: 5%~95%

Product Features:

• Red Dot Positioning & Auto Air Assist
  Enables precise positioning while removing smoke and debris from the cutting area.
• Multiple Safety Protections
  Includes water, cover-opening, optical path, grounding, and door lock protection.

• Efficient Smoke Exhaust & Material Collection
  Dual smoke outlets improve fume extraction, while the collection tray makes cleanup easier.
• Convenient Operation & Connectivity
  Supports USB, U disk, and network transfer, with a built-in level meter and three power sockets for added convenience.
• Pass-Through Doors
  Allows processing of longer materials beyond the standard working area.

Our Advantages:

• Reliable Core Components
  Equipped with a YONGLI laser tube, S&A water chiller, RUIDA 6445G control system, and imported optical lenses.
• Stable Cutting Performance
  Modular X/Y axis design ensures smooth movement and consistent cutting results.
• Wide Material Compatibility
  Suitable for cutting and engraving wood, acrylic, leather, paper, bamboo, and other compatible non-metallic materials.
• User-Friendly Design
  Features red dot positioning, automatic air assist, pass-through doors, and convenient data transfer options.
• Built-In Safety Protection
  Multiple protection systems help ensure safer and more reliable operation.

Warranty

• One year warranty for the whole machine and two years warranty for the laser source.
• We provide professional technical support. English user manual, operation video sending together with the machinery.During the warranty period, if the spare parts was sent back for repair, we will pay for the returning shipping cost and fees, repair them for free including the new parts that needed. (exclude wearing parts)
• Each machine has a unique identification number for easy traceability and after-sales service. Our local service center in Germany provides ongoing support to help address any issues after your purchase.
• We provide lifelong after-sales service and technical support.
