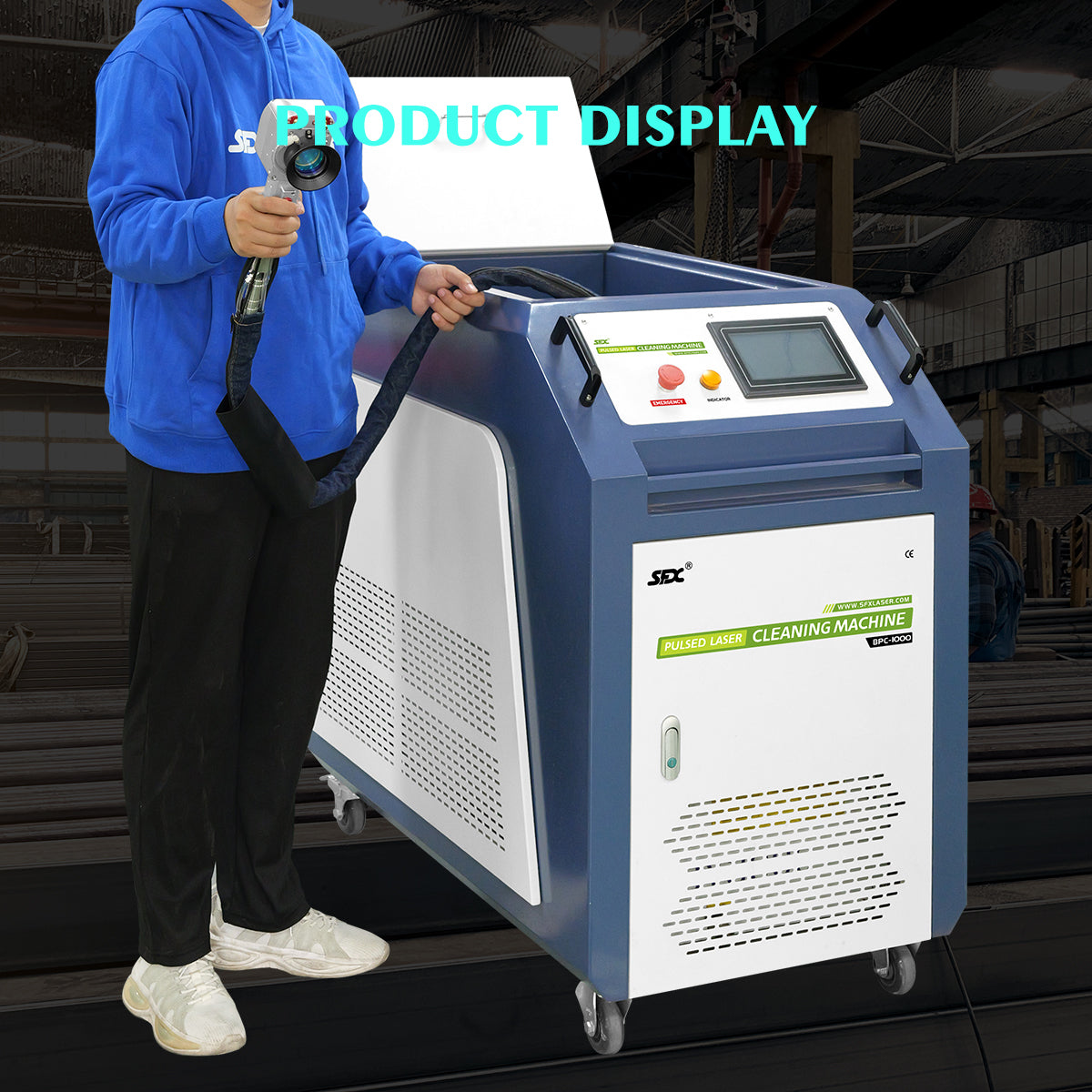

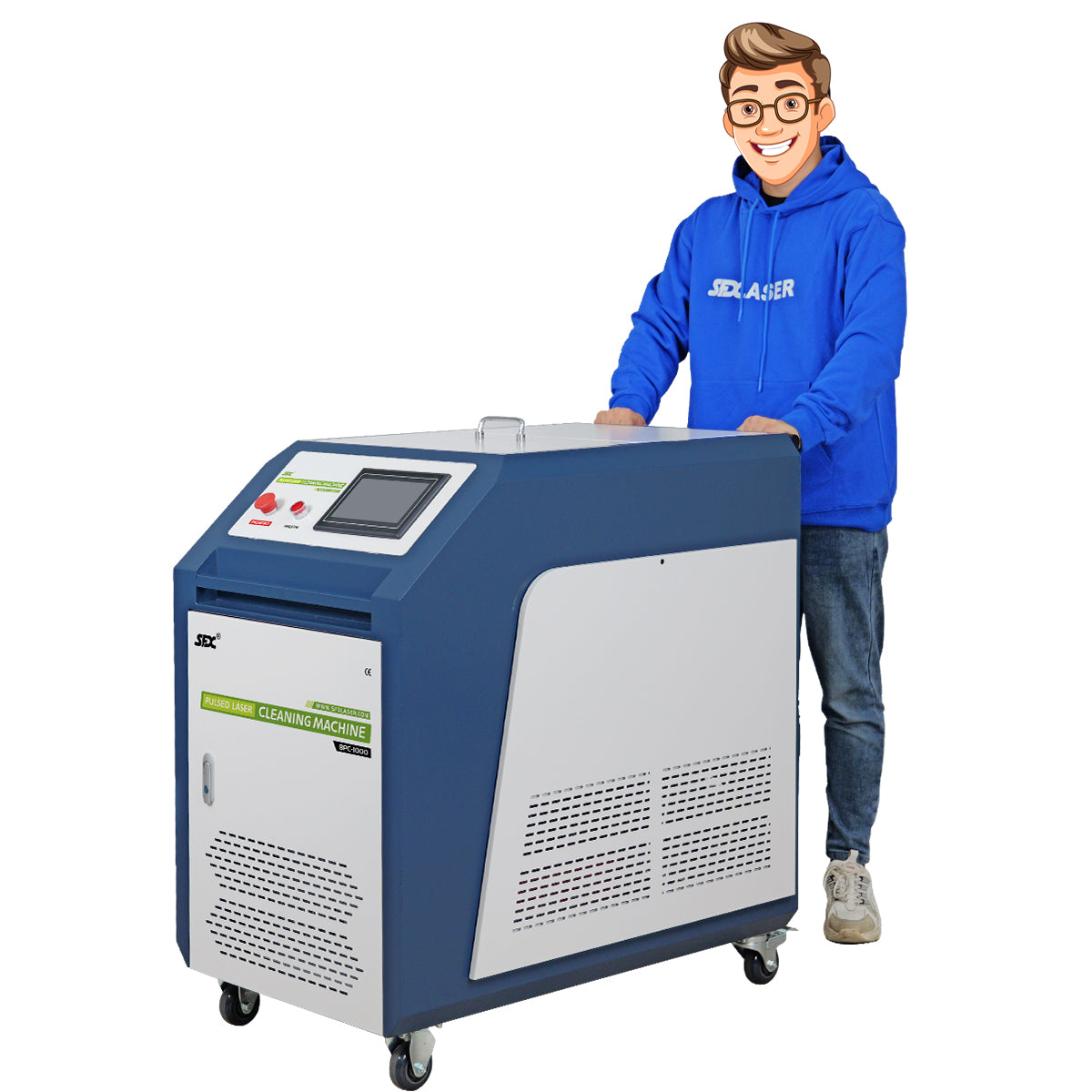

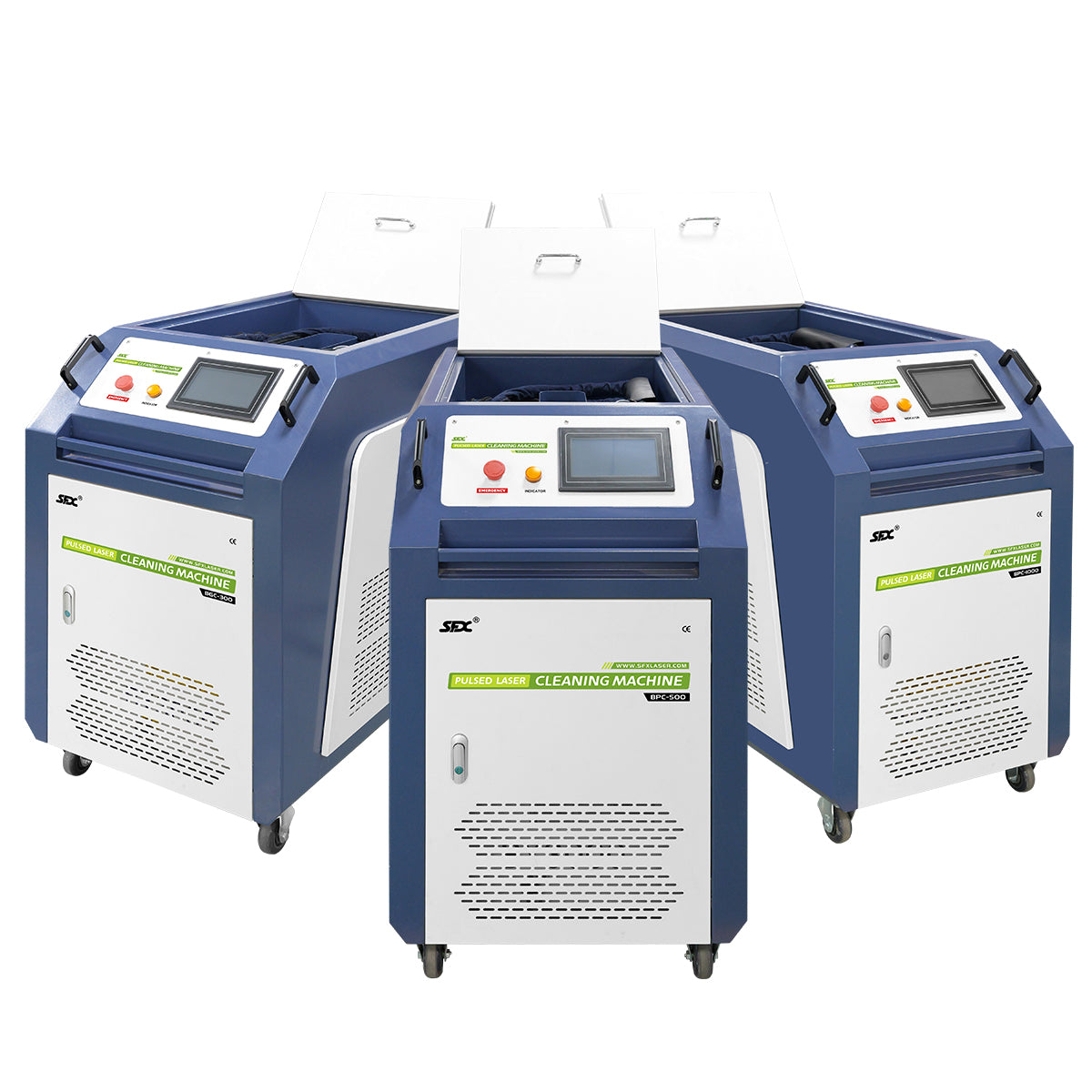

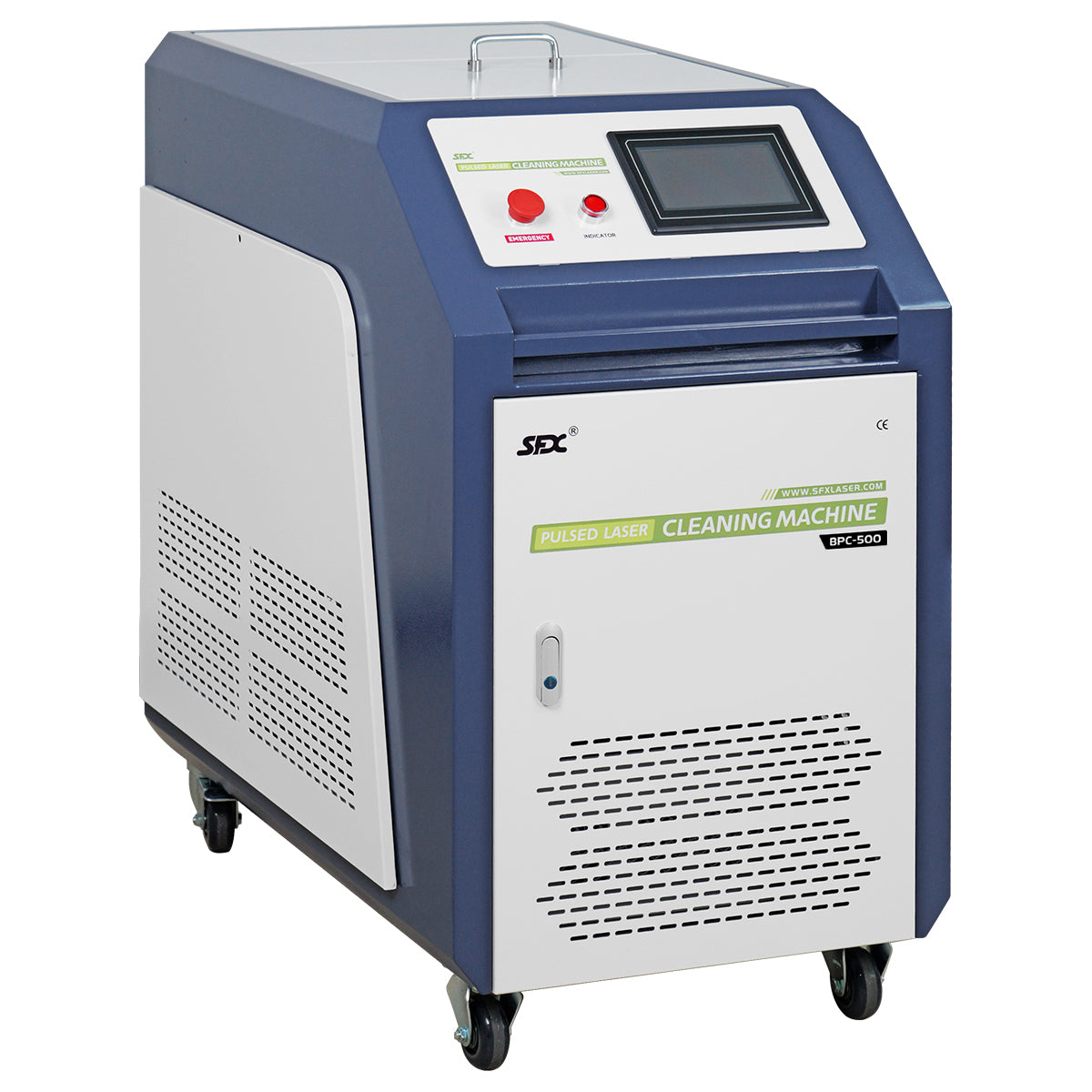

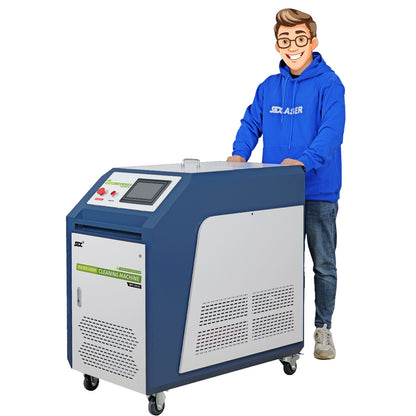

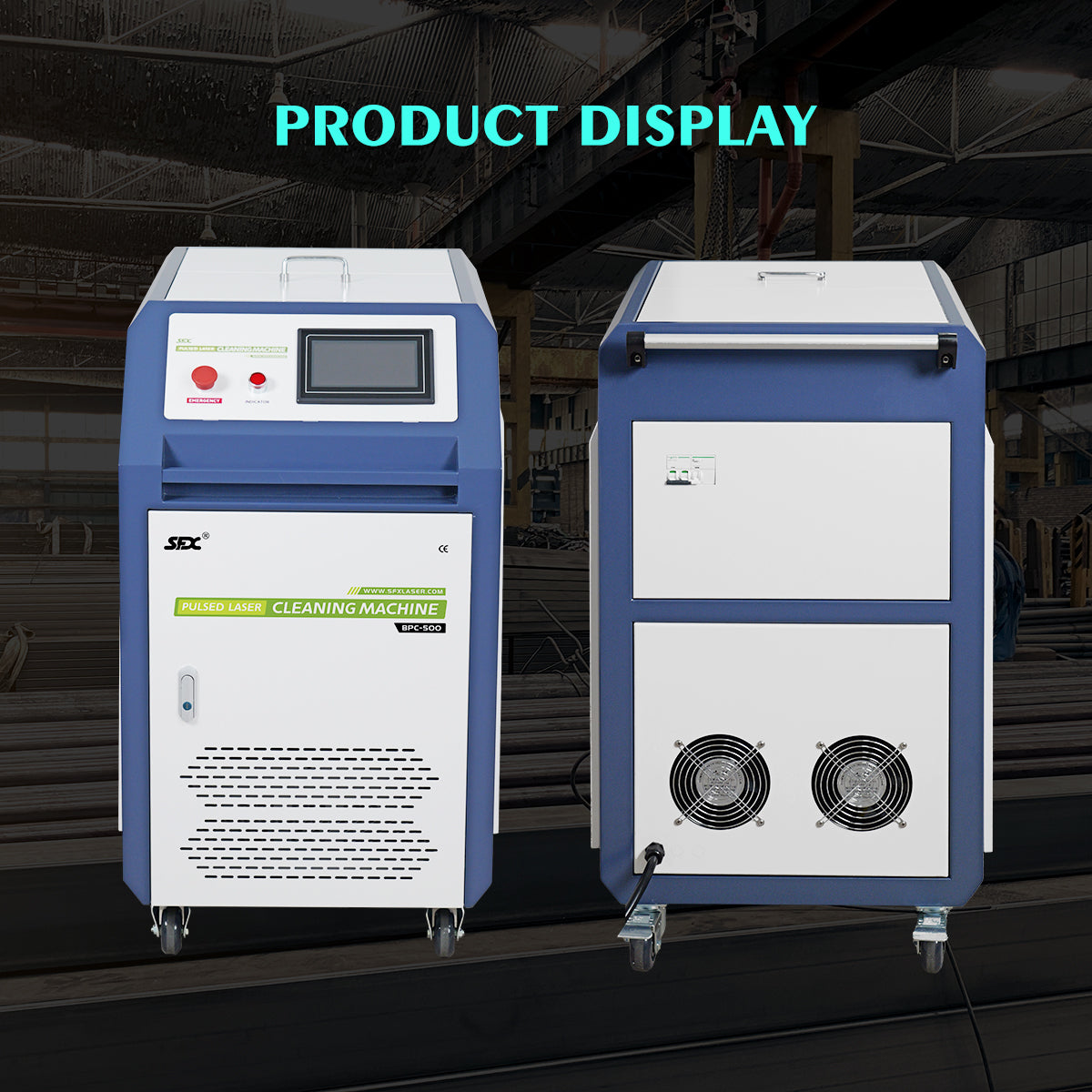

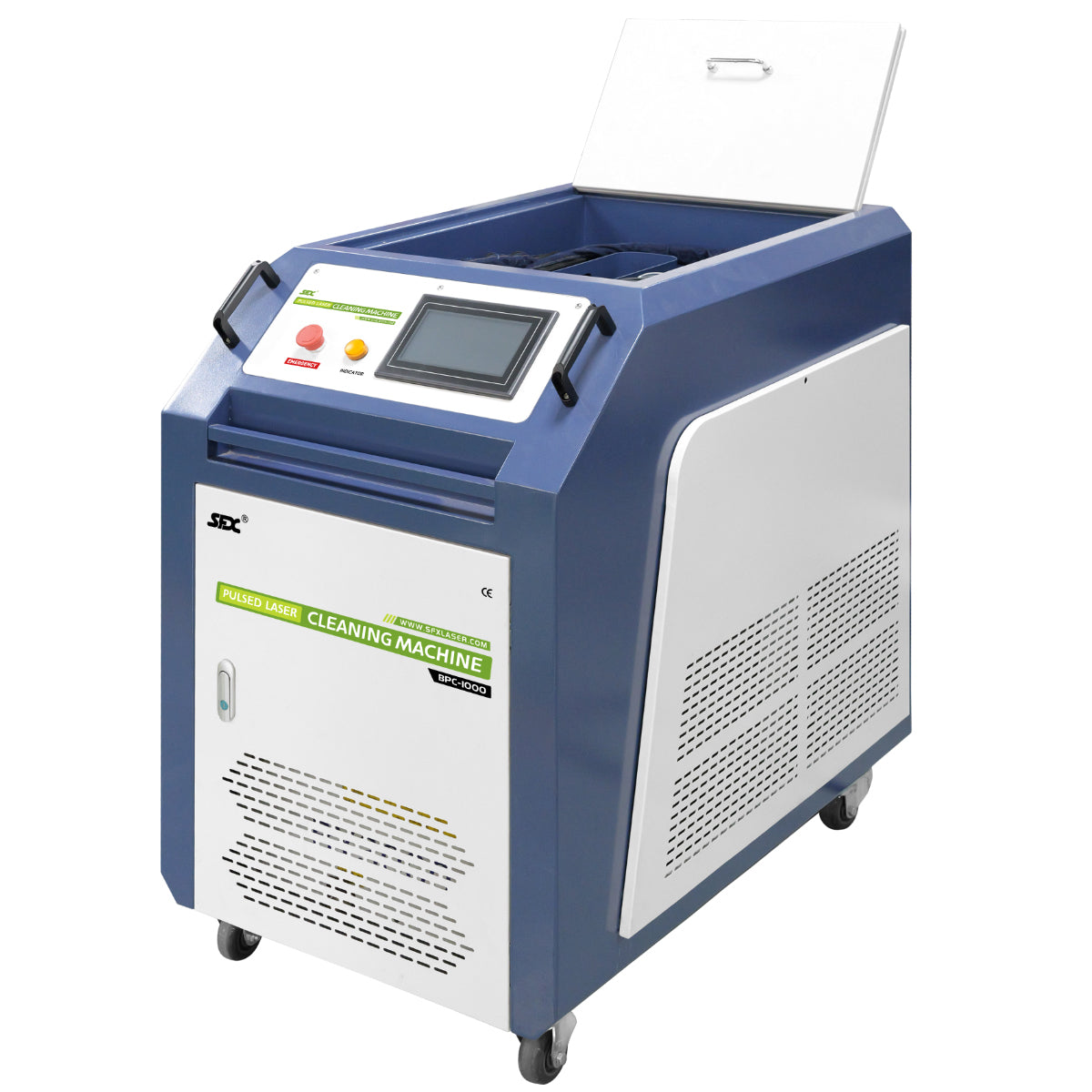

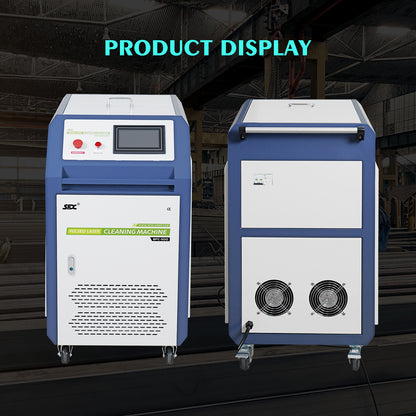

SFX 500W/1000W/2000W Handheld Pulsed Laser Cleaning Machine Water Cooling Metal Rust Oxide Painting Graffiti Oil Remover

Product Parameters

Model: BPC-500/BPC-1000/BPC-2000
Laser Power: 500W/1000W/2000W
Laser Wavelength: 1060-1080nm
Laser Mode: Pulsed
Pulse Width: 10-500ns(BPC-500) / 100-500ns(BPC-1000) /30-500ns(BPC-2000)
Frequency Range:  1-1000kHz(BPC-500)/100-1500kHz(BPC-1000)/1-1500kHz(BPC-2000)
Fiber Cable Length: 10m(BPC-500/BPC-1000)/20m(BPC-2000)
Cooling Method: Water Cooling
Working Voltage: AC 220V±10%(BPC-500/BPC-1000)/AC 380V±10%(BPC-2000)
Power Consumption: <4KW<6KW<9KW
Anti-Reflection Protection: Yes/No/Yes
Ambient Temperature: -5-40°C
Ambient Humidity: ≤80%
Machine Demension: 1010*600*1045mm(BPC-500/BPC-1000)/1050*670*1070mm(BPC-2000)
Net Weight: 170kg/183kg/244kg

Features and Advantages

• The upgraded BPC Series is back with enhanced performance, now featuring advanced anti-freezing technology for a wider range of applications.
• The BPC-1000 delivers the same cleaning performance as the APC Series and is also suitable for wood cleaning. When cleaning the same material, it offers up to 1.7× the efficiency of the APC-500, depending on the material being processed.
• Higher Cleaning Efficiency. No damage to the substrate. Suitable for fine cleaning.
• Easy cleaning without effort. Can cooperate with manipulator, realize automatic cleaning, makes the cleaning effect more evenly.

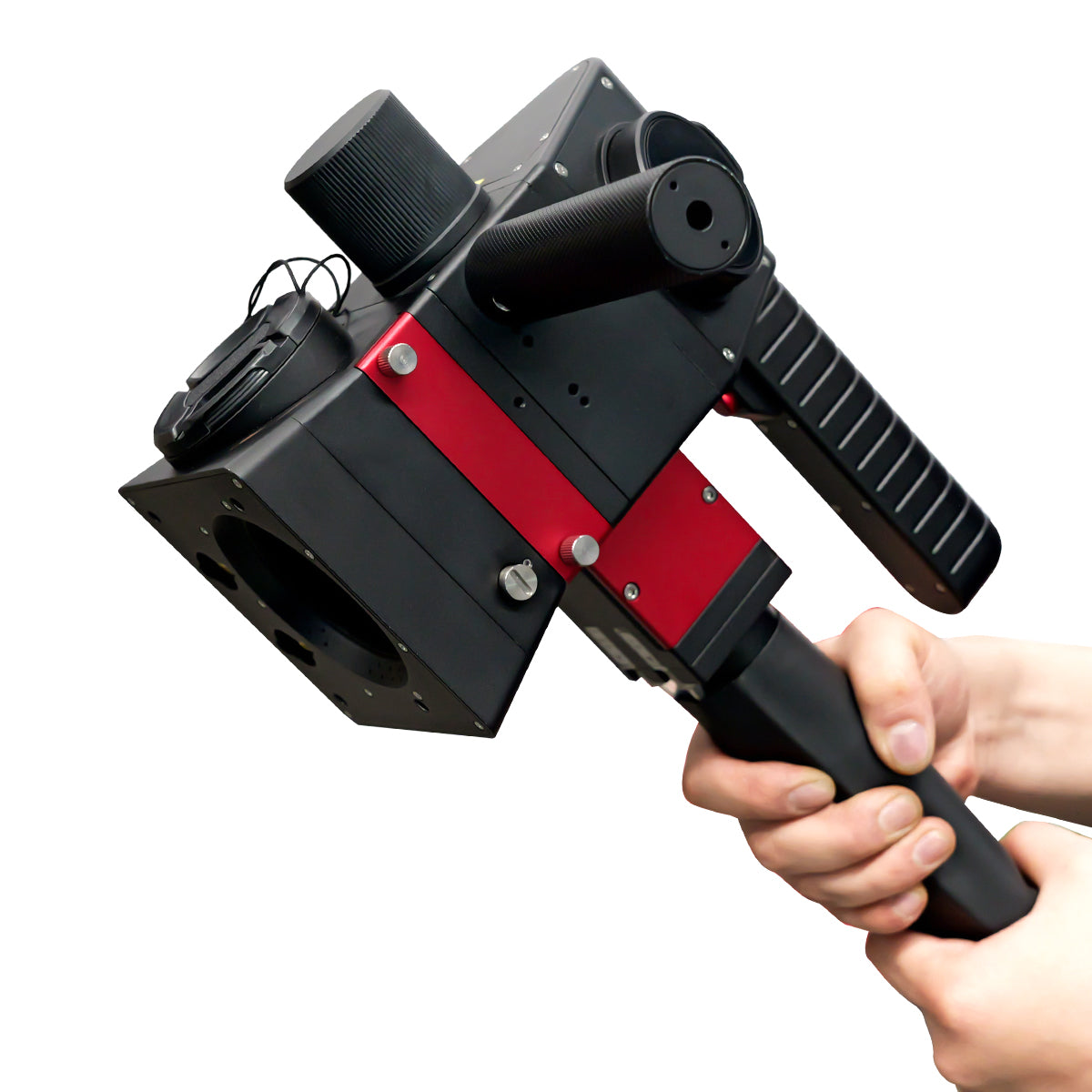

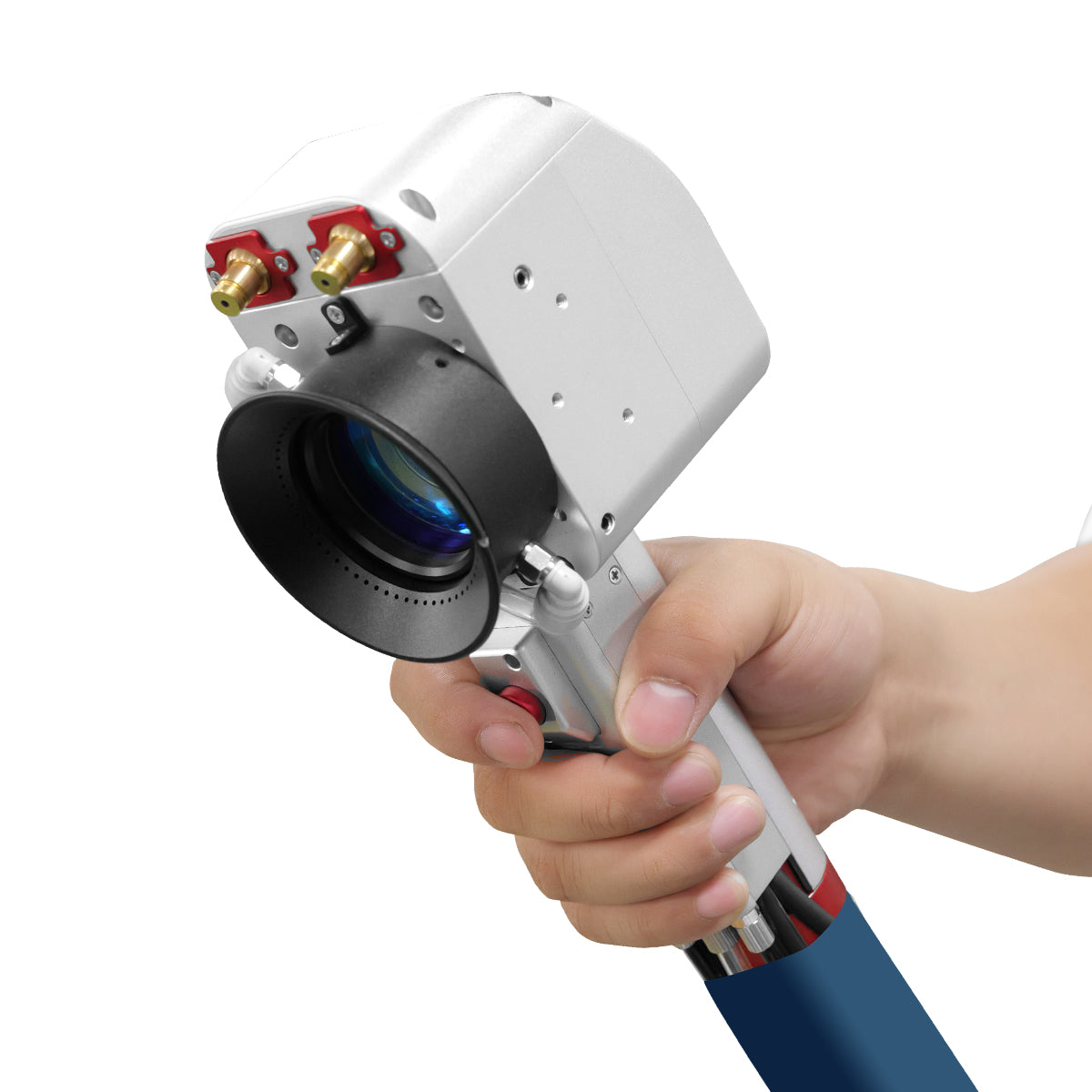

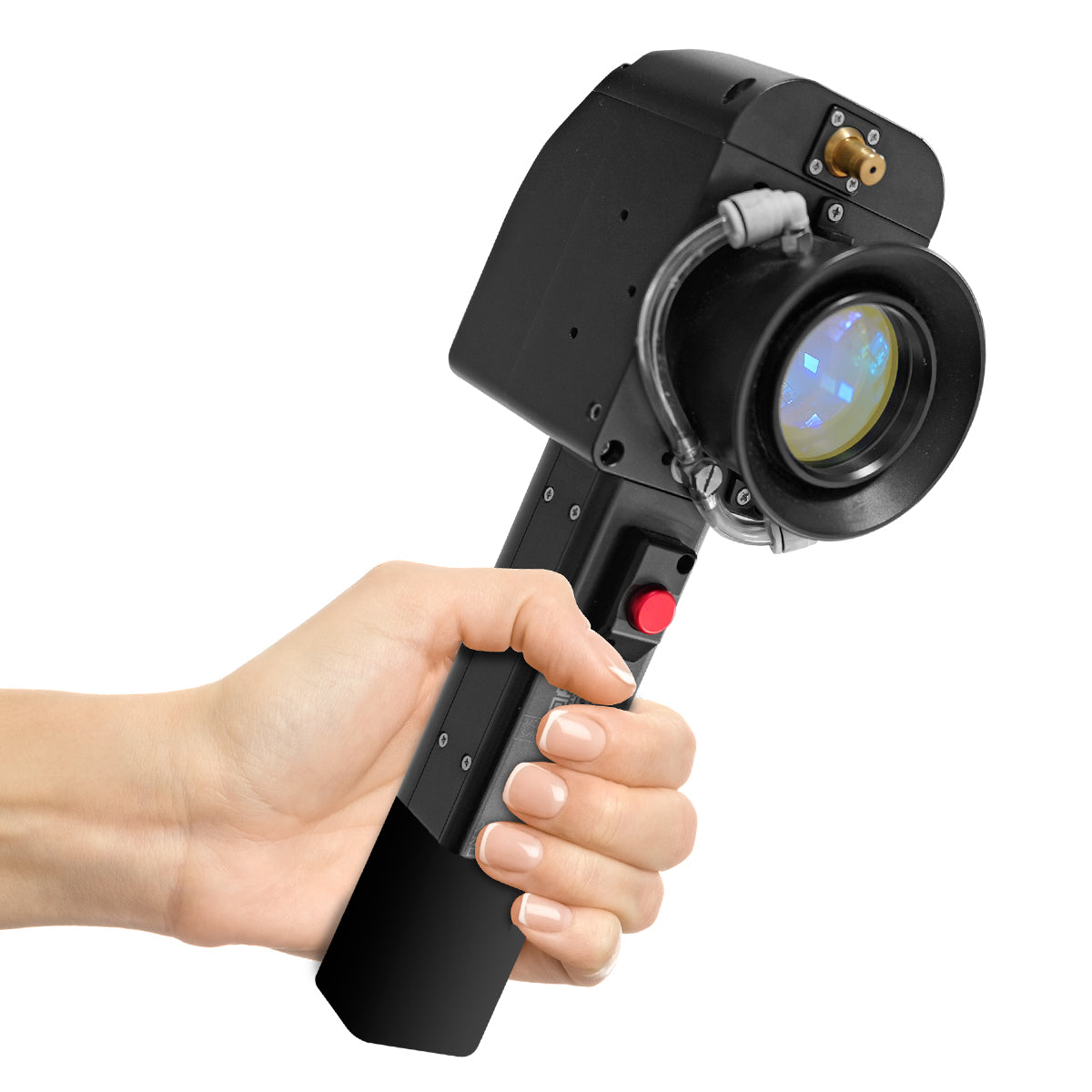

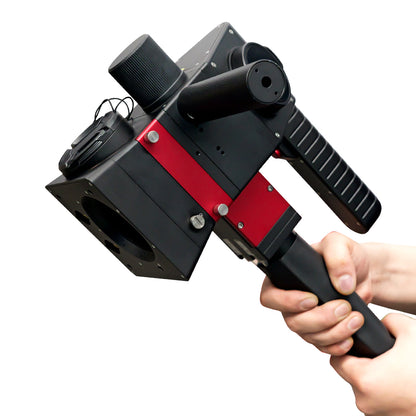

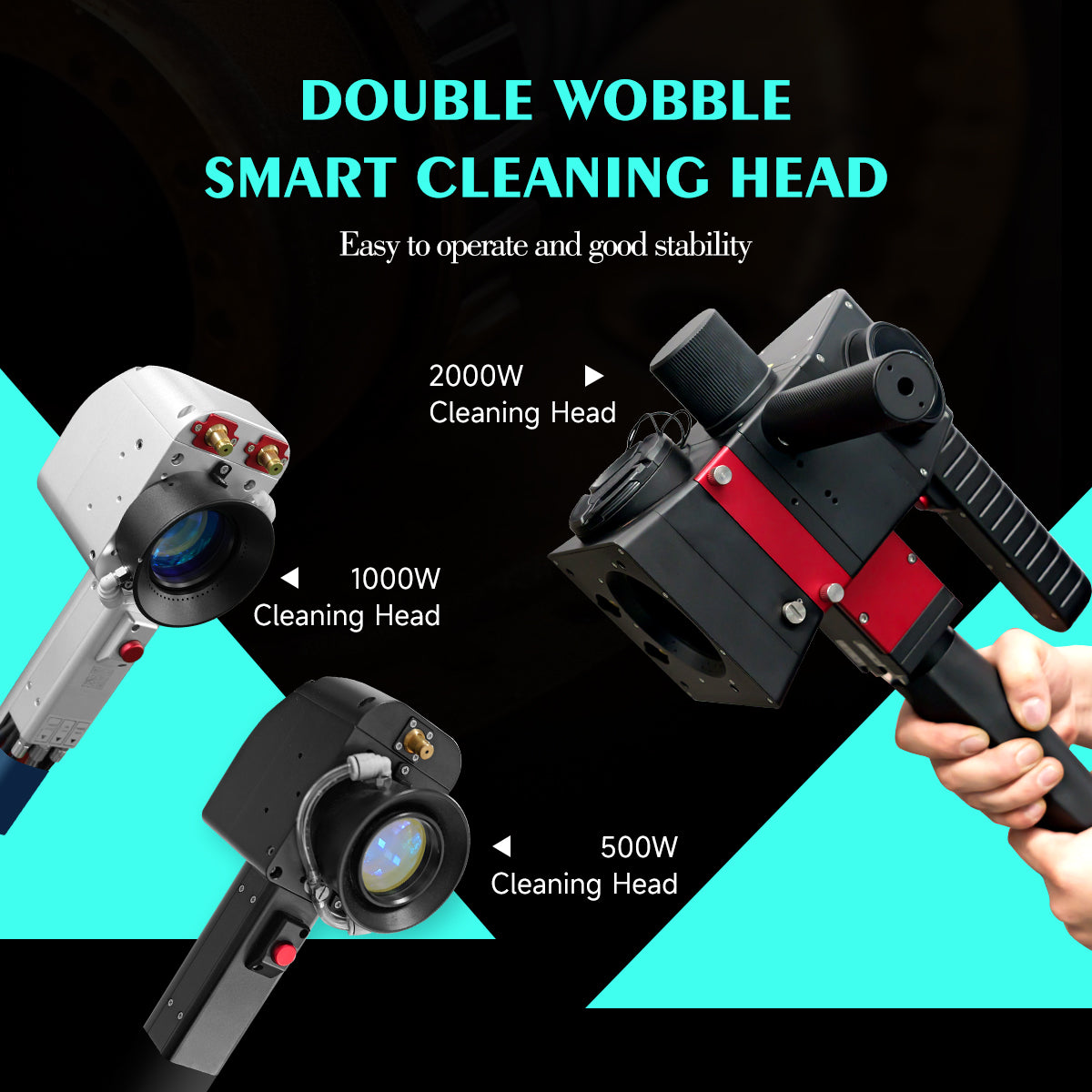

• Double wobble smart cleaning head. Easy to operate and good stability. Support 8 cleaning modes, applicable to complex scenes.

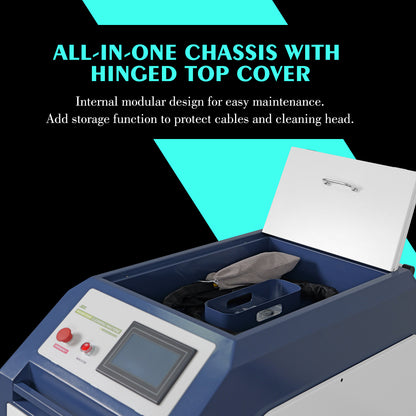

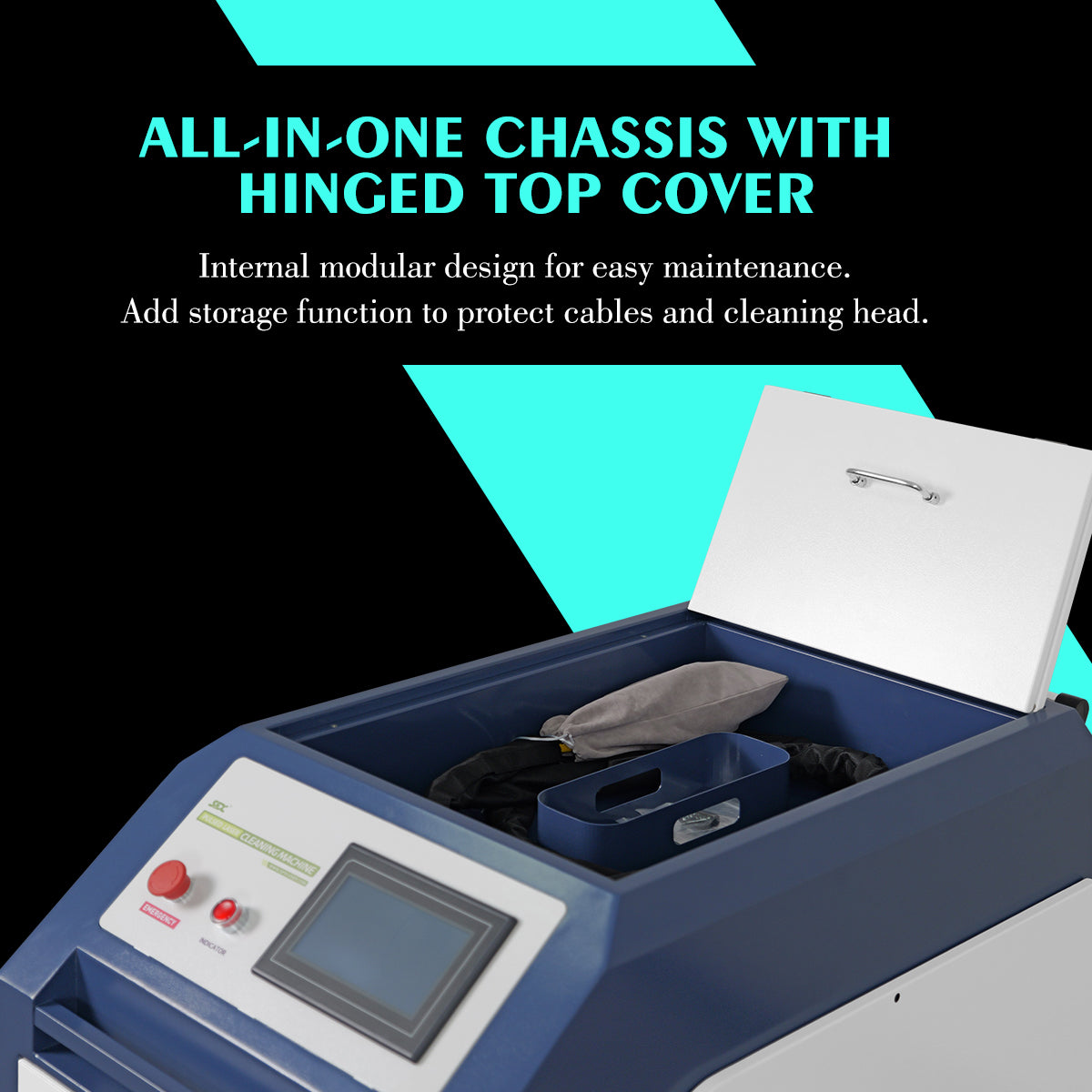

• Thick sheet metal chassis. Strong structure, anti-deformation and good heat dissipation. 10m fiber cable for larger range of activities.

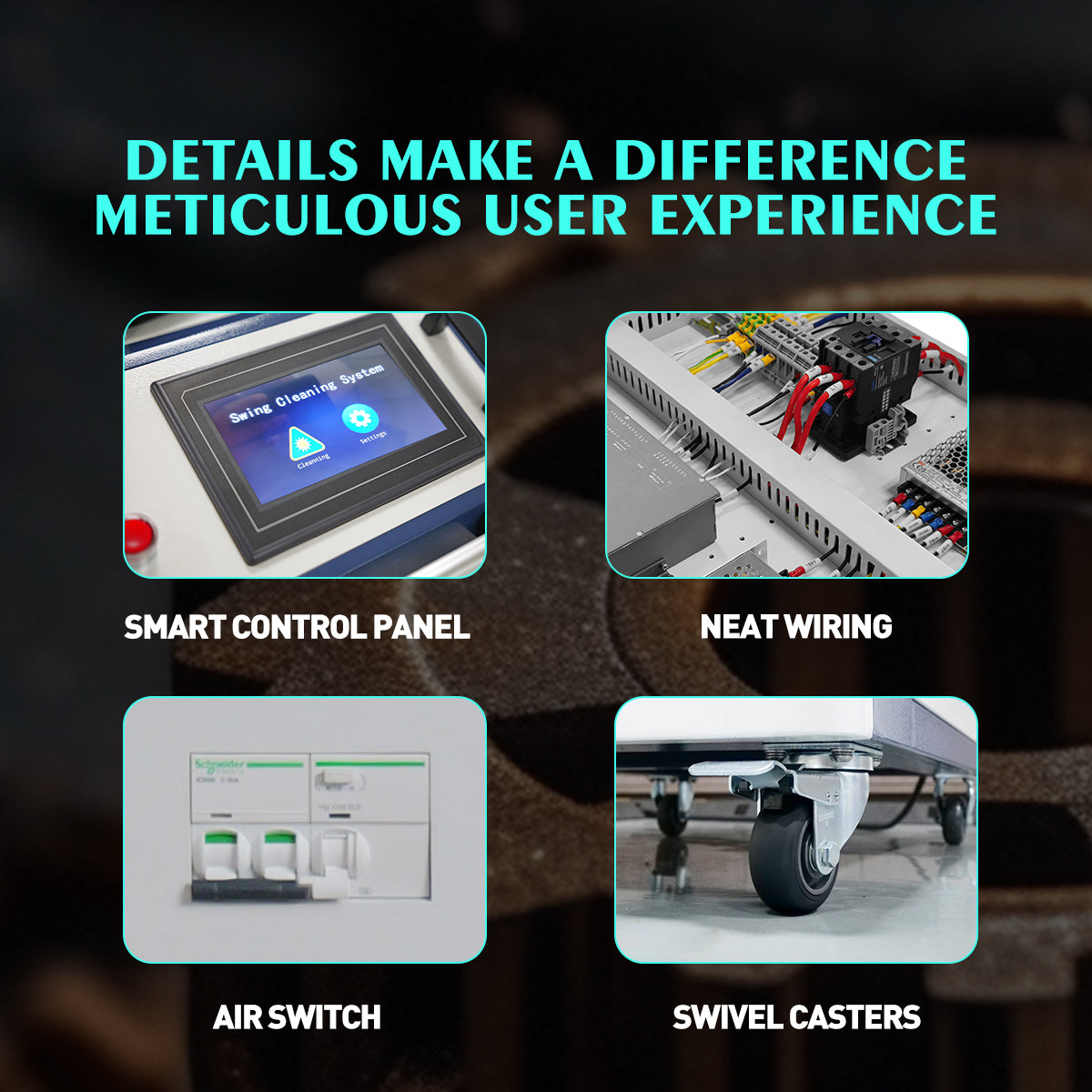

• Smart Control Panel. Full touch screen operation interface. Support multilingual process library design, set once and use at any time.
• Passed multiple rigorous tests ( High temperature/Vibration/Anti-interference/Fatigue/High humidity/Bend resistance test), reliable quality, stable and durable.

Application

• Suitable for rust removal, oil removal, paint removal, coating removal, oxidation layer removal, plating removal, mold cleaning, adhesive layer removal, cultural relic restoration, etc.
• Can be used in aerospace, mold, automobile, food, tire hub, pharmaceutical, chemical and other industries.
• Please note: Within the BPC Series, only the BPC-1000 is suitable for wood cleaning. Please choose the appropriate model based on your application. If you have any questions, please feel free to contact us before purchasing.

Warranty

• One year warranty for the whole machine and two years warranty for the laser source.
• We provide professional technical support. English user manual, operation video sending together with the machinery. During the warranty period, if the spare parts was sent back for repair, we will pay for the returning shipping cost and fees, repair them for free including the new parts that needed. (exclude wearing parts)
• We have after-sales service centers in the United States and Canada.
• We provide lifelong after-sales service and technical support.
