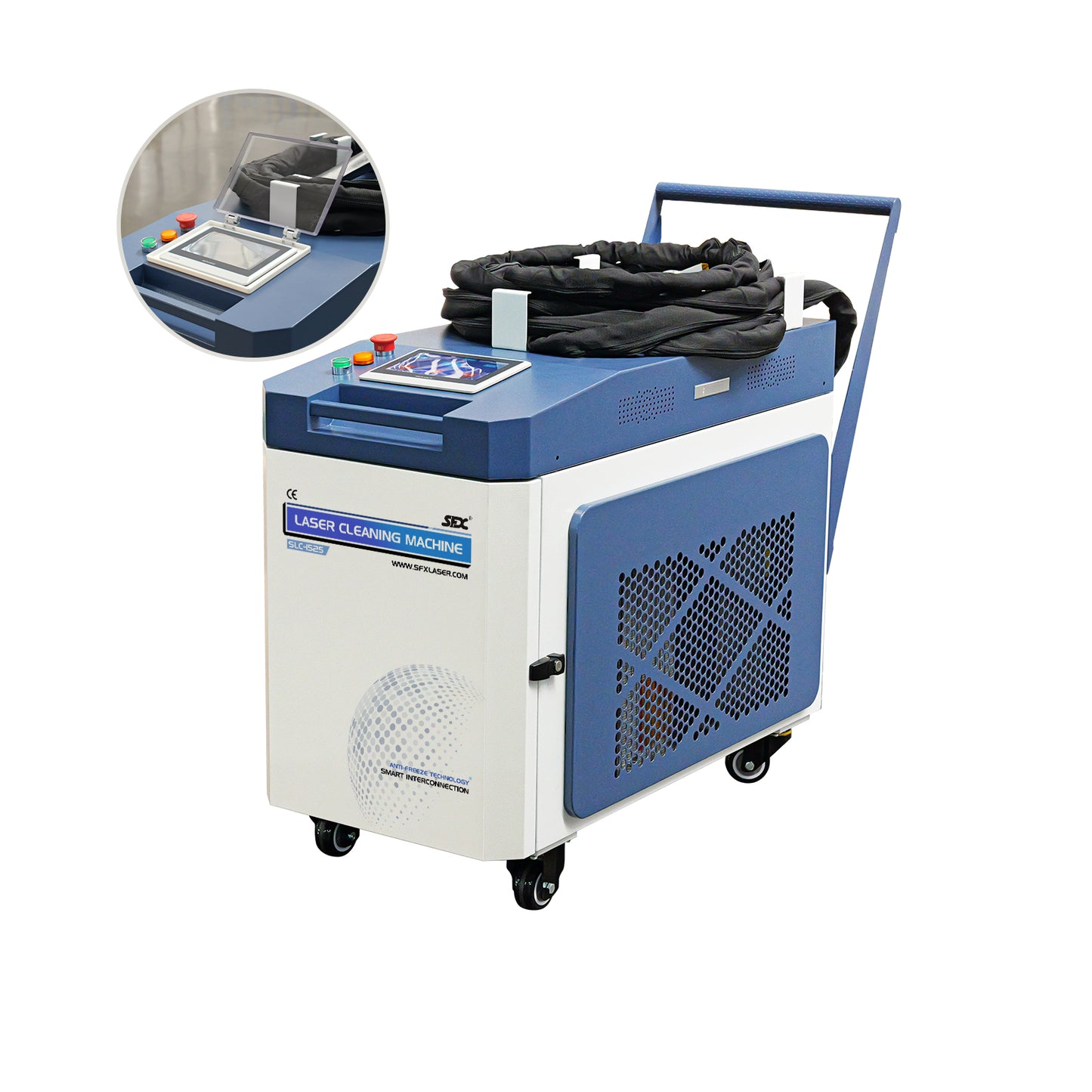

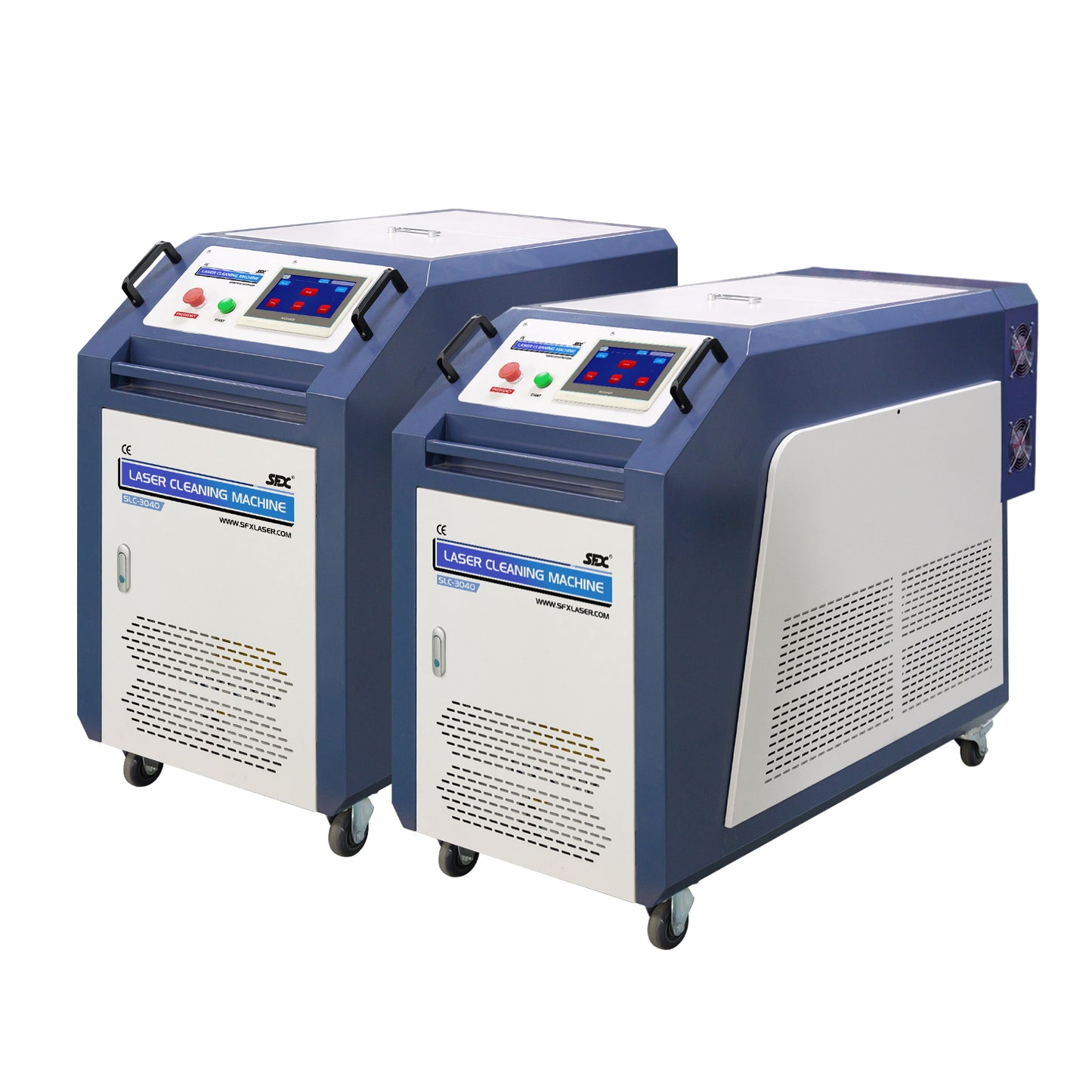

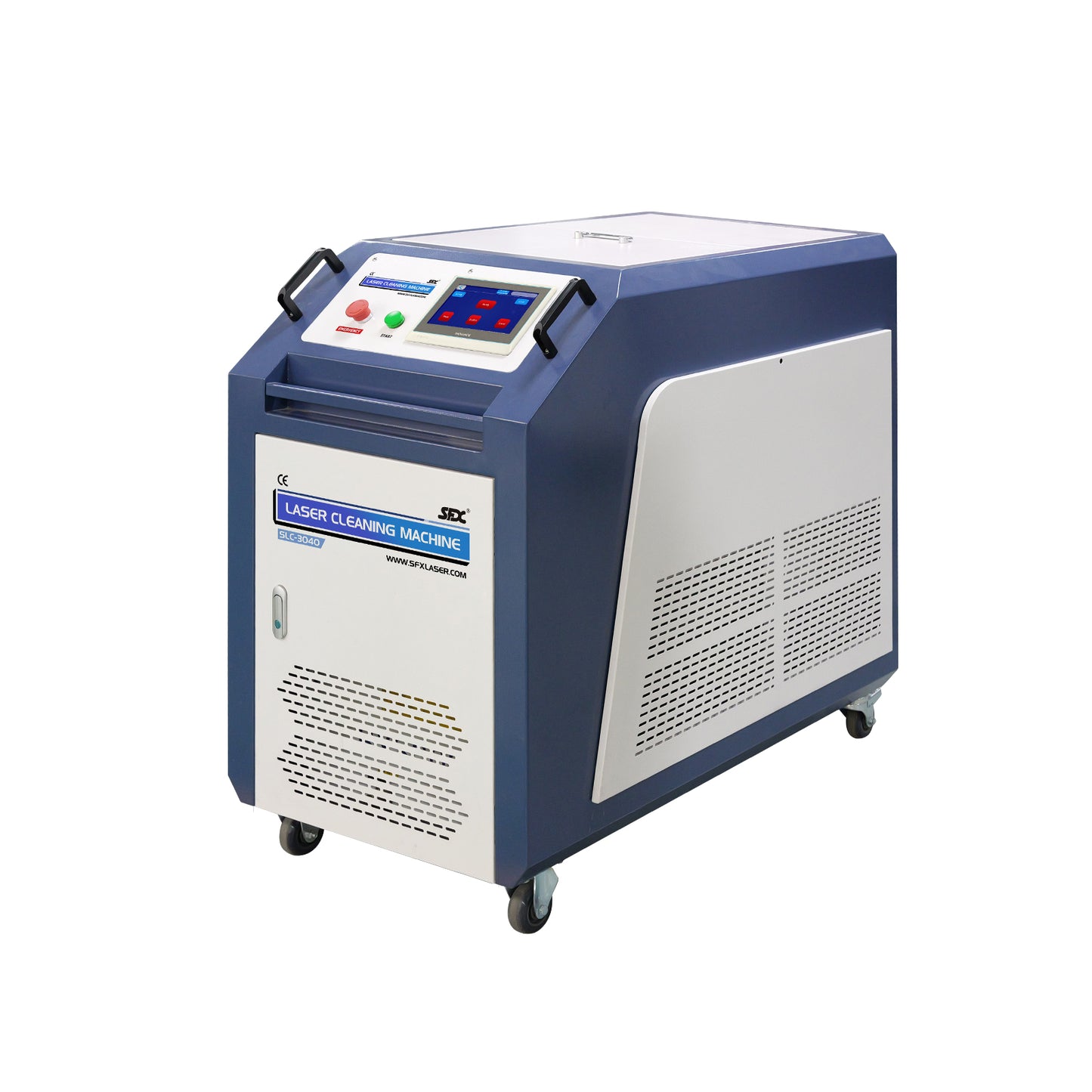

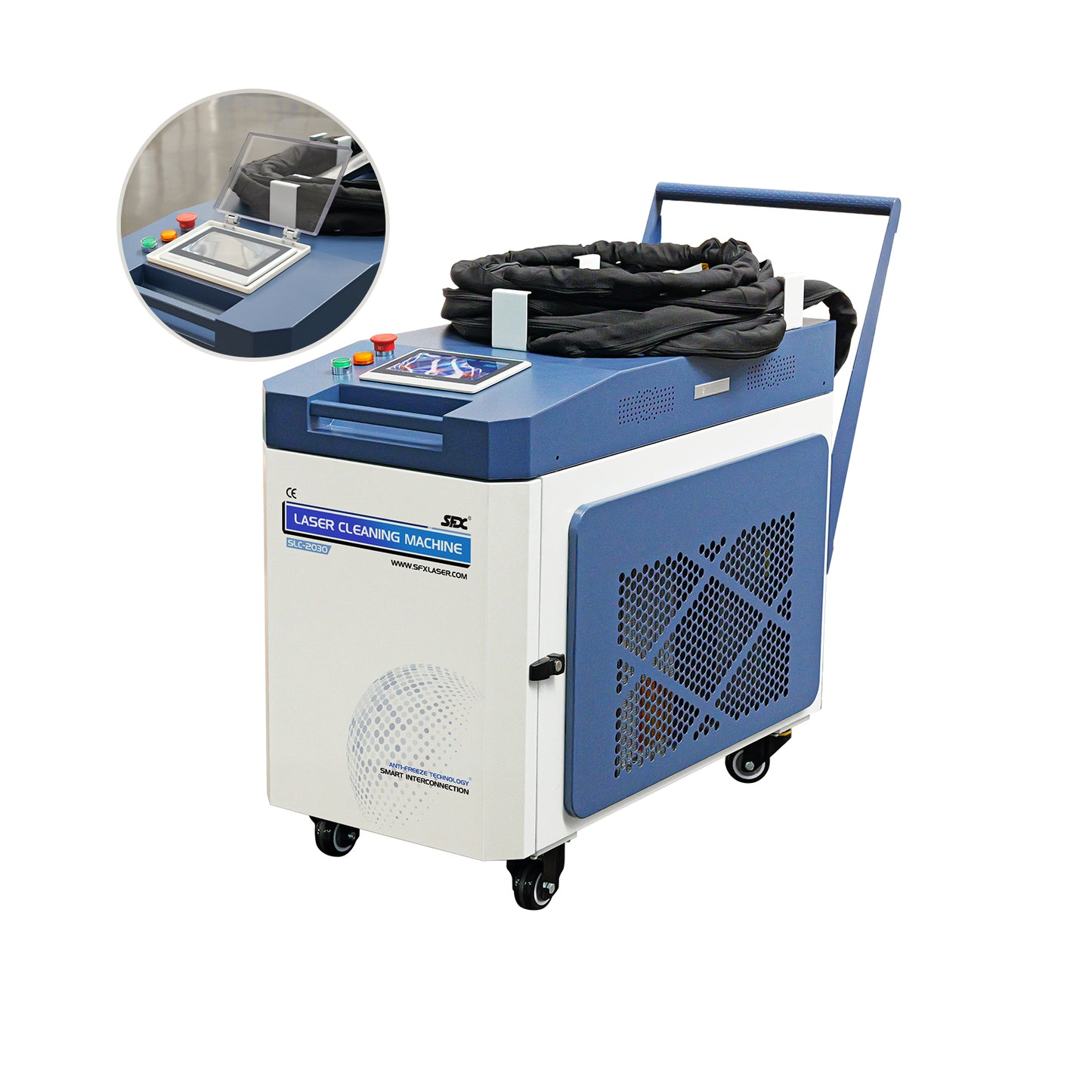

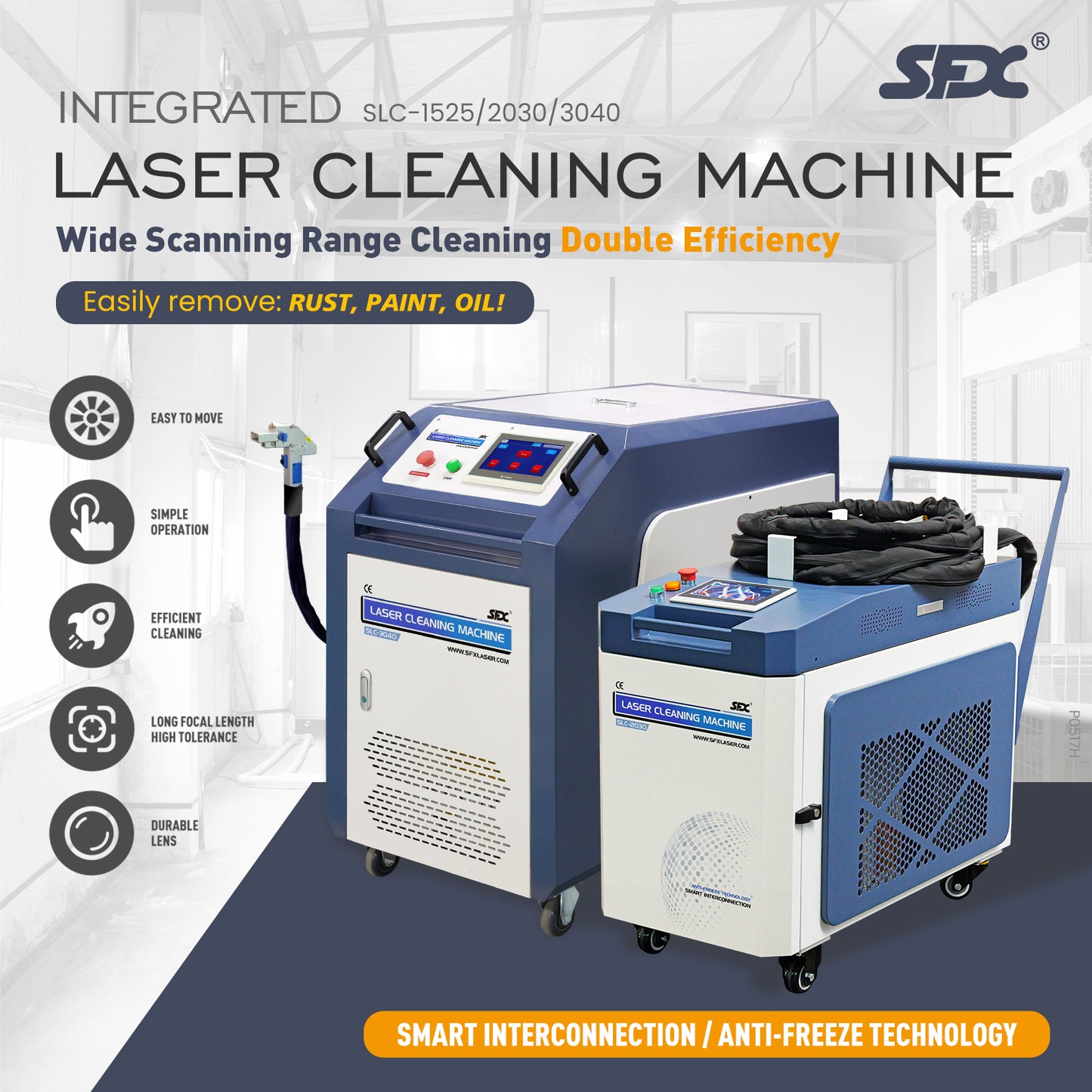

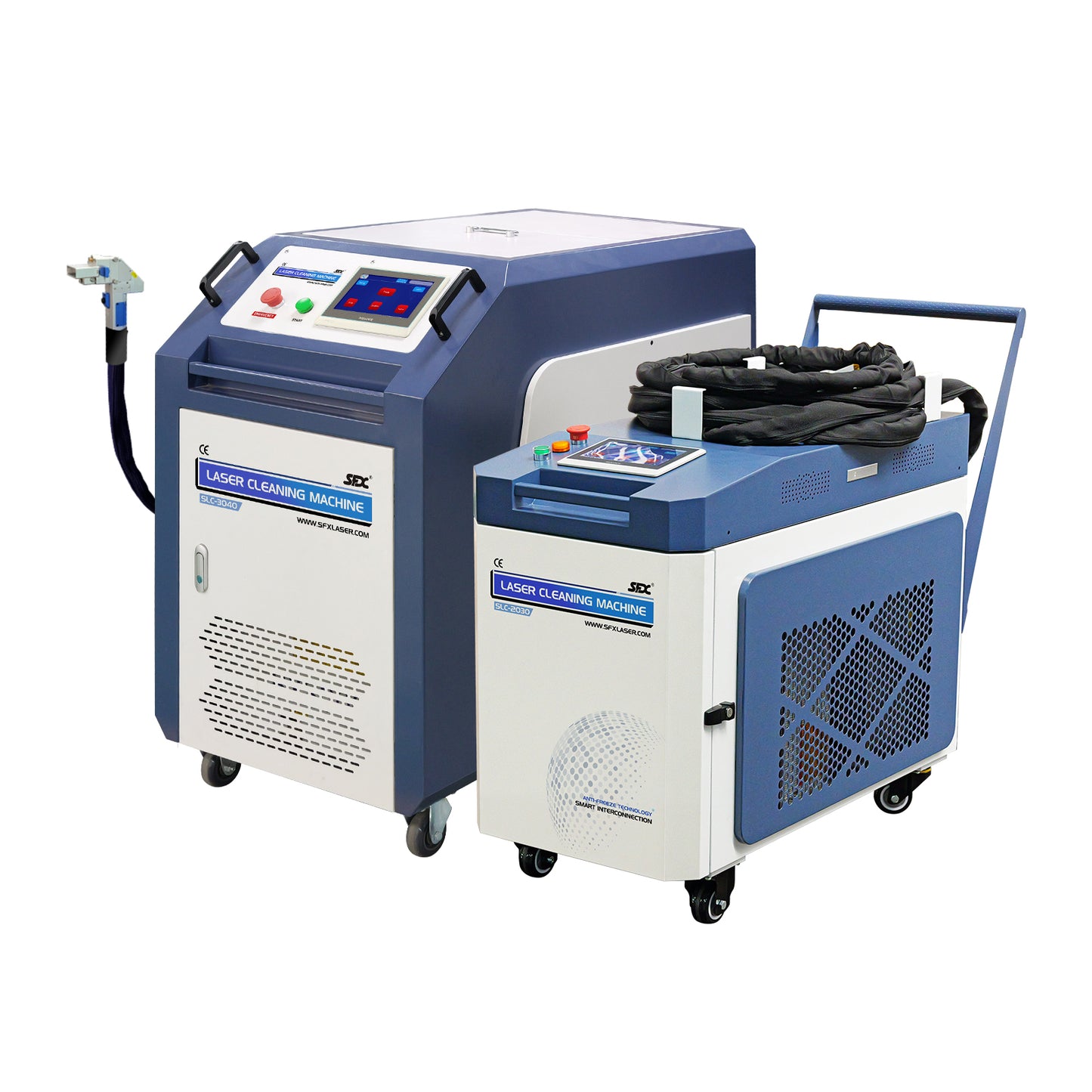

SFX 1.5KW/2KW/3KW Smart Interconnection Anti-Freeze MAX Laser Cleaning Machine Metal Rust Oxide Painting Oil Removal

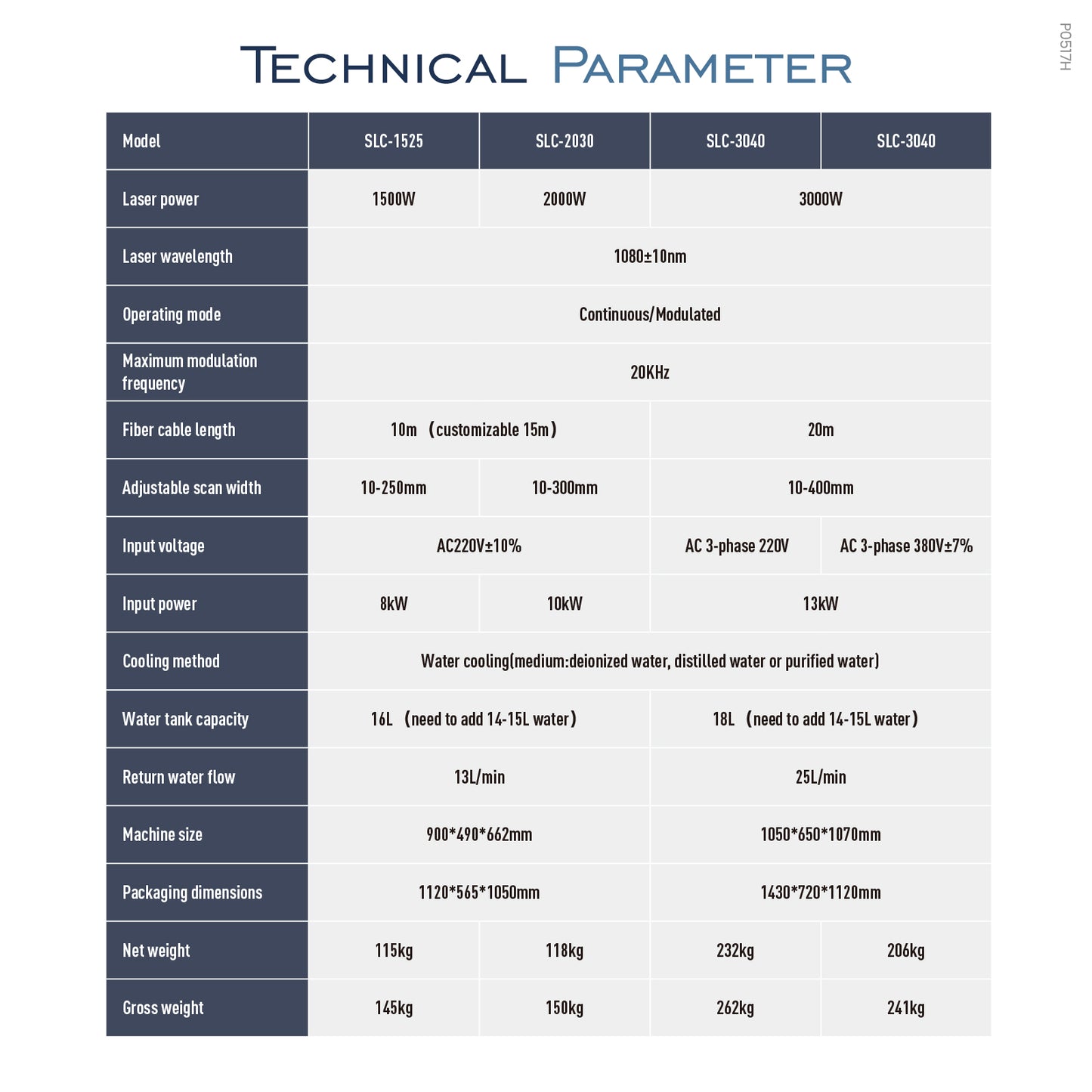

Technical Parameters

Model: SLC-1525 / SLC-2030 / SLC-3040 / SLC-3040
Laser Power: 1500W / 2000W / 3000W
Laser Wavelength: 1080±10nm
Operating Mode: Continuous/Modulated
Maximum Modulation Frequency: 20KHz
Fiber Cable Length: 10m (customizable 15m) / 20m
Adjustable Scan Width: 10–250mm / 10–300mm / 10–400mm
Input Voltage: AC220V±10% / AC 3-phase 220V / AC 3-phase 380V±7%
Input Power: 8kW / 10kW / 13kW
Cooling Method: Water cooling (medium: deionized water, distilled water or purified water)
Water Tank Capacity: 16L (need to add 14–15L water) / 18L (need to add 14–15L water)
Return Water Flow: 13L/min / 25L/min
Machine Size: 900×490×662mm / 1050×650×1070mm
Packaging Dimensions: 1120×565×1050mm / 1430×720×1120mm
Net Weight: 115kg / 118kg / 232kg / 206kg
Gross Weight: 145kg / 150kg / 262kg / 241kg

Applicable Industries

Aviation Marine , Electromechanical , Rubber Mold , Equipment Manufacturing , Auto Parts , Food Processing

Application to Multiple Scenarios

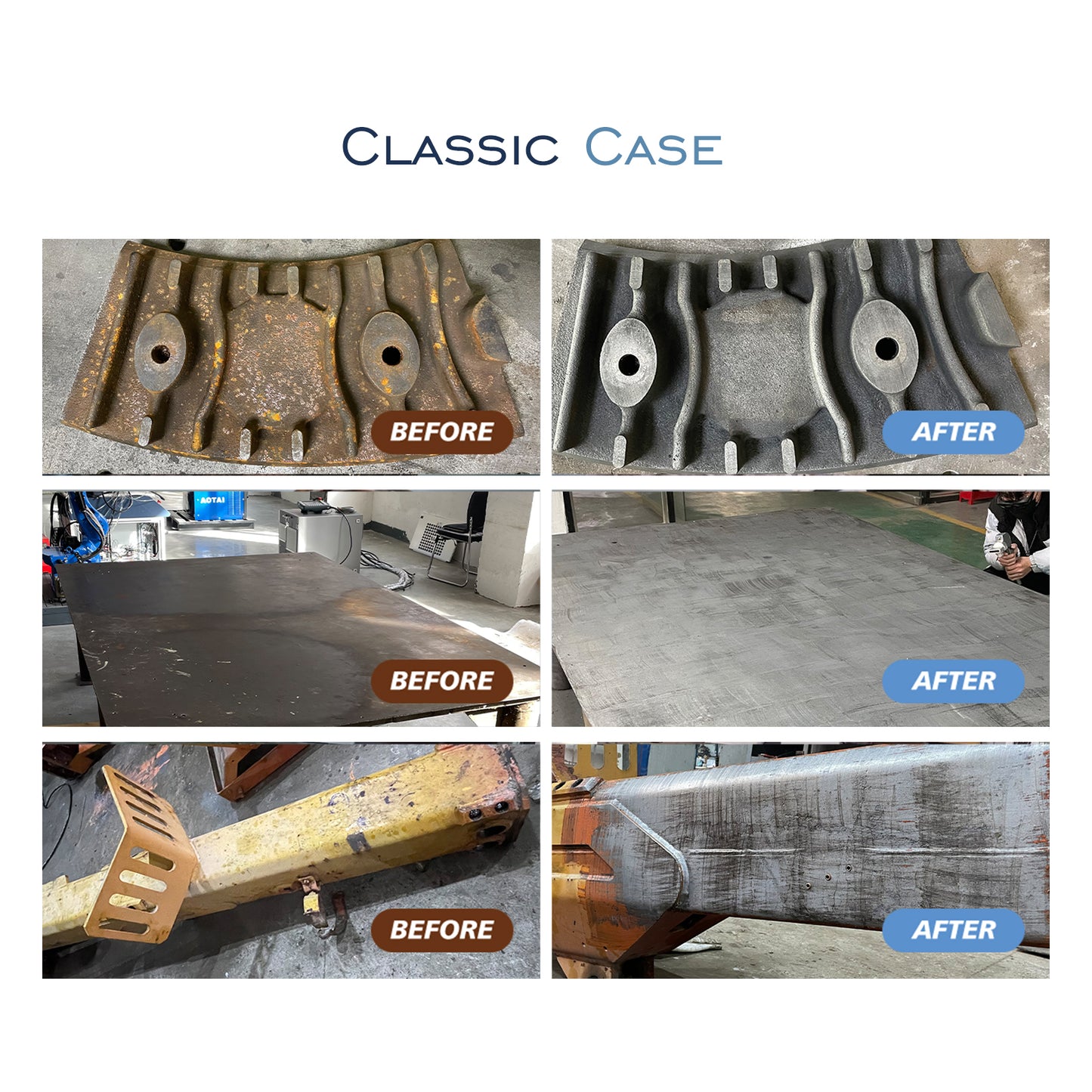

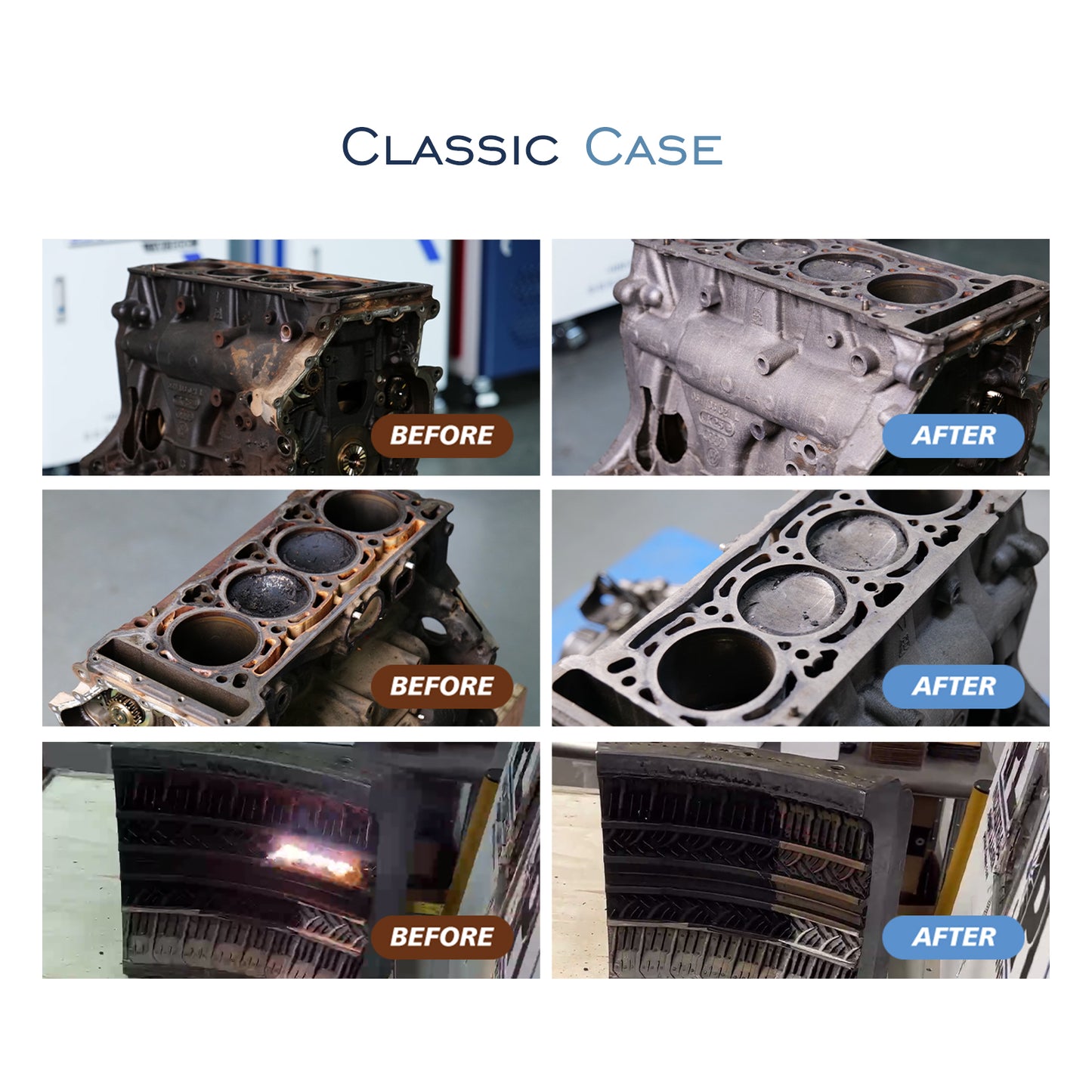

Paint stripping, pre-treatment of parts before spraying, aerospace component cleaning, oxides removal pre-treatment before soldering or welding, oil pollution and product residues removal, etc.

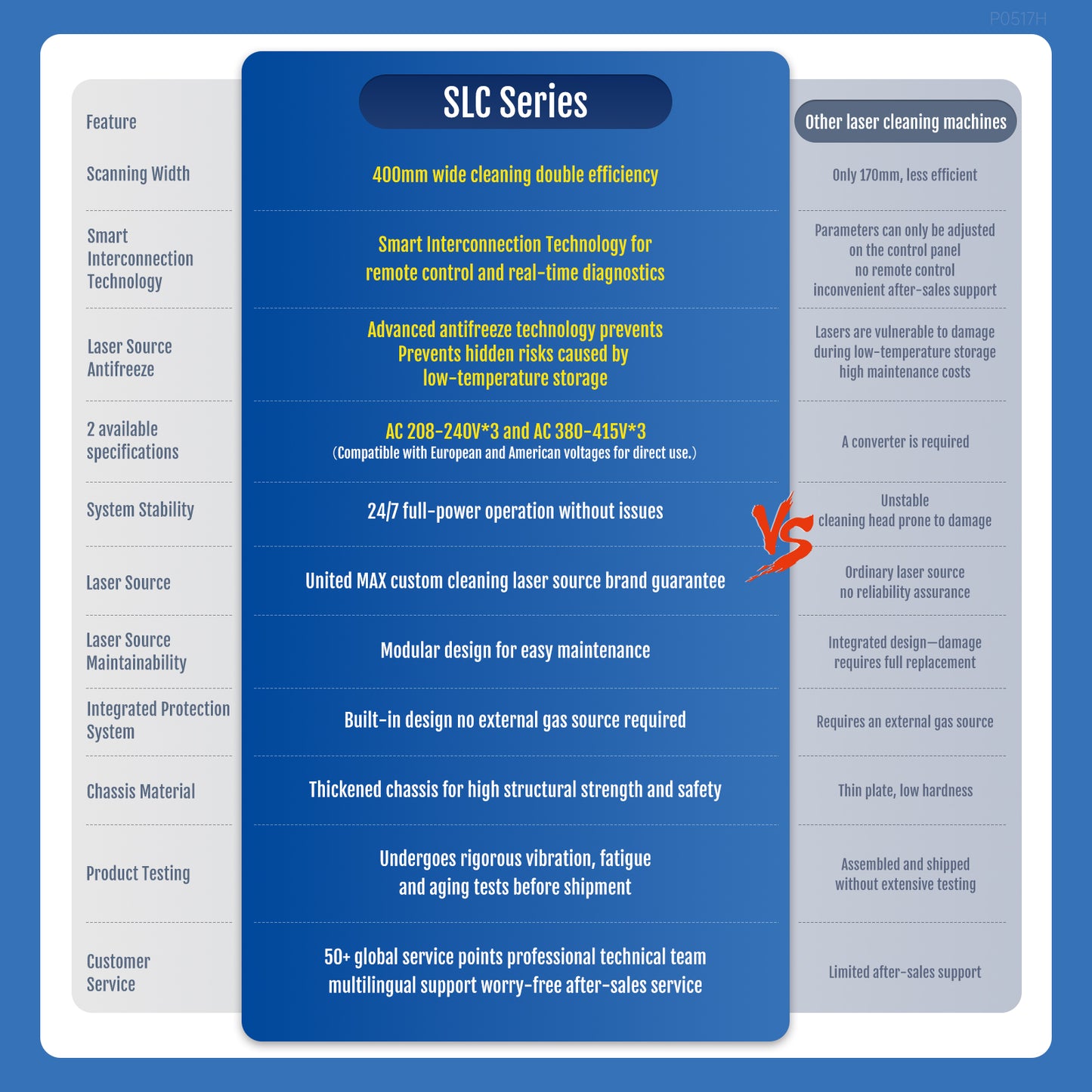

Advantages

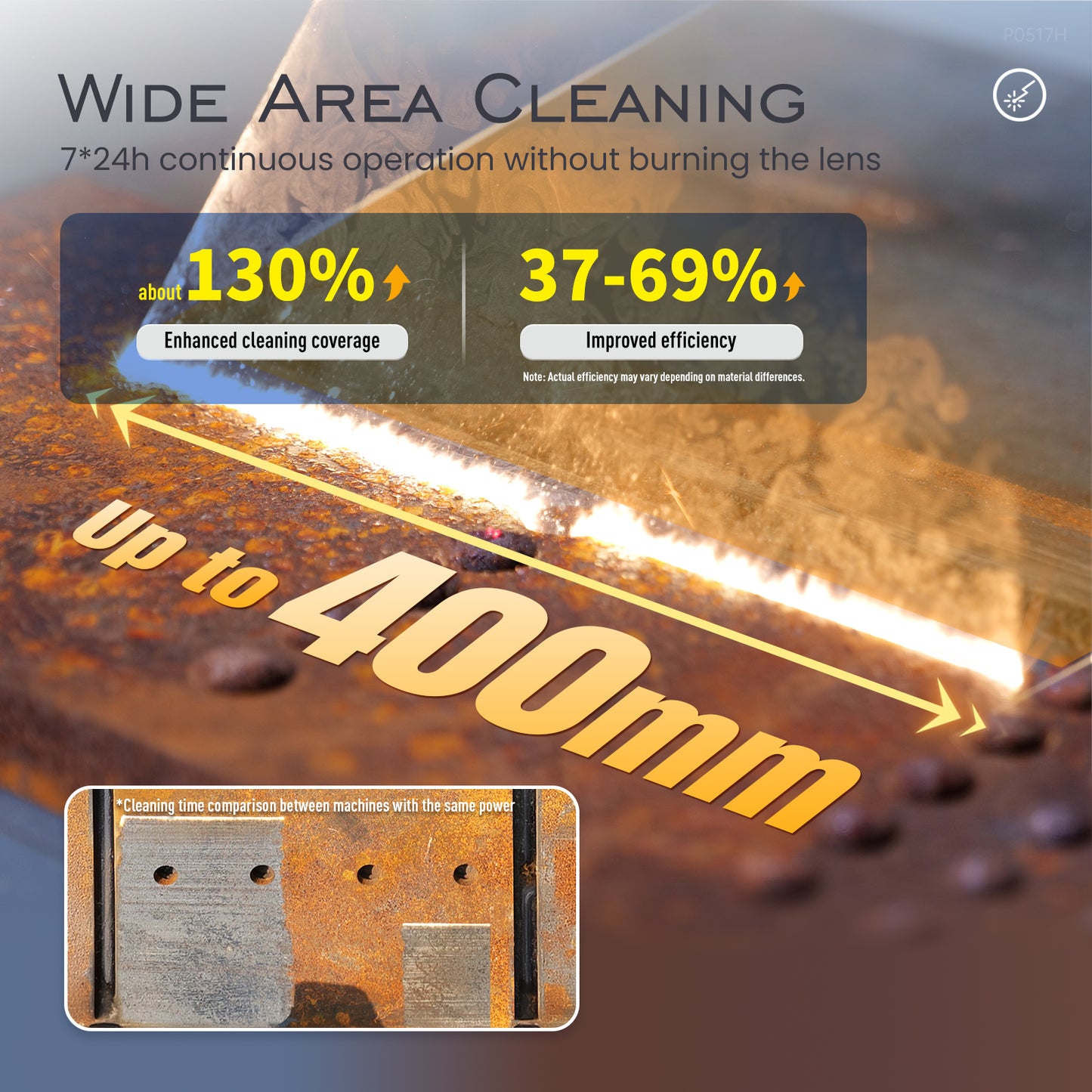

1. WIDE AREA CLEANING
• 7×24h continuous operation without lens burnout
• Enhanced cleaning coverage: approx. +130%
• Improved cleaning efficiency: +37–69%

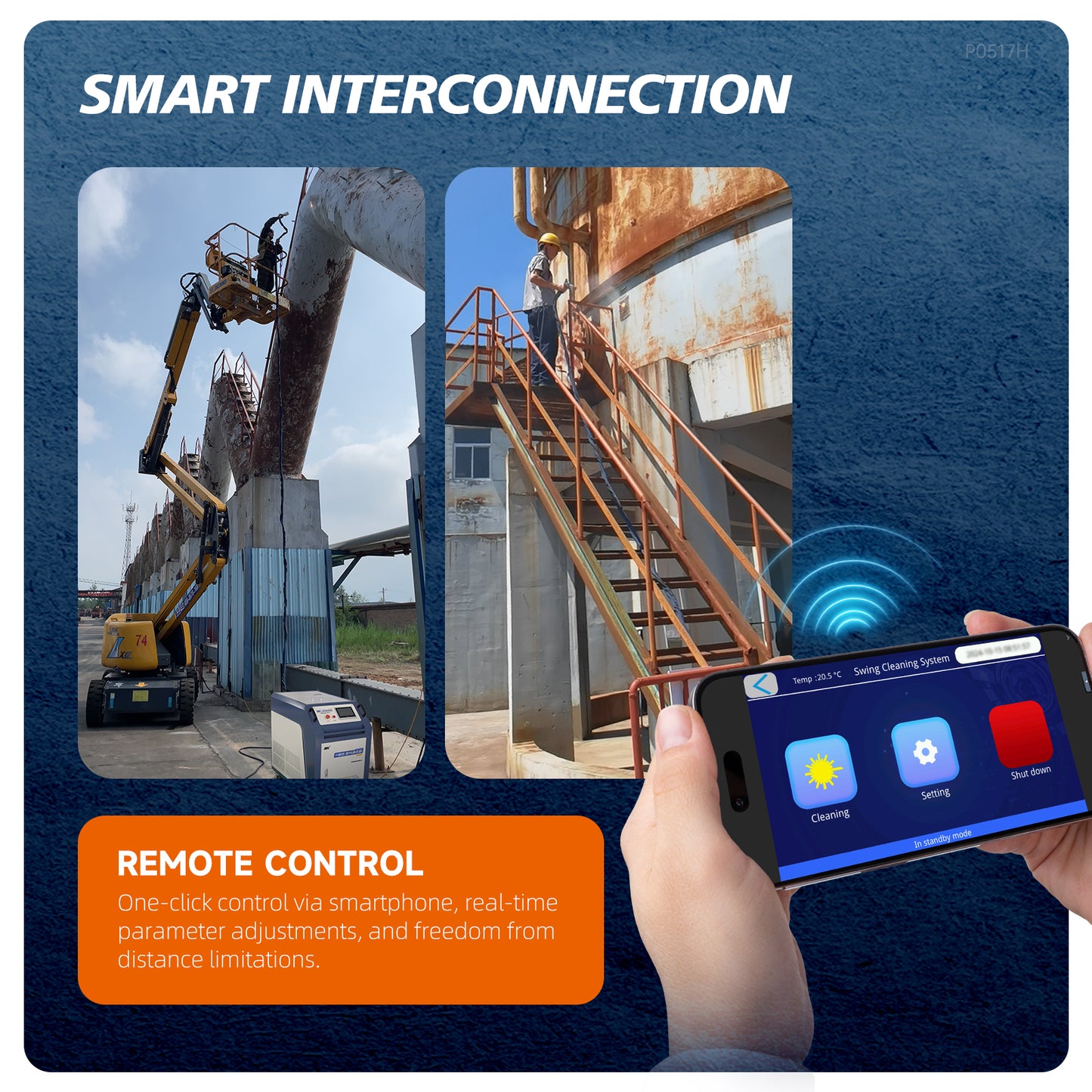

2. SMART INTERCONNECTION
REMOTE CONTROL
• One-click control via smartphone
• Real-time parameter adjustments
• Free from distance limitations

3. ONLINE DIAGNOSIS
• Real-time remote support from our technical team
• Instant resolution of technical issues for uninterrupted performance

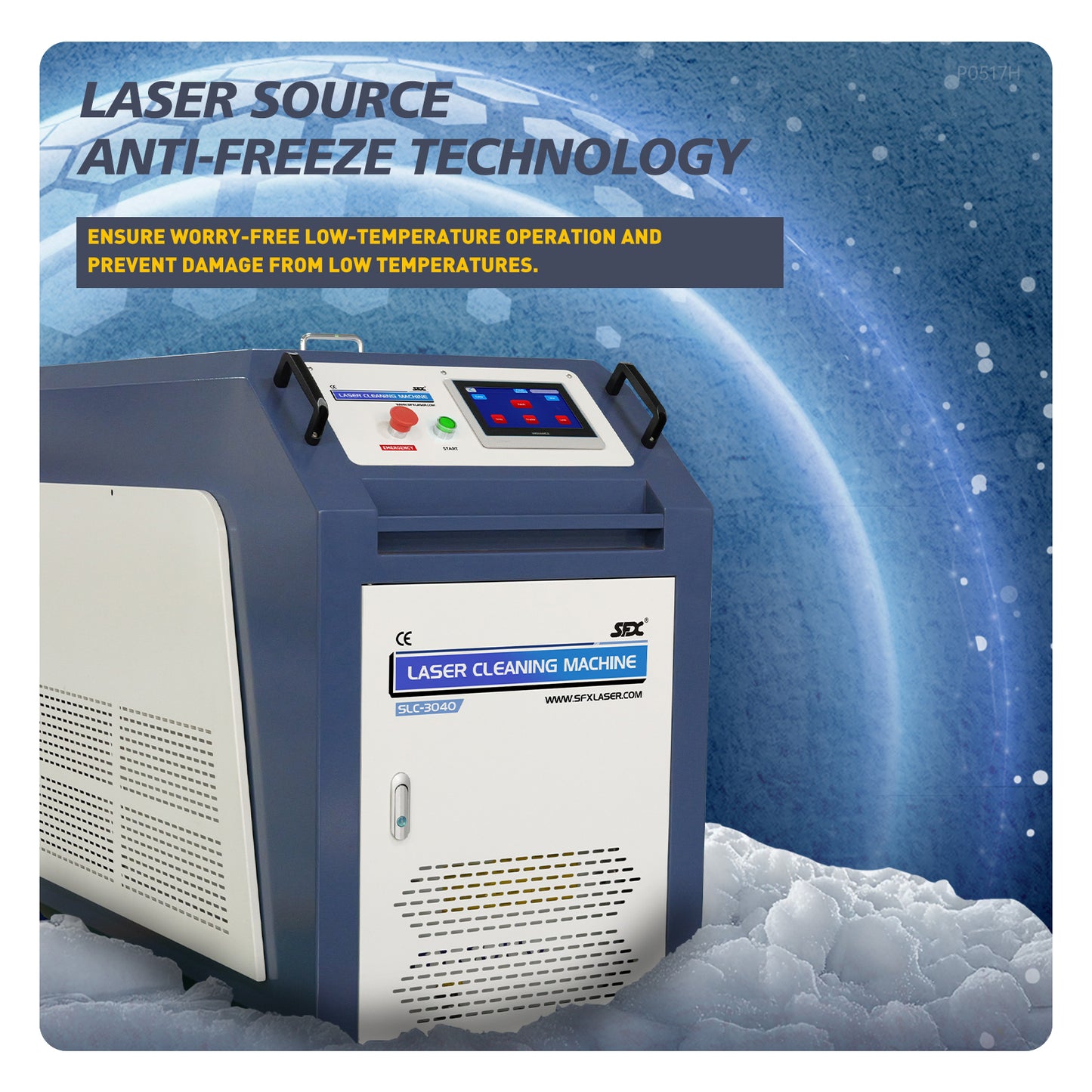

4. LASER SOURCE ANTI-FREEZE TECHNOLOGY
• Prevents hidden risks caused by low-temperature storage
• Ensures stable operation in cold environments

5. WHERE THE LASER GOES, EVERYTHING CAN BE CLEANED
• 360° non-contact cleaning
• Not limited by space or location
• Environmentally friendly and consumable-free
• Flexible and efficient for various industrial applications

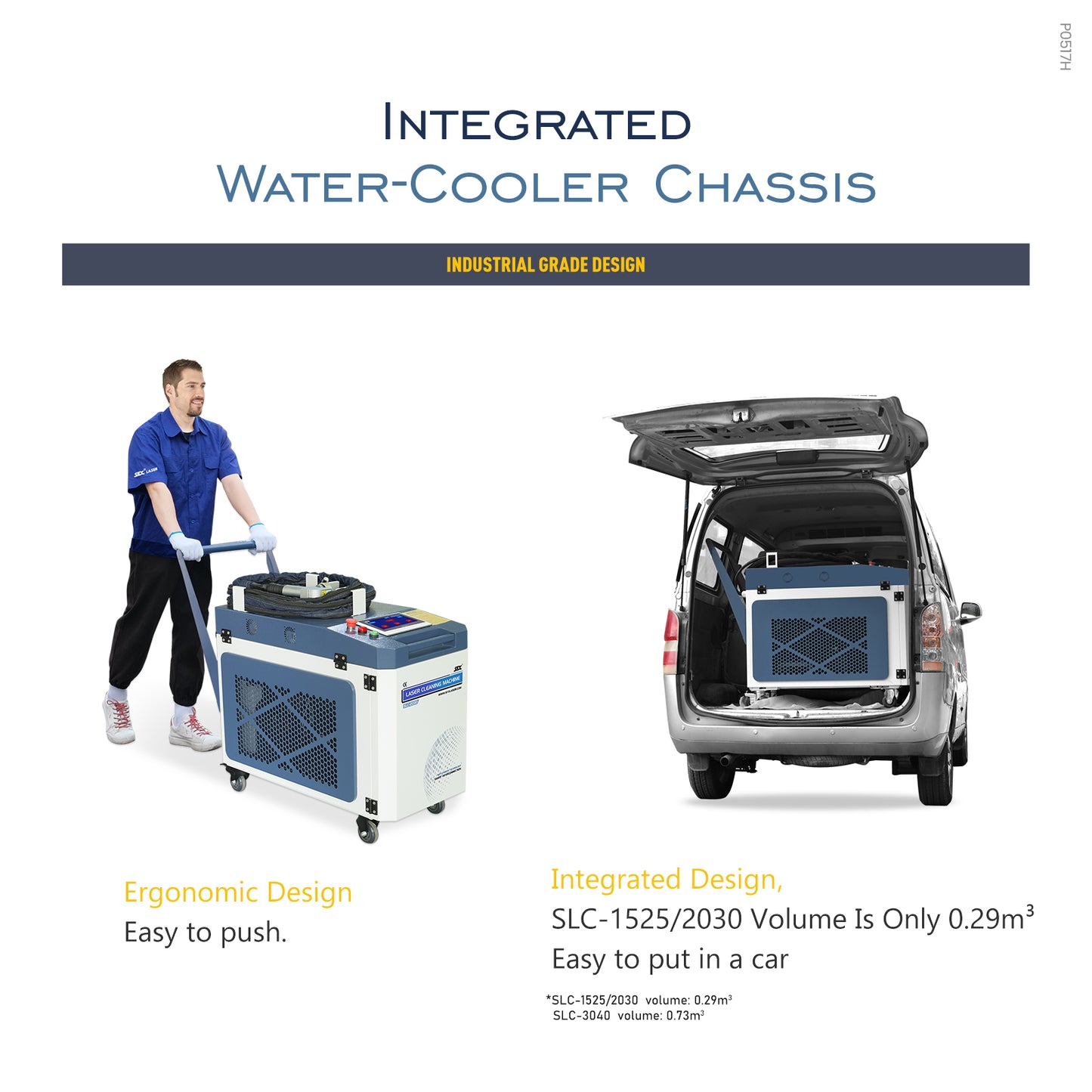

6. INTEGRATED WATER-COOLER CHASSIS
INDUSTRIAL-GRADE DESIGN
• Tailor-made for specific applications
• Thickened sheet metal structure—durable and deformation-resistant
• Efficient heat dissipation with cost-saving mass production
• Integrated compact design:
 – SLC-1525/2030 volume: only 0.29 m³ (easy to fit in a car)
 – SLC-3040 volume: 0.73 m³

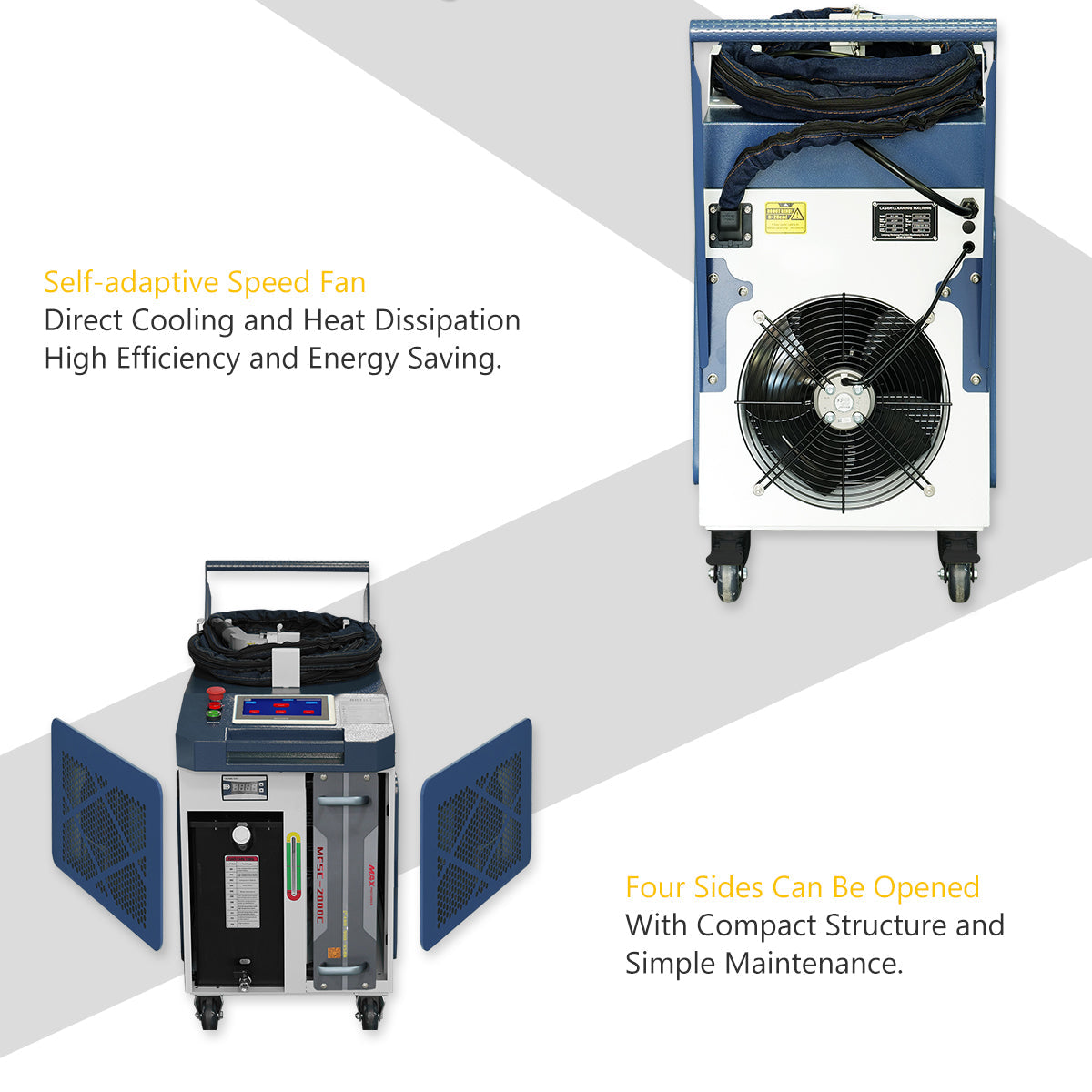

7. EFFICIENT COOLING STRUCTURE
• Self-adaptive speed fan for direct cooling and heat dissipation
• High efficiency and energy saving
• All four sides openable for easy access
• Compact structure with simple maintenance

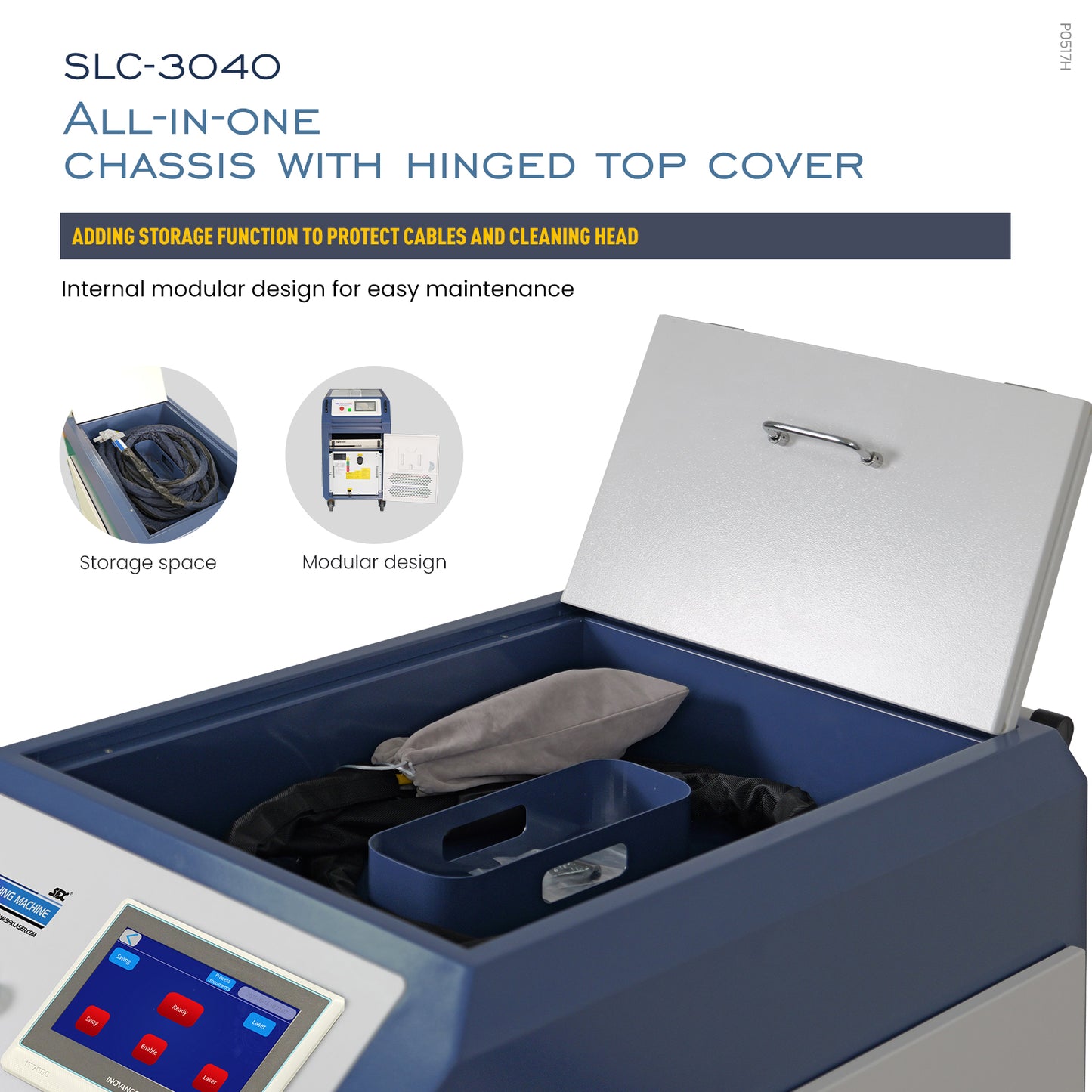

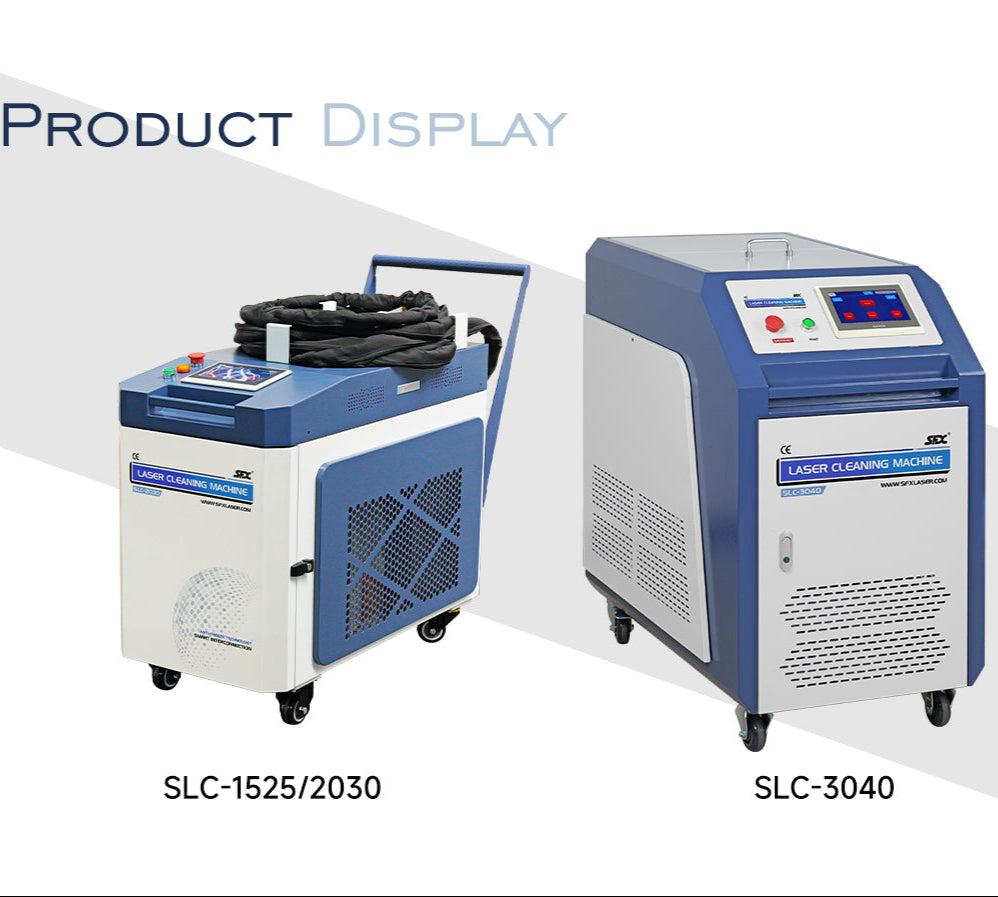

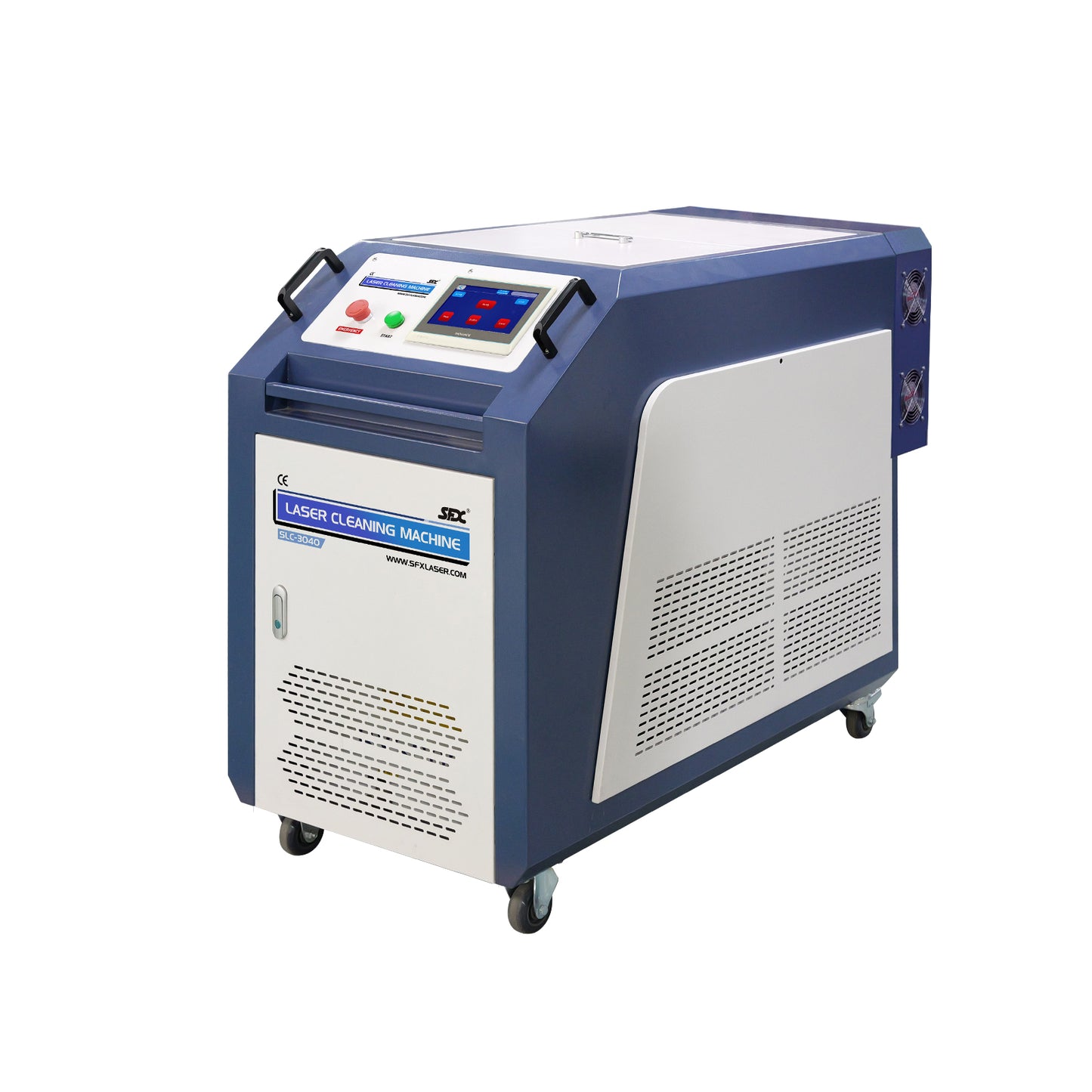

8. SLC-3040 ALL-IN-ONE CHASSIS WITH HINGED TOP COVER
• Integrated storage function to protect cables and cleaning head
• Internal modular design for easier maintenance and servicing

Warranty

• One year warranty for the whole machine and two years warranty for the laser source.
• We provide professional technical support. English user manual, operation video sending together with the machinery. During the warranty period, if the spare parts was sent back for repair, we will pay for the returning shipping cost and fees, repair them for free including the new parts that needed. (exclude wearing parts)
• We have after-sales service centers in the United States and Canada.
• We provide lifelong after-sales service and technical support.
