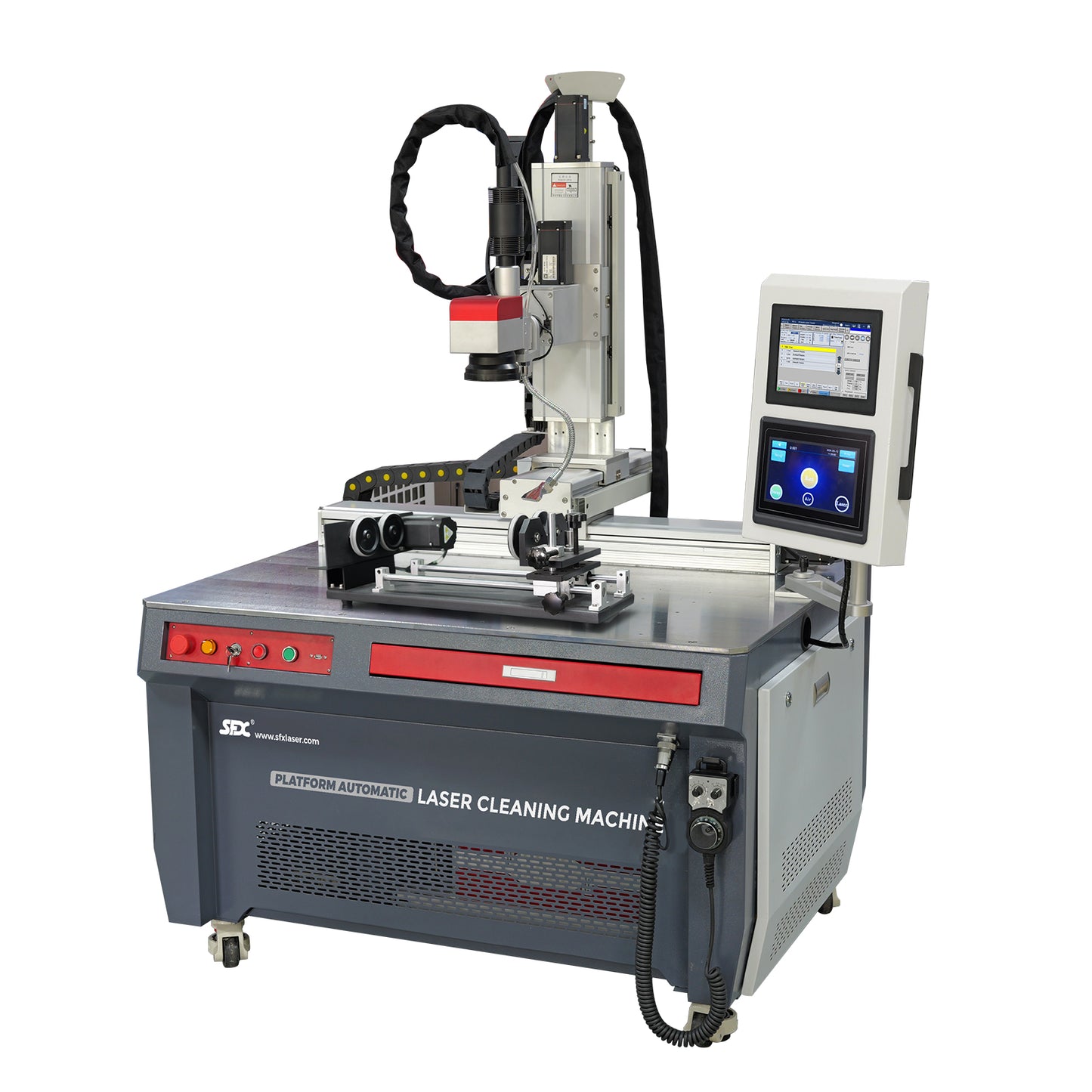

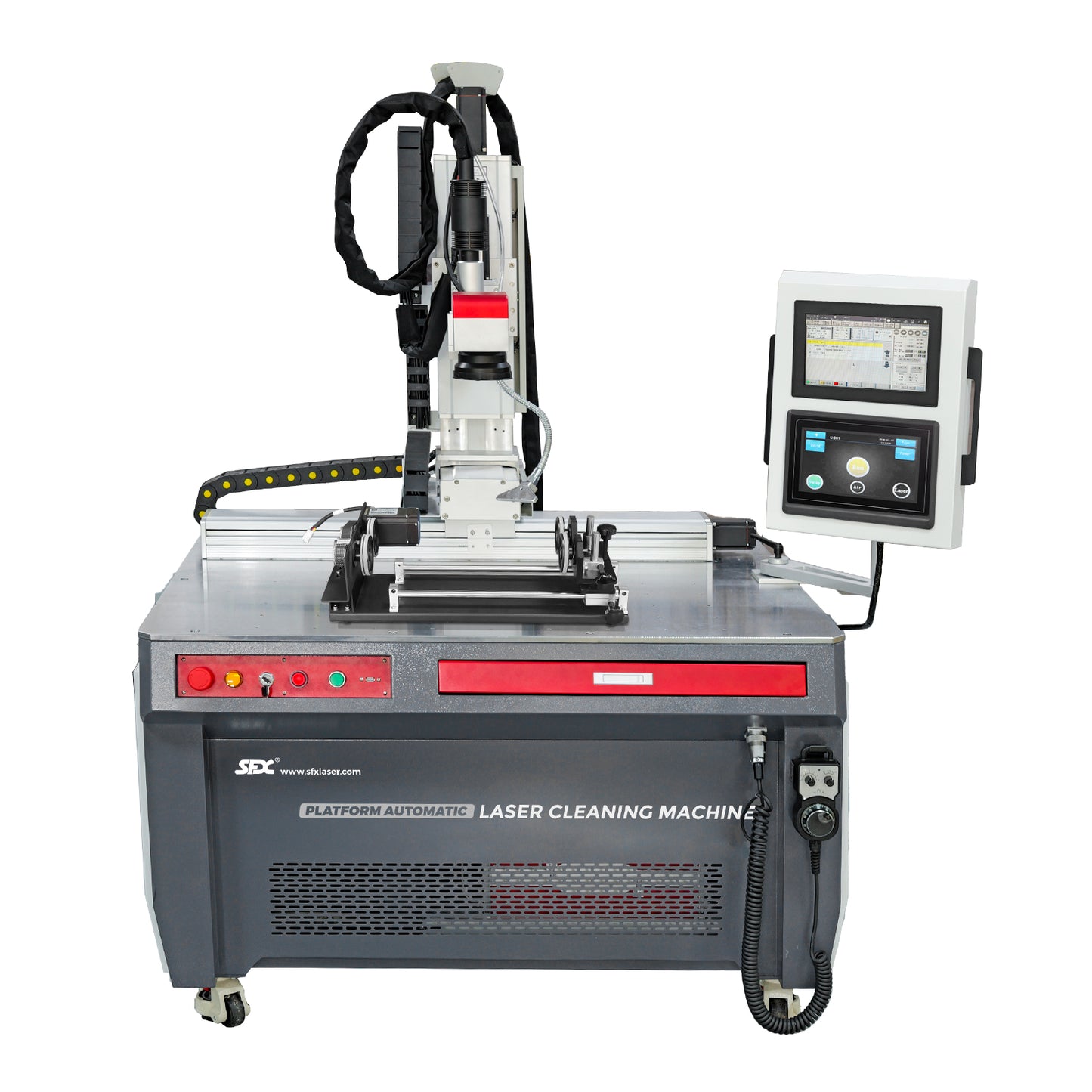

Pulsed Platform Laser Automatic Cleaning Machine Laser Rust Oil Paint Plating Remover 300W 500W
Pulsed Platform Laser Automatic Cleaning Machine Laser Rust Oil Paint Plating Remover 300W 500W
Regular price
$7,470.00 USD
Regular price
Sale price
$7,470.00 USD
Unit price
/
per
No reviews
Payment: 30% prepayment, 70% payment before delivery.
Shipping: FREE Shipping
Delivery: 30~35 days by Sea&Truck.
Handling time: Will ship within 5~7 business days of receiving full payment.

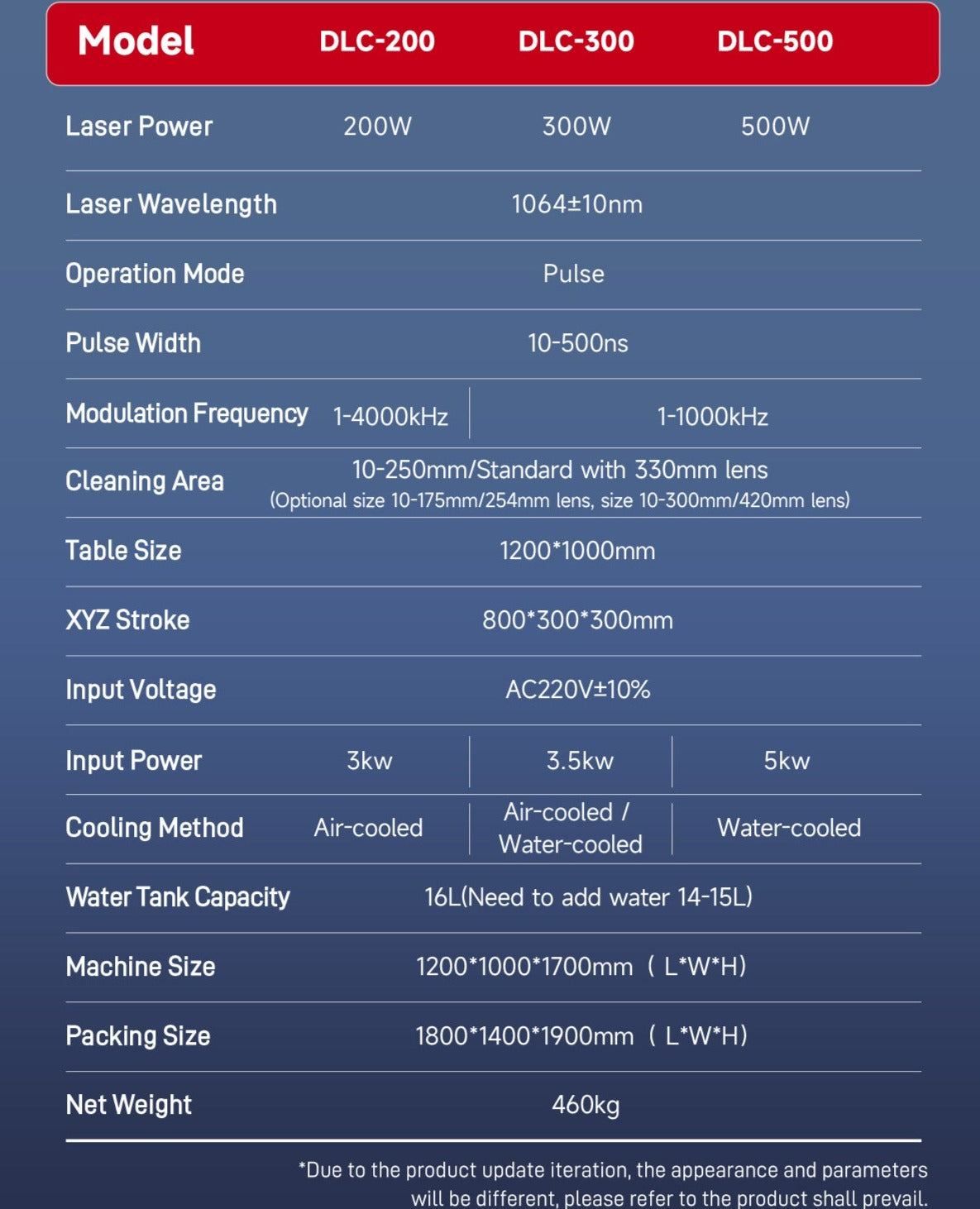

Product Parameters:
- Model: DLC-200 DLC-300 DLC-500
- Laser power: 200W 300W 500W
- Laser wavelength: 1064±10nm
- Operating mode: Pulse
- Pulse width: 10-500ns
- Modulation frequency: 1-4000kHz 1-1000kHz
- Cleaning width:10-750mm(optional field lens:25Amm,330mm,A20mm,width up to 300mm)
- Workbench size: 1200*1000mm
- XYZ stroke: 800*300*300mm
- Input voltage: AC220V±10%
- Input power: 3kw 3.5kw 5kw
- Cooling method: Air cooling Water cooling (Medium: Deionized water, distilled water or purified water)
- Water tank capacity: 16L (14-15L of water to be added)
- Main unit size: 1200*1000*1700mm
- Package size: 1800*1400*1900mm
- Net weight: 460kg
Features and Advantages:
- An instantaneous fuse is installed on the output side. Equipment safety is guaranteed.
- Digital matching cleaning. The laser frequency, galvanometer, and axis speed are matched, high efficiency, no blind spot.
- Consistent energy with automatic focus control. Stable operation, uniform cleaning and high gloss.
- Modular design. Stable performance and easy maintenance.
- 10 safety protection and early warning systems. Automated application, safe and stable.

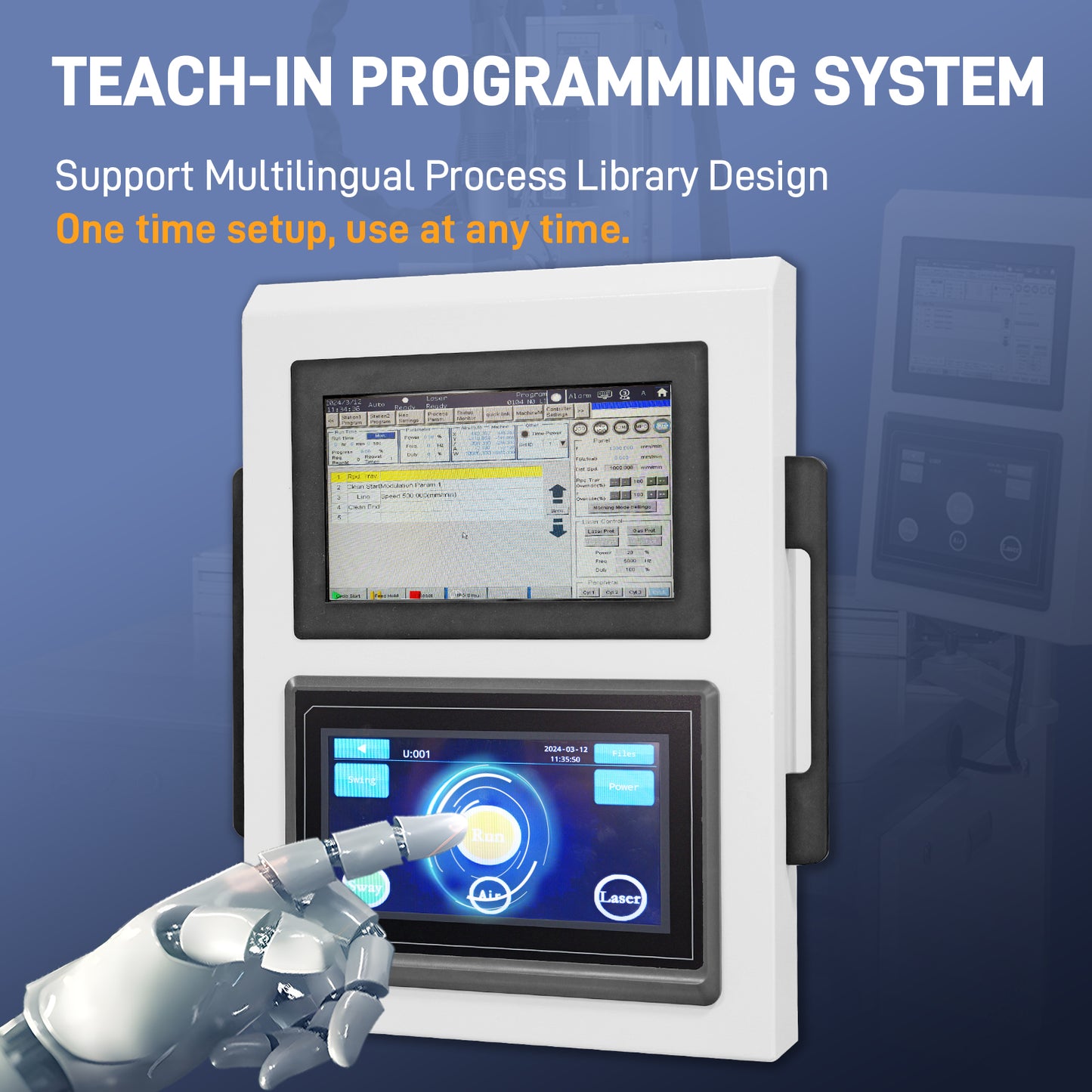

- Teaching programming easy to operate. Facilitates batch cleaning operations.

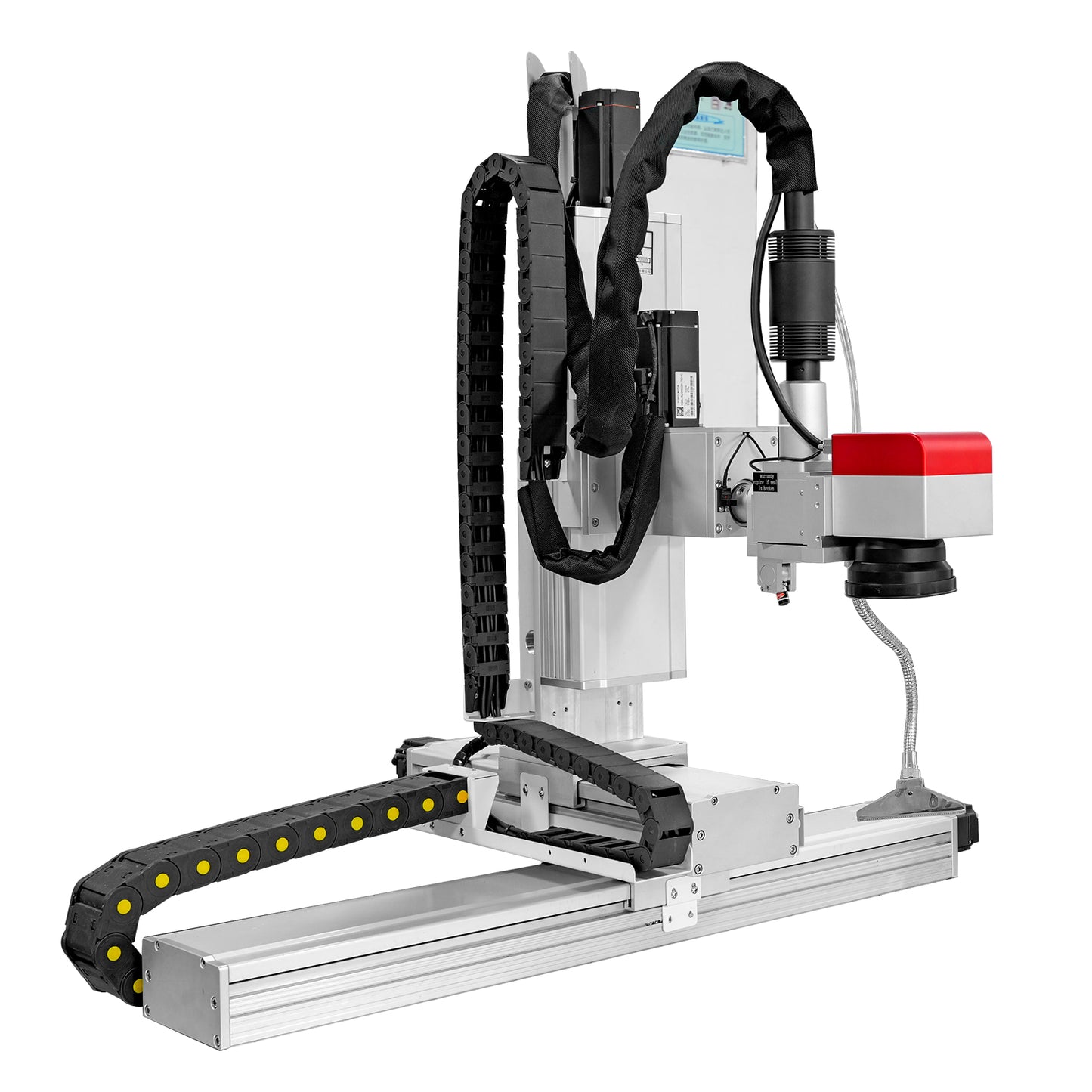

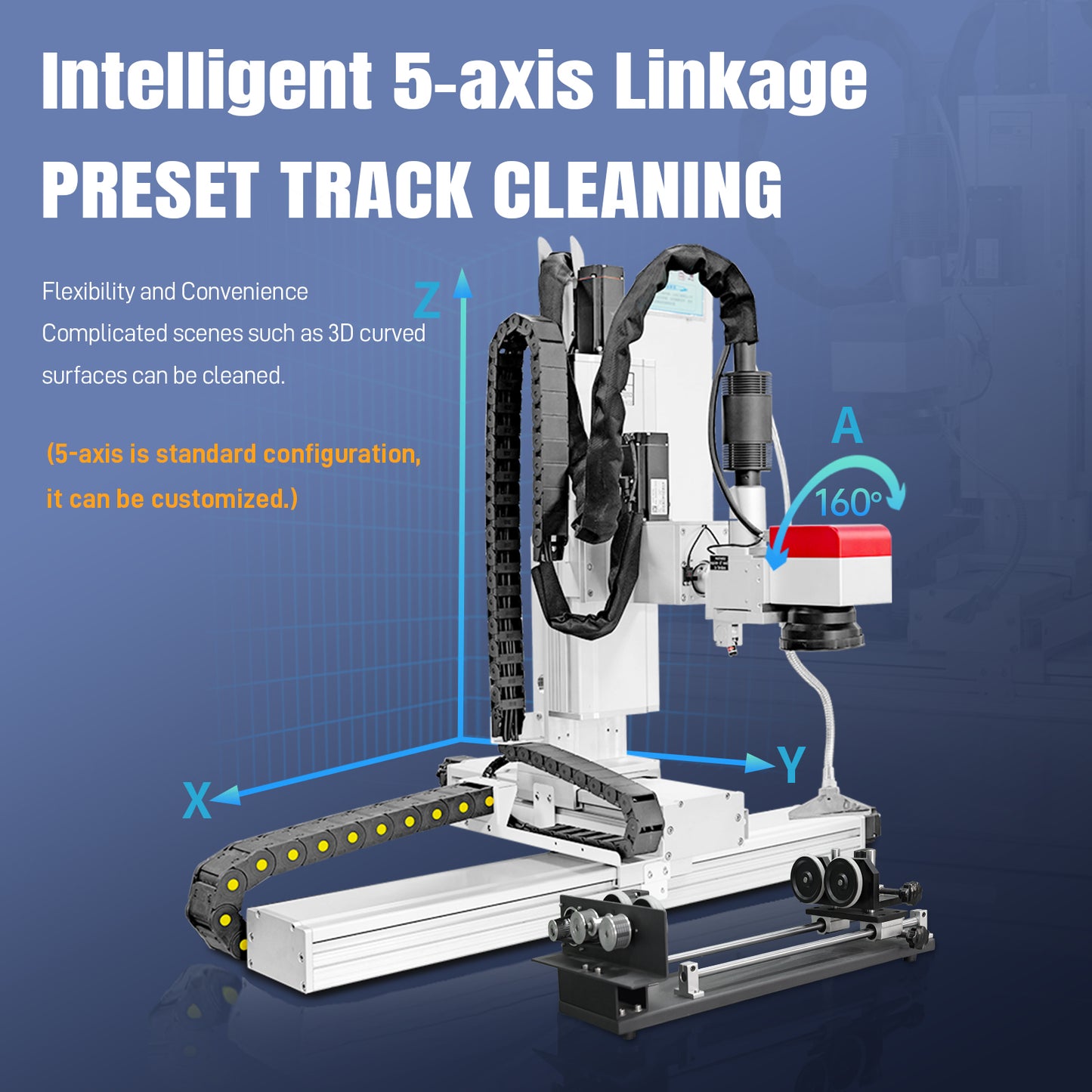

- Intelligent Three-axis Linkage (Customizable five-axis), Flexible and convenient for complex cleaning scenes such as three-dimensional curved surface cleaning.
- Digital Laser Control. Eight different graphics to choose from to meet complex cleaning conditions.
- Harsh Tests, Quality Assurance. Heavy dirt, Anti-interference, Vibration , High-temperature, Anti-reflection, Fatigue, Dustproof, High-humidity test.

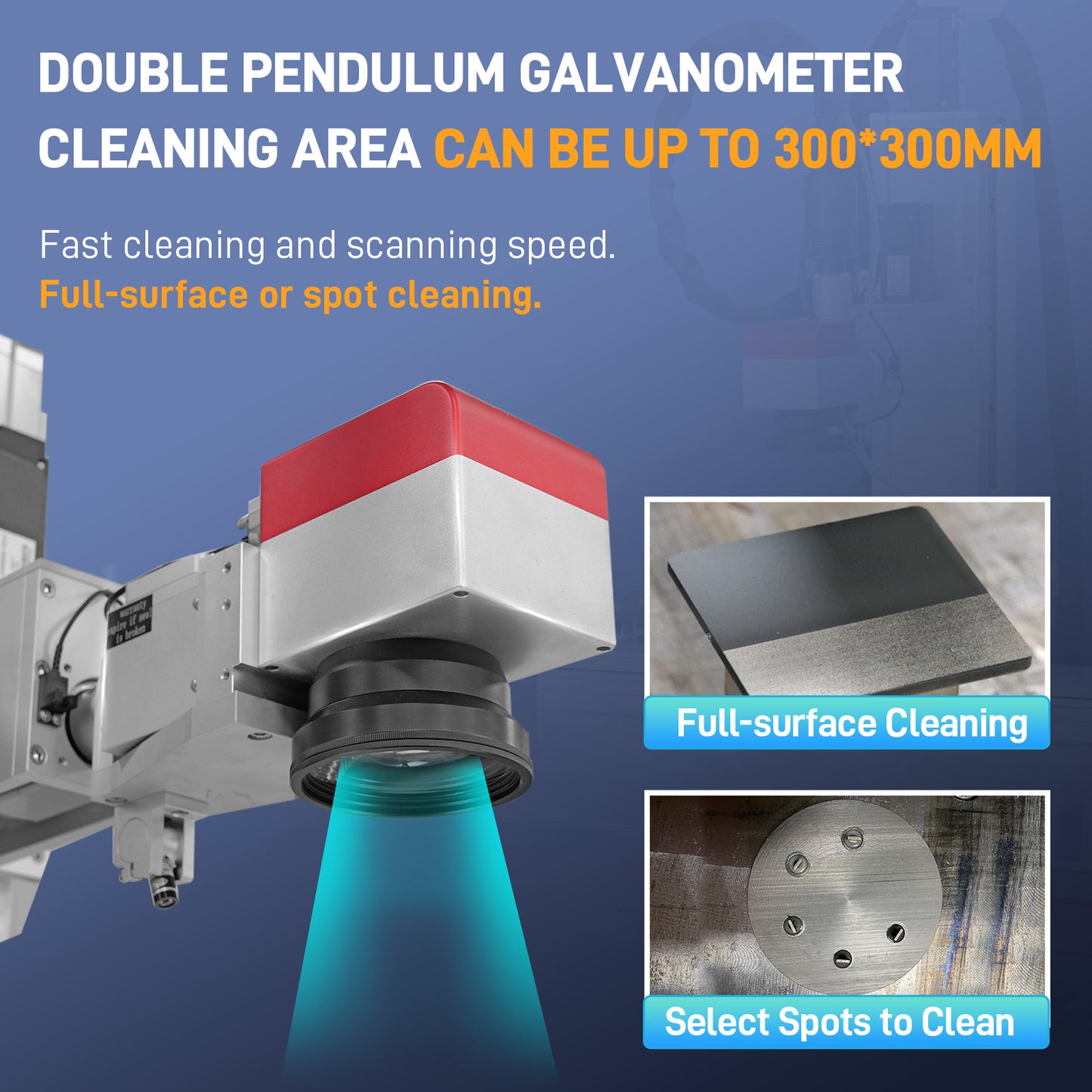

- High-speed Galvanometer System. Width up to 300*300mm fast scan speed, uniform energy.
- Rich I/O Interfaces. Support modbus protocol, easy to connect with other devices.
- Integrated Thickened Sheet Metal. All-round protection, good heat dissipation.
Application and Service:
- Digital control of laser parameters ensures no damage to the workpiece and avoids heating and micro-melting. It is suitable for the cleaning of coating, plating, oxidized layers, paint, oil etc. and is especially suitable for the fine cleaning of corrosion-resistant, wear-resistant, and difficult-to-clean materials with high-temperature treatment.
- The surface of the highly reflective material is not easy to clean, please consult before placing an order. You are welcome to send samples for testing!
Warranty
The warranty period of this product is one year for the whole machine, and the warranty period for the laser source is two years:
- From the date of purchasing this product, our company provides free warranty within one year. If the machine needs to be returned to the factory for repair, the user only needs to bear the cost of two -way transportation.
- This product is repaired free of charge for life, and the user only needs to bear the cost of spare parts and two -way transportation.
Note: The date of purchase is based on the invoice date or the date of receipt of the order .
The following scopes are not covered by warranty:
- Damage caused by improper use such as violent bumping, bending, etc.
- Human-caused damage.
- Laser accessories and consumables a re not guaranteed (collimating mirrors, galvanometers, field mirrors and other optical parts, integrated cables, etc. a re not covered by the warranty).
