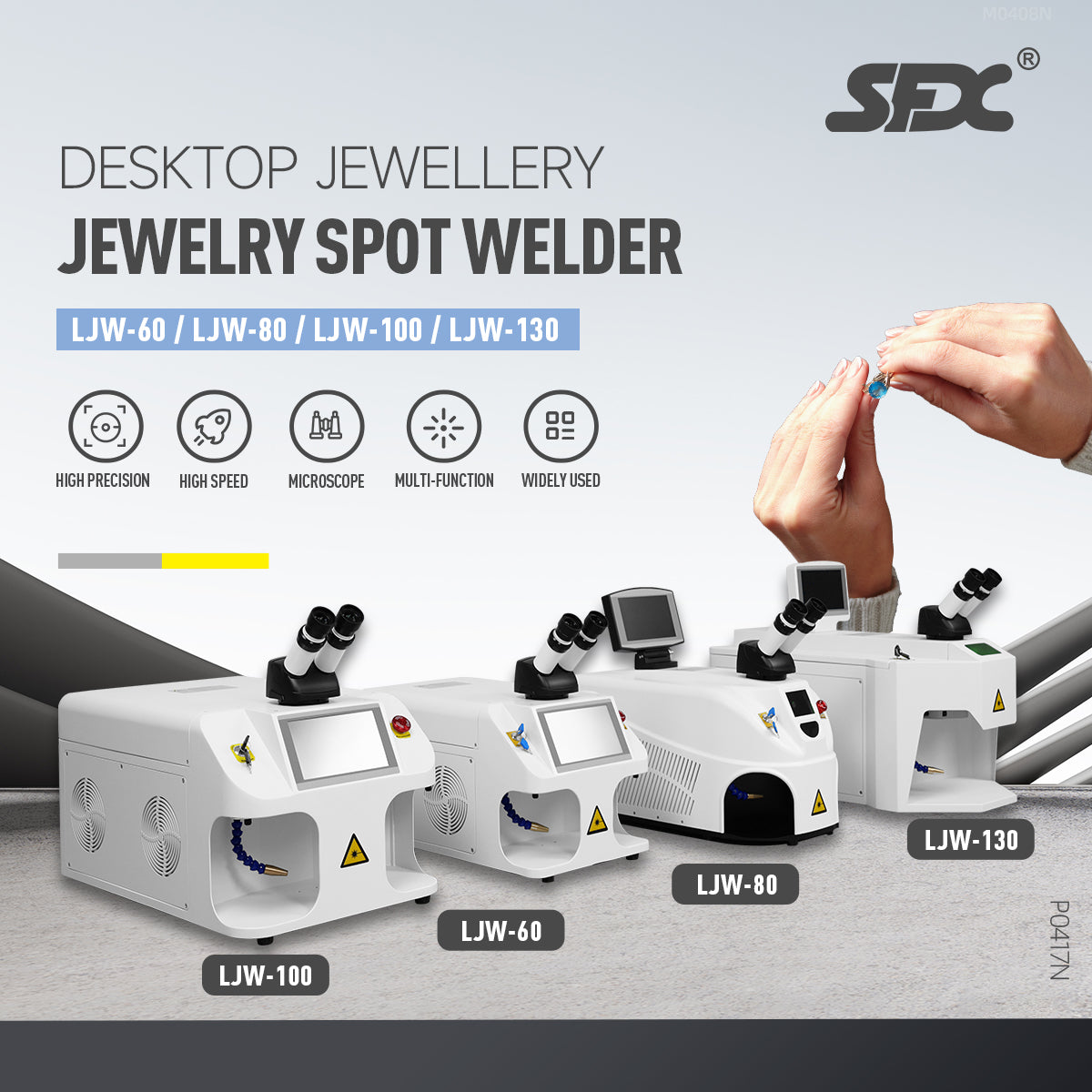

SFX 60W/80W/100W/130W Desktop Jewelry Spot Welder for Medical Equipment Titanium Alloy Jewelry

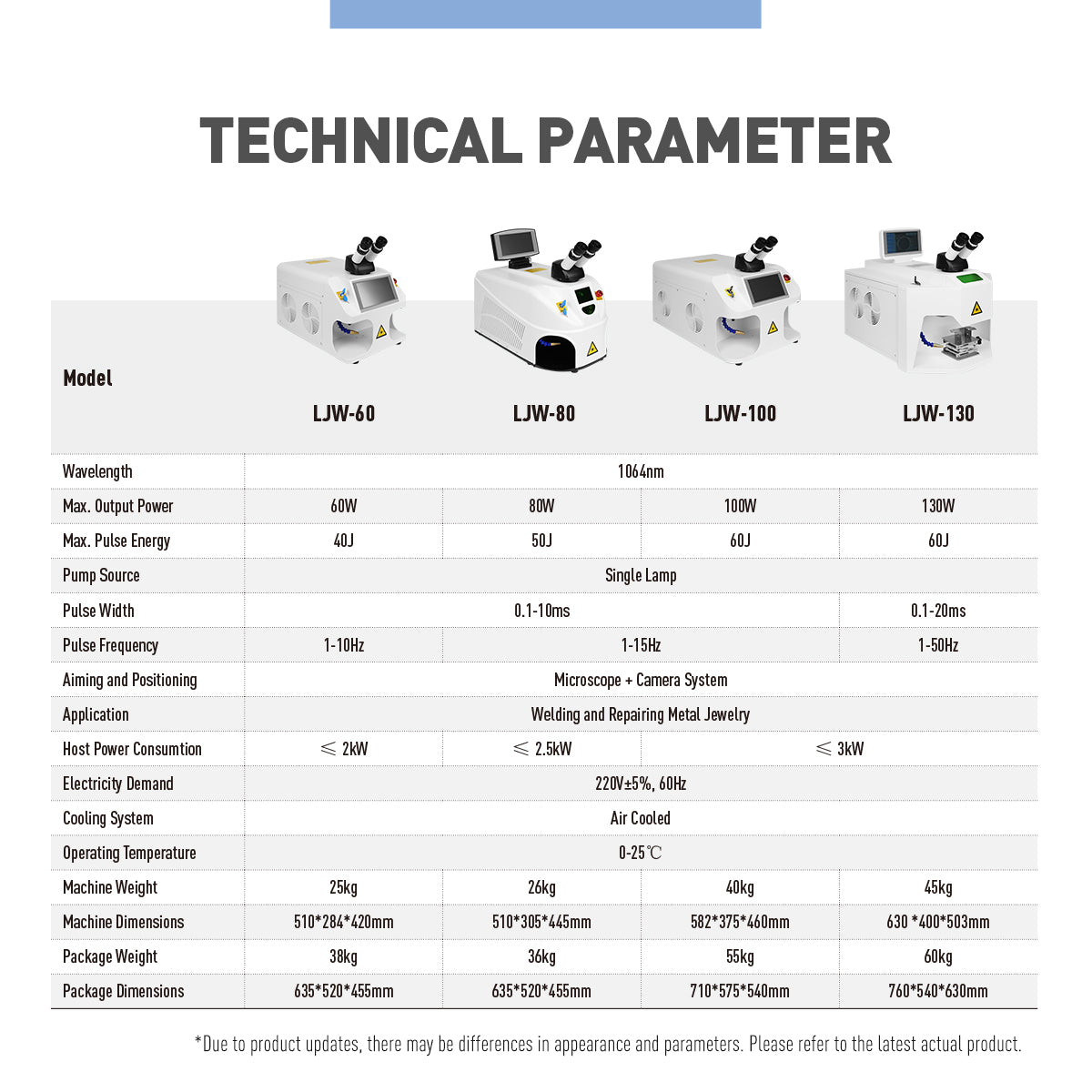

Product Parameters

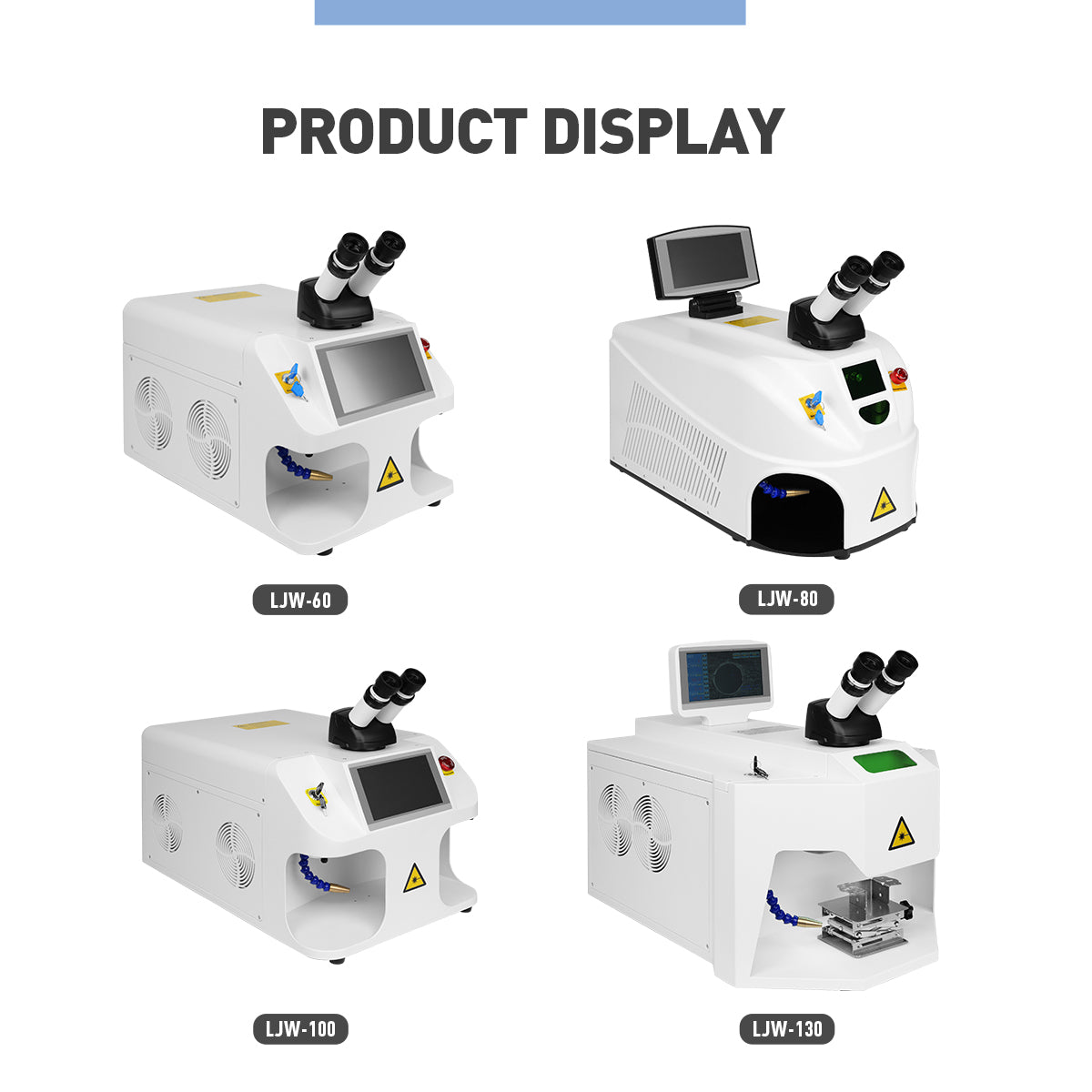

Model: LJW-60 / LJW-80 / LJW-100 / LJW-130
Wavelength: 1064nm
Max. Output Power: 60W / 80W / 100W / 130W
Max. Pulse Energy: 40J / 50J / 60J / 60J
Pump Source: Single Lamp
Pulse Width: 0.1–10ms / 0.1–10ms / 0.1–10ms / 0.1–20ms
Pulse Frequency: 1–10Hz / 1–15Hz / 1–15Hz / 1–50Hz
Aiming and Positioning: Microscope + Camera System
Application: Welding and Repairing Metal Jewelry
Host Power Consumption: ≤ 2kW / ≤ 2.5kW / ≤ 2.5kW / ≤ 3kW
Electricity Demand: 220V±5%, 60Hz
Cooling System: Air Cooled
Operating Temperature: 0–25℃
Machine Weight: 25kg / 26kg / 40kg / 45kg
Machine Dimensions: 510×284×420mm / 510×305×445mm / 582×375×460mm / 630×400×503mm
Package Weight: 38kg / 36kg / 55kg / 60kg
Package Dimensions: 635×520×455mm / 635×520×455mm / 710×575×540mm / 760×540×630mm

Advantages

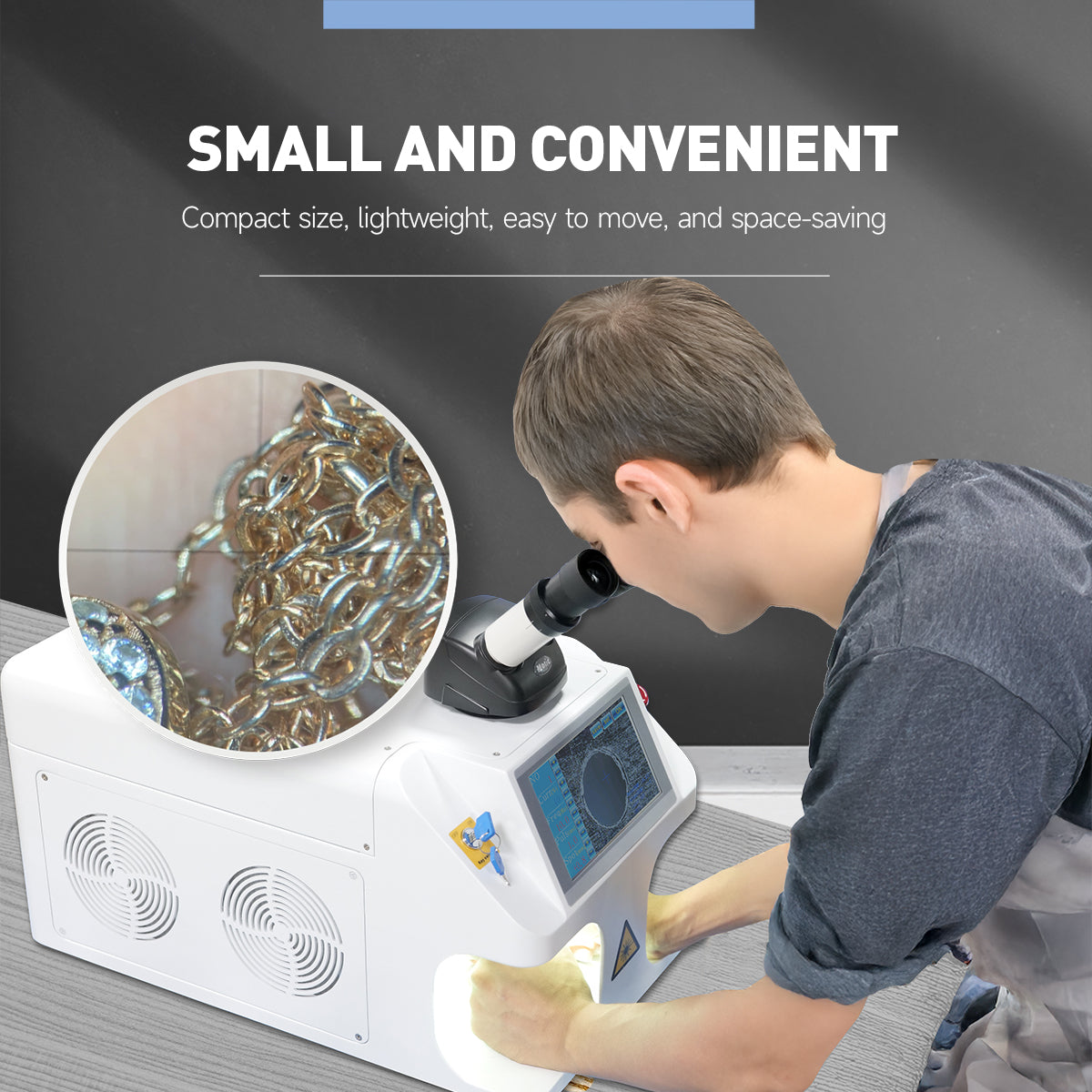

• SMALL AND CONVENIENT - Compact size, lightweight, easy to move, and space-saving.

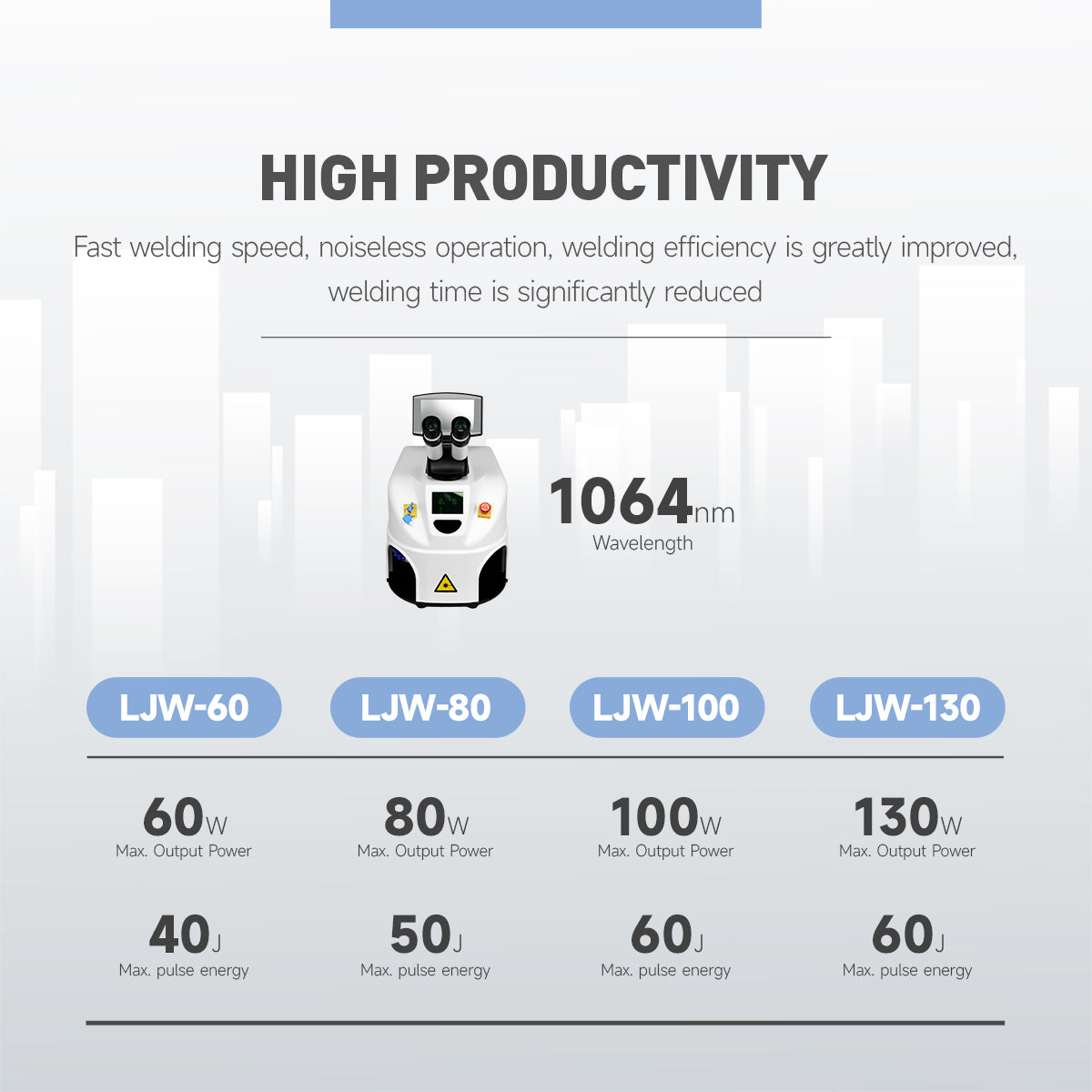

• HIGH PRODUCTIVITY - Fast welding speed, noiseless operation, and greatly improved welding efficiency.
  Welding time is significantly reduced.

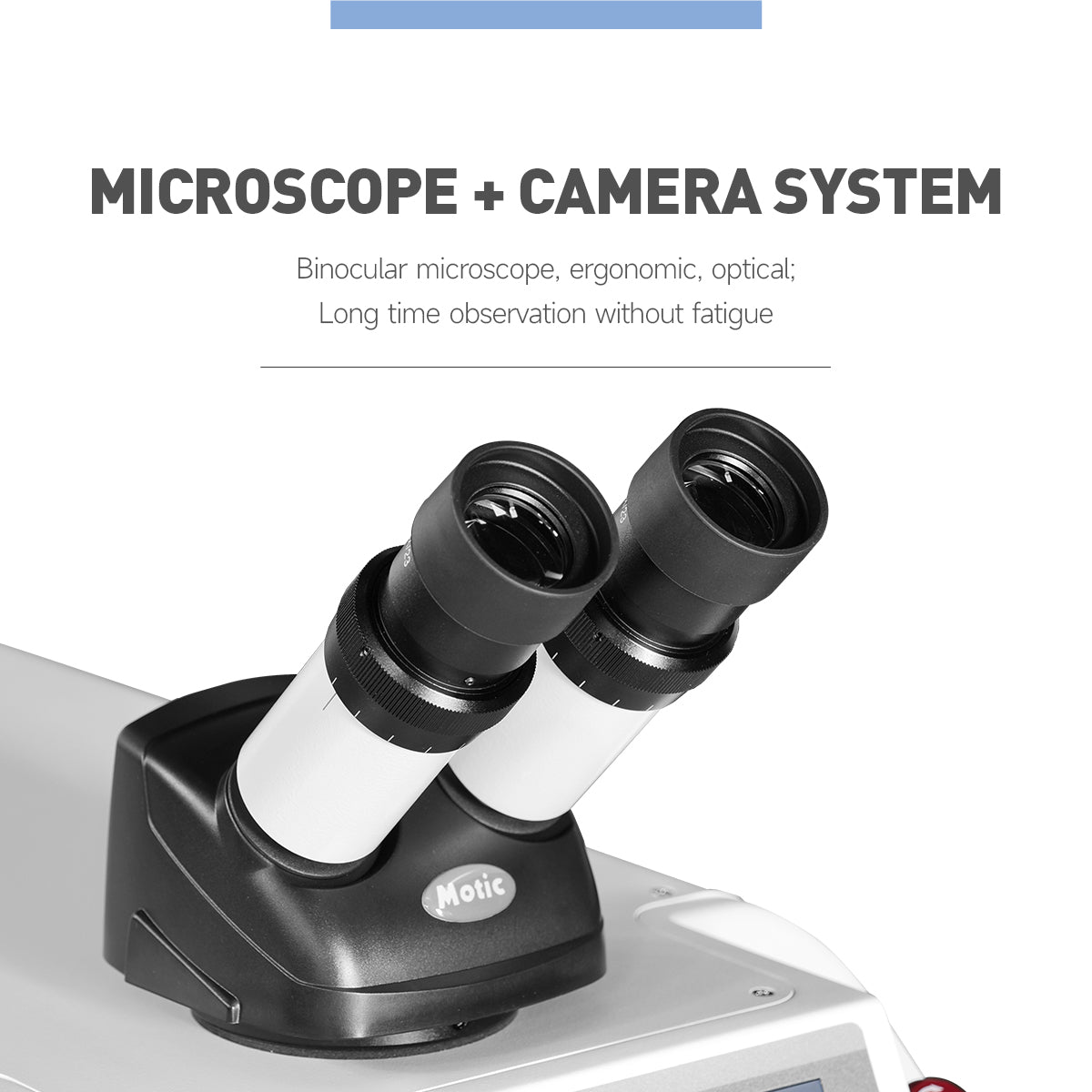

• MICROSCOPE + CAMERA SYSTEM - Binocular microscope, ergonomic and optical design.Allows long-time observation without fatigue.

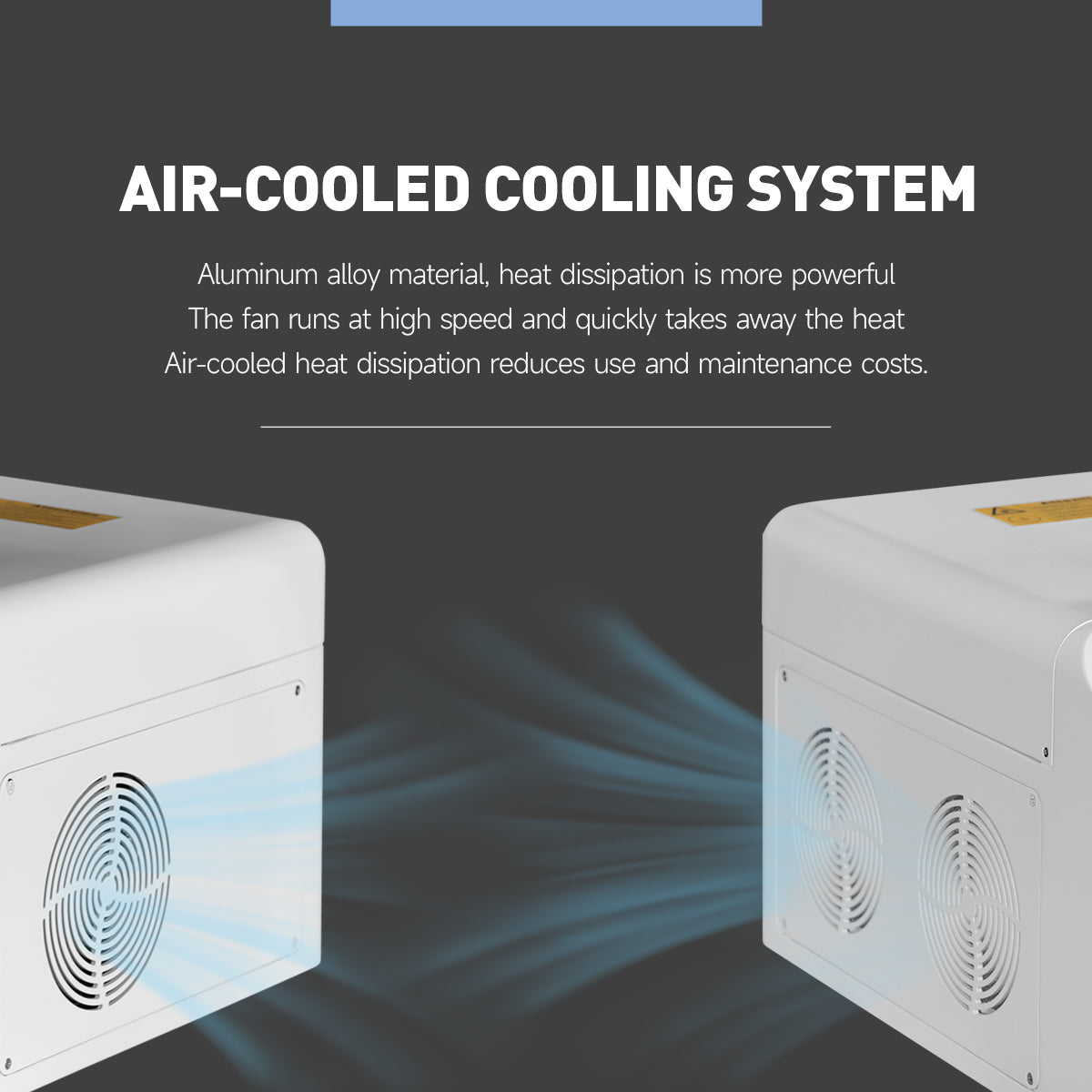

• AIR-COOLED COOLING SYSTEM - Aluminum alloy material provides powerful heat dissipation.The fan runs at high speed and quickly removes heat.Air-cooled system reduces usage and maintenance costs.

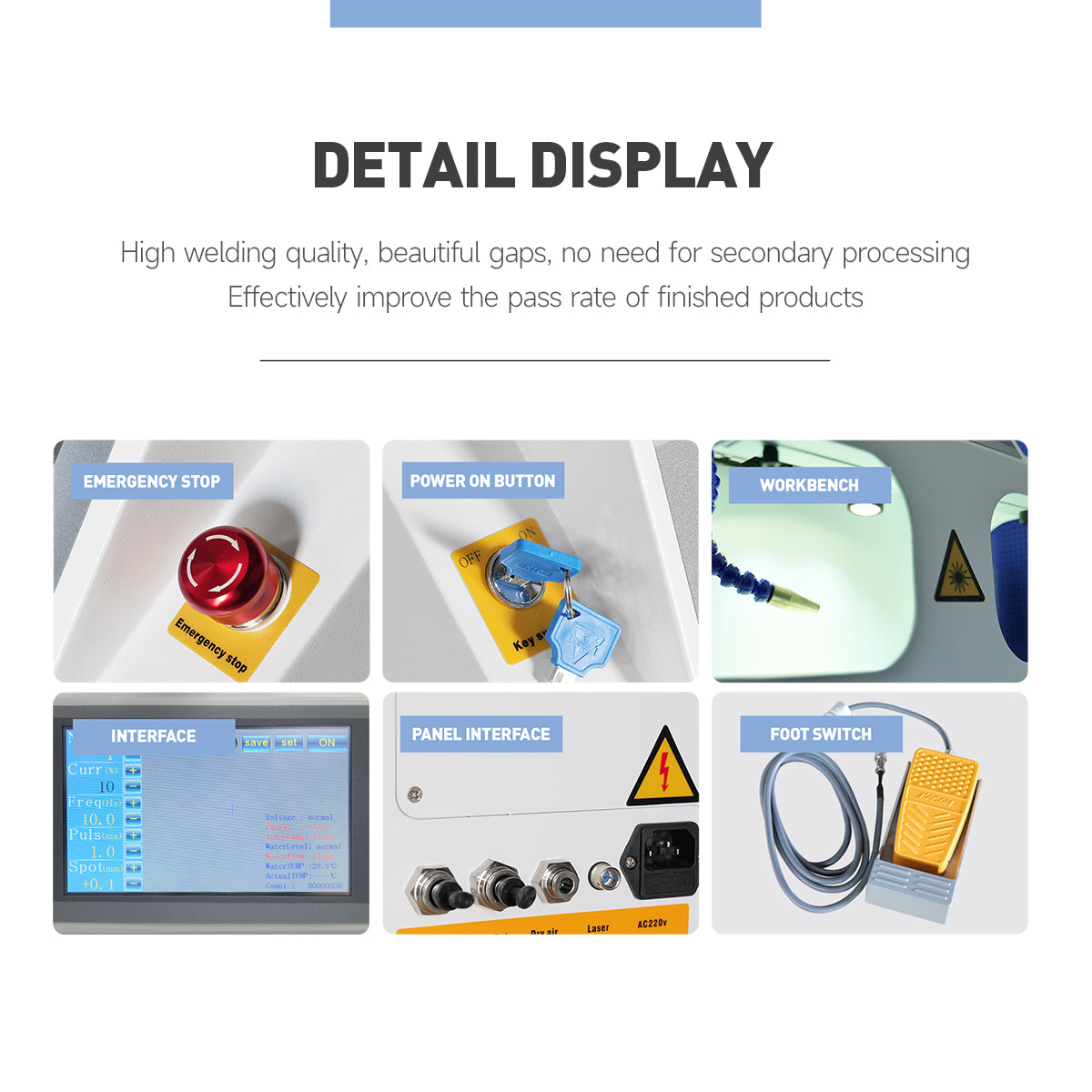

• DETAIL DISPLAY - High welding quality with beautiful gaps, no need for secondary processing.
  Effectively improves the pass rate of finished products.

Application Industry

For mobile communications industry, the arts and crafts and jewels, and electronic components, sensor appearance, precision machinery, hardware, spare parts or car, etc.

Application Material

Widely used in precision machining of small parts, rings, pendants, bracelets, dentures, mobile phone charge interfaces, hardware, watches, sporting goods, golf heads, medical equipment, titanium alloy jewelry.
Especially used for hole patching of gold and silver jewelry, spot welding seam pattern, inlaid parts and other welding.

Warranty

• One year warranty for the whole machine and two years warranty for the laser source.
• We provide professional technical support. English user manual, operation video sending together with the machinery.
• During the warranty period, if the spare parts was sent back for repair, we will pay for the returning shipping cost and fees, repair them for free including the new parts that needed. (exclude wearing parts)
• We have after-sales service centers in the United States and Canada.
• We provide lifelong after-sales service.
