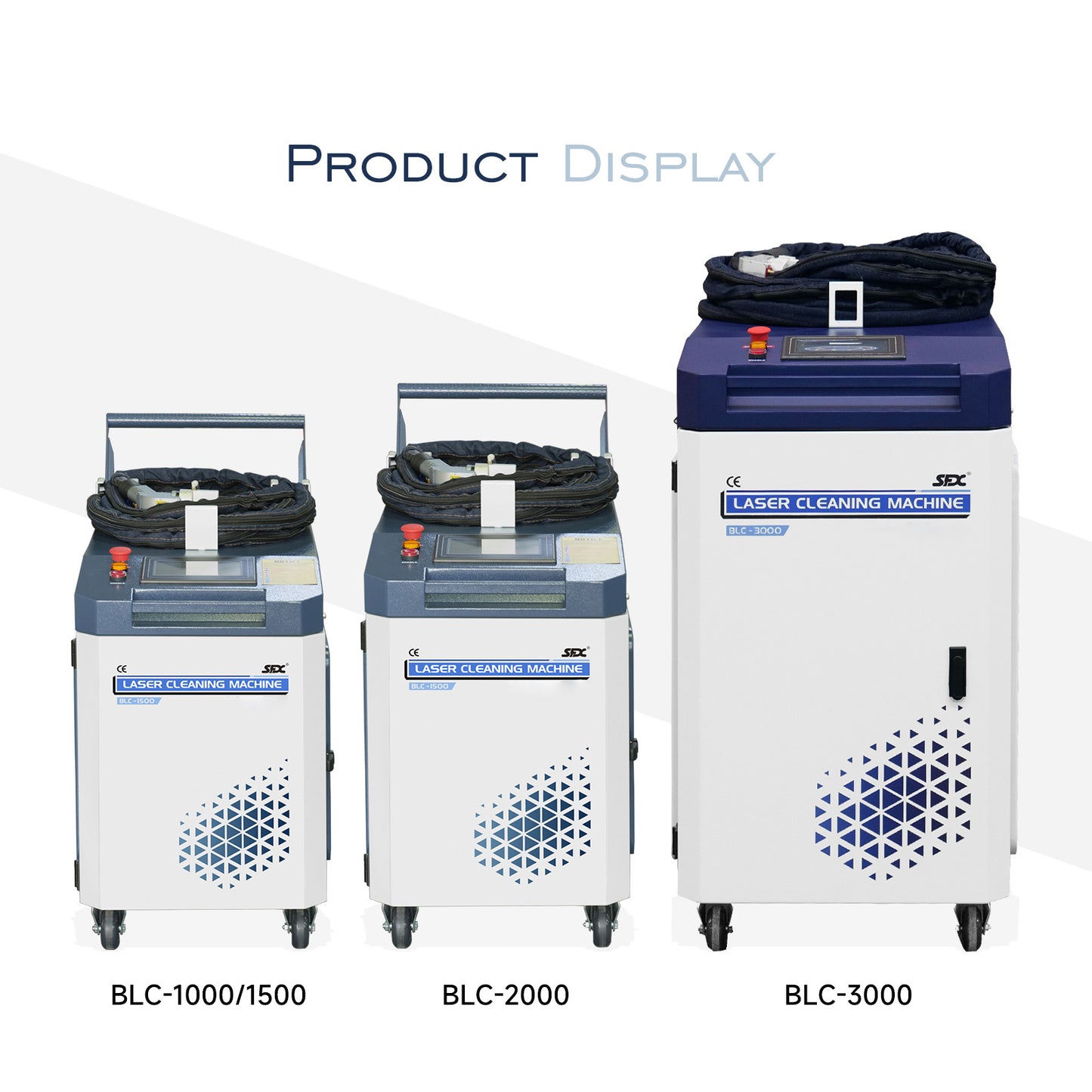

SFX MAX 1500W Laser Cleaning Machine Metal Rust Oxide Painting Oil Removal

Technical Parameters

Model: BLC-1500
Laser Source Power: 1500W
Laser Wavelength: 1080±10nm
Laser Type: Continuous
Maximum Modulation Frequency: 20KHz
Cable length: 10m
Max. Scan Width: 160±10mm
Power Configuration: AC220V±10%, single phase
Cooling Method: Water Cooling (Medium: Deionized water, distilled water or purified water.)
Machine Dimension: 845*460*605mm
Package Dimensions: 1120*565*1050mm
Net Weight: 113kg
Gross Weight: 145kg
Water Tank Capacity: 16L (14~15L of water to be added)

Features and Advantages

Easily remove: rust, paint, oil, coating!

1. Non-contact 360° cleaning, not limited by space and location, environmentally friendly without consumables.
2. Flexible and efficient application to various industrial processing scenarios. Mold cleaning, paint stripping or coating removal, pre-treatment of parts before spraying, aerospace component cleaning, oxides removal pre-treatment before soldering or welding, oil pollution and product residues removal, cultural relics cleaning and repair, etc.

3. Upgraded laser cleaning head, continuous operation without burning the lens.

Red light assisted positioning, precise control and easy operation.
Double-click the switch to start cleaning, avoiding accidental touch and operation is safer.

• Independent research and development, lightweight and easy to use.
• 550-600mm focal length, cleaning width up to 160±10mm.
• Short focus, large cleaning width, high tolerance, low light attenuation.
• Flexible and easy to clean on large irregular workpieces.

4. Integrated water-cooler chassis, industrial grade design.

• Tailor-made for special purpose, thickened sheet metal structure, firm and anti-deformation, efficient heat dissipation, cost reduction by mass production.
• The volume is only 0.23m³, easy to put in a car.

• Ergonomic design, easy to push.
• Self-adaptive speed fan, direct cooling and heat dissipation. High Efficiency and Energy Saving.
• Four sides can be opened, with compact structure and simple maintenance.

5. All the materials used in the products come from first-line manufacturers

with excellent quality.

•  MAX Laser Source

Stable, high efficiency, energy saving, basically maintenance-free, good experience, low cost.

• Smart Control Panel

Full touch screen operation interface, multilingual support. Work status is clear at a glance. Process library design, set once, use at any time.

• Neat Wiring

The selection of components has been scientifically calculated. The layout is reasonable.
The logo is clear and easy to maintain.

• Air Switch

Fine manufacturing escorts, your electricity safety.

• Universal Casters

Oil, stain, and impact resistant, reliable and durable, easy to lock.

 Warranty

• One year warranty for the whole machine and two years warranty for the laser source.
• We provide professional technical support. English user manual, operation video sending together with the machinery. During the warranty period, if the spare parts was sent back for repair, we will pay for the returning shipping cost and fees, repair them for free including the new parts that needed. (exclude wearing parts)
• We have after-sales service centers in the United States and Canada.
• We provide lifelong after-sales service and technical support.
