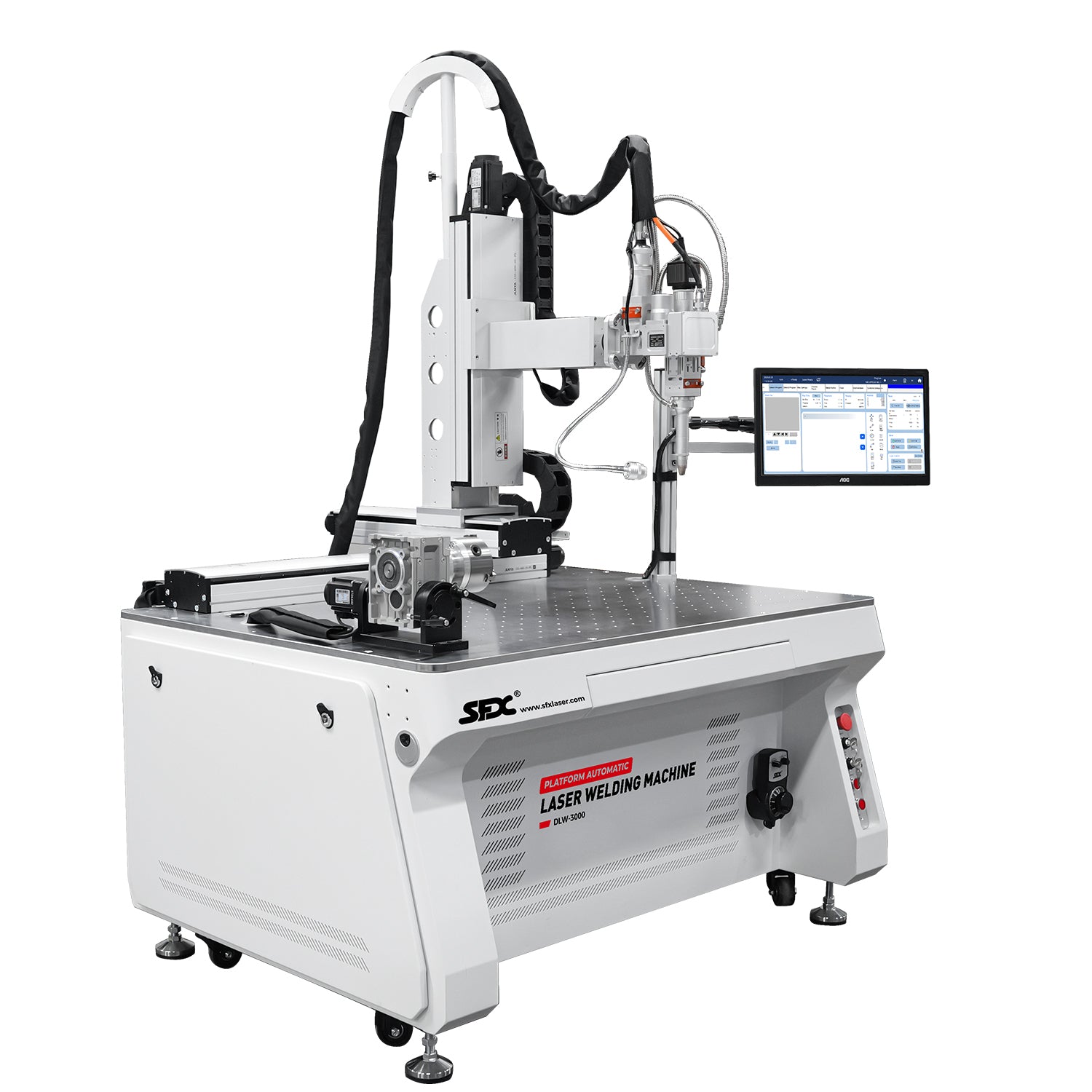

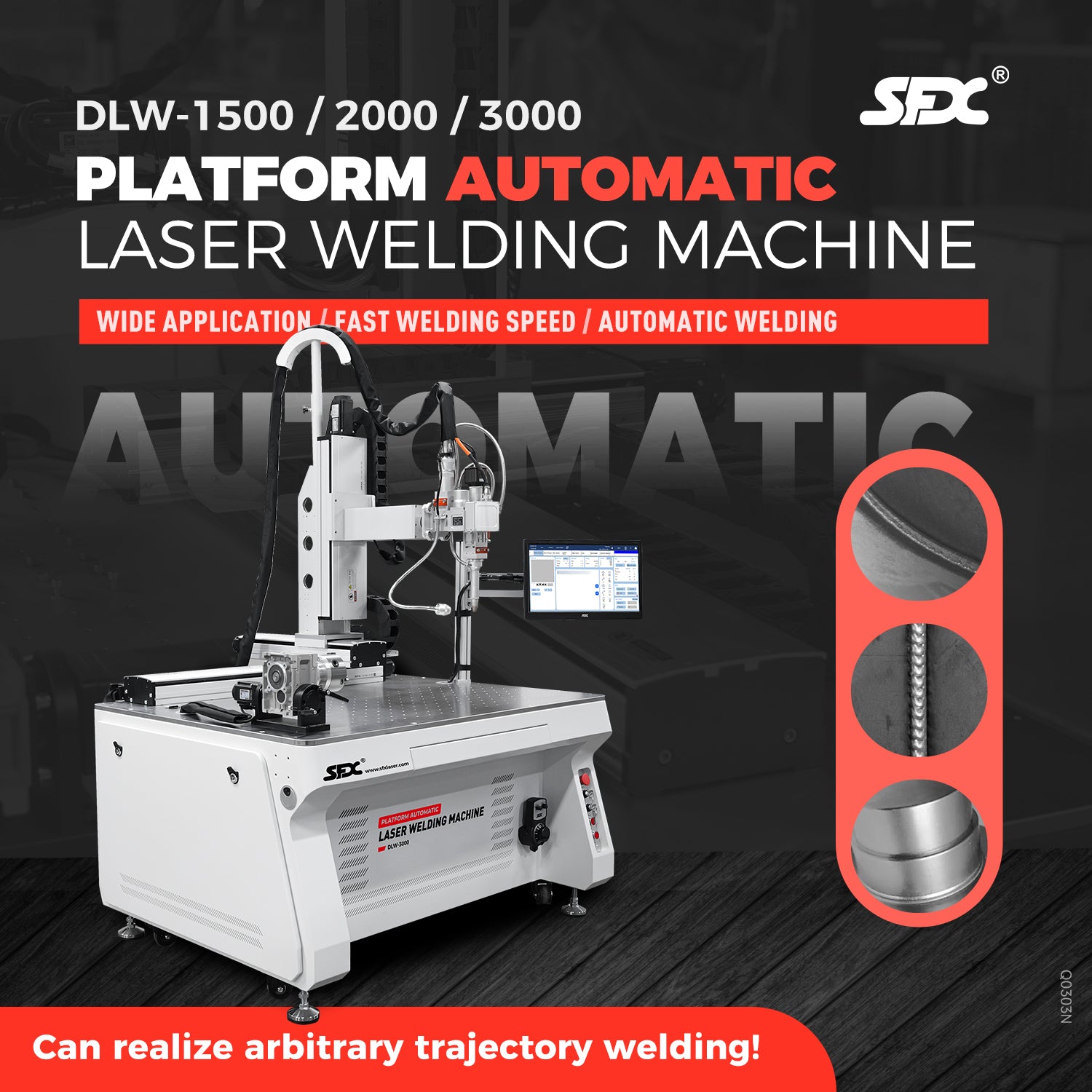

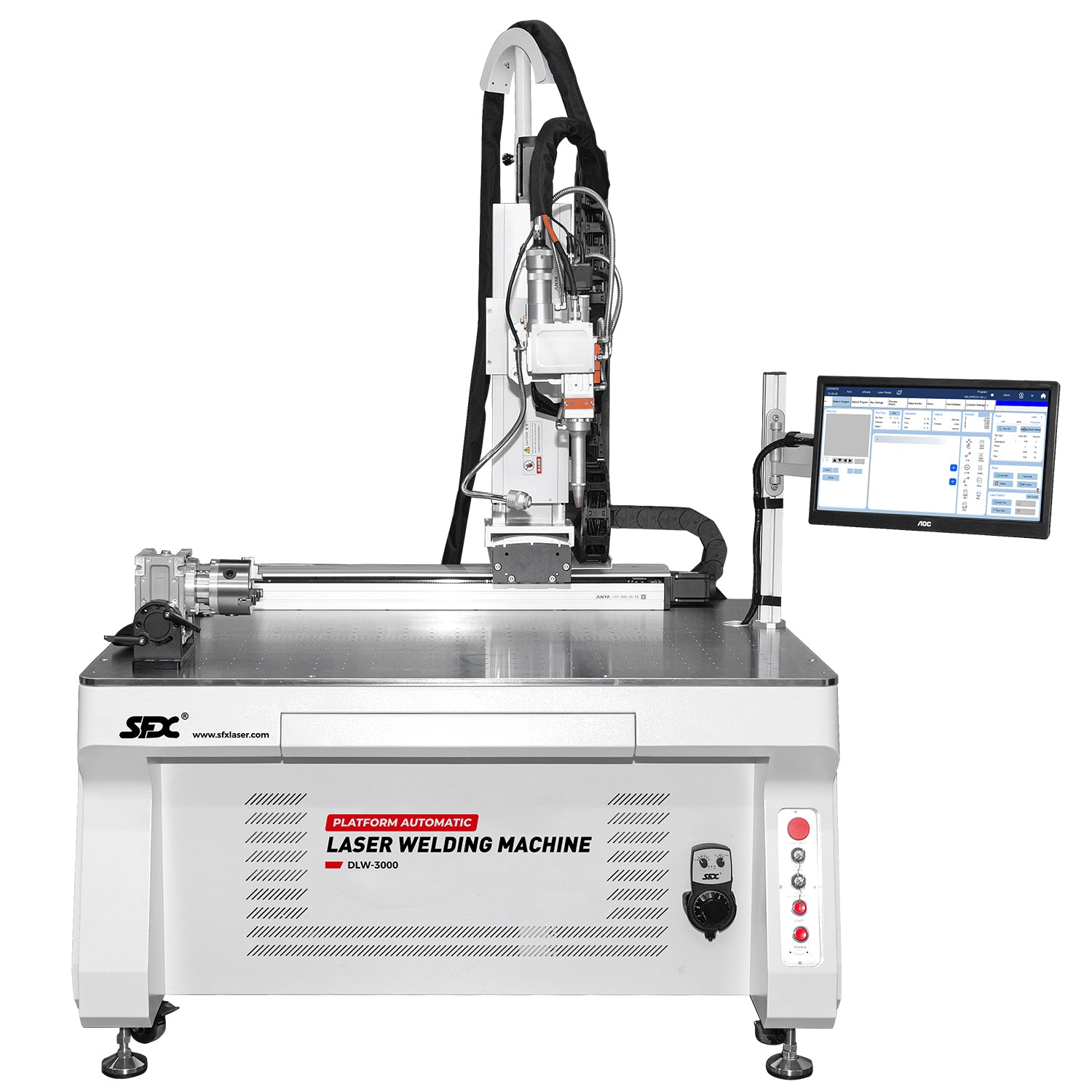

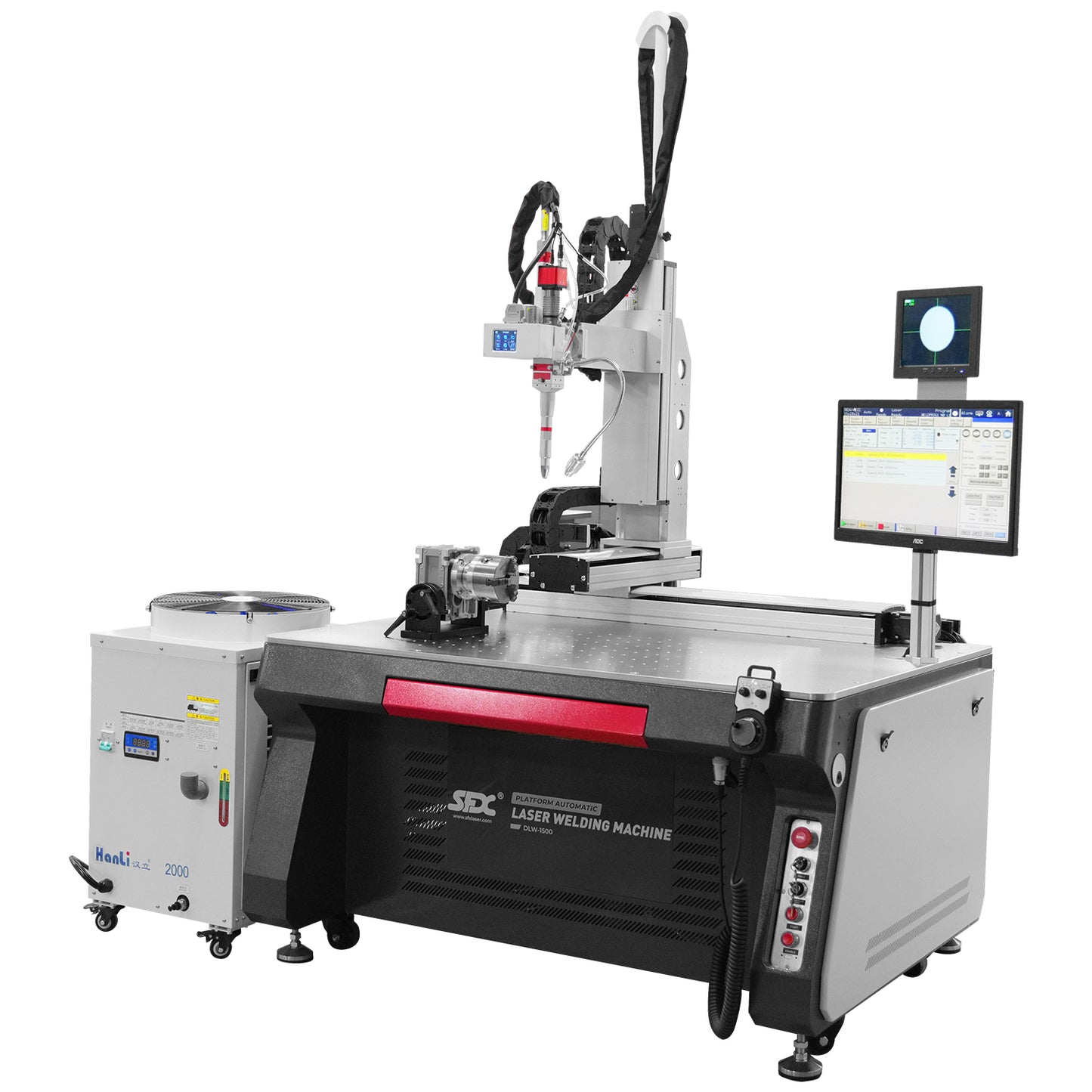

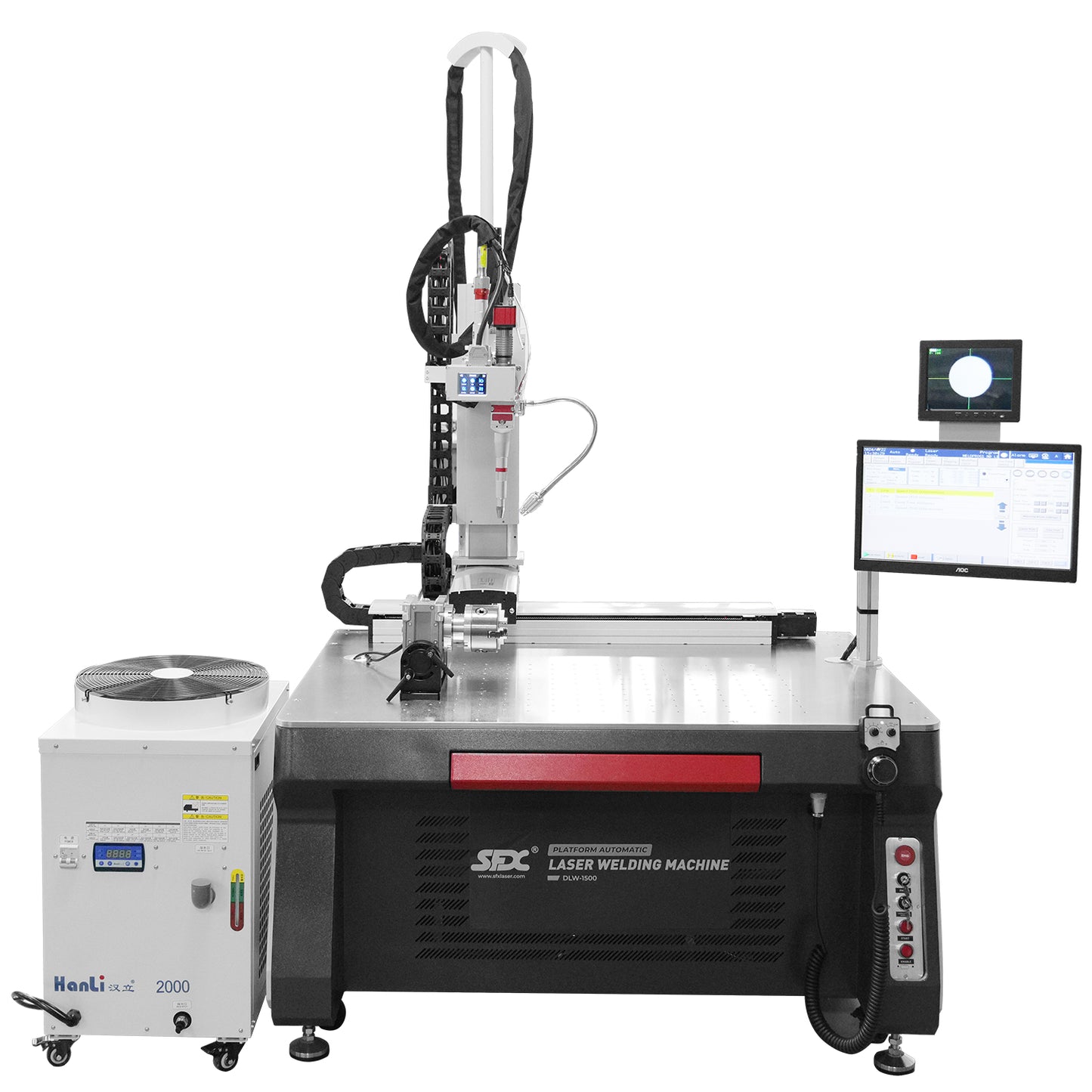

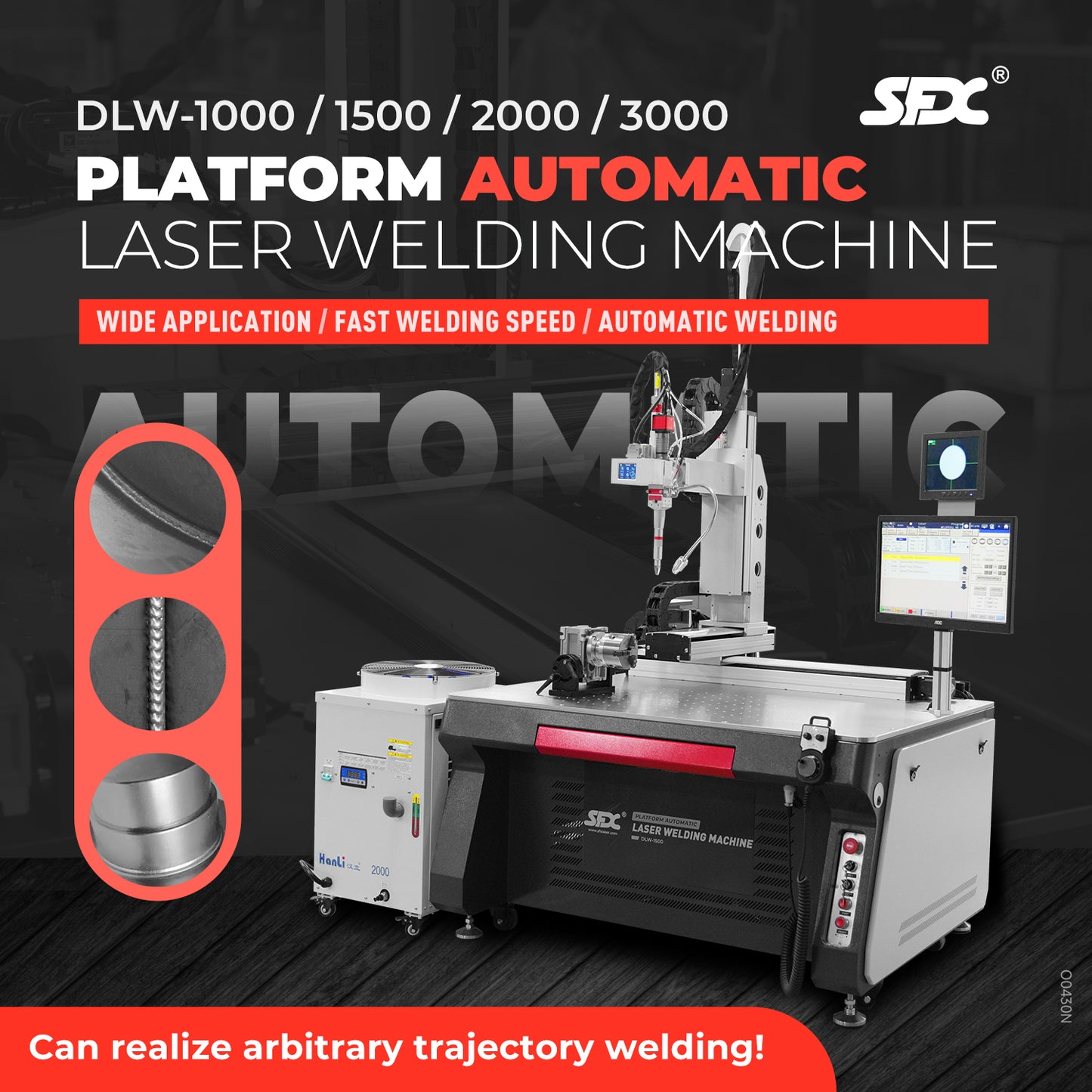

SFX Platform Automatic Laser Welding Machine Thin Metal Plate Laser Welder 1000W 1500W 2000W 3000W

SFX Platform Automatic Laser Welding Machine Thin Metal Plate Laser Welder 1000W 1500W 2000W 3000W

Regular price $5,820.00 USD
Regular price Sale price $5,820.00 USD
Sale Sold out
Tax included.
Laser Power
Axes
Payment

Delivery: 30~35 days by Sea&Truck.
Handling time: Will ship within 5~7 business days of receiving full payment.

Payment: 30% prepayment, 70% payment before delivery.

**Reminder for Laser Equipment**: Summer Heat Protection and Winter Freeze Prevention.

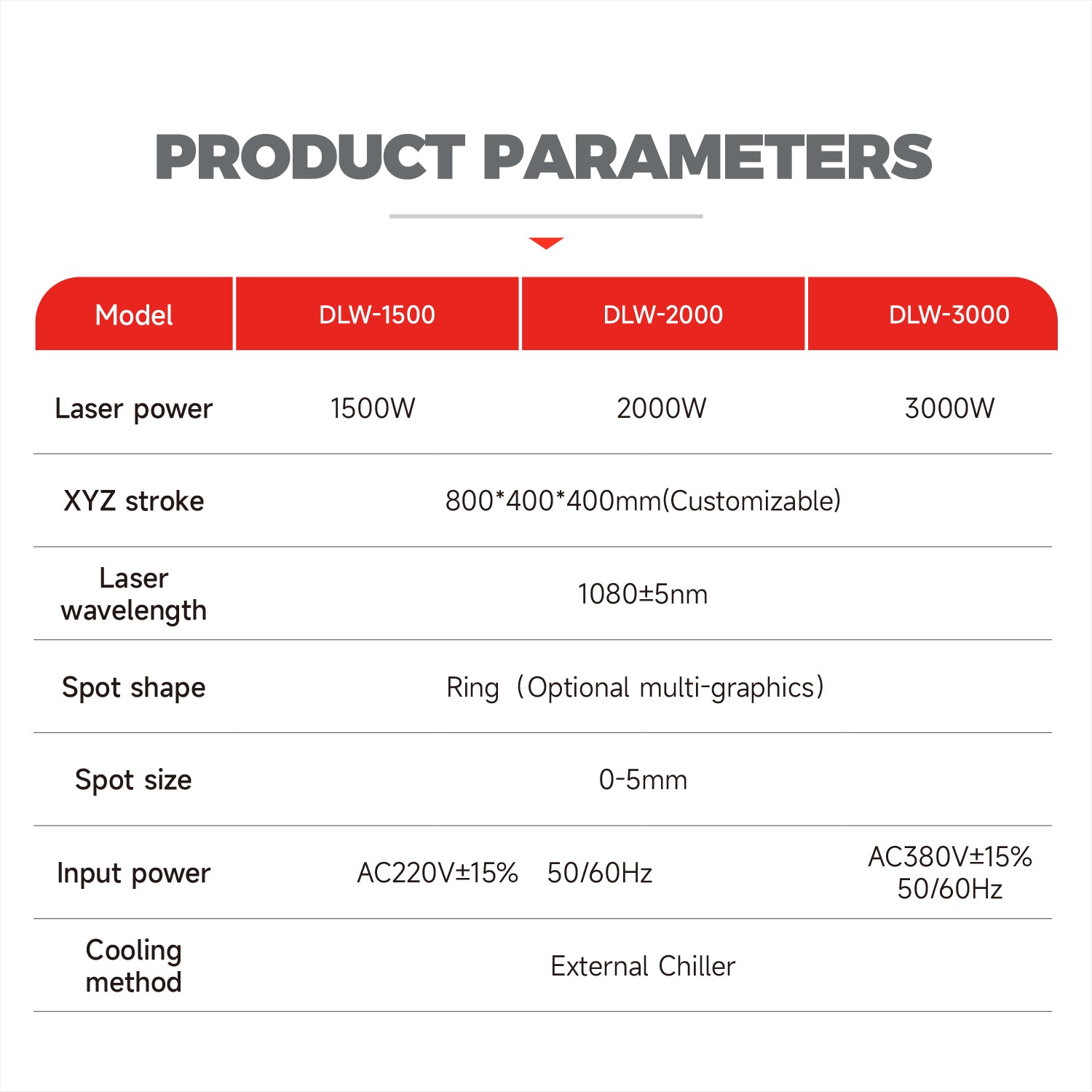

Product Parameters

  • Model:DLW-1000-VI, DLW-1500-VI, DLW-2000-VI, DLW-3000-VI
  • Laser Power:1000W, 1500W, 2000W, 3000W
  • XYZ Stroke:800*300*300mm(Customizable)
  • Laser Wavelength:1080±5nm
  • Spot Shape:Ring(Optional multi-graphics)
  • Spot Size:0-5mm
  • Input Power: AC220V±15% 50/60Hz  AC380V±15% 50/60Hz(3000W)
  • Cooling Method:External Chiller

Features and Advantages

  • Intelligent Design, fully automatic welding meet your various needs.
  • Beautiful weld seam, firm and fast. Less polishing and grinding, better work efficiency.
  • Maintenance free. Modular design for the whole machine, stable performance.
  • Easy to operate. Simple operation, low cost and low requirements for workers.
  • Wide application. Wide range of applications, high precision, fast
  • High power. High aspect ratio of the weld seam, small heat-affected area, small deformation, fast welding speed.
  • Long service life. Newly laser technology. The service life can reach more than tens of thousands of hours.

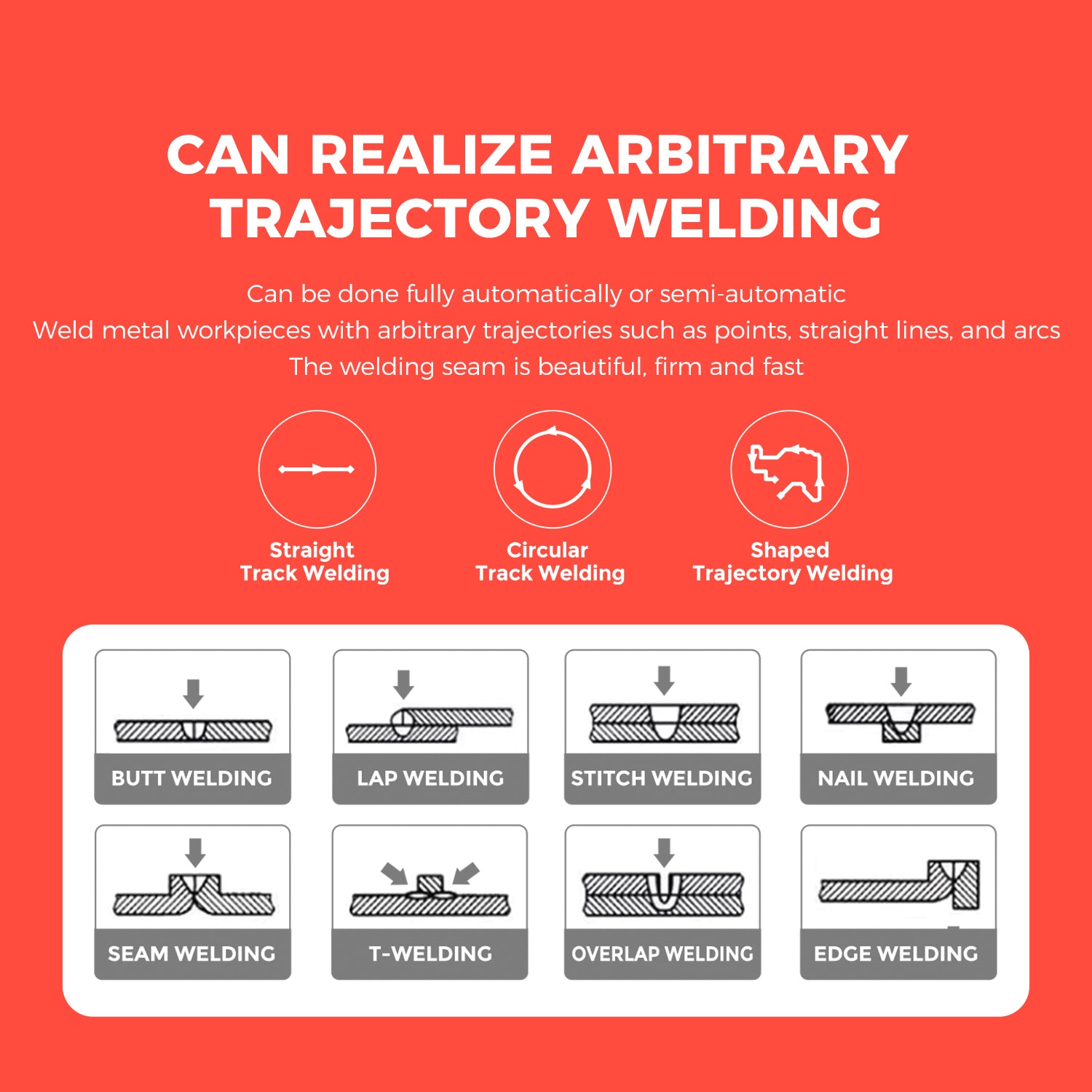

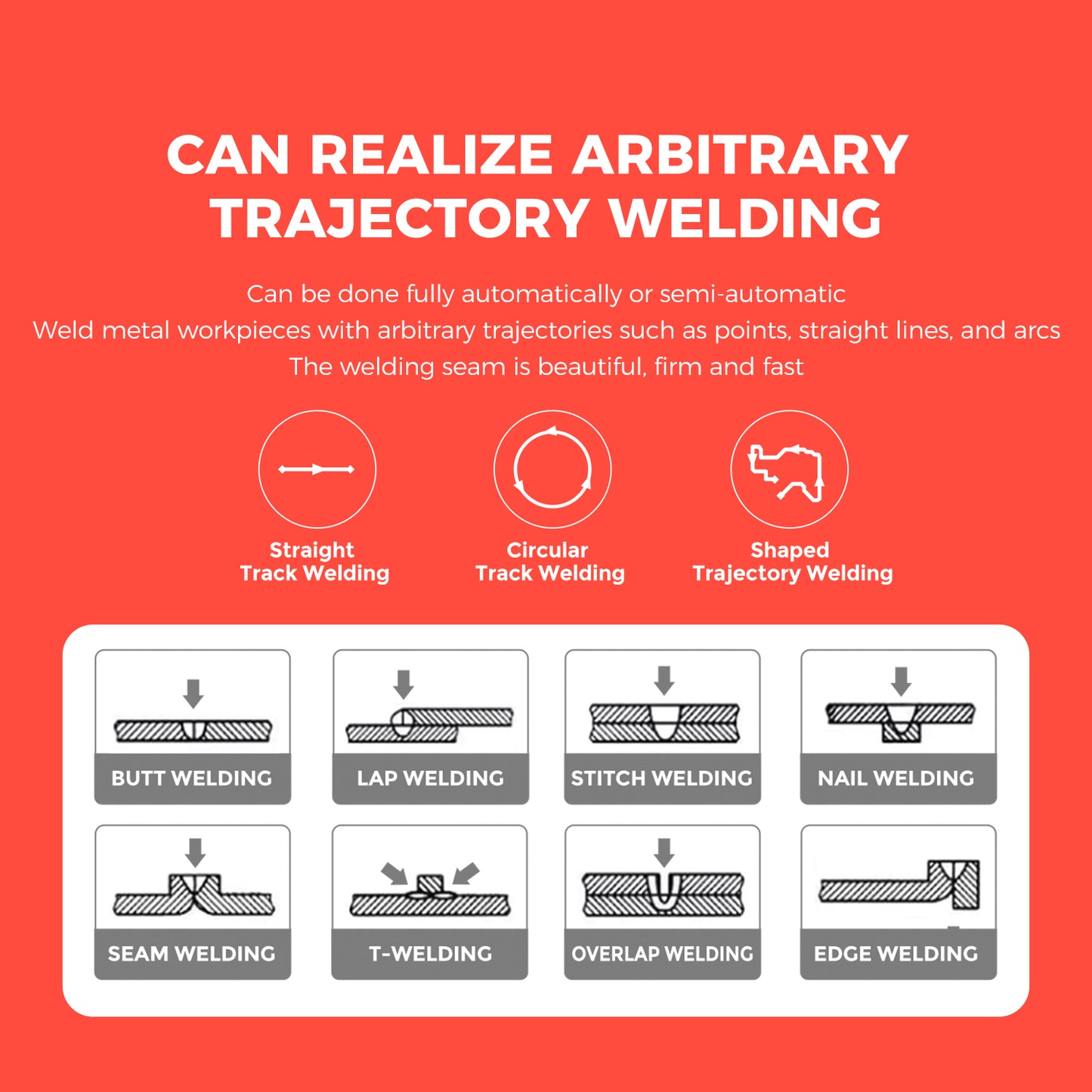

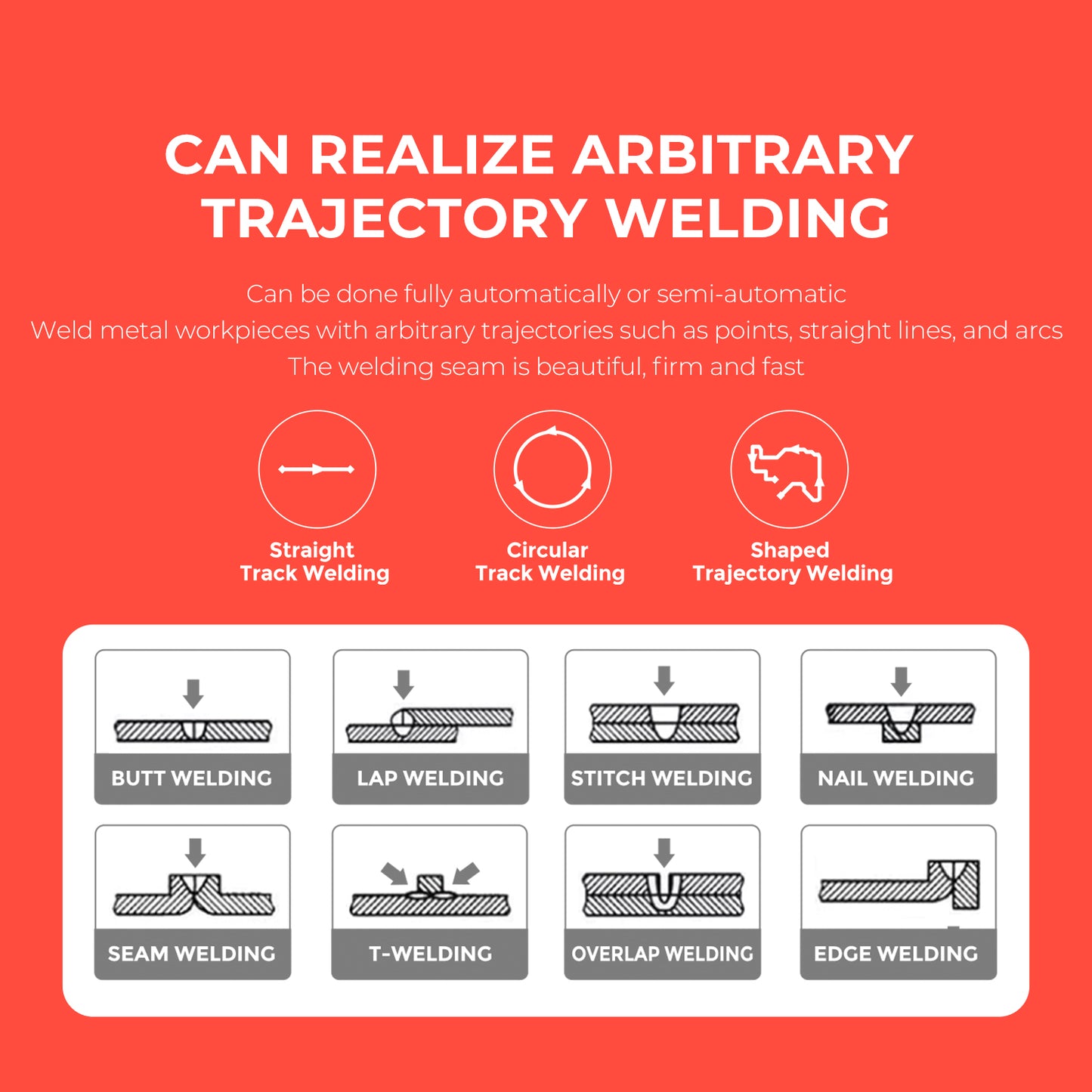

  • Can realize arbitrary trajectory welding, Can be done fully automatically or semi-automatic Weld metal workpieces with arbitrary trajectories such as points, straight lines, and arcs.

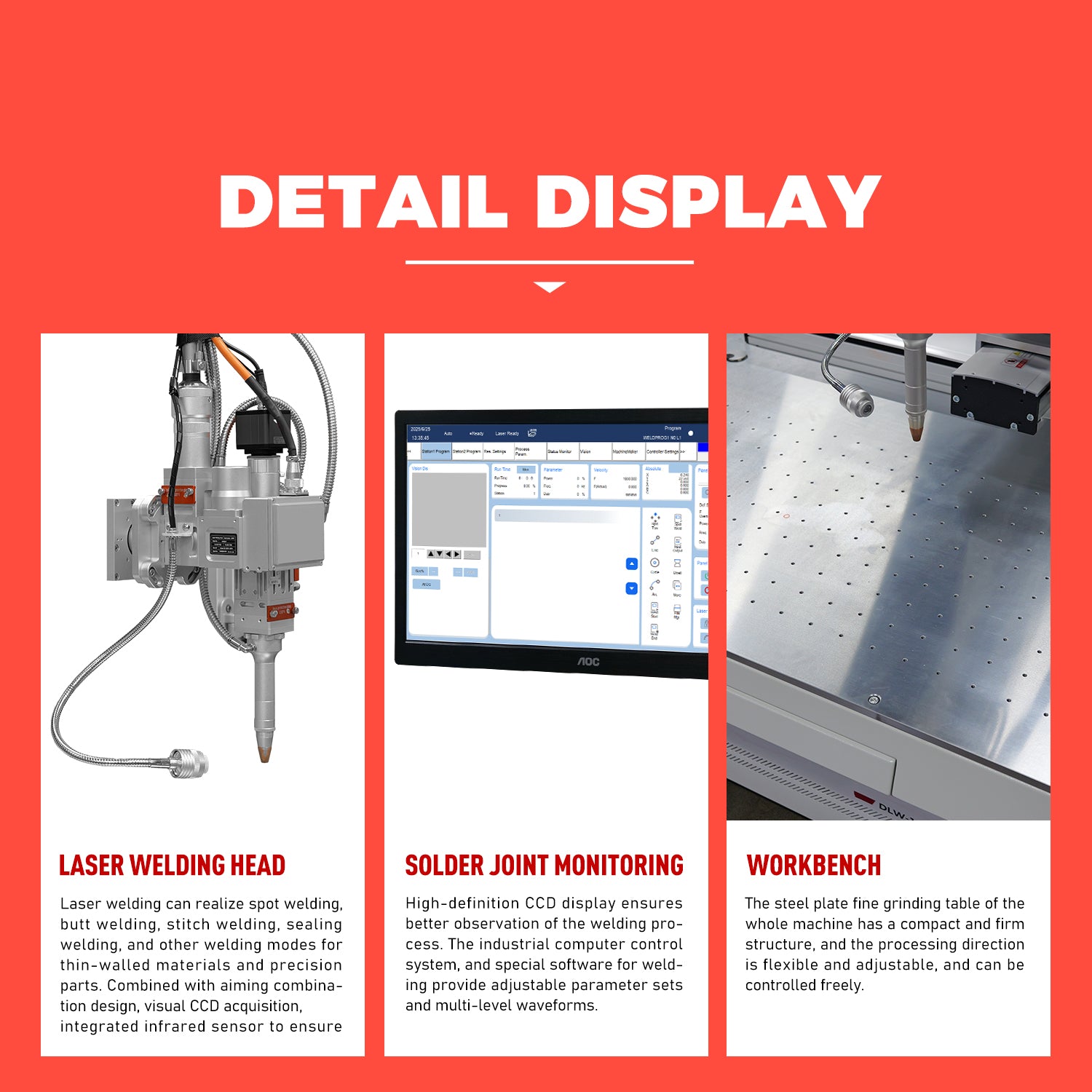

  • Laser welding can realize spot welding, butt welding, stitch welding, sealing welding, and other welding modes for thin-walled materials and precision parts. Combined with aiming combination design, visual CCD acquisition, integrated infrared sensor to ensure accurate positioning.

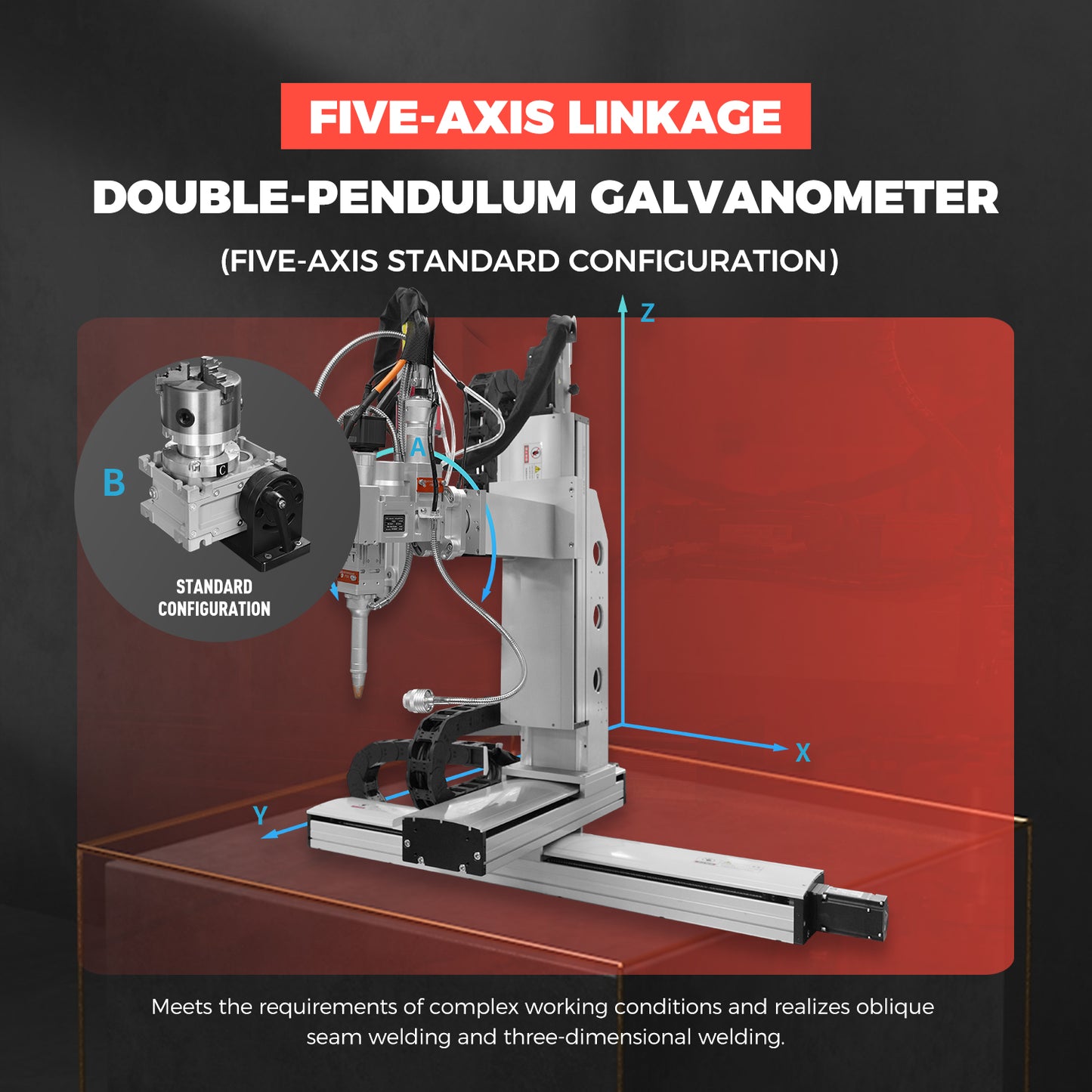

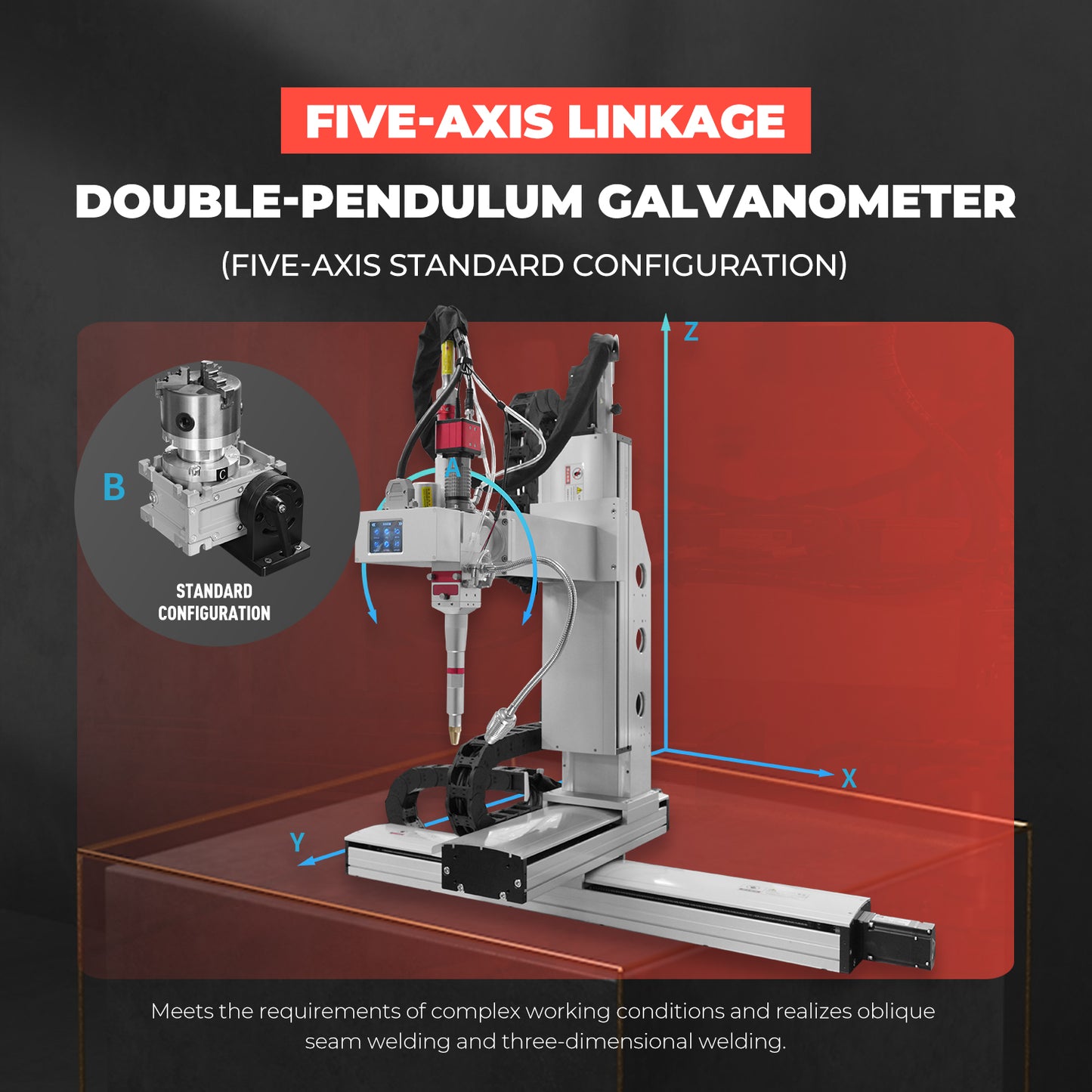

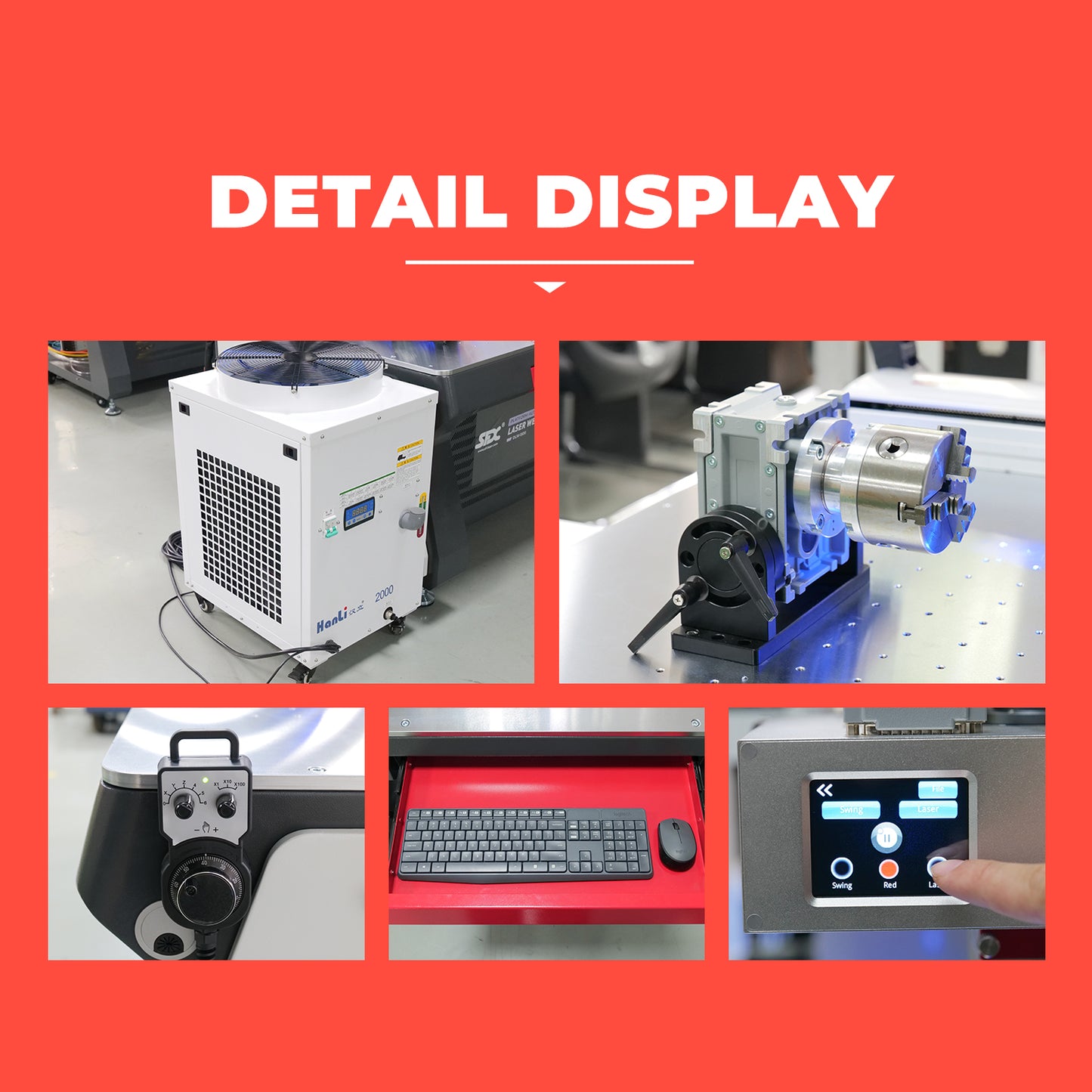

  • Multi-Axis Servo Welding Table. High positioning accuracy, sensitive response, shockproof design, no need to move the product manually, automatic movement for welding.
  • Solder Joint Monitoring. High-definition CCD display ensures better observation of the welding process. The industrial computer control system, and special software for welding provide adjustable parameter sets and multi-level waveform.
  • Workbench. The steel plate fine grinding table of the whole machine has a compact and firm structure, and the processing direction is flexible and adjustable, and can be controlled freely.

Application

  • Applicable Materials: Stainless steel, die steel, nickel, zinc, aluminum. Especially in thin plate welding has obvious advantages.
  • Applicable Field: Widely used in aerospace equipment, shipbuilding, instrumentation, mechanical and electrical products, automobile manufacturing and other industries.

Warranty

  • One year for the whole machine, two years warranty for the laser source.
  • We provide professional technical support. English user manual, operation video sending together with the machinery. During the warranty period, if the spare parts was sent back for repair, we will pay for the returning shipping cost and fees, repair them for free including the new parts that needed. (exclude wearing parts)
  • We have after-sales service centers located in NY, US; CA, US; and Canada.
  • We provide lifelong after-sales service and technical support.
