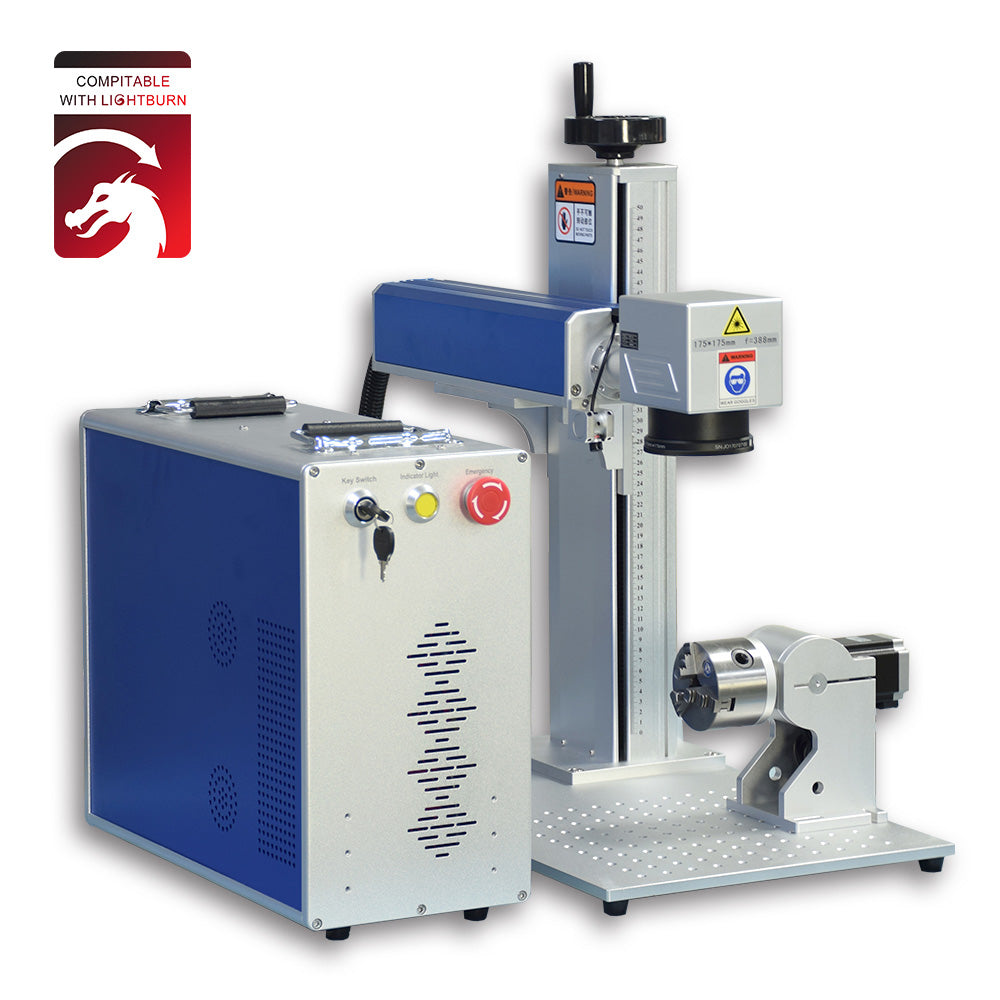

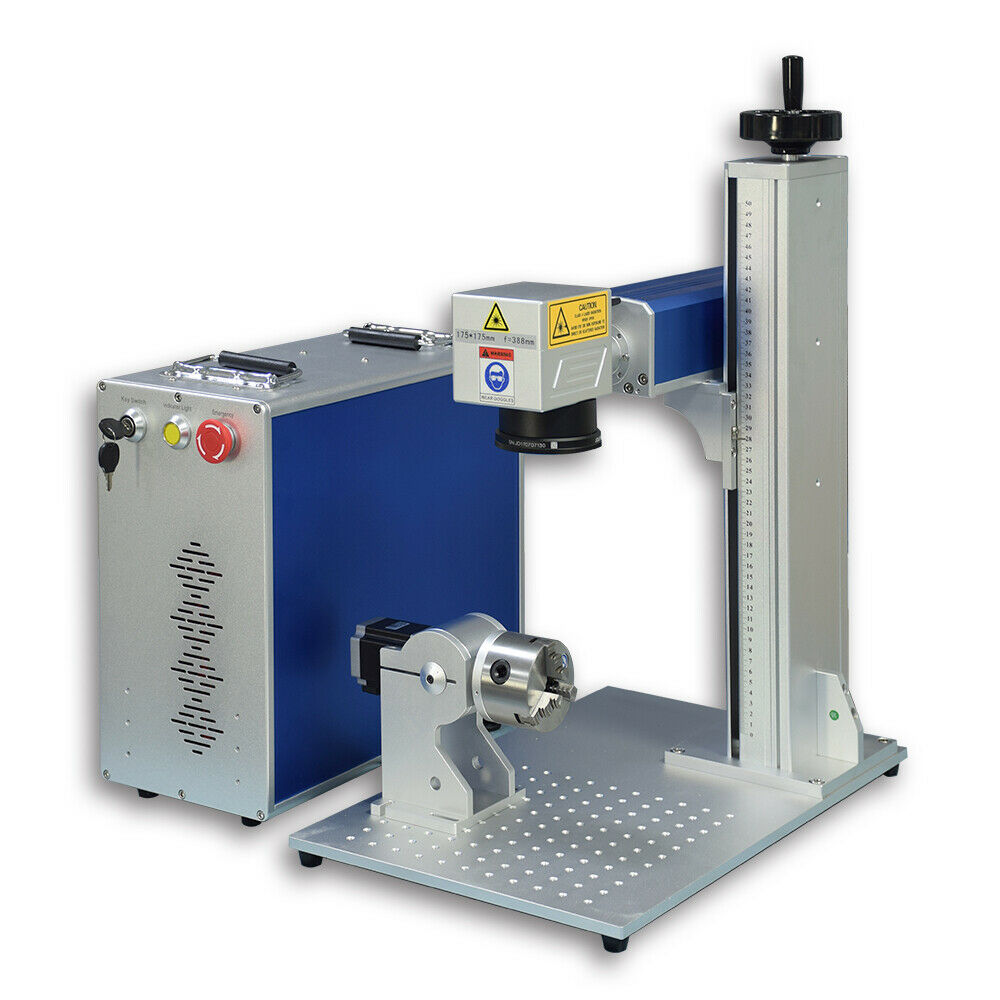

US Stock JPT 20W/30W/50W Fiber Laser Marking Machine Fiber Laser Engraver

US Stock JPT 20W/30W/50W Fiber Laser Marking Machine Fiber Laser Engraver

Regular price $4,379.00 USD
Regular price Sale price $4,379.00 USD
Sale Sold out
Tax included.
Laser Power
Rotary Axis

Shipping: FREE Shipping

Delivery: 5~7 days by Express.
Handling time: Will ship within 1~2 business days of receiving full payment.

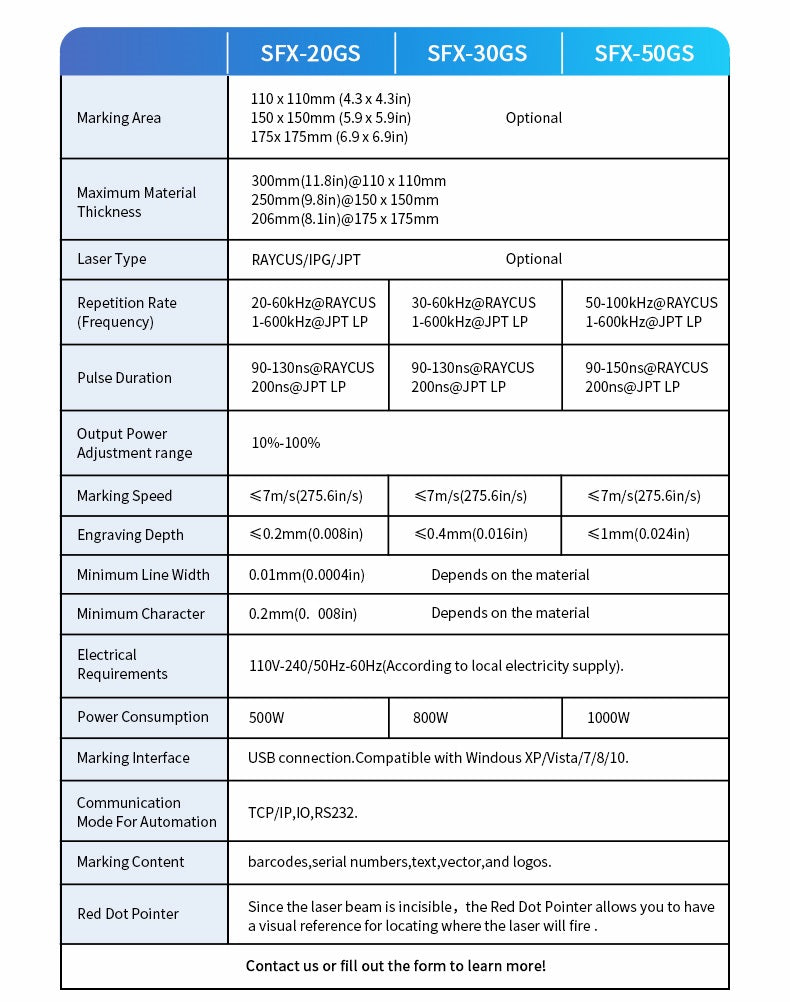

Technical Parameter

Model: SFX-20GS / SFX-30GS / SFX-50GS

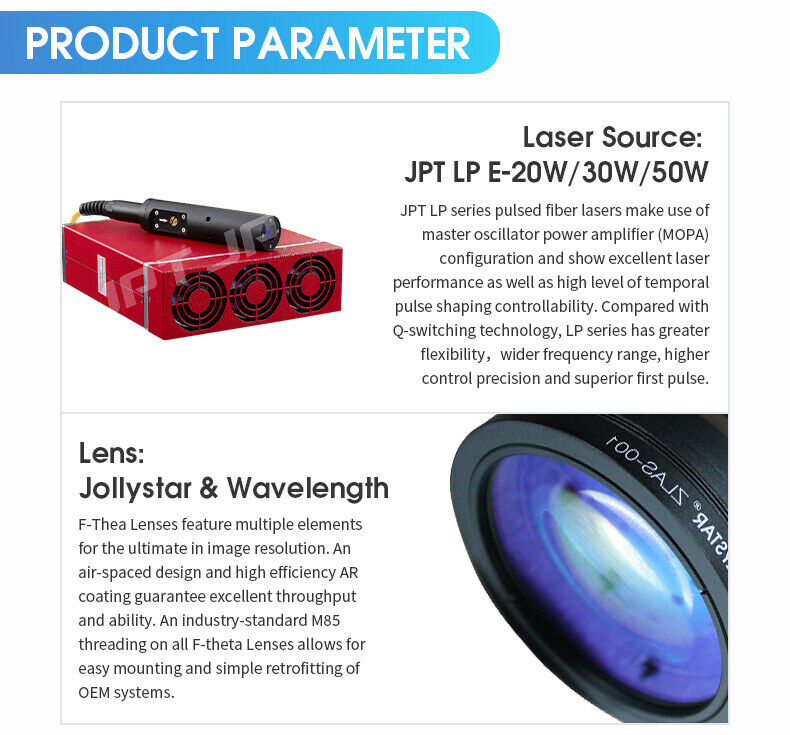

Laser Type: JPT LP+ Fiber Laser
Marking Area: 70*70mm/110*110mm/150*150mm
/175*175mm/220*220mm/300*300mm Optional

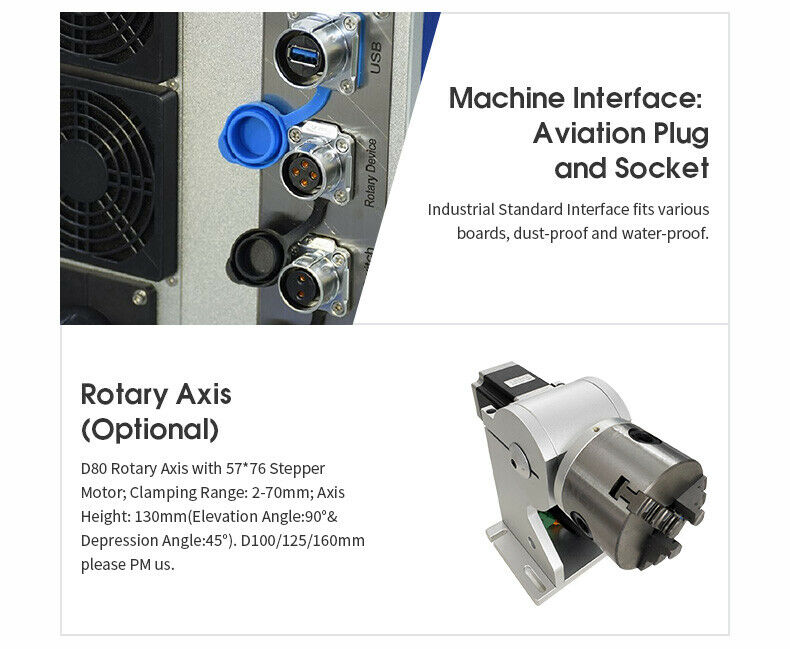

Rotary Axis: D69/D80/100/125mm Optional
Repetition Rate(Frequency): 1-600kHz
Pulse Duration: 200ns
Output Power Adjustment Range: 10%-100%
Marking Speed: ≤7m/s (275.6in/s)
Engraving Depth: 20W≤0.2mm(0.008in); 30W≤0.4mm(0.016in); 50W≤1mm (0.024in).
Minimum Line Width: 0.01mm (0.0004in) Depends on the material.
Minimum Character: 0.2mm (0.008in) Depends on the material.
Electrical Requirements: 110V-240V/50Hz-60Hz According to local electricity supply.
Power Consumption: 500W / 800W / 1000W
Marking Interface: USB connection. Compatible with Windows XP/Vista/7/8/10.
Communication Mode For Automation: TCP/IP, IO, RS232.
Marking Content: Bar code, serial numbers, text, vector and logos.

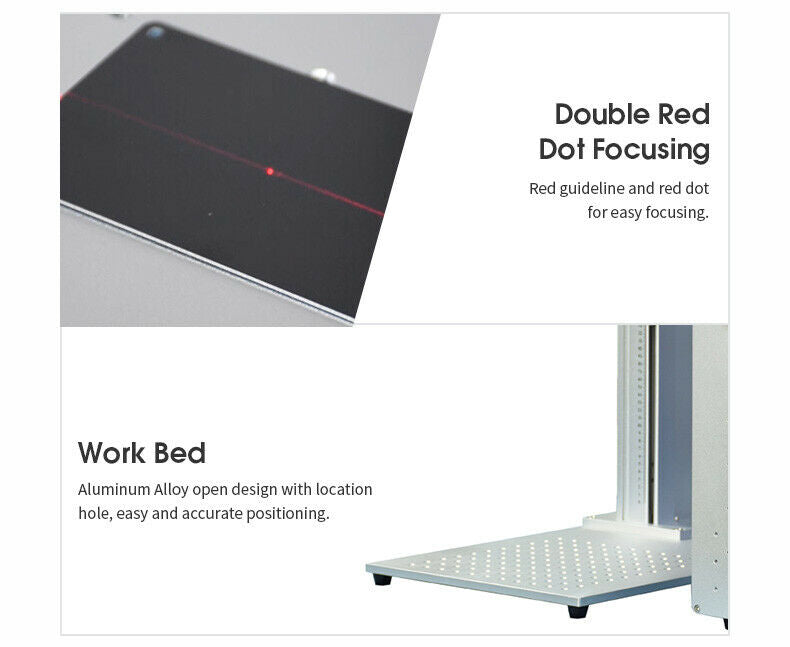

Red Dot pointer: Since the laser beam is invisible, the Red Dot Pointer allows you to have a visual reference for locating where the laser will fire.

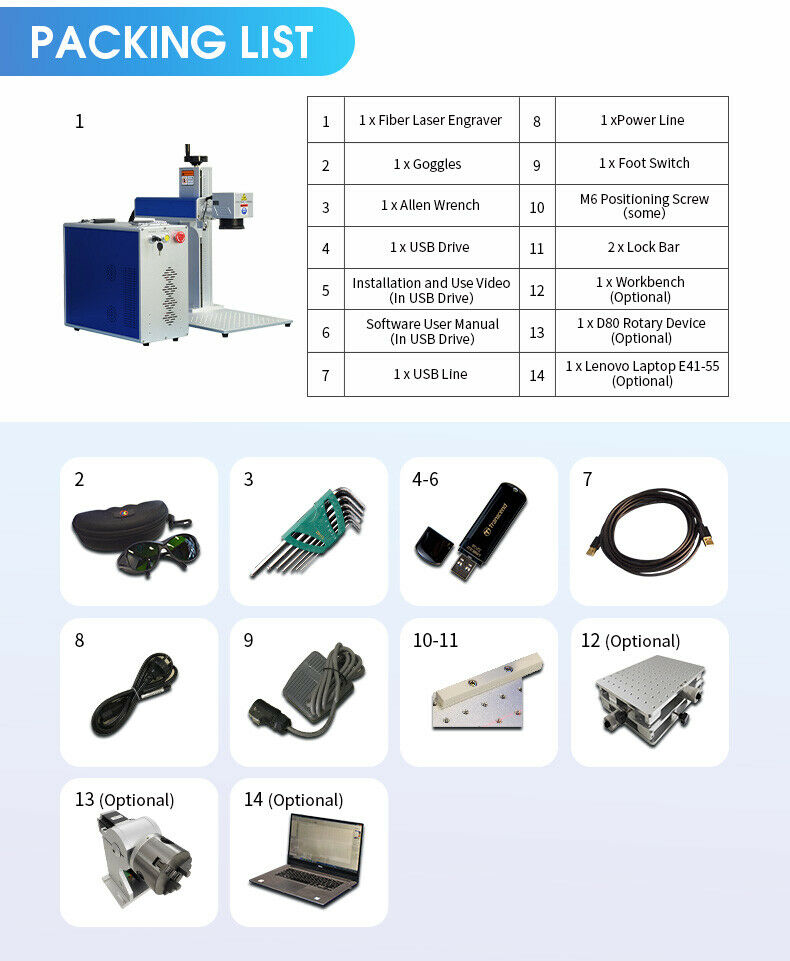

  • Two-Year warranty. We provide professional technical support. English user manual, operation video , software sending together with the machinery.
  • We have after-sale service center in NY, US. Offer remote assistance for any operational issues.
  • During the warranty period, if the spare parts was sent back for repair, we will pay for the returning shipping cost and fees, repair them for free including the new parts that needed. We provide lifelong after-sales service and technical support.
